Product SKU: CORNER-PRI50-P500-6xGTS-AluBloc
In Stock
Freight Delivery
Kit Price:
$9,149.00

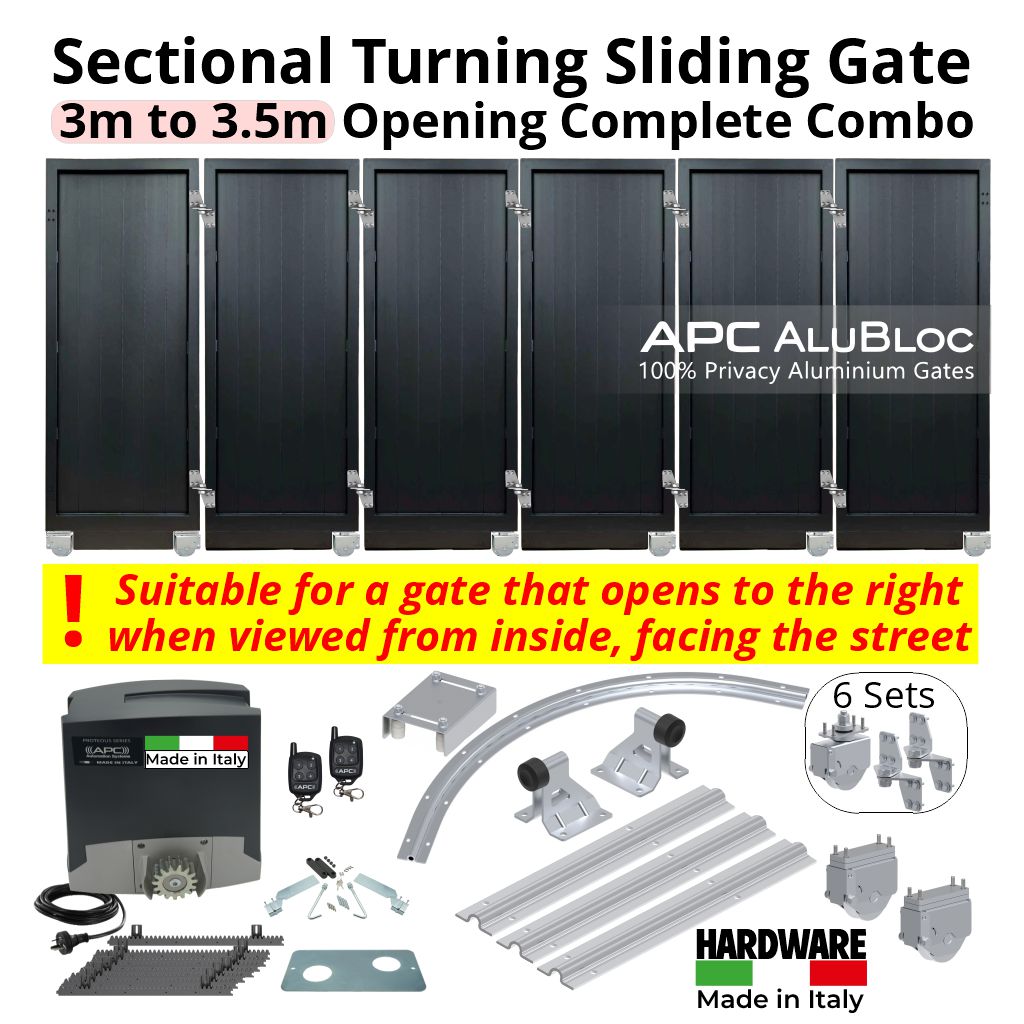

The Radius Corner Turning Sliding Gate System is designed to allow sliding gates to turn during operation, making it ideal for sites with limited straight-runback space. The system uses a combination of precision-ground tracks, corner rail sections, and articulated gate panels to ensure controlled movement along straight and curved paths.
This system is suitable for automated or manual operation and supports multi-panel gate configurations for wider openings.
Suitable for a gate that opens to the right when viewed from inside, facing the street
This Corner Turning Sliding Gate is configured for right-hand side opening only — meaning the sliding gate opens to the right when viewed from inside, facing the street. The hardware, track layout, and motor orientation are optimised for this direction to ensure smooth operation and reliable performance.
Please confirm your site orientation before ordering, as this Corner Turning Sliding Gate System cannot be reversed for left-hand operation without modification.
If you require a left-hand opening gate, please contact our sales team for a custom configuration.
sales@automotionplus.com.au - 1800 694 283
This gate package is supplied as a complete moving gate set, including:
However — the supporting posts are NOT included in this combo and must be supplied separately on site.
This allows flexibility so you can match the gate to your own fence style and site conditions.
Lead gate panel (drive panel)
Following gate panels (tracking panels)
Straight ground track
Radius Corner Turning Rail
Load-bearing wheels and guide rollers
Automation-compatible mounting points
Enables 90° directional change
Supports multiple linked gate panels
Optimised for automation
Designed for residential and light commercial access
Accurate track alignment is critical
The lead gate must always be motor-driven
The following gates must remain free-moving
The radius corner rail must be installed perfectly flush
The Lead Gate Panel is the primary structural and driving element of the corner turning system. This panel carries the automation load, motor drive force, and directional control through the corner section. It features a reinforced frame and solid vertical infill for privacy, strength, and wind resistance.
This panel is designed to initiate movement and guide subsequent panels along the rail path.
| Parameter | Dimension |
|---|---|
| Overall width | 700 mm |
| Clear internal width | 580 mm |
| Overall height | 1765 mm |
| Clear internal height | 1690 mm |
| Bottom rail height | 75 mm |
| Lower reinforced section | 120 mm |
Outer frame: 50 × 50 × 2.4 mm RHS
Lower reinforcement: 50 × 75 × 3.0 mm RHS
Infill slats: 20 × 100 × 1.2 mm vertical aluminium
Fully strong construction
Dual load-bearing wheels
Designed to manage motor torque
Optimised for corner transition stability
Must be installed first
Gate motor rack mount panel
Wheel height must be adjusted before motor installation
Manual testing is required before automation
Automated corner turning systems
Solid infill applications
High-load drive panels
The following Gate Panels are secondary panels designed to extend the overall gate width while tracking precisely behind the lead gate. These panels do not carry motor load and are engineered to move freely through both straight and corner sections without resistance.
The solid infill design ensures visual consistency with the lead gate while keeping the overall system load balanced.
Outer frame: 50 × 50 × 2.4 mm RHS
Lower reinforcement: 50 × 75 × 3.0 mm RHS
Infill slats: 20 × 100 × 1.2 mm vertical aluminium
Welded perimeter frame
Panel height and width match lead gate for uniform appearance.
Single tracking wheel per panel
Reduced rolling resistance
Designed to follow the lead gate trajectory
Installed sequentially after the lead gate
Motor rack fitted
Wheel alignment must match the lead gate height
Panels must remain parallel at all times
Extend gate opening width
Maintain smooth movement through corners
Minimise strain on the automation system
| Feature | Lead Gate | Following Gates |
|---|---|---|
| Motor driven | Yes | Yes |
| Wheel count | 2 | 1 |
| Rack fitted | Yes | Yes |
| Load handling | High | High |
| Installation order | First | After the lead gate |
Sectional Sliding Gates, also known as Radius Corner Sliding Gates or Turning Sliding Gates, are an excellent choice for properties with limited side space. These gate systems, provide a space-saving solution while offering convenience, functionality, and aesthetic appeal. With their innovative design, these gates allow for easy operation and smooth sliding motion. They are not only practical but also add a touch of elegance to any property. Whether it's for residential or commercial use, Sectional Sliding Gates are a reliable and stylish option.
Sectional turning sliding gate kits are specially designed for space-saving (Gate-Panels Follow a Curve Around The Corner). If you need your gate to slide around a corner in a limited space, a turning corner sliding gate hardware set is just what you need.
Sectional turning sliding gates are made up of the primary main leaf and the following secondary gate panels that are hinged together and have pivoting wheels.
Corner sliding gate kits are complete packages that include all the necessary hardware and components to build a sliding gate with rounded corners. These kits include a specially designed rounded gate track, wheels, hinges, and other accessories for gates with turning corners while still offering the functionality of a sliding gate.
These Italian-made radius sectional turning sliding gate hardware are made from high-quality, heavily galvanized steel, making them strong and durable. They can withstand harsh weather conditions and are resistant to corrosion, ensuring a long lifespan.
Radius gate systems can be configured with a tight radius of 500mm or a larger radius of 1000mm for accommodating larger panels.
The 500mm radius in the tighter turn requires panels between 400mm and 750mm wide. Additionally, there should be a clearance of 900mm past the opening to allow the turn.
The panels should have a width ranging from 400mm to 1500mm and extend 1400mm beyond the opening to accommodate the turn, considering the 1000mm radius.
Italian-made high-quality, heavily galvanized steel sliding gate wheels for radius corner turning sectional sliding gate.
Italian-made radius sectional turning sliding gate hardware upper guide plate with four rollers is made from high-quality, heavily galvanized steel.
| A | B | C | D | H | Roller |
|---|---|---|---|---|---|
| 50-160 | 0-110 | 300 | 210 | 82 | 4 guide rollers |
Italian-made gate stopper with rubber bumper used for radius sectional turning sliding gate opening and closing position. Produced with high-quality, heavily galvanized steel.
| C | D | E | L | H | M | d |
|---|---|---|---|---|---|---|
| 46 | 48 | 135 | 110x110 | 125 | 85x85 | 11 |
Italian-made, high-quality, heavily galvanised steel hinge for the secondary gate leaves of the sectional sliding gate system.
Italian-made high-quality, heavily galvanized steel sliding gate rotating wheels for radius corner turning sectional sliding gate systems secondary gate leaves.
This 2m gate track is heavy-duty and 3mm thick. It is ideally suited to 16mm "U" groove gate wheels.

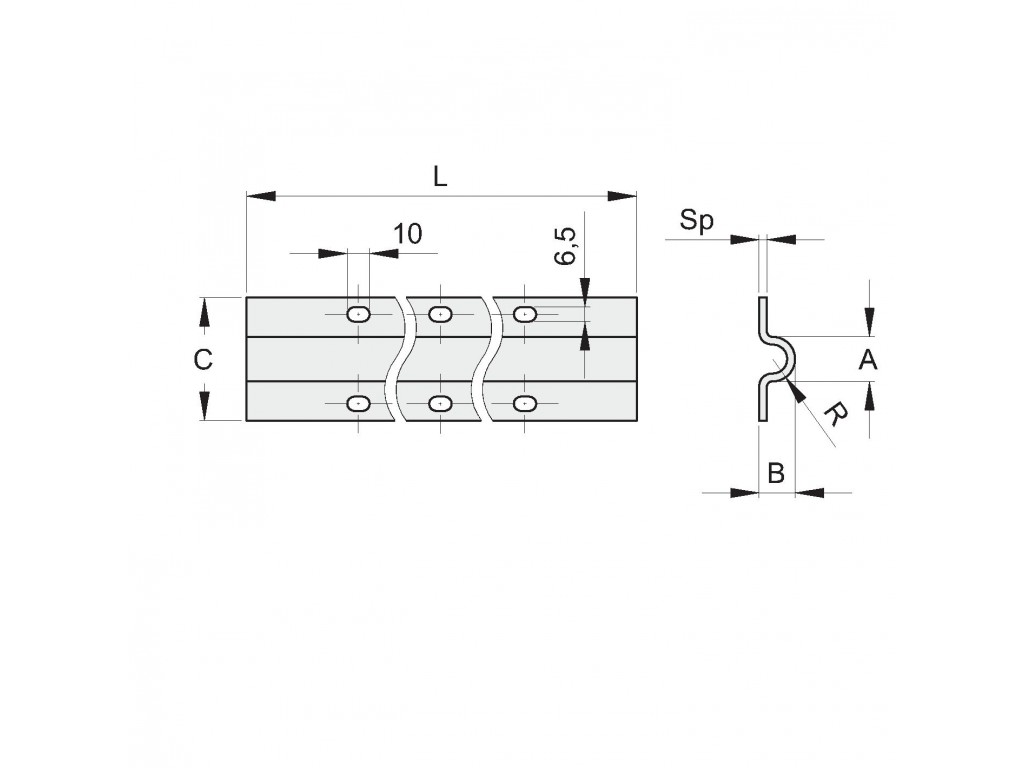

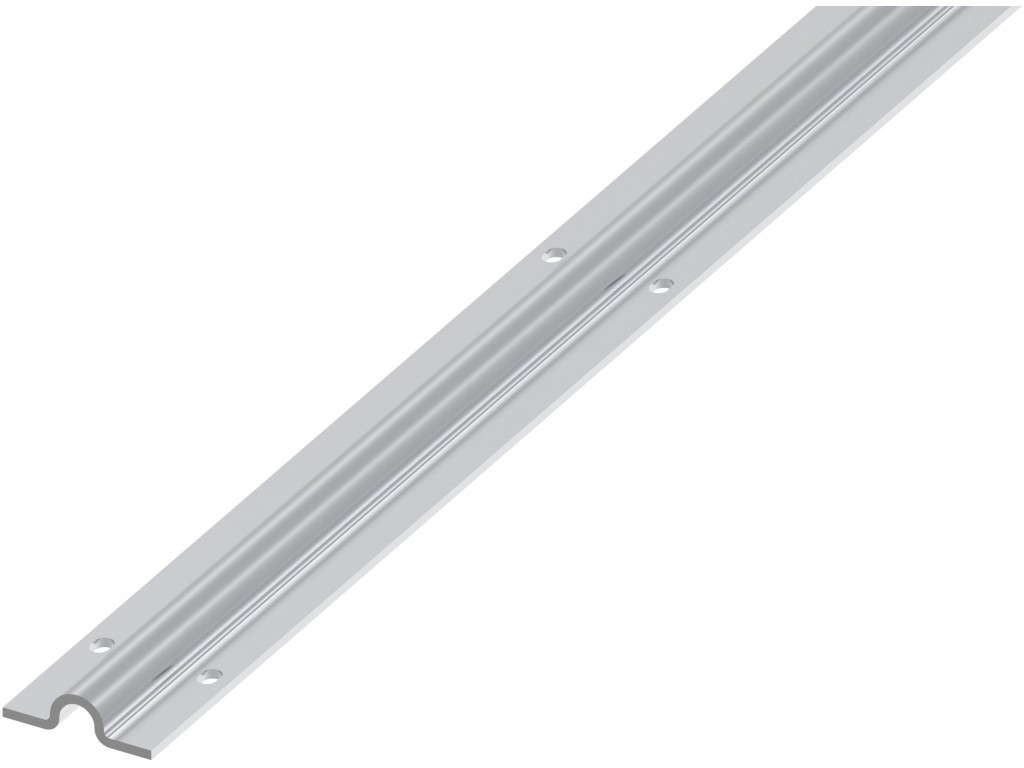

Bolt down 16mm "U" Profile Ground Track Rail 3000mm long Galvanised Steel
| A(mm) | B(mm) | C(mm) | R(mm) | Sp(mm) | L(m) |
|---|---|---|---|---|---|
| 16 | 16 | 53 | 8 | 3 | 3 |
The Corner-Turning sectional sliding gate is a type of gate that is specifically designed to allow vehicles to make a turn at corners while still being secured by the gate. It consists of multiple gate panel sections that can slide horizontally along a track, allowing the gate to turn a corner with the special sliding gate corner track, rotating wheels and hinges system.
A Corner-turning sectional sliding gate is a type of gate that is commonly used in industrial and commercial settings. It is designed to maximize space utilization and provide efficient access control.
This type of gate consists of multiple sections or panels connected by hinges. When the gate is closed, the panels are aligned in a straight line, forming a solid barrier. However, the panels can be folded in a corner-turning motion when the gate needs to be opened.
The corner-turning motion is achieved through special design tracks, wheels, and hinges. The gate panels are mounted on rollers/wheels that glide along a track system. As the gate is opened, the panels are guided along the track and folded in a corner, allowing maximum clearance and space efficiency.
Corner-turning sectional sliding gates are often automated, using motors and control systems to open and close the gate. This automation allows for convenient operation and enhances security by integrating with access control systems.
Overall, the corner-turning sectional sliding gate is a versatile and space-saving solution for industrial and commercial applications, providing efficient access control while optimizing space utilization.
Corner-turning sectional sliding gate kits offer several advantages over traditional gate systems. Here are some of the key benefits:
Corner-turning sectional sliding gate kits are designed to provide smooth and effortless operation. Precision bearings and rollers ensure the gate moves smoothly along the track, reducing friction and making it easier to open and close.
Unlike swing gates that require a large area to open, sliding gates move parallel to the fence or wall they are installed on. This means you can make the most of your available space, even in areas with limited room for gate opening.
Turning sectional sliding gates provides enhanced security for your property. They are difficult to force open, making it more challenging for intruders to gain unauthorized access. Additionally, radius corner sliding gate kits often come with advanced locking mechanisms, further enhancing security.
These Italian-made corner-turning sectional sliding gate hardware are made from high-quality, heavily galvanized steel, making them strong and durable. They can withstand harsh weather conditions and are resistant to corrosion, ensuring a long lifespan.
Corner sliding gate hardware kits offer your property a sleek and modern look. They come in various designs and finishes, allowing you to choose one that complements your architectural style.
Radius Corner Sliding Gate Kits come with detailed installation instructions and pre-drilled components, making them relatively easy to install. This can save you time and money compared to more complex gate systems.
Provide convenience, security, durability, and an aesthetically pleasing solution for your property's entrance. Sectional turning sliding gate hardware kits (Gate-Panels Around The Corner Design) are made in Italy with high-quality, heavily galvanized steel.
Are you seeking the ideal gate automation system to meet your driveway, combining the latest in security and convenience?
The APC Proteous 500 automatic sliding gate opener is the perfect solution for effortless entry and secure automatic driveway gates.
The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth
Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Are you looking to upgrade the access to your property's driveway gate with the latest in security and convenience of gate automation systems?
The APC Proteous 500 automatic sliding gate opener is the perfect solution for effortless entry and secure automatic driveway gates.
The Proteous 500kg Sliding Gate Motor features a modern programmable LCD display and optimised adjustable speed functions. This heavy-duty gate motor supports gates up to 10 meters in width and a 500kg weight capacity. It also features an optional plug-in battery backup to ensure uninterrupted operation during power outages. Ideal for commercial and residential use, the APC Proteous automatic sliding gate motor is a reliable choice for your driveway automatic gate opener system. With rich accessory options, such as remote controls, wireless keypads, and push-button switches, Wi-Fi switches with smartphone App control allow you to tailor your gate access and security.
Whether you're looking for a remote control gate opener, a solar-powered sliding gate opener for eco-friendly use, or a smart gate opener with app integration, there's a gate automation system tailored to your needs. Automotion Plus offers Australia-wide the best solutions for the widest range of sliding gate openers, prioritising durability, ease of installation, and local support. This includes options such as DIY gate opener kits and secure-smart gate opener access control solutions. From APC electric gate openers to heavy-duty sliding gate motors, there's a wide selection designed to secure your home or business with style and reliability.
Constant DC Accessories Output
Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)

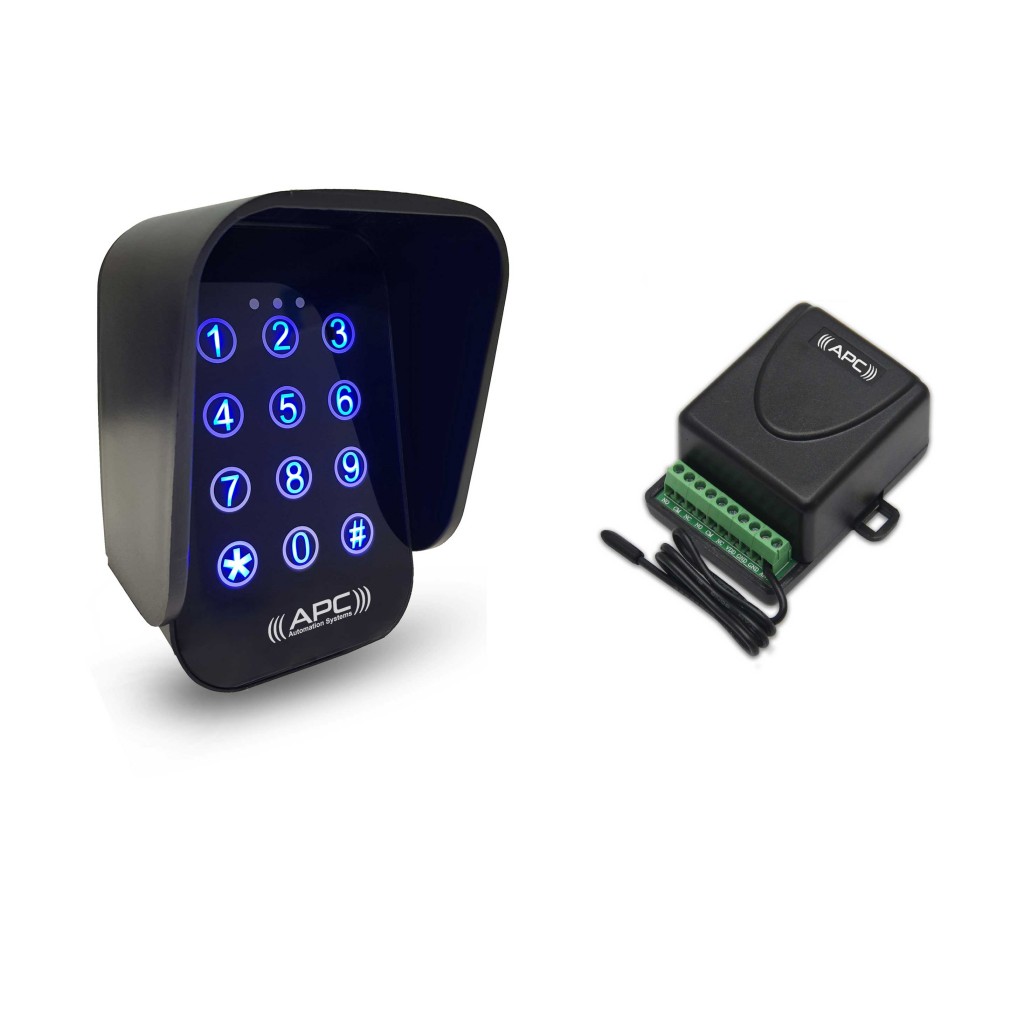

Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
| Transformer | 24V AC |
| Rectification | In Housing Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 300 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 500 KG |
| Speed | 28 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 90% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 34V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
Heavy-duty Italian 24V sliding gate opener for gates up to 500kg. Feature-rich with an encoder system, programmable LCD, advanced safety, and energy-efficient.
The APC Proteous 500 is a heavy-duty Italian-made sliding gate opener designed for gates up to 500 kg and 10 m in length. Built with a high-duty 24 V DC motor, it combines reliable performance, energy efficiency, and advanced safety features, including an encoder system for precise obstacle detection.
Featuring a programmable LCD interface, the Proteous 500 allows installers to easily configure speed, acceleration, deceleration, and safety parameters, making it perfect for residential and light commercial use. It comes complete with two rolling-code remote controls and is compatible with keypads, induction loops, timers, and smart modules.
Its low standby consumption (~5 mA) ensures minimal energy usage, while robust construction and IP44 protection guarantee long-term durability in Australian conditions. This gate opener is ideal for homeowners, strata complexes, and installers seeking a fast, smooth, and safe sliding gate solution.
Heavy-Duty Performance: Handles gates up to 500 kg and 10 m long — ideal for residential and light commercial sites.
Smooth, Programmable Operation: Modern LCD interface and adjustable soft-start/soft-stop for smooth motion.
High Duty Cycle: Operates for up to 54 minutes per hour, suitable for frequent use.
Advanced Safety: Encoder system and adjustable sensitivity enhance detection and reduce faults.
Energy Efficient: Ultra-low standby consumption (~5 mA).
Flexible Control Options: Works with remotes, keypads, induction loops, timers, Wi-Fi/APP or GSM modules.
Easy Install & Compact Design: Pre-wired with flexible mounting and compact depth for neat installations.
| Attribute | Details |
|---|---|
| Product Name | APC Proteous 500 Italian-Made Sliding Gate Motor (Feature-Rich with Encoder System) |
| Product Type | Heavy-Duty Automatic Sliding Gate Opener |
| Brand | APC (Italian Made) |
| Model | Proteous 500 / ML-P500-DC-S |
| Capacity | Up to 500 kg gate weight (½ tonne) |
| Max Gate Length | Up to 10 m wide sliding gates |
| Motor Voltage | 24 V DC (with 24 V AC transformer) |
| Max Operating Power | 300 W |
| Operating Speed | Approximately 28 cm/s |
| Duty Cycle | 90% (high duty system) |
| Control Interface | LCD programmable display for full configuration |
| Safety & Detection | Built-in encoder system, obstacle detection, safety sensor inputs |
| Remote Controls | Included 2 high-security rolling code remotes |
| Installation Voltage | Pre-wired for a 10 A power point or hardwired |
| Standby Power (Low) | Energy-saving mode ~5 mA standby |
| Accessory Compatibility | Keypads, induction loops, timers, APP/GSM modules |
| Environmental / Build | Solid alloy housing, 4-point tilt levelling |
| Operating Temp | -20 °C to +50 °C |
Handles Gates up to 500 kg: Heavy-duty capacity for residential and commercial gates
Feature-Rich Encoder System: Accurate obstacle detection and smooth operation
Programmable LCD Interface: Easy configuration for speed, acceleration, and safety
Energy-Efficient: Ultra-low standby power (~5 mA)
High Duty Cycle: Suitable for frequent operation
Flexible Control Options: Remotes, keypads, timers, induction loops, Wi-Fi/GSM modules
Easy & Compact Installation: Pre-wired with flexible mounting
Durable Construction: IP44-rated, robust alloy housing for Australian conditions
Q1: What is the maximum gate weight for the Proteous 500?
A1: Up to 500 kg with a maximum length of 10 m.
Q2: Does it include remote controls?
A2: Yes, two high-security rolling code remote controls are included.
Q3: Can it be used for commercial gates?
A3: Yes, it’s heavy-duty with a high duty cycle suitable for residential and light commercial applications.
Q4: What safety features does it have?
A4: Encoder system, obstacle detection, and safety sensor inputs.
Q5: Is it energy-efficient?
A5: Yes, standby consumption is extremely low (~5 mA), reducing ongoing energy costs.
An advanced gate automation system is the ideal solution for improving security, convenience, and access control for residential, commercial, and industrial properties. Automotion Plus offers premium gate opener kits Australian customers trust, designed to suit swing and sliding applications, including single and double swing gates and electric slide gate installations. Our range of automatic gate openers delivers smooth, reliable performance for driveways, factories, warehouses, and strata properties, allowing users to control their auto gate with remote controls, keypads, or smart access systems.
Whether you’re upgrading an existing automatic gate opener or installing new gate openers from scratch, Automotion Plus provides robust, weather-resistant solutions built for Australian conditions. Our gate opener kits Australia range includes high-quality motors, control boards, safety accessories, and mounting hardware for professional and DIY installations. From compact residential auto gate setups to heavy-duty electric slide gate systems for commercial sites, our automatic gate openers are engineered for long-term durability, safety compliance, and seamless everyday operation.
Have Questions?Talk to the Experts1800 694 283
Dispatched in: Within One
Business Day
Free Shipping
