Product SKU: CORNER-PRI50-P1000-9xGFR
In Stock
Freight Delivery
Kit Price:
$10,961.00
Important Notice: Suitable for a gate that opens to the right when viewed from inside, facing the street

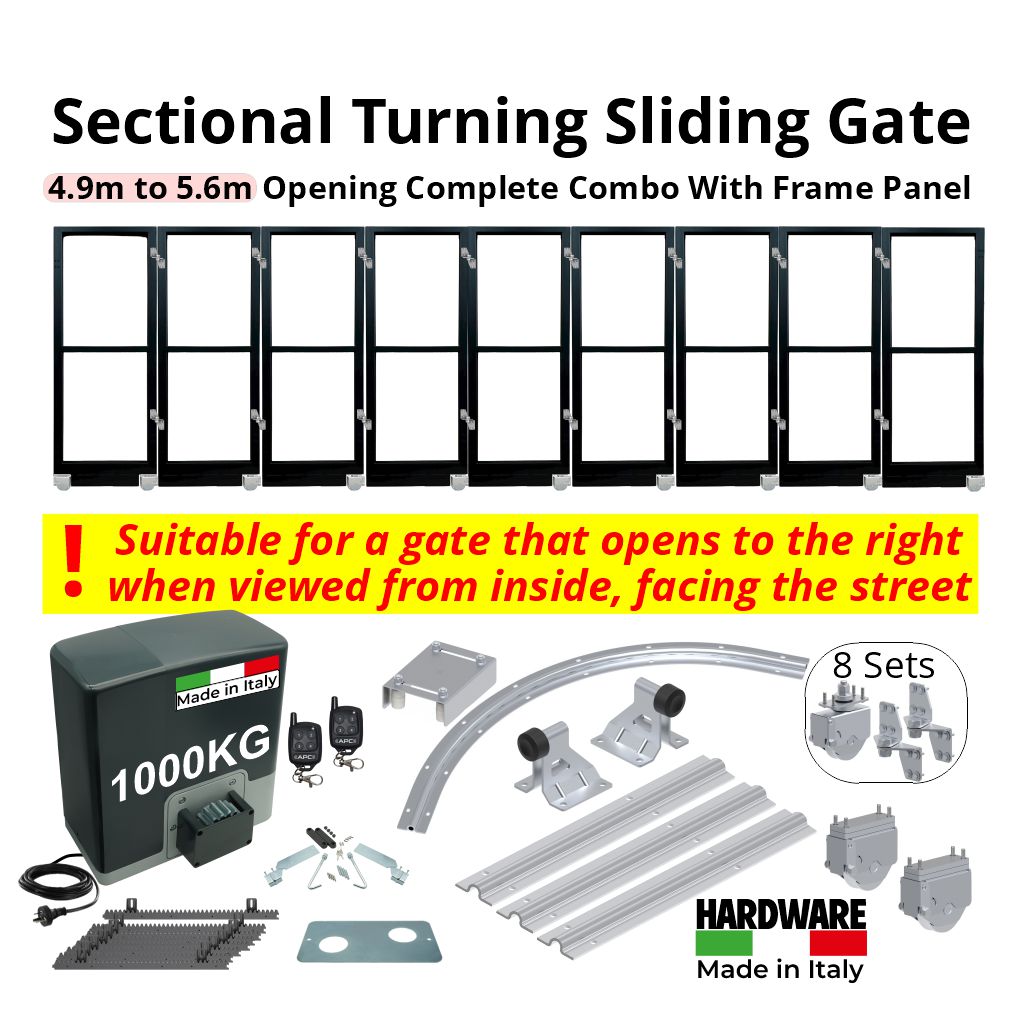

The Corner Turning Sliding Gate System is a space-saving access solution designed for sites where straight sliding gates are not possible. Ideal for residential, commercial, and light-industrial applications, this system allows the gate to smoothly turn around corners using precision-engineered rails, guide rollers, and gate frames.
Manufactured from high-strength steel and designed for automation compatibility, the system delivers reliable performance, clean aesthetics, and long-term durability. It is particularly suited to driveways, laneways, and properties with limited runback space, while maintaining full security and controlled access.
Suitable for a gate that opens to the right when viewed from inside, facing the street
This Corner Turning Sliding Gate is configured for right-hand side opening only — meaning the sliding gate opens to the right when viewed from inside, facing the street. The hardware, track layout, and motor orientation are optimised for this direction to ensure smooth operation and reliable performance.
Please confirm your site orientation before ordering, as this Corner Turning Sliding Gate System cannot be reversed for left-hand operation without modification.
If you require a left-hand opening gate, please contact our sales team for a custom configuration.
sales@automotionplus.com.au - 1800 694 283
This gate package is supplied as a complete moving gate set, including:
However — the supporting posts and cladding panels are NOT included in this combo and must be supplied separately on site.
The sliding gate roller guide system requires the top edge of the gate frame to be capped.
For sliding gates equipped with roller guides, the gate frame must be designed appropriately to match the chosen cladding material (such as timber, metal, or composite) and the top roller guide assembly. The cladding should be positioned and secured so that it does not obstruct or interfere with the smooth movement of the top guide rollers during gate operation.
This allows flexibility so you can match the gate to your own fence style and site conditions.
The Corner Turning Gate Frame is engineered as a modular structural solution that forms the backbone of the sliding gate system. Built from reinforced steel sections, the frame provides excellent rigidity while maintaining smooth movement through straight and corner sections of the track.
Each frame panel is precision-fabricated to ensure accurate alignment during installation and consistent operation over time. The design allows for infill customisation such as slats, mesh, or decorative panels, making it suitable for both functional and architectural gate designs.
Heavy-duty steel construction for long-term strength
Designed specifically for corner-turning track systems
Compatible with manual or automated gate setups
Modular configuration for flexible site layouts
The Lead Gate Panel is the primary moving section of the corner turning system and carries the majority of the operational load. Designed with a dual-wheel configuration, it ensures maximum stability, balance, and smooth travel through straight and curved rail sections.
This panel is designed to handle the gate motor's pulling force and provides consistent tracking during direction changes. Its reinforced lower section improves weight distribution, making it ideal for automated applications where reliability and precision are critical.
Dual wheel assembly for enhanced stability
Optimised for automation and motor drive forces
Reinforced frame for smooth corner transitions
Designed as the main driving gate panel
Following Gate Panels are designed to extend the total gate width while maintaining smooth movement behind the lead panel. Each panel uses a single-wheel configuration, allowing it to track seamlessly through the corner turning system without unnecessary weight or complexity.
These panels are engineered to remain perfectly aligned as they follow the lead gate through both straight and curved sections. Their lighter construction reduces strain on the system while still providing strong structural support for infill materials.
Key Features:
Single wheel design for efficient tracking
Seamless integration with the lead gate panel
Lightweight yet rigid steel construction
Ideal for multi-panel sliding gate systems
Residential driveways with limited run-back space
Commercial and industrial access points
Side-entry properties and laneways
Automated sliding gate installations requiring corner travel
Technical Datasheet & Installation Overview
The Corner Turning Sliding Gate System is a modular sliding gate solution designed to allow smooth gate movement through straight sections and around a 90-degree corner. The system is engineered for installations where runback space is limited and conventional straight sliding gates are unsuitable.
The system consists of a lead gate panel (2-wheel configuration) and one or more following gate panels (single-wheel configuration), all operating on a precision-aligned rail-and-roller system. It is compatible with manual operation or automated gate motors.
Galvanised steel or powder-coated steel
Designed for outdoor use and automation loads
Main outer frame: 60 × 40 × 2.0 mm RHS
Internal bracing sections: 40 × 40 × 1.7 mm RHS
Lower reinforced section: 80 × 40 × 1.7 mm RHS
Black powder-coated
| Description | Dimension |
|---|---|
| Overall frame width | 700 mm |
| Overall frame height | 1770 mm |
(Primary Drive Panel – 2 Wheel Design)
The Lead Gate Panel is the primary driving component of the corner-turning gate system. It carries the gate motor load and provides directional control through straight and curved track sections.
2 x heavy-duty load-bearing wheels
Designed for corner transition stability
Smooth rolling under the automation drive force
Supports motor pulling force
Maintains alignment through corner sections
Transfers movement to the following panels
Must be installed as the first moving panel
The gate motor rack should be mounted to this panel
Ensure wheel alignment is level before commissioning
(Secondary Panels – Single Wheel Design)
Following Gate Panels extend the total gate opening and track behind the lead panel. These panels are designed to move freely with minimal resistance while maintaining alignment through corner transitions.
1 x guide wheel per panel
Reduced rolling resistance
Designed to follow the lead panel path precisely
Extend gate width without adding drive load
Maintain consistent spacing and tracking
Reduce overall system strain
Installed sequentially after the lead gate
Motor rack required on the following panels
Wheel height must match the lead panel tracking
Compatible with sliding gate motors
Suitable for rack-and-pinion drive systems
Supports residential and commercial motors
Aluminium slats
Steel slats
Mesh panels
Composite or timber infill (weight-dependent)
Mount the lead gate panel first and confirm wheel alignment
Install the following panels sequentially
Confirm smooth manual movement before motor installation
Install motor, rack, and safety accessories
Perform final alignment and commissioning
Accurate rail alignment is critical for corner turning operation.
Restricted-space driveways
Side-entry and laneway access
Residential automation projects
Commercial and industrial sites
Sectional Sliding Gates, also known as Radius Corner Sliding Gates or Turning Sliding Gates, are an excellent choice for properties with limited side space. These gate systems, provide a space-saving solution while offering convenience, functionality, and aesthetic appeal. With their innovative design, these gates allow for easy operation and smooth sliding motion. They are not only practical but also add a touch of elegance to any property. Whether it's for residential or commercial use, Sectional Sliding Gates are a reliable and stylish option.
Sectional turning sliding gate kits are specially designed for space-saving (Gate-Panels Follow a Curve Around The Corner). If you need your gate to slide around a corner in a limited space, a turning corner sliding gate hardware set is just what you need.
Sectional turning sliding gates are made up of the primary main leaf and the following secondary gate panels that are hinged together and have pivoting wheels.
Corner sliding gate kits are complete packages that include all the necessary hardware and components to build a sliding gate with rounded corners. These kits include a specially designed rounded gate track, wheels, hinges, and other accessories for gates with turning corners while still offering the functionality of a sliding gate.
These Italian-made radius sectional turning sliding gate hardware are made from high-quality, heavily galvanized steel, making them strong and durable. They can withstand harsh weather conditions and are resistant to corrosion, ensuring a long lifespan.
Radius gate systems can be configured with a tight radius of 500mm or a larger radius of 1000mm for accommodating larger panels.
The 500mm radius in the tighter turn requires panels between 400mm and 750mm wide. Additionally, there should be a clearance of 900mm past the opening to allow the turn.
The panels should have a width ranging from 400mm to 1500mm and extend 1400mm beyond the opening to accommodate the turn, considering the 1000mm radius.
Italian-made high-quality, heavily galvanized steel sliding gate wheels for radius corner turning sectional sliding gate.
Italian-made radius sectional turning sliding gate hardware upper guide plate with four rollers is made from high-quality, heavily galvanized steel.
| A | B | C | D | H | Roller |
|---|---|---|---|---|---|
| 50-160 | 0-110 | 300 | 210 | 82 | 4 guide rollers |
Italian-made gate stopper with rubber bumper used for radius sectional turning sliding gate opening and closing position. Produced with high-quality, heavily galvanized steel.
| C | D | E | L | H | M | d |
|---|---|---|---|---|---|---|
| 46 | 48 | 135 | 110x110 | 125 | 85x85 | 11 |
Italian-made, high-quality, heavily galvanised steel hinge for the secondary gate leaves of the sectional sliding gate system.
Italian-made high-quality, heavily galvanized steel sliding gate rotating wheels for radius corner turning sectional sliding gate systems secondary gate leaves.
This 2m gate track is heavy-duty and 3mm thick. It is ideally suited to 16mm "U" groove gate wheels.
Bolt down 16mm "U" Profile Ground Track Rail 3000mm long Galvanised Steel
| A(mm) | B(mm) | C(mm) | R(mm) | Sp(mm) | L(m) |
|---|---|---|---|---|---|
| 16 | 16 | 53 | 8 | 3 | 3 |
The Corner-Turning sectional sliding gate is a type of gate that is specifically designed to allow vehicles to make a turn at corners while still being secured by the gate. It consists of multiple gate panel sections that can slide horizontally along a track, allowing the gate to turn a corner with the special sliding gate corner track, rotating wheels and hinges system.
A Corner-turning sectional sliding gate is a type of gate that is commonly used in industrial and commercial settings. It is designed to maximize space utilization and provide efficient access control.
This type of gate consists of multiple sections or panels connected by hinges. When the gate is closed, the panels are aligned in a straight line, forming a solid barrier. However, the panels can be folded in a corner-turning motion when the gate needs to be opened.
The corner-turning motion is achieved through special design tracks, wheels, and hinges. The gate panels are mounted on rollers/wheels that glide along a track system. As the gate is opened, the panels are guided along the track and folded in a corner, allowing maximum clearance and space efficiency.
Corner-turning sectional sliding gates are often automated, using motors and control systems to open and close the gate. This automation allows for convenient operation and enhances security by integrating with access control systems.
Overall, the corner-turning sectional sliding gate is a versatile and space-saving solution for industrial and commercial applications, providing efficient access control while optimizing space utilization.
Corner-turning sectional sliding gate kits offer several advantages over traditional gate systems. Here are some of the key benefits:
Corner-turning sectional sliding gate kits are designed to provide smooth and effortless operation. Precision bearings and rollers ensure the gate moves smoothly along the track, reducing friction and making it easier to open and close.
Unlike swing gates that require a large area to open, sliding gates move parallel to the fence or wall they are installed on. This means you can make the most of your available space, even in areas with limited room for gate opening.
Turning sectional sliding gates provides enhanced security for your property. They are difficult to force open, making it more challenging for intruders to gain unauthorized access. Additionally, radius corner sliding gate kits often come with advanced locking mechanisms, further enhancing security.
These Italian-made corner-turning sectional sliding gate hardware are made from high-quality, heavily galvanized steel, making them strong and durable. They can withstand harsh weather conditions and are resistant to corrosion, ensuring a long lifespan.
Corner sliding gate hardware kits offer your property a sleek and modern look. They come in various designs and finishes, allowing you to choose one that complements your architectural style.
Radius Corner Sliding Gate Kits come with detailed installation instructions and pre-drilled components, making them relatively easy to install. This can save you time and money compared to more complex gate systems.
Provide convenience, security, durability, and an aesthetically pleasing solution for your property's entrance. Sectional turning sliding gate hardware kits (Gate-Panels Around The Corner Design) are made in Italy with high-quality, heavily galvanized steel.
The Proteous 1000 SUPER DUTY system boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
60% Duty Cycle
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
1000KG Capacity (1 Tonne)
Ultra long 10 metre gate capacity
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Transformer | 24V AC |
| Rectification | In Housing Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 550 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 1000 KG |
| Speed | 26 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 60% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
