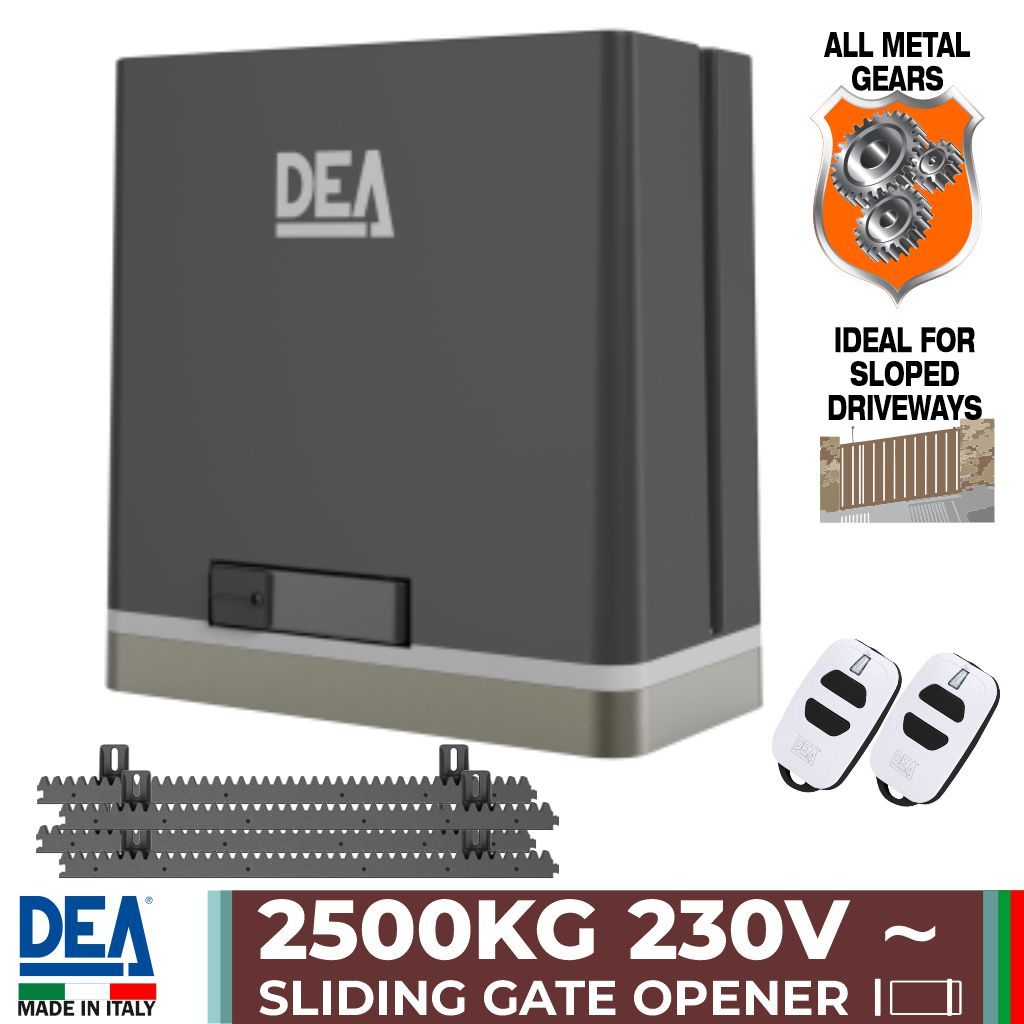

2500kg Super Duty Sliding Gate Automation 230V AC Motor with All-Metal Gear and Magnetic Limits, with 2 Remote Controls and Gear Racks| Italian Made by DEA, Strong Automatic Gate Opener System Ideal for Sloped Driveways.

GULLIVER/N/M DEA 2500kg 230v AC Sliding Gate Opener

Electric Gate Operator for Sliding Gates up to 2500 kg (230V). Sliding gate automation is designed to move very heavy industrial gates weighing up to 2500 kg.

Why the DEA 2500KG 230V Sliding Gate Opener is the best choice?

EXCELLENT MATERIALS
The  DEA 2500KG 230V GULLIVER/N sliding gate motor is robust because we use solid materials resistant to mechanical and time wear, such as metal gears and an aluminium base. A guarantee of quality that never lets you down.

2500 KG Sliding Gate Opener DEA-2500-230V DC, Super Duty Italian Made Sliding Gate Motor Overview

At a glance | The Sliding Gate Opener/Closer

The sliding gate opener DEA-2500-DC features a super-duty, all-metal gear that offers full programmability via the onboard control board with an LCD interface. It has a capacity of 10m and 2,500 kg, and is suitable for both residential and commercial use with simple setups. It is also ideal for using a sliding gate on sloped driveways. See the full details below.

Automatic Electric Gate Opener System Features

• 2500KG Capacity
• Suitable sliding gate on sloped driveways
• Super-duty all-metal gear is strong and durable for long-lasting use.
• 10m Ultra-long sliding gate capacity
• The release system is now protected for increased reliability.
• Additional protection is available with a control unit box and an easy-to-open system.
• LCD Display (No DIP Switches or Dials)
• New slotted fixing holes offer more significant adjustment during installation, ensuring backward compatibility.
• New ABS crankcase for better weather resistance.
• Increased degree of protection (IP55)
• Magnetic limit switch system.
• DEA-2500-DC Automatic Sliding Gate Motors are made from high-quality materials, including steel and bronze, ensuring long-term reliability.
• Self-locking with a magnetic limit switch
• Speed adjustment and slow down the sliding gate in opening and closing
• Anti-crashing safety device
• Self-locking
• Speed adjustment and slow down in opening and closing
• Motor control by encoder and obstacle detection
• For industrial-grade usage
• Operator with encoder technology and forced ventilation for intensive use
• Easy depth adjustment and compatibility even on old installations
• More speed and more control with a control board with integrated inverter technology.
• DIN rail for accessory mounting
• Front control board, with transparent cover and visible display, with a stand that can rotate up to 120°.
• Metal mechanics and steel and bronze gears for maximum performance and durability

Control Board Overview

• Universal control board for managing 1 or 2 motors in 230V.
• Up to 100 Remote Controls
• 433.92 MHz Receiver

• Display programming with three keys for menu navigation
• A wizard for learning the motor stroke
• List of parameters with direct access
• Encoder input for 1 or 2 operators
• Programmable inputs with input diagnostics visible on the display
• Built-in 433.92 MHz receiver
• Standard speed run and slowdown management
• Reset the control board to be able to reuse it with another automation
• Removable terminal blocks
• Programmable outputs for:
  • safety self-test
  • operation of the electric lock
  • monostable, bistable or timed
• Possibility to set the type of automation to have a specific list of parameters (sliding, swinging, tilting, sectional, barriers, bollards)

Remote Control Features

Dimensions | Italian Made DEA-2500-DC Electric Sliding Gate Motor

Specifications

The graphs below provide an overview of the operating cycle of DEA-2500-AC based on the weight of the moving gate and the set speed.

Wiring Example

DEA Standard 2-Channel Remote Control GTI2

DEA 2-Channel Remote Control, frequency 433.92 MHz.

With DEA remote controls, you can open and close the automation remotely, practically, quickly, and safely.

• All remote controls are set to Rolling code by default.
• The top button is already set to open; the others are deactivated but can be configured to give other commands to the operator or activate outputs from the control board itself.
• Remotes are available in 2 and 4-channel (button) versions.
• The colour of the LED identifies the type of transmission encoding set.

Technical Features

DEA remote control GTI2

Power supply: LITHIUM BATTERY CR2032
Transmission frequency (MHz): 433,92
Range (m): 50-200
Operating temperature range (°C): -20 to +50

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
