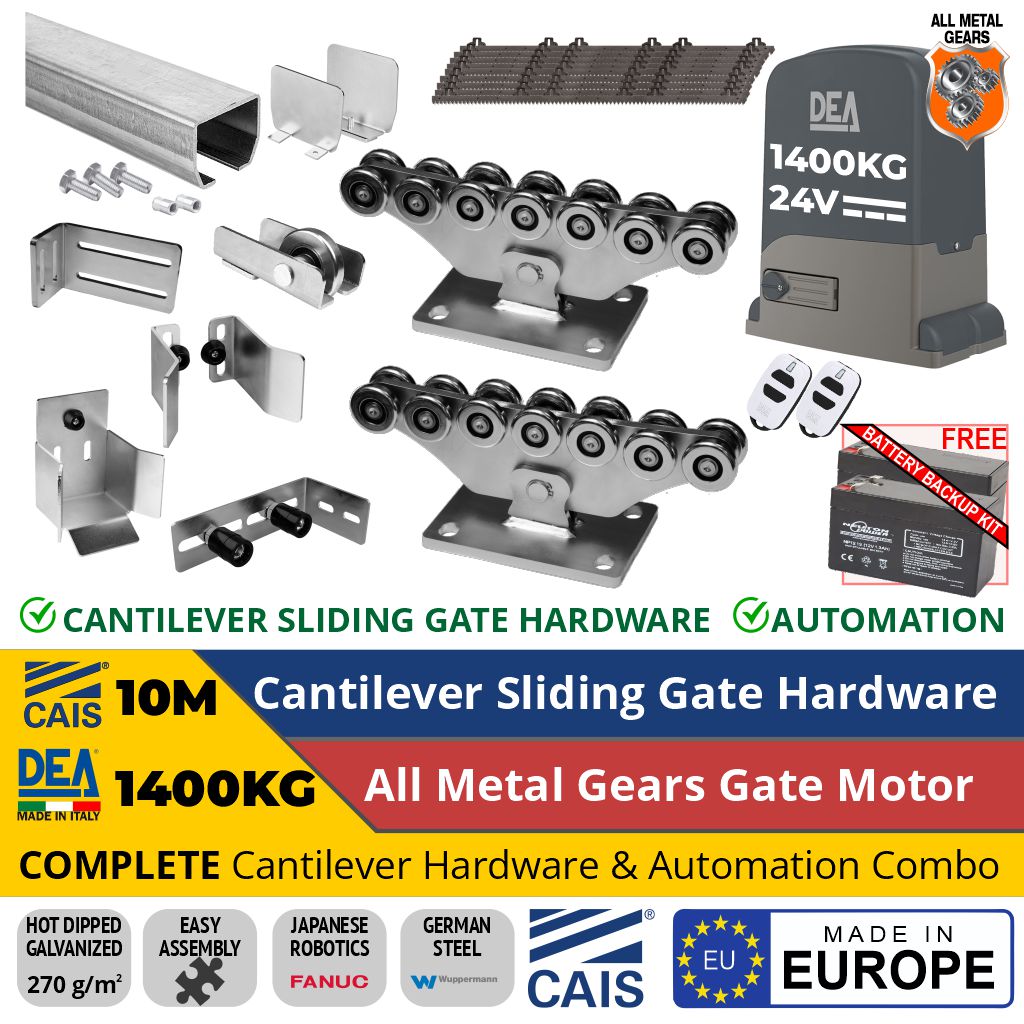

Product SKU: DEA-1400-E-BOX-10
In Stock
Freight Delivery
Kit Price:
$5,895.00
$8,320.00
The longer the item, the more your Client has to pay to send a long parcel. Posting the long parcels does not need to be a headache anymore. To find the cheapest way to send a long parcel CAIS has invented and patented "ALL IN ONE" the Compact Cantilever Sliding Gate Hardware. According to the most reputable couriers, anything longer than 3m is considered a Long Parcel Delivery, with extremely high courier rates. Therefore, CAIS "ALL IN ONE" Compact Cantilever Sliding Gate Hardware is the ideal solution for Cantilever Gates up to 10m, making parcel delivery easy and affordable.
CAIS must ensure that all the gate hardware your clients need to assemble the cantilever sliding gate is included.
See what the CAIS "ALL IN ONE" box includes in the item list above.
The cantilever gate is a unique type of sliding gate with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that help the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.
Generally, the space required to accommodate a sliding gate is the same as the width it covers, with a few extra feet for access. A 9.0 mt wide driveway would need 9.0 mt on one side for gate storage and about 0.3 mt to allow maneuverability around the gate frame. A cantilever gate needs to be about 35 percent wider than its span to counterbalance the weight of the suspension posts.
Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a more comprehensive range of terrain, including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in snowy or icy conditions.
The cantilever gate's smart appearance, efficient design, and craftsmanship will impress owners, visitors, and customers visiting the property.
The SPEED MAX 14 is a wheeled carriage designed for cantilever gates. It features 14 wheels for smooth operation and is a sturdy and reliable component for sliding gates.
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.
"C" Profile Guide For Cantilever Sliding Gate, 5mm Hot Deepped Thickness, Galvanized German Steel
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory
Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide
Two Roller overhead guide brackets and roller assemblies for Gates of up to 160mm wide.
40mm x 30mm Rollers & Bracket. Suitable as a guiding system for manual or automatic sliding gates. The bracket supplied can be mounted on walls, pillars, posts, and other supports to withstand the load.
Rollers: 67mm x 40mm Rollers
Bracket: L shape mounting bracket 260mm x 130mm.
The end wheel guides the gate onto the end cup and helps support the gate while it rests.
Cantilever Gate Hardware Medium Guide Support Wheel
The end cap was added to the gate to cap off the cantilevered track.
Cantilever Gate Hardware Medium End Cap
The end stop supports the gate when fully open and closed.
Cantilever Gate Hardware Medium End Stop
The end stop bracket supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware End Stop Bracket
Galvanized steel end stop for cantilever gate.
"PADDOCK SM" Provides vertical stability to a cantilever gate in the closed position.
Material Body - S 235 JR, Bolt M 5x8 - DIN 7985, Rubber - TPE SANTOPRENE
Surface finish ISO 19598 - Fe//Zn12//Cn//T2nL
Reliable, Track-Free Gate Systems for Australian Homes and Businesses
A cantilever sliding gate operates without a track on the ground. Instead, it uses cantilever sliding gate hardware, including rollers, brackets, and Cantilever Carriage Wheels that support the gate above the surface. This makes it ideal for Australian properties with gravel or non-concrete driveways. Cantilever sliding gates can handle uneven terrain. Whether its a gravel driveway, grassy area, or even waterlogged ground, cantilever gates remain functional
| Feature | Traditional Sliding Gate | Cantilever Sliding Gate |
|---|---|---|
| Operation | Moves along a ground track | Suspended; glides above ground |
| Surface Compatibility | Flat, level, concrete surface | Gravel, pavers, gradients, grass |
| Hardware | Track + bottom wheels, rollers and post brackets | Top-mounted rollers and post brackets, carriage wheels, channels |
| Weather Resistance | The track can clog with debris | Performs well in all weather |
| Installation | Requires ground excavation | Manageable installation |
Cantilever gates are widely used across Australia from suburban homes in Melbourne and Sydney to commercial sites in Brisbane, Perth, and Adelaide. Whether you're in a coastal region or rural setting, this hardware is designed to perform reliably under Australian conditions.
Selecting the right gate system is crucial for achieving long-term performance and maintaining property value. Cantilever sliding gate hardware is the preferred solution for Australians seeking a durable, stylish, and easy-to-install gate system that can handle Australias diverse terrains and weather.
Looking for premium cantilever gate hardware kits in Australia? Contact us today to learn more or request a quote.
The sliding gate opener DEA-1400 is a super-duty all-metal gear that has full programmability using the onboard control board with an LCD interface. It has a capacity of 10m and 1400 kg, and is suitable for residential and commercial usage with simple setups. It is also ideal for using a sliding gate on sloped driveways. See the full details below.
| Motor power supply (V) | 230 - 240 V ~ (50/60 Hz) |
| Motor power supply voltage (V) | 24 V |
| Maximum Power (W) | 250 |
| Max thrust (N) | 450 |
| Duty cycle (cycles/hours) for an 8m leaf length | 36 for gates up to 1000kg 31 for gates up to 1400kg |
| Leaf max weight (kg) | 1400 |
| Operating temperature (°C) | -20÷50 °C |
| Speed (m/min) | 12 |
| Standard pinion | Z=18 |
| Weight with packing (Kg) | 18 |
| Sound pressure (dBA) | < 70 |
| Protection level | IP44 |
Electric Sliding Gate Motor Made in Italy by DEA | Super Duty | 1400kg Capacity
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
