Product SKU: WMD-EMX-ULTRA-MVP-PR-LOOP-4x6

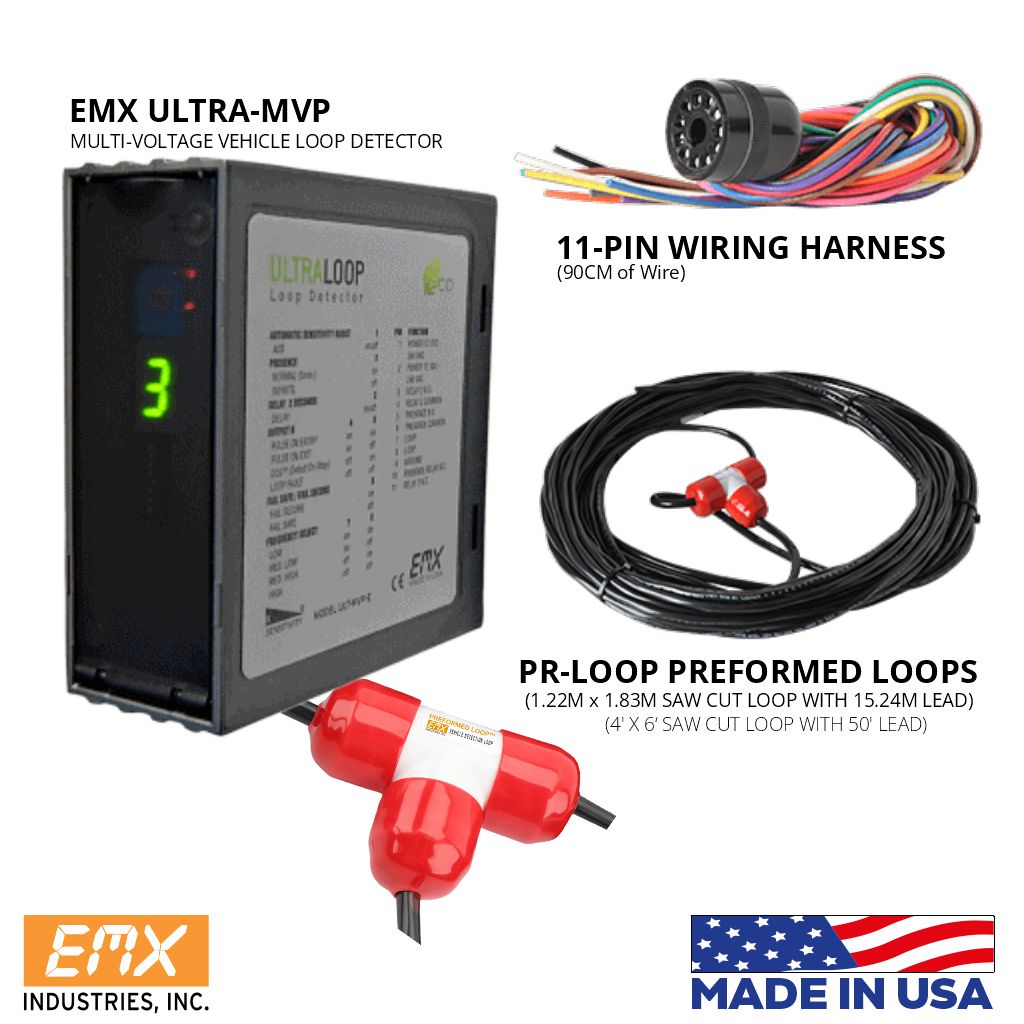

EMX ULTRA-MVP - Multi-Voltage Vehicle Loop Detector
The EMX ULTRA-MVP multi-voltage vehicle loop detector combines small size with a 12VDC to 240VAC input range. Reduce inventory costs by stocking and transporting just one universal unit.
This detector features DETECT-ON-STOP™ (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and offers a significant advantage for those who want to avoid cross traffic in tight spaces.
The ULT-MVP provides two relay outputs – one for indicating vehicle presence and a second for loop fault or pulse on entry/pulse on exit, or DETECT-ON-STOP.
The ULTRA-MVP differentiates itself from other vehicle loop detectors because of its versatile features:
| Sensitivity | 10 levels, 0-9 |
| ULTRAMETER™ Display | Indicates optimum sensitivity level, 0-9 Diagnostic aid |
| Loop frequency | 4 settings (low, med-low, med-hi, high) |
| Loop inductance | 20…2000µH (Q factor > 5) |
| Grounded loop | An isolation transformer allows operation with poor quality loops |
| Automatic tuning | Detector tunes to loop on power-up and following frequency count function |
| Environmental tracking | Automatic compensation |
| Surge protection | Loop circuitry protected by surge suppressors |
| Presence relay | SPDT relay contacts (form C) |
| Output B relay | SPDT relay contacts (form C) |
| Contact rating (resistive load) | 2A @ 30VDC, 0.5A @ 125VAC |
| Power/loop fault indicator | Green LED |
| Detect / frequency count indicator | Red LED |
| Detect-On-Stop | Requires vehicle to stop for a minimum of 1 second (1-2s typical) |
| ASB (Automatic Sensitivity Boost) | Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles |
| Power | 12…60 VDC (Max. 0.8 VA) 12…240 VAC (48…62Hz) (Max. 1.4 VA) |
| Operating current | 20mA standby / 50mA detect |
| Operating temperature | -40°C…82°C (-40°F…180°F) 0…95% relative humidity |
| Dimensions (L x W x H) | 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”) |
| Weight | 0.25 lbs. (113 g) |
| Housing | ABS plastic, IP30 |
| Connections | Socket mount – 11-pin male (JEDEC B11-88) |
The 11-Pin Loop Detector Wire Harness, designed and manufactured by EMX, is an 11-pin configuration device engineered for easy wiring and installation of EMX Loop Detector systems.
The 11-Pin Loop Detector Wire Harness is an 11-pin configuration device engineered for easy wiring and installation of EMX Loop Detector systems. It can be used in place of the detector's terminal block and features colour-coded wiring for straightforward installation.
LITE PREFORMED LOOPS™
VEHICLE DETECTION LOOP
The EMX Lite Preformed Loop is a ready-to-use solution for fast and easy loop installation. The Lite Loop provides built-in lightning protection and is available in a wide variety of standard sizes.
The Lite Loop is a rugged and flexible TPE tubing with an overall diameter of 0.26"(6.6 mm). It is suitable for saw cut, tar and concrete installations.
| Operating Temperature | -20° C - +90° C |
| Overall Diameter of Loop Wire | 6.6 mm (0.26") |
| Loop Dimensions | (4x6 ft) 1.22 x 1.82m |
| Lead-In-Wire | (50 ft) 15-meter-long, twisted wire in a PVC jacket |
| Loop Wire Approvals | UL TC, PLTC, FPL or NPLF 300/600 Volt 40mil Nylon PVC direct burial |
