EMX Single Cut LRS Vehicle Detector Sensor

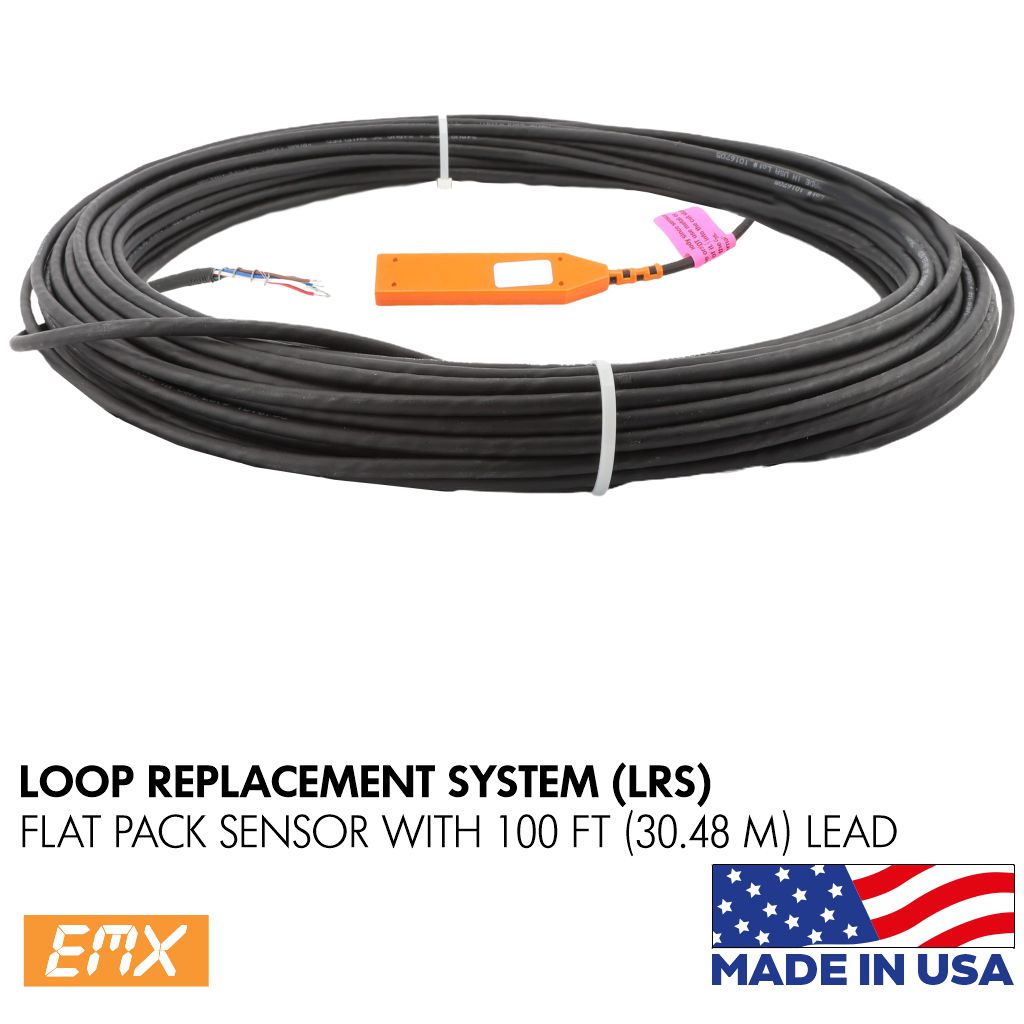

Flat Pack Vehicle Detector Sensor with 30m Lead-In Wire - Model: EMX-LRS-FP-100

The EMX Flat Pack Vehicle Detector Sensor is a magnetoresistive, direct burial sensor equipped with a 30-meter lead wire. This sensor efficiently stores ambient background information and settings in non-volatile memory. It features fast, high-speed detection and utilises detect-on-stop technology to ignore cross traffic in tight spaces, allowing for accurate detection when a vehicle comes to a complete stop.

Product Details: EMX-LRS-FP-100 Flat Pack Vehicle Detector Sensor

This model is explicitly designed for direct use with the EMX LRS Single Cut Installation Vehicle Detector Control Unit (Model: LRS-C1). The Single Cut Loop Replacement System features advanced 3-axis magnetoresistive sensing technology, enabling the sensor to measure the magnetic field across the x, y, and z axes. This feature enhances detection sensitivity and improves response to any disturbances caused by ferrous objects.

Applications:

• Automatic Gates and Doors
• Drive-Thru Windows
• Car Washes
• Car Park and Traffic Monitoring
• Loading Docks
• Boom Gate Control
• Beverage Drive-Thrus
• Fast Food Drive-Thrus
• Loading Dock Detection
• Car Park and Toll Booth Vehicle Monitoring
• Truck and Tow-Motor Detection for Shipping Doors and Industrial Gates

Features:

• Flat Pack Direct Burial Sensor by EMX
• Fast Response and High-Speed Detection
• Designed to Reduce False Triggers
• Responds to Disturbances Caused by Ferrous Objects
• Ideal for Tight Spaces; Ignores Cross Traffic for Increased Accuracy
• Detect-On-Stop Functionality for Vehicles at a Full Stop
• Three-Dimensional Presence Detection: Select X, Y, or Z Axis Independently
• Stand-Alone Sensor Stores Background Information and Settings in Non-Volatile Memory

Specifications:

• Housing: Polyolefin
• Current Draw: 10 mA max
• Power Supply: 12-30 VDC
• Output Ratings: 50 mA
• Outputs: NPN (Open Collector)
• Requires the vehicle to stop for a minimum of 1 second
• Operating Temperature Range: -40°C to 82°C (-40°F to 180°F) at 95% Relative Humidity
• Environmental Rating: IP69K
• Dimensions: 80mm x 20mm x 9mm

Sensor Technical Data
