Product SKU: WMD-EMX-LRS-DB-100
The LRS-C1 Single Saw-Cut Magnetoresistive Vehicle Detector, created by EMX, is a versatile and cost-effective 3D vehicle presence detector. It features quick setup with ULTRAMETER technology and high sensitivity, supporting both above-ground and below-ground installations.
The EMX LRS-C1 Vehicle Detector incorporates advanced three-axis magneto-resistive sensing technology, which responds to changes in the Earth's magnetic field caused by ferrous objects. With three sensing elements measuring in the X, Y, and Z axes, this detector improves sensitivity in both above-ground and below-ground installations. One of its standout features is the DETECT-ON-STOP™ (DOS®) functionality, which allows detection solely when a vehicle has come to a complete stop. This exclusive feature from EMX is particularly beneficial for preventing cross traffic in tight spaces. Additionally, the detector's compact, loopless design helps reduce installation costs compared to traditional inductive loop technology.
It is no longer necessary to make nine cuts to monitor vehicle presence…
The Loop Replacement System (LRS) features advanced 3-axis, magnetoresistive sensing technology that responds to changes in the Earth’s magnetic field caused by ferrous objects. Three sensing elements provide measurements in the X, Y and Z axes to improve detection sensitivity when used in either above-ground or below-ground installations.
The LRS is equipped with our new DETECT-ON-STOP™ or (DOS®) feature, which allows detection only when a vehicle has come to a complete stop. This EMX exclusive feature is a significant advantage if you want to ignore cross traffic in tight spaces.
The detector’s compact, loop-less design reduces installation costs when compared to traditional inductive loop technology.
The LRS system offers the following features:
| Power/fault indicator | Green LED |
| Detect indicator | Red LED |
| Outputs | SPDT relay/NPN (open collector) |
| Output ratings | Relay: 1A @ 24VDC…120VAC NPN: 50 mA (max) |
| Connection | 10-position screw terminal |
| Housing | ABS |
| Environmental rating | IP30 |
| Power supply | 12-30 VDC and 24 VAC |
| Current draw | 40 mA max |
| Dimensions | 76mm (3.0”) x 22mm(0.9”) x 70mm(2.75”) |
| Weight | 68g (0.15 lbs.) |
| Outputs | NPN (open collector) |
| Output ratings | 50 mA |
| Connection | 5-conductor direct burial |
| Housing | DB: PVC; FP: Polyamide |
| Environmental rating | IP69K |
| Power supply | 12-30 VDC |
| Current draw | 10 mA max |
| Dimensions | DB:102mm (4.0”) x 27mm (1.0”); FP: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”) |
| Weight | DB: 43g (0.09 lbs.); FP: 23g (0.05 lbs.) |
| Sensing technology | 3-axis magnetoresistive |
| Sensitivity | 10 levels: 0-9 |
| Axis sensitivity | 512 counts/gauss (typical) |
| Environmental tracking | Automatic compensation |
| Local magnetic field nulling | Averages the local field signature in any sensor orientation |
| Detection range | 1.5m (5ft.) |
| Pulse/presence | Allows the relay/NPN output to send either a pulse output or have a constant presence |
| Detect-On-Stop | Requires vehicle to stop for a minimum of 1 second (1-2s typical) |
| Operating environment | -40°C…82°C (-40°F…180°F) |
| Supply protection circuitry | Reverse polarity and fuse protected |
| Power indicator | Green LED |
| Detect indicator | 2x Red LEDs |
| Configuration selector | 10-position rotary switch |
| Outputs | Relay 1: SPDT (form C) Relay 2: SPST (form A) |
| Output ratings | 1A @ 24 VDC/120 VAC |
| Operating environment | -40° C…82° C (-40° F…180° F) 0…95% relative humidity |
| Housing material | ABS |
| Enclosure | IP30 |
| Power | 12-30 VDC and 24 VAC |
| Operating current (standby/detect) | One sensor connected: 22/35mA Two sensors connected: 33/60mA |
| Supply protection circuitry | Reverse polarity and fuse protected |
| Dimensions | 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”) |
| Weight | 0.25 lbs. (113 g) |
| Connector | 11-pin male connector (JEDEC B11-88) |

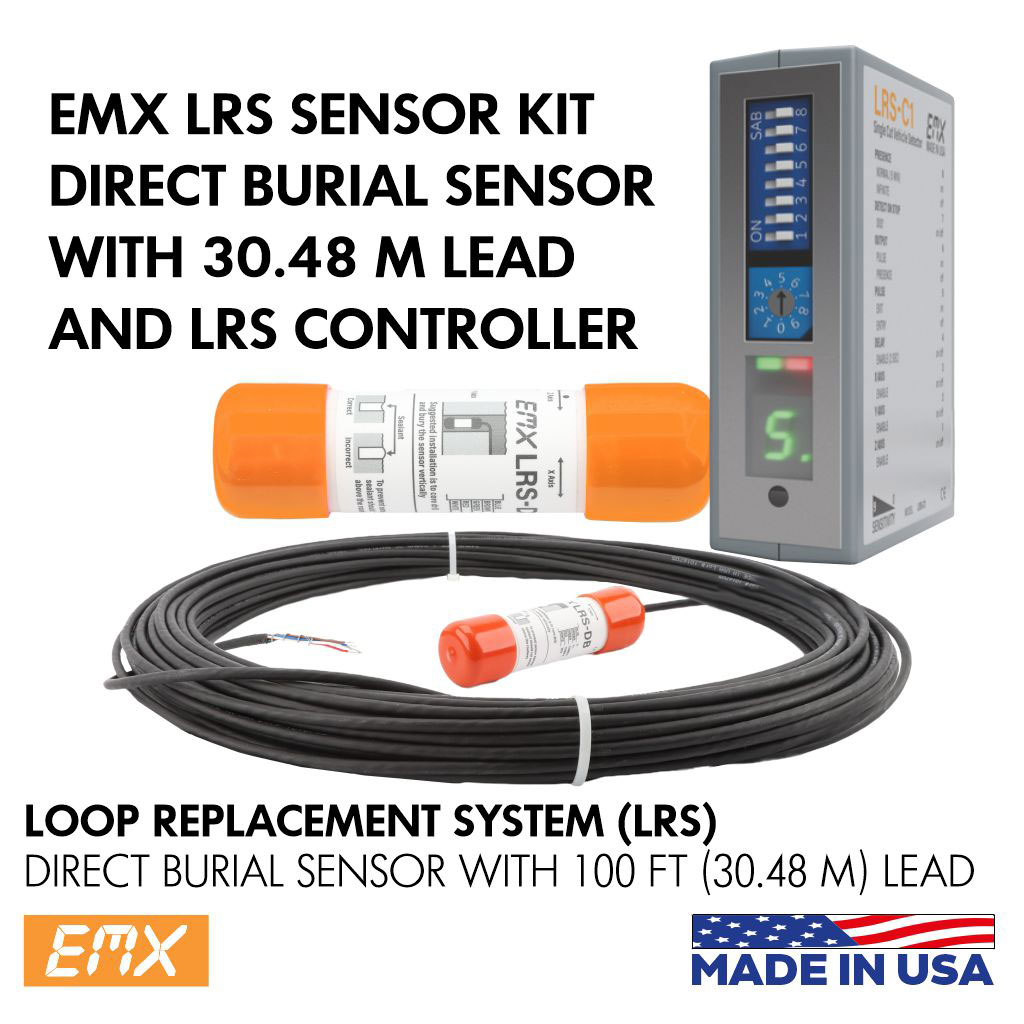

The EMX LRS-DB-100 Magnetoresistive Vehicle Detector is designed for direct burial and features a 30 Meter (100-FT) Cable. This advanced sensor utilises 3-axis magnetoresistive sensing technology to detect changes in the Earth's magnetic field caused by ferrous objects.
The EMX LRS-DB Magnetoresistive Vehicle Detector has a detection range of 1.5 m and employs a sophisticated 3-axis sensing system. It provides measurements in the X, Y, and Z axes, enhancing detection sensitivity for both above-ground and below-ground installations.
| Outputs | NPN (open collector) |
| Output ratings | 50 mA |
| Connection | 5-conductor direct burial |
| Housing | PVC |
| Environmental rating | IP69K |
| Power supply | 12-30 VDC |
| Current draw | 10 mA max |
| Dimensions | 102mm (4.0”) x 27mm (1.0”) |
| Weight | 43g (0.09 lbs.) |
