Product SKU: AY250x2-HS-DC-BK
This is a special product designed for customized use.
To get a quote for this product please call us or fill this form

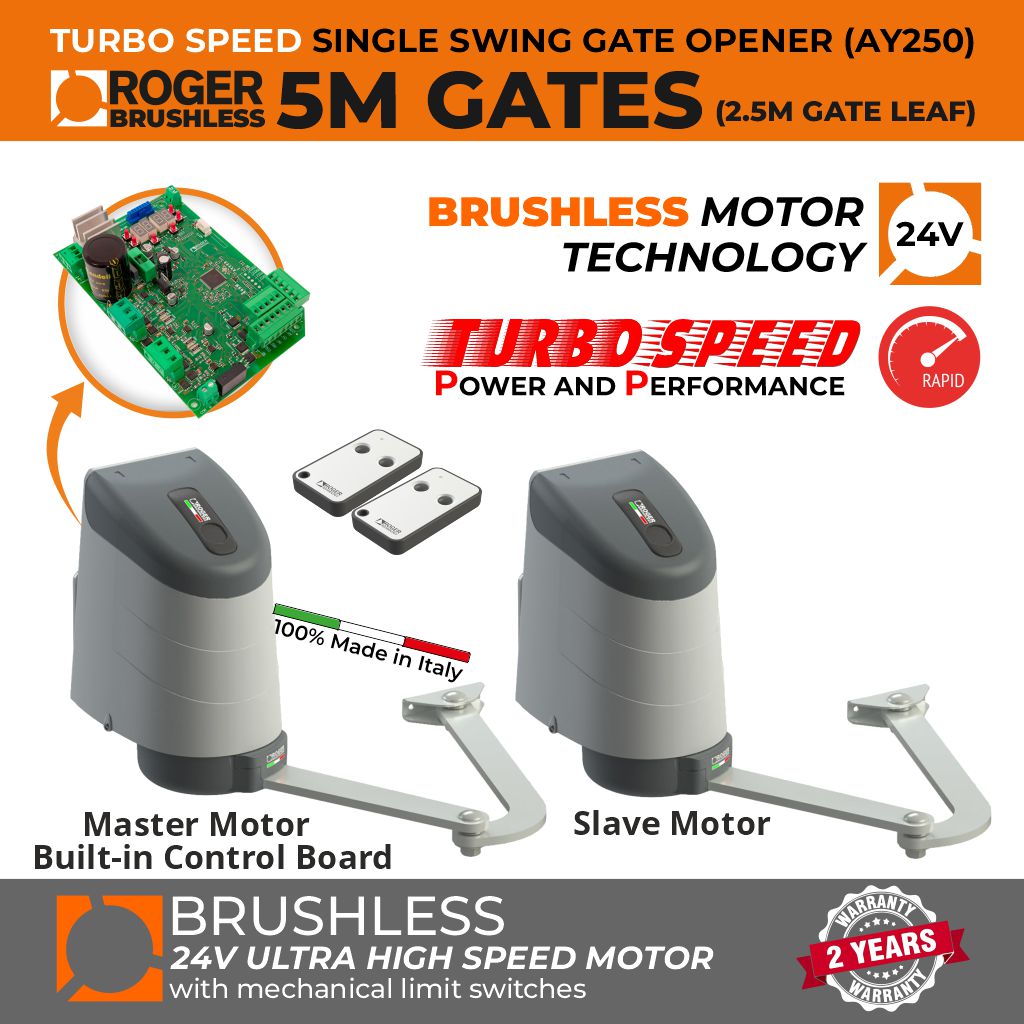

Italian-Made Roger Technology Brushless Swing Gate Motor Master and Slave
| Max. 2.5M or 260KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Articulated Arm
Electromechanical articulated motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 2.5 meters of length, with mechanical stopper in opening and closing.
All measurements are expressed in mm.
All measurements are expressed in mm.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 24V |
| Power rating: | 150W |
| Frequency of use: | Intensive use |
| Torque: | 50 - 200 N m |
| Operating temperature: | -20+55° C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 4 - 1,5 Rpm |
| Opening time: | 10-18 s |
| Limit switch: | Mechanical stopper in opening and closing |
| Onboard control unit: | B70/2ML |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Release system: | Internal lever |
| Battery recovery: | 2 internal batteries 12V DC 1.2 Amp/h (inside AY/250/S) |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 800 |
The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless motor |
| Max power per motor: | 110W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 10W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| Number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| Number of combinations: | 65536 |
| Radio for copy: | Yes |
| Maximum distance in open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
