UG1400C Underground gate motor including bearings and channels

This ad is for an Underground Motor with Foundation Box, Linking Arm and Drive Channel only.

Underground Single Swing Gate Motor Australia – APC UG1400C

Benefits of This Single Swing Gate Opener System

Discreet & Premium Finish

No visible arm operators – perfect for high-end homes and architectural gates.

Safe Low-Voltage Automation

24V DC system reduces electrical risks and supports battery backup.

Built for Australian Conditions

Designed to operate reliably in hot summers, coastal humidity and colder climates.

Enhanced Security

Rolling-code technology prevents remote signal cloning and interference.

Flexible Access Control

Compatible with remotes, wireless keypads, safety sensors and smart control modules.

Installation Considerations in Australia

• Suitable for new installations and premium retrofits
• Drainage planning is required for underground housing
• 230V AC wiring must comply with Australian electrical regulations
• Professional installation recommended for optimal performance

Frequently Asked Questions

Buy an Underground Single Swing Gate Motor in Australia

Order the APC UG1400C underground swing gate motor from Automotion Plus and enjoy fast Australia-wide shipping to Sydney, Melbourne, Brisbane, Adelaide, Perth and regional areas.

Upgrade your driveway with discreet, secure swing gate automation today.

Extra Heavy Duty Discreet Underground System

Discreet Underground System with Stainless Steel Top Plate, Wider Opening Angle, All Metal Gears, and Suits Most Gate to Ground Clearance Heights, Electric Gate Opener for Driveway Swing Gates

Reliability & Durability

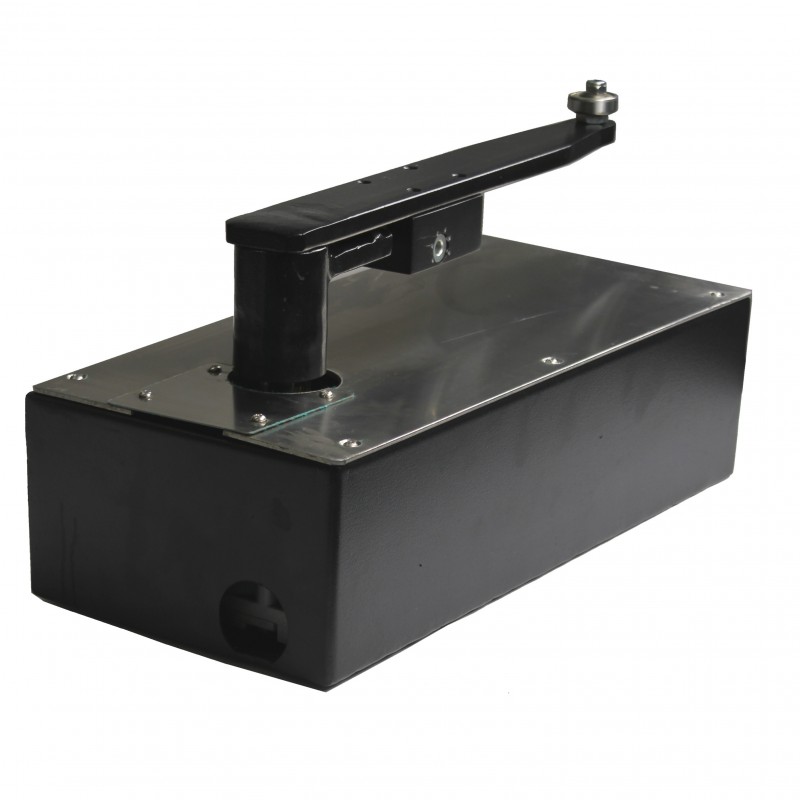

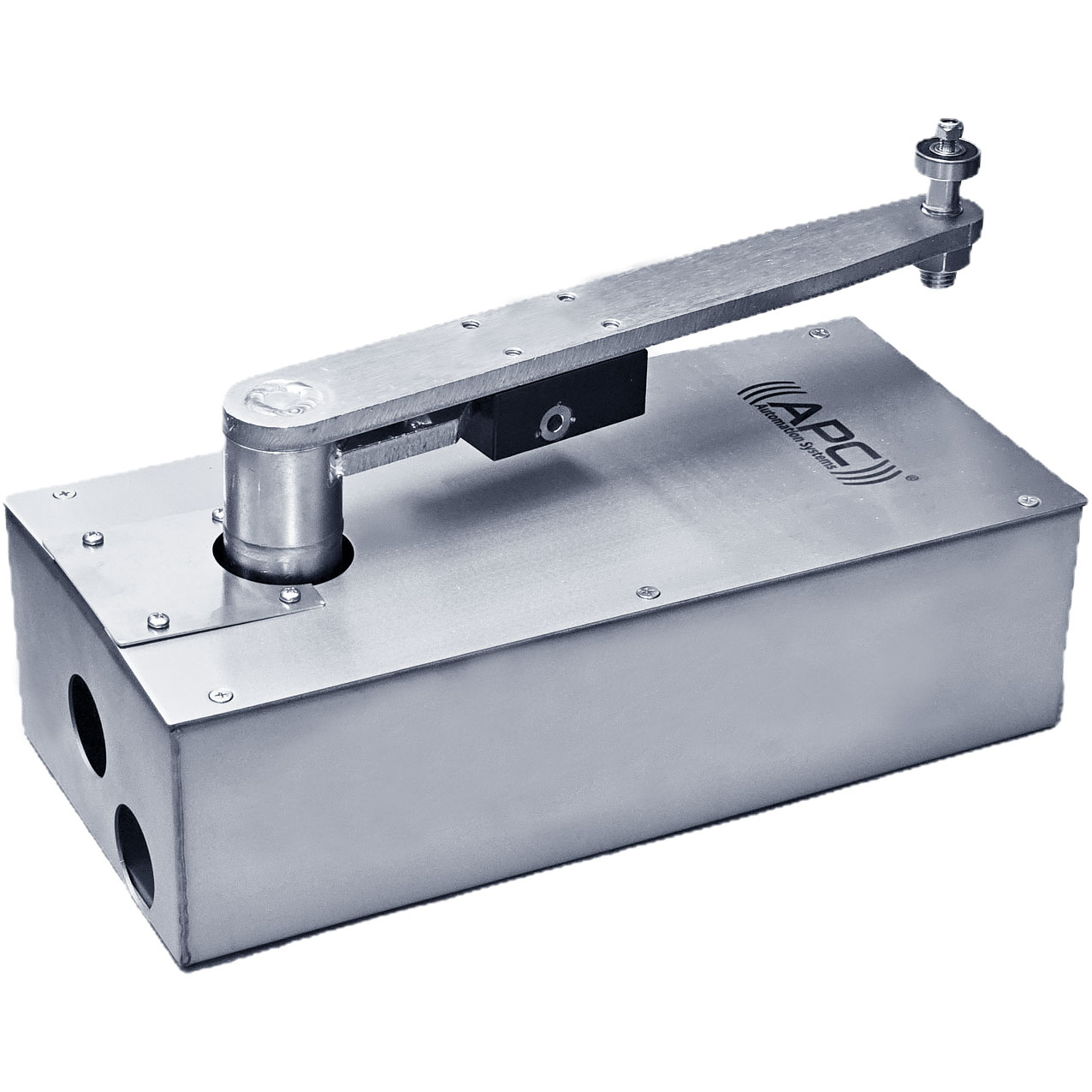

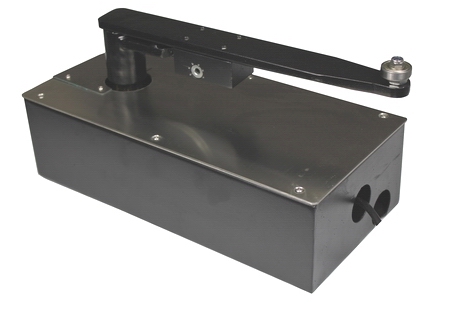

The discreet, extra-heavy-duty 24V DC motor is a powerful unit built from all-metal components, including a foundation box and a stainless steel top plate. The motor is constructed of all-metal gears and features a thick, strong motor output drive.

Designed in Australia, the extra-heavy-duty motor is for underground installations where there is no space above ground for mounting a motor, or where the user does not want the motor above ground. Furthermore, it is highly flexible in its installation, allowing multiple orientations and positions.

Thanks to its all-metal gears, this Tough and Robust system can handle gates up to 4.5m wide or 300kg in weight.

Drainage and Conduit Holes

With drainage holes on either side of the foundation box, it can be easily plumbed to a pit or stormwater system to ensure the box is never filled with water. There is also a higher position hole for the cabling from the control box to the motor.

Swing Gate Opener Arms and the Manual Override System

The steel linking arm, which connects the motor output shaft to the drive channel, allows the gate to be operated by pivot motion.

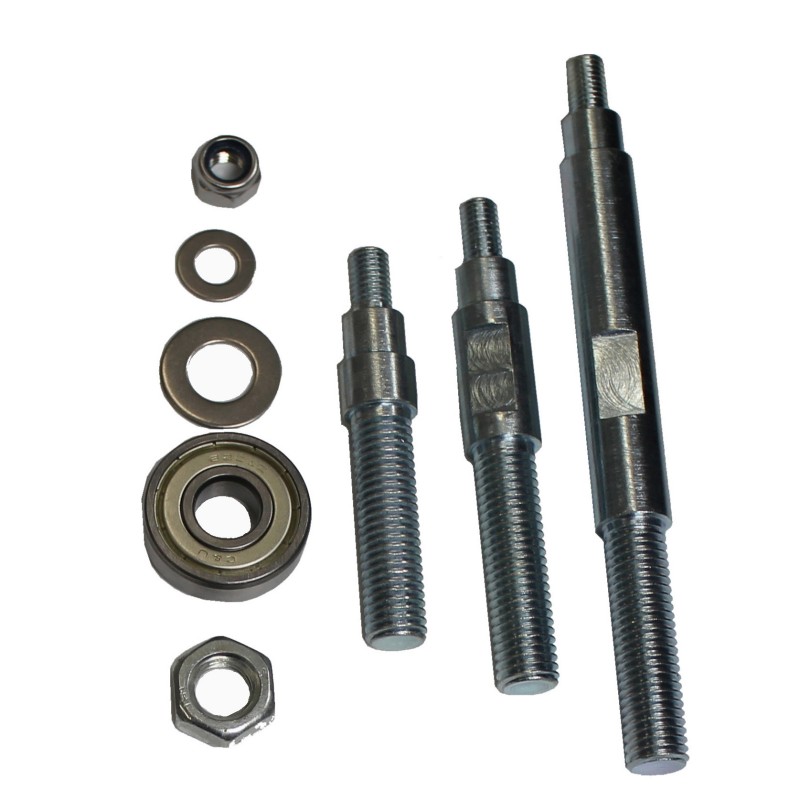

This is achieved by the supplied bearing gliding through the powder-coated drive channel, ensuring compatibility regardless of the gate-to-ground clearance height. To accommodate different bearing heights, three bearing height adjusters are supplied.

The easy-to-use manual override can be used from either side, since the gate motor is a universal left/right-side fitting. Simply unlock with the manual release allen key, and the gate will be free and can be opened and closed manually in the case of an emergency

Powder Coated Channel

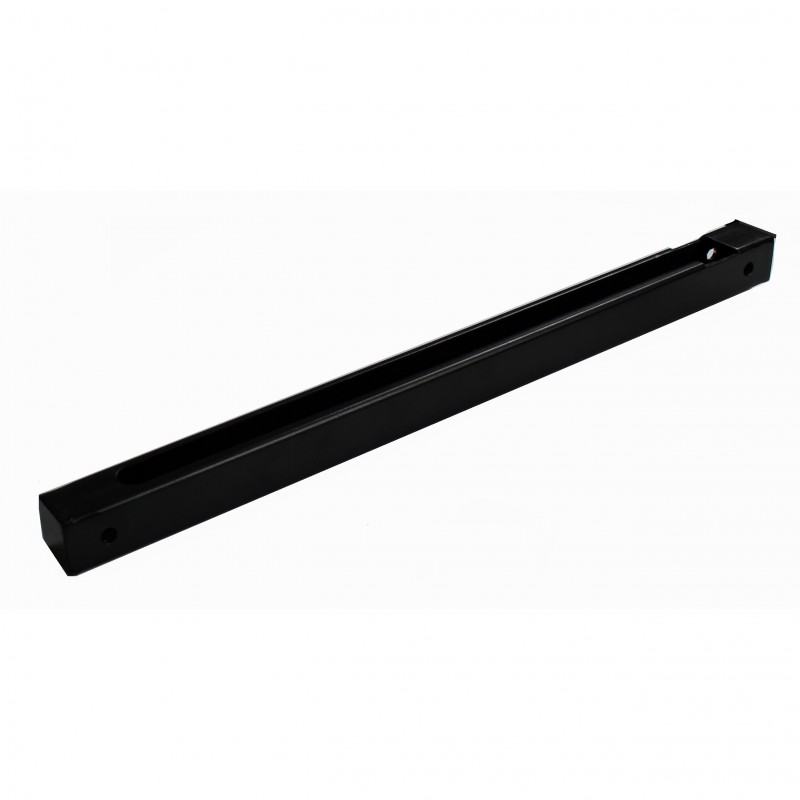

The powder-coated steel drive channel bolts to the gate (can also be welded) and allows the bearing from the linking arm to slide through, creating the gate's pivot motion during operation.

The supplied internal slide stops fit within the channel at either end and are tightened from below to provide a clamping effect that prevents over-travel of the gate system.

Motor Dimensions and Installation

Pulling to open (opening inwards) can be set to open each gate up to 120° (maximum recommended); however, 130° to 160° is achievable, as with underground systems, there is no concern regarding the motor clashing with the gate.

Adjustable in-drive channel stops are supplied with the kit if a completely discreet stop is preferred, but they can only be used for an open angle of up to 100 °. An external gate stop is also provided in this kit and is required for an open angle greater than 100°

Installation Method 1

Recommended option and the easiest for the operator will allow for 120°+ operation

Centre pivot of gate motor (output shaft) is inline with the centre of the gate pivot point (hinge), arm is at a 45° angle to the drive channel/gate



Installation Method 2

Maximum 100°, if option 1 cannot be used. Preferred over option 3

Centre pivot of gate motor (output shaft) offset from the centre of the gate pivot point (hinge) by up to 200mm, arm is at a 45° angle to the drive channel/gate



Installation Method 3

Maximum 90°, Hardest on the operator and should only be used in special circumstances as required.

Centre pivot of the gate motor (output shaft) offset from the centre of the gate pivot point (hinge) by up to 200mm; arm at a 20° angle to the drive channel/gate.
