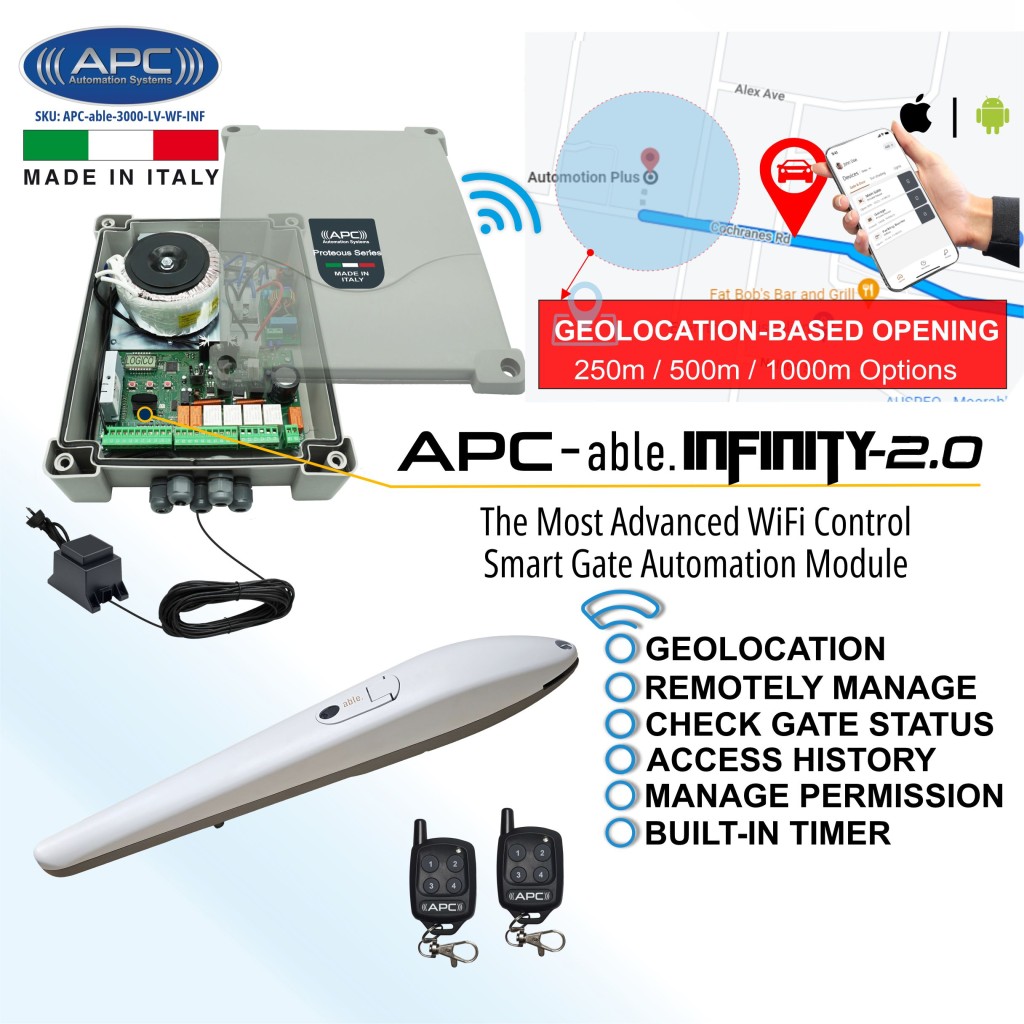

Smart Wi-Fi Single Swing Gate Automation Kit – Low-Voltage 24V Heavy-Duty Italian APC Able 3000 Linear Actuator with All-Metal Gears and Built-In Stops, Suitable for Driveway Gates up to 3m and External Transformer. Includes APC Infinity Wi-Fi Smart Control with Geo-Location Based Opening, Remote Access, Monitoring, Scheduled Closing, and Secure Sharing via Smartphone.

Packing a punch, the "APC Able 3000" system can deliver 2000N of thrust to operate gates up to 600kg or 3m in length for each gate. With a built-in adjustable mechanical stop for opening (an optional add-on mechanical closing stop), the system offers versatile stopping positions.

24V Automatic Swing Gate Motor. "APC Able 3000" Electromechanical actuator for swing gates with each leaf up to 3m in length (for each gate).

Characteristics

• Equipped with an opening mechanical limit stop
• Mechanical closing stop accessory
• Single version for both right and left leaves
• Adjustable brackets for quick engine installation
• Aluminum frame
• Unlocking the handle with the protected lock
• Plug-in connector for electrical connections

Italian Made Swing Gate Opener System Specifications

Italian-Made Swing Gate Motor System Capacity

Maximum Gates Leaf Length: 3 M*

Maximum Gates Leaf Weight: 600 Kg*

(*for each gate)

The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

The most advanced gate automation Wi-Fi module (for APC Proteous and APC Able Range only)

Geolocation-Based Opening - Activate the GPS, and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance  (250m / 500m/1000m options)

Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)

Access and Permission Management - Permissions: grant other users access to one or more of your automations, but only during the time slot you choose.

Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day.

Unlimited User - First 4 User Free (Admin +3 users)| $29 per extra user.


Compatible With

• APC Proteous Sliding Gate Opener Systems
• APC Logico24 Swing Gate Opener Systems
• APC able Sliding Gate Openers
• APC able Swing Gate Openers

(Please check your gate opener compatibility, ask: support@automotionplus.com.au )

Features

• Remotely manage all your automation, even when you are away from home. Not only check their status, but also control them! (Open, close, stop, activate the pedestrian opening, etc.)
• Geo Location Enabled - Enter your home without lifting a finger. By using the geolocation from your smartphone, APC able Infinity 2.0 knows where you are and will open the chosen automation for you when you approach it (250m, 500m, 1000m options)
• Check at any time who comes and goes. The App lets you manage all your access by giving specific time slots to whom you want, when you want.
• Set up programmed scenarios to manage your gate access the way you want: Daily, weekly, and monthly programmable timer options.

• Multiple management of unlimited gate automation systems (also located on different sites)
• Geolocation via GPS (Activation of openings and devices in automatic or manual mode)
• Access control (History Log)
• Permissions for other users
• Set new scenarios at a specific time/day, according to your needs

To use the App, you need to connect to your APC Proteous Range Gate Opener System via the APC able Infinity 2.0 Module

APC able Infinity 2.0 Access Control Features

• FULL REMOTE CONTROL OF THE AUTOMATION
  • Opening
  • Closing
  • Stopping
  • Managing outputs
  • Geo-fence management of the automation
  • Knowing the status of the automation (opened, closed, % opened, stopped)

• FULL ACCESS CONTROL FEATURES
  • Defining the users who can have access to the site
  • Limiting user access in time (hour, day, week, and month)
  • Log and record every access to each user
  • Adding/Blocking/Deleting users

• AUTOMATIC SETUP OF SCENARIOS
  • Opening and closing with scenarios
  • Each scenario can be performed under a timing ( specific hours of the day, daily, monthly, specific day of the year)
  • Managing multiple automations with one single command/scenario
