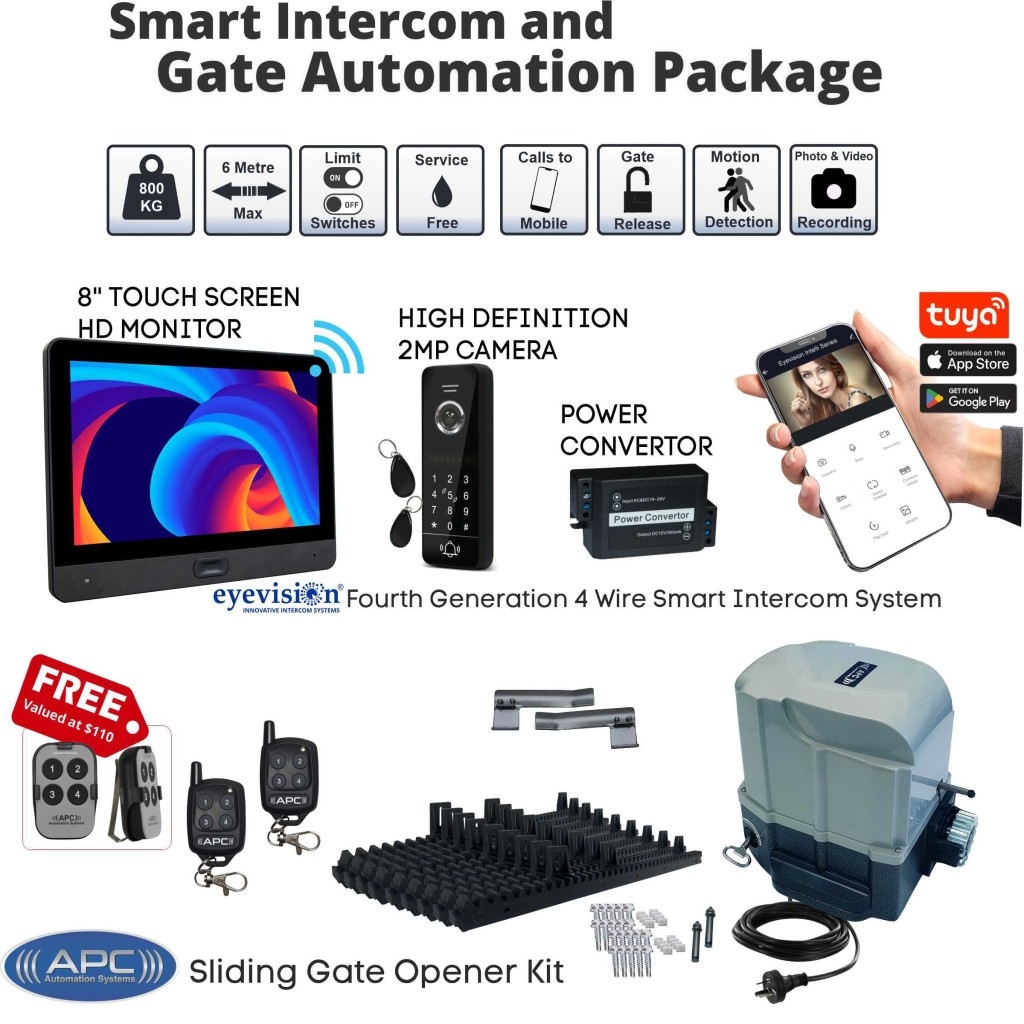

Product SKU: APC-SG802-AC-EV-WF8-KP23
With its Soft Start/Soft Stop feature the APC Typhoon 800 brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.
The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.
Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.
Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon 800 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway
With separate open and close inputs as well as an shared open/close input the APC Typhoon 800 will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.
Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.
| Rated Power | 450W |
| Power supply | 220V-240V |
| Maximum Weight of Gate | 800kg (Telescopic Gates 200KG PER Gate) |
| Maximum Width of Gate | 6m (Telescopic Gates 2m PER Gate) |
| The working temperature of the motor | -5° ~ +65° C |
| Open (Close) speed | 12m/min |
| Maximum Pull | 22Nm |
| Voltage output | 18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system |
| Light output | 240V Light, 30 Watts or Less |
| Accessories input | Open Only Close Only Open/Halt/Close |
|
|
||
| Can I operate this sliding gate motor manually? |
YES
|
The motor is fitted with a manual override and supplied with a key to manually disengage the motor |
| Can I use this system to operate a large gate? |
YES
|
This system can handle a sliding gate up to 6m wide and 800kg in weight. |
| Are the motor & control panel all in one? |
YES
|
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact |
| Can I use push buttons to operate this system? |
YES
|
Both wireless & wired push-button switches can be used to open/close the gate motor |
| Can I use keypads to operate this system? |
YES
|
Both wireless & wired keypads can be used to open/close the gate motor |
| Can I connect a safety sensor to this system? |
YES
|
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate |
| Can I connect an intercom system to this gate system? |
YES
|
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone |
| Can I operate this gate system from a remote location? |
YES
|
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. |
| Does this gate system automatically close? |
YES
|
When the automatic close timer is enabled and photoelectric safety sensors are installed, the gate will automatically close |
| Can I connect a light to the system? |
YES
|
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing. |
The best-sliding gate motors in Australia are often determined by factors such as reliability, durability, speed, access control, and customization options. Some top APC Sliding Gate Opener models to consider include:
APC Typhoon sliding gate motor with 240V power is strong, durable, and high-quality, suitable for residential and commercial sliding gates.
One of the best-sliding gate motors, the APC Typhoon 450W Internal motor, allows for an 800kg capacity, making it the ideal candidate for the majority of gate installations for domestic/industrial driveway gates.
If you are looking for the best sliding gate motors in Australia, several models should be considered. Some popular options include the Italian-made APC Proteous Sliding Gate Motor 24V DC series and APC Typhoon Sliding Gate Motor 240V AC series. These motors are known for their reliability, smooth operation, and advanced access control, safety features such as safety sensors, WiFi smartphone APP integration and much more. When choosing the best sliding gate motor, it's important to consider factors such as gate size, weight, power options (Grid Power 240V, External Transformer Low Voltage 24V and Solar Off-Grid)and intensive use.
You can get a free consultation from our help-desk professional to ensure the motor is the best compatible with your specific gate setup and requirements. Please call our highly experienced technicians for help finding the best-sliding gate opener to suit your requirements.
12V DC Power Converter Input voltage: AC & DC 16-28V 12V DC Power Converter
Specifications
Output voltage: DC 12V
Output current: 500mA
Operating temperature: -10° C~55° C (-14~131° F)
Operating humidity: 0-90%
Dimension: 73mm × 40mm × 23mm
120° 2MP HD Intercom Camera Keypad (Swipe Tag Reader) Outdoor Station with 8" HD Monitor With Built-In WiFi For Smartphone APP
The Eyevision® Intelli HD Series four-wire intercom is a feature-rich state-of-the-art intercom system boasting every feature requested from an intercom system (and much more...).
Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor simultaneously with a large feature set from the APP and the indoor monitor. No extra modules are required to connect to the internet as the indoor monitor has built-in Wi-Fi and is able to connect directly to your home's 2.4GHZ Wi-Fi connection.
Two outdoor stations can be connected for the front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home, allowing for the visitor's call to be answered from any station and transferred to a different station if required.
The Intelli series can have a common release connected directly to the monitor, allowing for simultaneous front gate - front door release, making it easier to let a guest in without switching between menus or running to the door.
System Capacity & Capabilities
Indoor Monitor Base Features
Special Features (Micro SD Required)
Resolution: 8'' (1024*600)
Power Consumption: Maximum 1200 mA
Power supply: External power supply DC 12-15V
Operating Temp: 0~+50°C
SD Card Requirement: 2GB~128GB Class 10 micro SD Read/Write 10MB/S Min.
System Capacity: 6 indoor monitors and 2 outdoor stations
For more details and multi-device advanced system cabling topology, Please check the installation manual.
(IC Tags & Power Adapter Supplied)
A fourth-generation HD intercom system is an advanced communication system that utilizes high-definition video and audio communication technology. These systems can be used in residential, commercial, and industrial settings to enhance security, manage access control, and enable seamless communication with visitors on-premises. With This intercom system, you will get the latest advancements in intercom technology, including improved video quality, enhanced connectivity, and additional features such as mobile app integration and remote secure access management capabilities.
* Suitable with Eyevision® Intelli HD Series Indoor HD Monitor Options
(EV-HD-WF8, V-HD-WF8-WH, V-HD-WF10)
* Click here to see Eyevision® Intelli HD Series Indoor HD Monitor Options and Packages
| 120° Vide Angle View | 2MP HD Camera | Speaker and Microphone | Keypad | Call Button | Night Vision | Motion Detection | IC Tag Reader | Weatherproof |
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing, and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left-facing and right-facing setups.
Camera Sensor: 1/3" CMOS Camera
Viewing Angle: 120°
Resolution: 2 MP / HD
Night Viewing: IR LED
Operating Temperature: -0°C to +50°C
Operating Voltage: 12-15V DC
Operating Current: 30mA Standby 70mA Operational
Card Type: IC Card/Tag (KP 23-HD Only)
IP Rating: IP65
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
