Product SKU: APC-790-DC-EV-WF8-KP23
Free Shipping
Kit Price:
$2,015.00

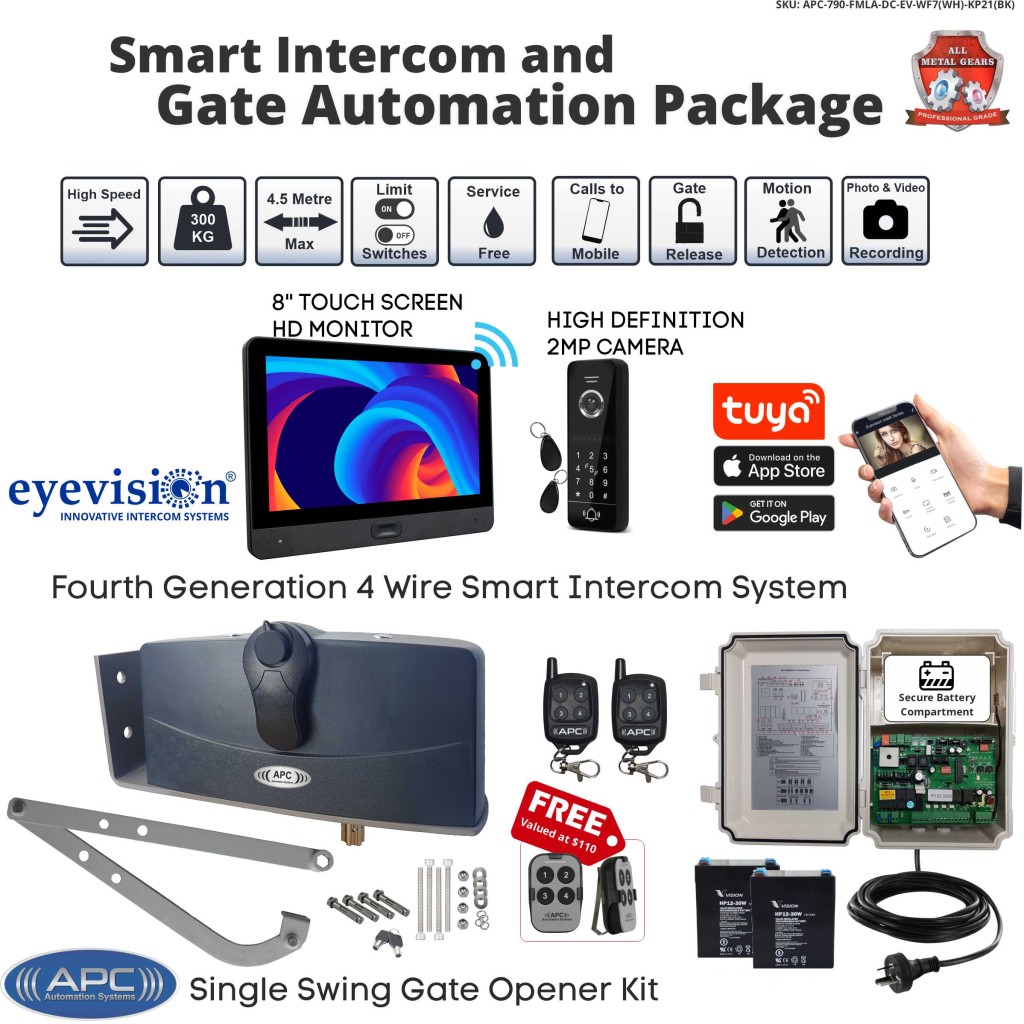

APC-790 Heavy Duty Articulated Gate Opener | 4.5m / 300kg Capacity | Automotion Plus
Upgrade your gate with the APC-790 Articulated Swing Gate Opener. Australian-designed for wide pillars and heavy farm gates. Features all-metal gears, a 24V DC motor, and easy forward-mount installation. Shop now for fast AU delivery.
The Ultimate Solution for Wide Pillars and Heavy Gates
The APC-790 Articulated Motor Swing Gate Automation System is engineered specifically for Australian conditions, offering a robust automation solution where standard linear actuators fail. Designed with a versatile "Forward Mount (FM)" and "Side Mount(SM)" geometry, this motor is perfect for brick pillars and large posts, allowing the long arm to reach around corners efficiently. Built with a whisper-quiet 24V DC motor and an all-metal gearbox, the APC-790 guarantees reliability without the weakness of plastic components. Whether you are automating a residential driveway or a rural farm gate, this system delivers high-speed operation with precision control.
Australian Designed Toughness: sealed and weatherproofed to withstand blistering heat and heavy storms.
100% All-Metal Gearbox: Zero plastic or nylon parts. Features six robust steel gears and a copper transfer gear with sealed bearings for a long operational life.
Heavy-Duty Capacity: Capable of operating gates up to 4.5 meters in length or weights up to 300kg.
Flexible Installation: The Forward Mount (FM) or Side Mount (SM) Brackets with Long Arm allow easy installation on brick pillars and wide posts where geometry is tricky.
Precision Limit Switches: Built-in 360°-adjustable cams let you set exact Open and Close positions, protecting your gate and motor from physical strain.
Solar Ready: The 24V DC low-voltage architecture makes it perfectly compatible with APC Sun Power solar kits for off-grid reliability.
| Specification | Details |
| Brand | APC Gate Automations |
| Model | APC-790 Forward Mount(FM) Side Mount(SM) Long Arm |
| Motor Voltage | 24V DC |
| Max Gate Length | 4.5 Meters (per leaf) |
| Max Gate Weight | 300kg (per leaf) |
| Max Opening Angle | Up to 110° (Geometry dependent) |
| Gearbox Material | All-Metal (No Plastic) |
| Arm Type | Adjustable Long Span Powder Coated Steel |
| Duty Cycle | 80% (Suitable for high-traffic use) |
| Operating Temp | -20°C to +50°C |
| Manual Override | Keyed Lever System (2 keys included) |
| Safety Features | Over-current sensing, Obstacle detection |
| Warranty | 12 Months Warranty |
| Product Type | Capacity | Primary Benefits | Ideal For |
| Articulated Swing Gate Motor |
Length: 4.5m max Weight: 300kg max |
Versatility: Reaches around wide pillars. Durability: All-metal gearing. Silence: Smooth DC operation. |
• Brick Pillar Entrances • Wide Concrete Posts • Farm Gates with tricky hinges • Solar/Off-Grid setups |
Q: Why should I choose an articulated arm (APC-790) over a linear actuator?
A: Articulated arms like the APC-790 Swing Gate Openers are designed for "geometry flexibility." If you have large brick pillars or posts where the hinge is set deep in the centre, a linear arm often hits the corner of the post. The APC-790's "elbow" action allows it to reach around the post, making it the best choice for existing brick pillars.
Q: Is the APC-790 Swing Gate Motor compatible with solar power?
A: Yes, absolutely. The motor operates on 24V DC, making it highly efficient and safe for DIY installation. It pairs seamlessly with the APC Sun Power Solar Kits, allowing you to automate farm gates far from mains power.
Q: Does it come with a warranty?
A: Yes, the APC-790 Swing Gate Motor comes with a 12-month warranty.
Q: Can I install this on a gate that opens outwards (Push-to-Open)?
A: Yes, but you will typically need the Side Mount (SM) bracket upgrade or specific geometry setup. The standard kit is often configured for "Pull-to-Open" (opening inwards towards the property). Check your specific bundle to ensure it includes the correct bracketry for Push-to-Open requirements.
Q: How do I open the gate if the power goes out?
A: The unit features a secure Manual Override System. You simply insert the provided key into the motor body, turn the lever, and the gears disengage, allowing you to push the gate open by hand.
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
| Power Input | 240V AC (Pre wired with 1.2m Cable) |
| Transformer | 24V AC |
| Rectification | On Board Bridge Rectifier |
| Motor Output Voltage | 24v DC |
| Battery Backup | 24V |
| Working temperature | -10° - 50° |
| RF | APC Rolling code 433.92mhz |
| Lock Output (Primary) | 12-30V DC (Depending on Configuration) |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Over current | 1A to 5A |
120° 2MP HD Intercom Camera Keypad (Swipe Tag Reader) Outdoor Station with 8" HD Monitor With Built-In WiFi For Smartphone APP
The Eyevision® Intelli HD Series four-wire intercom is a feature-rich state-of-the-art intercom system boasting every feature requested from an intercom system (and much more...).
Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor simultaneously with a large feature set from the APP and the indoor monitor. No extra modules are required to connect to the internet as the indoor monitor has built-in Wi-Fi and is able to connect directly to your home's 2.4GHZ Wi-Fi connection.
Two outdoor stations can be connected for the front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home, allowing for the visitor's call to be answered from any station and transferred to a different station if required.
The Intelli series can have a common release connected directly to the monitor, allowing for simultaneous front gate - front door release, making it easier to let a guest in without switching between menus or running to the door.
System Capacity & Capabilities
Indoor Monitor Base Features
Special Features (Micro SD Required)
Resolution: 8'' (1024*600)
Power Consumption: Maximum 1200 mA
Power supply: External power supply DC 12-15V
Operating Temp: 0~+50°C
SD Card Requirement: 2GB~128GB Class 10 micro SD Read/Write 10MB/S Min.
System Capacity: 6 indoor monitors and 2 outdoor stations
For more details and multi-device advanced system cabling topology, Please check the installation manual.
(IC Tags & Power Adapter Supplied)
A fourth-generation HD intercom system is an advanced communication system that utilizes high-definition video and audio communication technology. These systems can be used in residential, commercial, and industrial settings to enhance security, manage access control, and enable seamless communication with visitors on-premises. With This intercom system, you will get the latest advancements in intercom technology, including improved video quality, enhanced connectivity, and additional features such as mobile app integration and remote secure access management capabilities.
* Suitable with Eyevision® Intelli HD Series Indoor HD Monitor Options
(EV-HD-WF8, V-HD-WF8-WH, V-HD-WF10)
* Click here to see Eyevision® Intelli HD Series Indoor HD Monitor Options and Packages
| 120° Vide Angle View | 2MP HD Camera | Speaker and Microphone | Keypad | Call Button | Night Vision | Motion Detection | IC Tag Reader | Weatherproof |
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing, and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left-facing and right-facing setups.
Camera Sensor: 1/3" CMOS Camera
Viewing Angle: 120°
Resolution: 2 MP / HD
Night Viewing: IR LED
Operating Temperature: -0°C to +50°C
Operating Voltage: 12-15V DC
Operating Current: 30mA Standby 70mA Operational
Card Type: IC Card/Tag (KP 23-HD Only)
IP Rating: IP65
Suitable for:
Eyevision® Intelli Series Video Intercom System Outdoor Stations(Camera Keypad, Door Bell)
