Product SKU: DEA-600-DC24-BK-HW

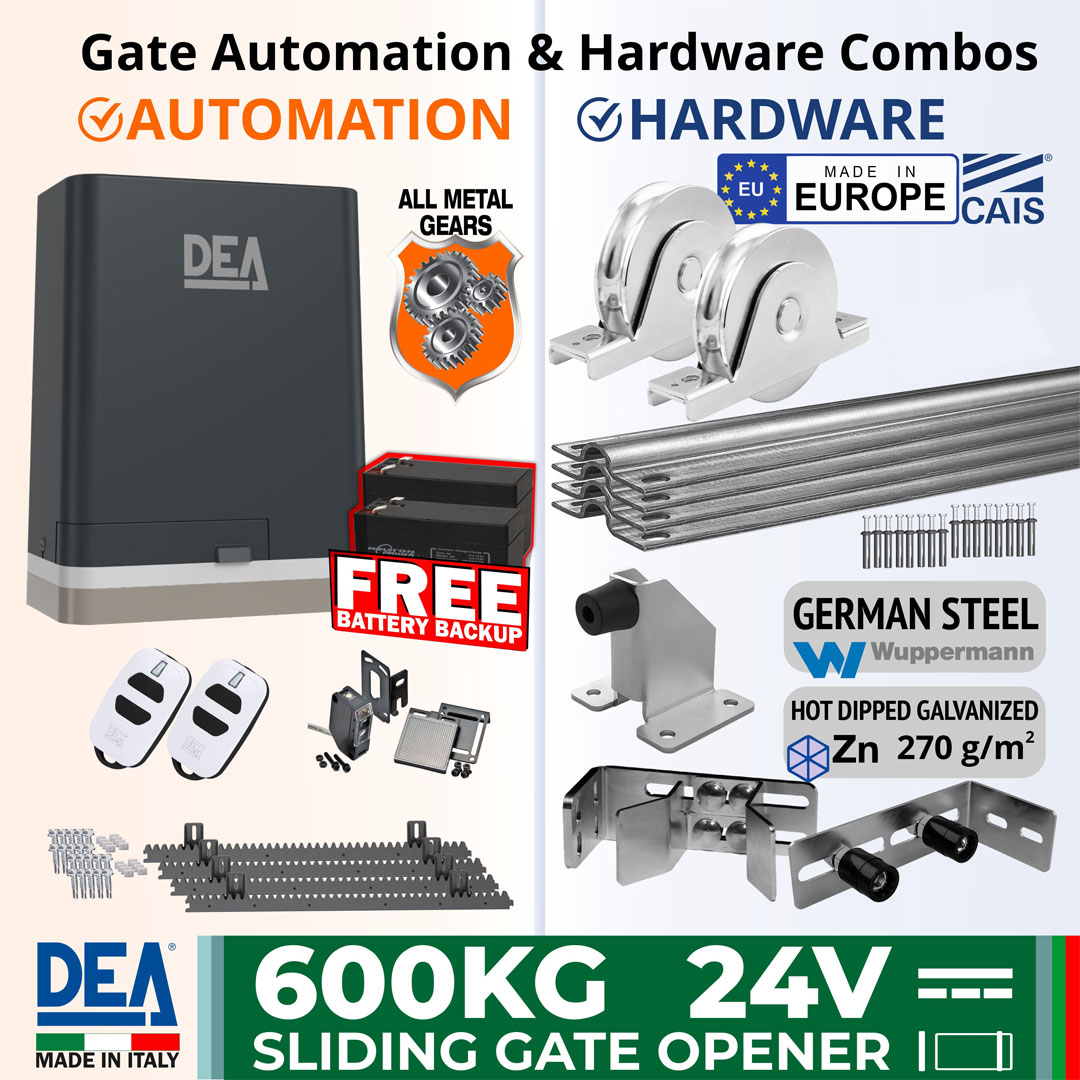

The sliding gate opener DEA-600 is a heavy-duty all-metal gear that has full programmability using the onboard control board with an LCD interface. It is suitable for residential usage with simple setups and commercial sites. See the full details below.
| Motor power supply (V) | 230 - 240 V ~ (50/60 Hz) |
| Motor power supply voltage (V) | 24 V |
| Maximum Power (W) | 80 |
| Max thrust (N) | 210 |
| Duty cycle (cycles/hour) Gate L=5 metres |
22 |
| N. max cycles in 24h. Gate L=5 metres |
60 |
| Leaf max weight (kg) | 600 |
| Operating temperature (°C) | -20÷50 °C |
| Speed (m/min) | 10 |
| Standard pinion | Z=16 (m=4mm) |
| Weight with packing (Kg) | 12 |
| Sound pressure (dBA) | < 70 |
| Protection level | IP44 |
A- Column with photocell
B -Operator
C- Photocells
D -Safety edge
E- Flashing light
F- Keyswitch / Digikey
G- Junction box
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
24v - 2x12v 1.2Ah rechargeable battery kit, complete with cables.
(Pre-installed when purchased with the Gate Opener Kits)
| Power line supply: | 16vac … 24vac |
| Operating temperature: | -20°C +55°C |
| Maximum input power: | 15W |
| Lead-acid batteries: | 2 x 12vdc 1200mAh |
| Nominal charge voltage: | 27.6 Vdc |
| Minimum self-protection voltage of the battery: | 19.5 Vdc |
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
This 1m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.
Material: (S350GD Steel) || High-strength, hot-dip galvanized steel (Sliding Gate Rail).
Bolt down "U" Profile Ground Track Rail 1000mm long. Galvanised Finish
The CAIS ROAD Sliding Gate Track is made from hot-dip galvanised S350GD, high-strength structural steel. This sliding gate hardware is specifically developed for long-lasting use and is suitable for use in heavy-duty sliding driveway gate applications.
Hot-dip galvanizing ensures a homogeneous zinc coating on the surface, which protects the steel sliding gate tracks against corrosion in the long term on your sliding gate system.
This Sliding Gate Rail, S350GD Steel Track, has a (3569 kg/cm²) 350 N/mm² Newton per Square Millimetre Pressure strength in the upper strength classes of hot-dip galvanised steels. It is ideal for domestic and commercial large and heavy sliding gate systems.
S350GD steel is a high-strength structural steel grade featuring a hot-dip galvanised coating that enhances corrosion resistance and durability. It is specifically engineered for demanding outdoor environments, making it an ideal material for sliding gate tracks.
Due to the combination of structural strength and long-lasting protection against rust, S350GD ensures smooth, secure, and low-maintenance gate operation — delivering reliable performance over time in all weather conditions.
"U" GROOVED WHEEL SINGLE BEARING
CAIS WSO Single Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels
CAIS rebate gate wheels are made from high-quality steel and bearings. Low-profile rebate wheels mean your gate is shallow to the ground. Best single-bearing gate wheels for gates and driveways...
Package:
CAIS WSO Single Bearing for Sliding Gates Wheels
Usage:
- Sliding Gates & Driveway Gates
Weight Capacity and Suitability:
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)
High Qualy Two Roller Guide Plate
Cantilever Gate Hardware Upper Rollers and Bracket Set
Heavy-duty Galvanized Steel Gate Stop with Rubber Bumper
110mm High Bolt Down Gate Stop, CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates
The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance.
Usage:
- Swing Gates
- Sliding Gates
| Material | Steel |
| Surface Finish | Hot Dipped Galvanized |
| Use | Gate Catcher / U Guide |
| Manufacturer | CAIS |
The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.
