Product SKU: APC-ABLE-3000-DC-L24-SSK

Single Swing Gate Opener Super Secure Kit - Italian-Made APC-ABLE-3000 Heavy Duty Linear Actuator. Single Swing Gate Automation System With High-Strength Magnetic Lock For Securing Large & Tall Gates From Heavy Wind Load, Wi-Fi Keypad With APP Control, Exit Button & Safety Sensors For Single Driveway Gates Automatic Opening/Closing 24V System for Max 3m Gate With Adjustable Built-In Stop.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Single Swing Gate Opener Super Secure Kit - Italian-Made APC-ABLE-3000 Heavy Duty Linear Actuator. Single Swing Gate Automation System With High-Strength Magnetic Lock For Securing Large & Tall Gates From Heavy Wind Load, Wi-Fi Keypad With APP Control, Exit Button & Safety Sensors For Single Driveway Gates Automatic Opening/Closing 24V System for Max 3m Gate With Adjustable Built-In Stop.

Product SKU: APC-ABLE-3000-DC-L24-SSK

  •  In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,029.00

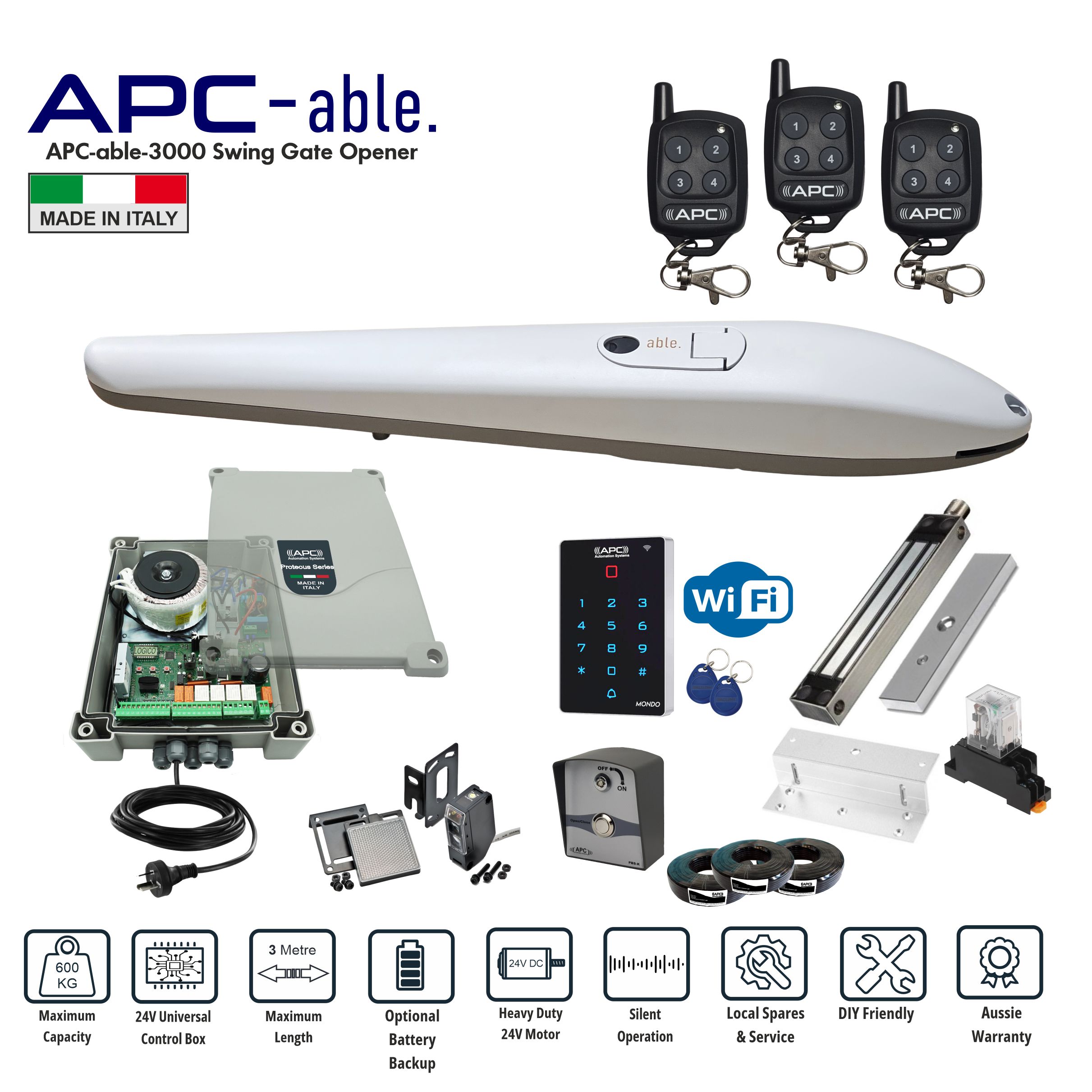

  • Automatic Single Swing Gate Opener 24V System. Max 3m or 600kg . High-Strength Magnetic Lock For Heavy Wind-Load

  • Kit Includes

    01 APC Able 3000 Heavy Duty Linear Actuator, Italian Made Swing Gate Opener Motor with Adjustable Built-In Stop for Automatic Gate Opener 24V System. Max 3m or 600kg per gate. (QTY: 1)
    02 Pair of Mechanical Limit Stop for Each APC-able Linear Actuators Suitable for Opening and Closing Position (QTY: 1)
    03 3m 2 Core Non-Shielded Cable (QTY: 1)
    04 APC Logico 24V Feature Rich Control Box Kit with Internal Transformer and Power Lead (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 3)
    06 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    07 EM Swipe Tag (QTY: 2)
    08 5m 4 Core Non Shielded Cable (QTY: 1)
    09 280KG Weatherproof Magnetic Gate Lock (QTY: 1)
    10 Z Bracket for 280KG Magnetic Lock (QTY: 1)
    11 Power Relay | DC 12V LED Indicator Light Electromagnetic Power Relay (QTY: 1)
    12 10m 2 Core Non Shielded Cable (QTY: 1)
    13 APC Wired Single Push Button Switch with Key Isolation (QTY: 1)
    14 5m 2 Core Non Shielded Cable (QTY: 1)
    15 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    16 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Swing Gate Opener | Linear Actuator for Automatic Driveway Gates

Packing a punch, the "APC Able 3000" system can deliver 2000N of thrust to operate gates up to 600kg or 3m in length for each gate. With a built-in adjustable mechanical stop for opening (an optional add-on mechanical closing stop), the system offers versatile stopping positions.

24V Automatic Swing Gate Motor. "APC Able 3000" Electromechanical actuator for swing gates with each leaf up to 3m in length (for each gate).





Italian Made Swing Gate Actuator Overview

Characteristics

  • Equipped with an opening mechanical limit stop
  • Mechanical closing stop accessory
  • Single version for both right and left leaves
  • Adjustable brackets for quick engine installation
  • Aluminum frame
  • Unlocking the handle with the protected lock
  • Plug-in connector for electrical connections



Italian Made Swing Gate Automation Installation Geometry



Italian Made Swing Gate Opener System Specifications

Thrust 2000N

Motor Voltage

24v DC

Manual override

Via override key supplied

Working temperature

-20° - +55°

Gates size

3m max for each gate

Gate weight

600kg max for each gate

Italian-Made Swing Gate Motor System Capacity

Maximum Gates Leaf Length: 3 M*

Maximum Gates Leaf Weight: 600 Kg*

(*for each gate)







Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

APC Mondo Wired Keypad with APP via Wi-Fi



The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).

Supplied with a 10 meter cable roll it is wired back to the main control board of the system. Its also supplied with two swipe tags for PIN FREE access.


Key Feature Set:

  • Full operational control by Tuya APP
  • Resin Filled for best weatherproofing
  • Low Power Consumption
  • Backlit Touch Keys
  • Up to 2000 Users
  • Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
  • Adjustable Relay Time from 0-99s or Latching ON/OFF
  • Doorbell Contacts to connect to your doorbell system

Wired Push Button with Isolation Key





The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .





12-24V DC Operating Voltage Magnetic Gate Lock Access Control System - 280KG Weatherproof Electric Gate Lock

 280Kg Magnetic Lock with Z Mounting Bracket and 10m Cable Roll

Please note that the magnetic lock is not suitable for solar-powered systems



Specifications

Lock Size:

220Lx42Wx25.5H (mm)

Armature plate:

180Lx40Wx11H (mm)

Holding Force:

280kg (600Lbs)

Voltage:

12/24VDC+10%

Current Draw:

12V/500mA     24V/250mA

Suitable for:

Outdoor use on gates, outdoor and indoor doors

Operating Temp:

-10º+55º(14-131F)

Suitable Humidity:

0~90%

Finishing of Magnetic lock:

Zinc

Finishing of the Armature:

Zinc
Weight:
2.1kg

Example of Magnetic lock with OPTIONAL Z Bracket

Electromagnetic Power Relay | DC 12V Power Relay with LED Indicator Light

Power Relay | DC 12V LED Indicator Light Electromagnetic Power Relay

Item Specifications

Contact type: DPDT (2NO 2NC)

Coil current: 10A

Coil voltage: 12V

Material: plastic, metal

Pin: 8 pin
