Product SKU: EMX-ULTRA-II
Price :
$219.00
info
Energy-efficient and user-friendly vehicle loop detector with a detachable 7-pin terminal block.

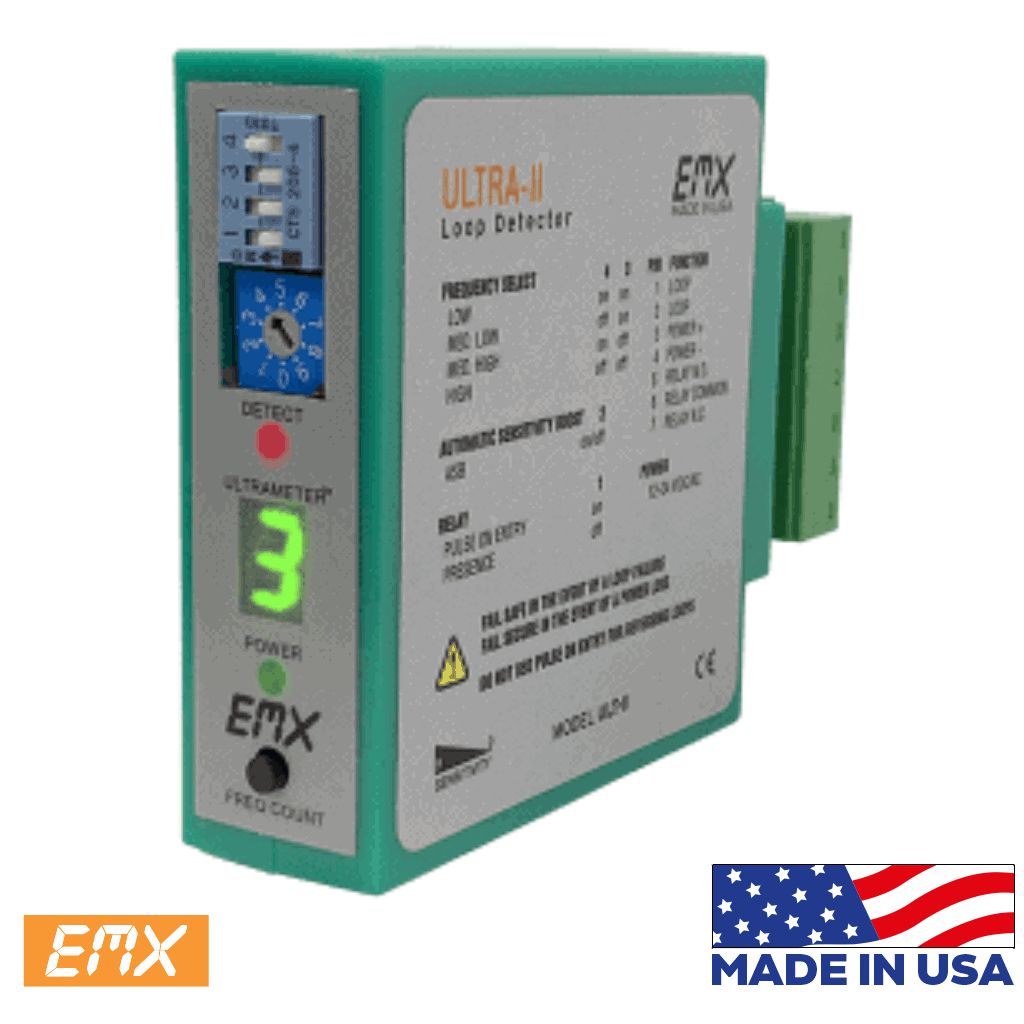

EMX ULTRA-II - Vehicle Loop Detector with Detachable 7-Pin Terminal Block
The ULTRA II vehicle loop detector features a compact, energy-efficient design with a user-friendly, detachable 7-pin terminal block, simplifying setup.
This vehicle loop detector provides a relay output indicating vehicle presence or a pulse on entry. The ULT-II also features an automatic sensitivity boost (ASB) option, which increases sensitivity following initial detection. This feature is helpful to prevent dropout when detecting high-bed vehicles.
The ULT-II is easy to install and operate. The ULTRAMETER™ display simplifies sensitivity selection. Ten sensitivity settings allow for a finer adjustment of the detection level, and four frequency selections help prevent crosstalk in multi-loop applications.
| Power Supply | 12-24 VDC/AC |
| Current Draw | 18 mA max. |
| Dimensions | L=3.0in (76 mm) W=0.9in (22 mm) H=2.75in (70 mm) |
| Weight | 0.15 lbs.(69g) |
| Loop Inductance | 20…2000µH (Q factor >5) |
| Environmental Tracking | Automatic Compensation |
| Operating Environment | -40° C to 82° C (-40°F to 180° F) 0 to 95% relative humidity |
| Housing Material | ABS |
| Connection | 7-position screw terminal |
| Loop Compensation | An isolation transformer allows operation with poor quality loops |
| Loop Frequency | 4 settings (low, med-low, med-hi, high) |
| Surge Protection | Loop circuitry protected by surge suppressors |
| ULTRAMETER Display | Indicates optimum sensitivity level |
| Ouput | Relay 1A @24 VDC Common, Normally Open, Normally Closed |
| Power/Loop Fault Indicator | Green LED |
| Detect/Frequency Count Indicator | Red LED |
| Frequency Count | To aid in detector set-up and the prevention of crosstalk |
| Pulse/Presence | Allows the relay output to send either a pulse output or have a constant presence |
| Sensitivity | 10 levels, 0-9 |
| ASB (Automatic Sensitivity Boost) | Increases sensitivity after initial detection to prevent dropout due to high bed vehicles |
