Product SKU: PB-SS-LED-IP68
Price :
$99.00
info

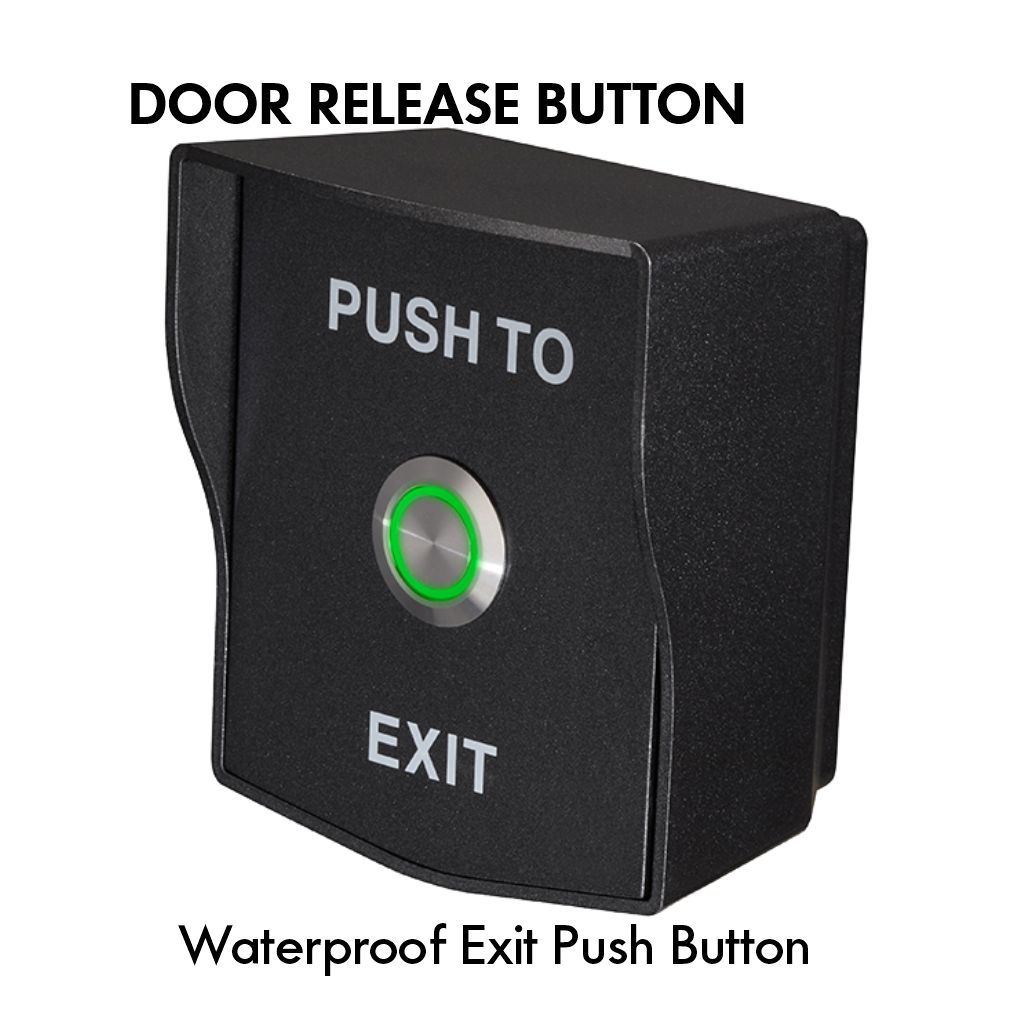

Premium stainless-steel LED waterproof push button switch | IP68 rated, 5-24 V DC, NO(Normally Open) contact.
Premium stainless-steel LED waterproof exit push button for Australian access control systems. IP68 rated, 12-24 V DC, NO contact.
Upgrade your access-control exit points with the stainless steel LED waterproof exit push button, engineered specifically for demanding Australian environments — from busy commercial doorways to outdoor or coastal installations. This high-performance exit switch offers a rugged build, visual clarity via its LED indicator, and full compatibility with modern access control systems.
Crafted with a 304 stainless steel panel, this unit combines a sleek, professional appearance with long-term durability. The integral LED indicator provides clear status feedback to users and security staff—ideal in high-traffic zones. With the IP68 waterproof and dustproof rating, the Push Button is fully suited for exterior use, harsh weather conditions, and installations in coastal or humid Australian locations.
Featuring a NO/(Normally Open) contact configuration, this push button integrates seamlessly with most access-control lock systems used across Australia, offering design flexibility and reliability. The button supports a wide operating voltage and is built to withstand thousands of cycles, bringing low maintenance and high uptime.
Whether specified for office buildings, hospitals, schools, retail centres or external doors requiring heavy-duty, weather-resistant hardware, the Stainless Steel LED Waterproof Exit Push Button offers the performance and finish that Australian installers, facility managers and security planners demand.
Model: Stainless Steel LED Waterproof Exit Push Button
Material / Finish: 304 stainless steel panel, zinc alloy with black paint treatment, metal button
LED Indicator: Built-in LED status indicator (for signal/feedback)
Waterproof/Dustproof Rating: IP68 — complete protection against dust and prolonged immersion in water
Contact Configuration: NO (Normally Open)
Voltage & Load: Suitable for access-control systems
Mechanical Life: High cycle life for reliable performance in high-use doors
Dimensions & Mounting: Designed for surface or panel mounting, suitable for commercial doors
Applications: Internal and external exit doors, high-traffic zones, coastal or outdoor environments
Safety & Compliance: Robust build and finish support compliance with access control hardware standards
Weather-resistant for Australian conditions: The IP68 rating and stainless steel finish make the Stainless Steel LED Waterproof Exit Push Button suitable for coastal, humid or exposed environments.
Professional finish for commercial fit-outs: The sleek stainless-steel panel suits offices, healthcare, education and retail installations where aesthetics matter.
Reliable in heavy traffic: Whether daily thousands of activations or occasional use, this unit’s design supports durability and long life.
Clear visual feedback: The LED indicator enhances user awareness and system feedback, which are essential in institutional or public access areas.
Exit doors in commercial office buildings
Access-controlled doors in hospitals, clinics and medical facilities
Schools, universities and educational buildings exist
Retail centres, shopping malls and public-access points
External or semi-exposed doors (e.g., building facades, car parks, covered walkways)
Coastal or humid environment installations requiring robust hardware
| Parameter | Specification |
|---|---|
| Model | Exit Push Button |
| Product Type | Stainless Steel LED Waterproof Exit Push Button |
| Panel Material | 304 Grade Stainless Steel |
| Button Type | Momentary Metal Push Button with LED Indicator |
| Finish | Zinc alloy with black paint treatment, metal button |
| LED Indicator | Green |
| Contact Rating | 200mA/24VDC (max) |
| Operating Voltage | 5 – 24 V DC |
| Contact Output | NO (Normally Open) |
| Ingress Protection Rating | IP68 (Waterproof & Dustproof) |
| Operating Temperature | -10 °C ~ +55 °C |
| Operating Humidity | 0 – 95 % RH |
| Dimensions (L×W×H) | 91.5 mm × 78 mm × 61 mm |
| Mounting Type | Surface Mount / Wall Mount |
| Installation Method | 2-Screw Fixed Plate Installation |
| Applications | Indoor & Outdoor Exit Doors, Coastal Installations, High-Traffic Commercial Entrances |
| Key Features | IP68 Waterproof, LED Indicator, Corrosion-Resistant, Heavy-Duty Build, Long Service Life |
Confirm supply voltage and system compatibility before installation (check with your access-control panel).
Use the NO, NC, COM outputs to match the logic required by your access control or lock interface.
For external or semi-exposed locations, ensure the mounting surface is sealed and the cable entry is weather-protected to maintain IP68 integrity.
Position the button at the recommended height for accessibility (e.g., ~900-1100 mm from finished floor) and ensure easy access for users.
Test the LED indicator and wiring during commissioning to verify correct operation and status feedback.
For outdoor installations in Australia’s varied climates, use corrosion-resistant fixings and incorporate weatherproofing where necessary.
Enhance your next access-controlled exit point with the PB-SS-LED-IP68 waterproof stainless steel LED exit push button — built for Australian commercial, industrial and outdoor environments. Ready for high-performance, ready for installation. Contact us today for project pricing, bulk orders or technical support.
