Product SKU: EMX-MMS-OWL-RC

Microwave Motion & Infrared Presence Sensor with Remote Control. Distinguish Between Vehicles, Pedestrians and Cross Traffic. Customizable Infrared Presence Detection Zone. Two Configurable Relay Outputs. | EMX-OWL Motion, Infrared Presence Sensor and Remote Control Package | Made in USA

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Microwave Motion & Infrared Presence Sensor with Remote Control. Distinguish Between Vehicles, Pedestrians and Cross Traffic. Customizable Infrared Presence Detection Zone. Two Configurable Relay Outputs. | EMX-OWL Motion, Infrared Presence Sensor and Remote Control Package | Made in USA

Product SKU: EMX-MMS-OWL-RC

  •  In Stock

Get More Info..

Kit Price:

$1,044.00

  • Or in 4 payment of $261.00 with afterpay info

  • Two configurable relay outputs. Highly customizable presence detection area

  • Kit Includes

    01 EMX-OWL Microwave Motion & Infrared Presence Sensor. Distinguish between vehicles, pedestrians and cross traffic. Customizable infrared presence detection zone. Two configurable relay outputs. (Made in USA) (QTY: 1)
    02 Remote Control For EMX-OWL Microwave Motion & Infrared Presence Sensor (QTY: 1)
  • Product Information

Product Information

EMX OWL - Microwave Motion & Infrared Presence Sensor

  • Distinguish between vehicles, pedestrians and cross traffic
  • Customizable infrared presence detection zone
  • Two configurable relay outputs
  • 3.5-6.5-meter mounting height
  • Remote for easy programming

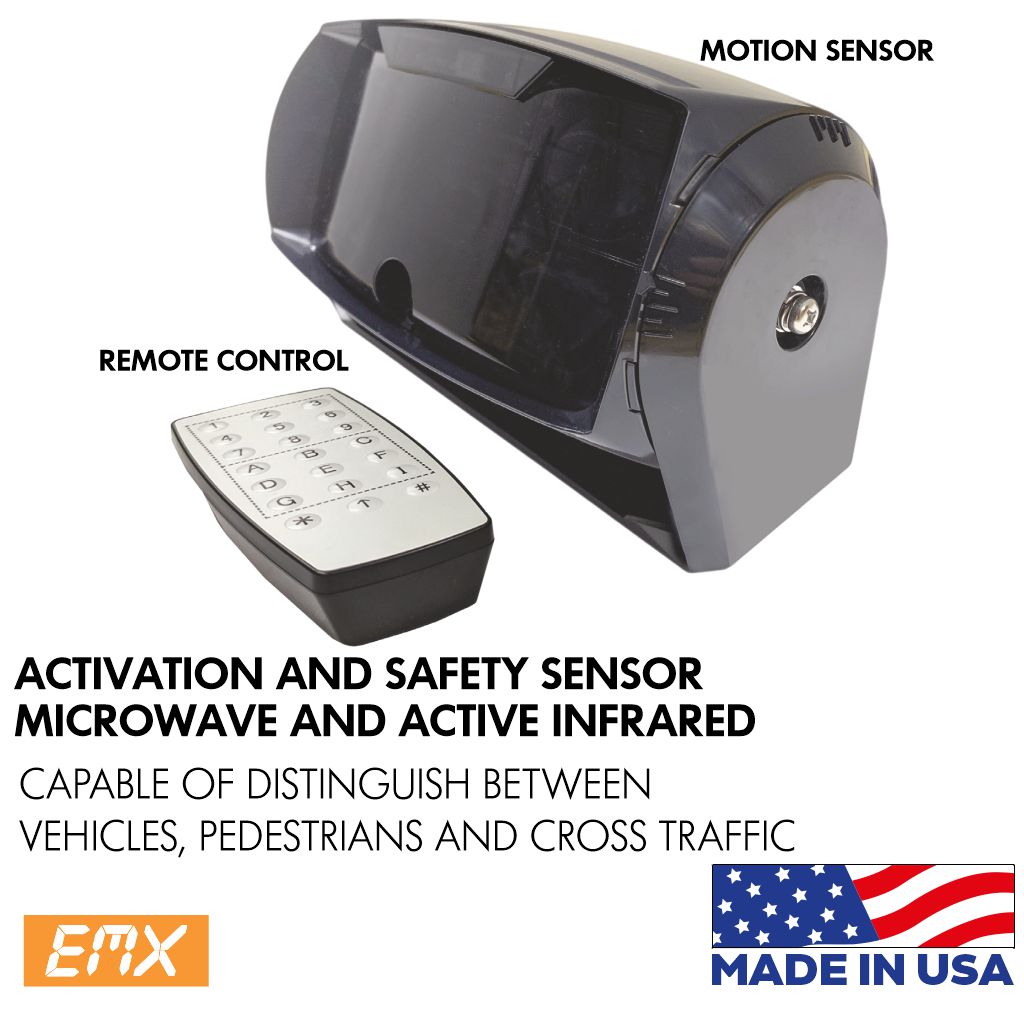

EMX-OWL – ACTIVATION AND SAFETY SENSOR
EMX-OWL REMOTE CONTROL







EMX OWL Microwave Motion & Infrared Presence Sensor Overview

The EMX OWL is a vehicle motion and presence sensor that uses microwave and infrared technology to activate automatic doors and industrial gates. Featuring two configurable outputs, vehicle motion detection, and presence detection, the EMX OWL activation sensor will ensure the safety of people and goods.

The remote control enables flexible setup of the presence detection area, direction detection, hold time, and more.



Advantages (EMX OWL Microwave Motion & Infrared Presence Sensor):

  • Door activation and protection in one unit
  • Disregard parallel traffic with filter settings
  • Highly customizable presence detection area
  • Save energy by reducing door openings



Applications:

  • High-speed and loading dock doors
  • Activation for audible alarms and warning lights
  • Manufacturing facilities
  • Pull cord replacement
  • Car dealerships



Features (EMX OWL Microwave Motion & Infrared Presence Sensor)

  • Advanced microwave and infrared technology with adjustable detection field
  • Distinguish between pedestrian and vehicle traffic for energy-efficient door openings
  • Adjustable filtering settings with remote control



EMX OWL Technical Specs

Mounting Height 3.5-6.5 m
Supply Voltage 12-24 VDC/AC
Max. Current Draw 150 mA @ 12 VDC
Operating Temperature -20ºC to 60ºC
Operating Humidity Below 80%
Dimensions 229 mm x 127 mm x 127 mm
Connections (10 m 8-conductor cable directly from the sensor
Weight 1.3 kg
Environmental Rating IP65
Vertical Directionality 16-32º wall or ceiling mount
Horizontal Directionality +/- 10º



Microwave (Vehicle Motion)

Operating Frequency 24.150 GHz
Detection Range Depends on sensor height and housing angle
Max. Range: 7 m
Max. Width: 6 m
Relay Output NO or NC (adjustable)
Relay Contact Rating Max. 48 VDC
Max. 300 mA
Relay Hold Time Typ. 500 ms
Adjustable Tilt Angle -10 to 25º



Infrared (Presence)

Detection Range Depends on sensor height and housing angle
Max. Range: 5.5 m
Max. Width: 8 m
Relay Output NO or NC (adjustable)
Relay Contact Rating Max. 48 VDC
Max. 300 mA
Relay Hold Time Presence (30 sec to Infinite, adjustable)
