EMX-LRS-DB-50 Direct Burial Sensor Probe with 15m Cable (Made in USA) | Loop Detector Sensor for Driveway Access Control

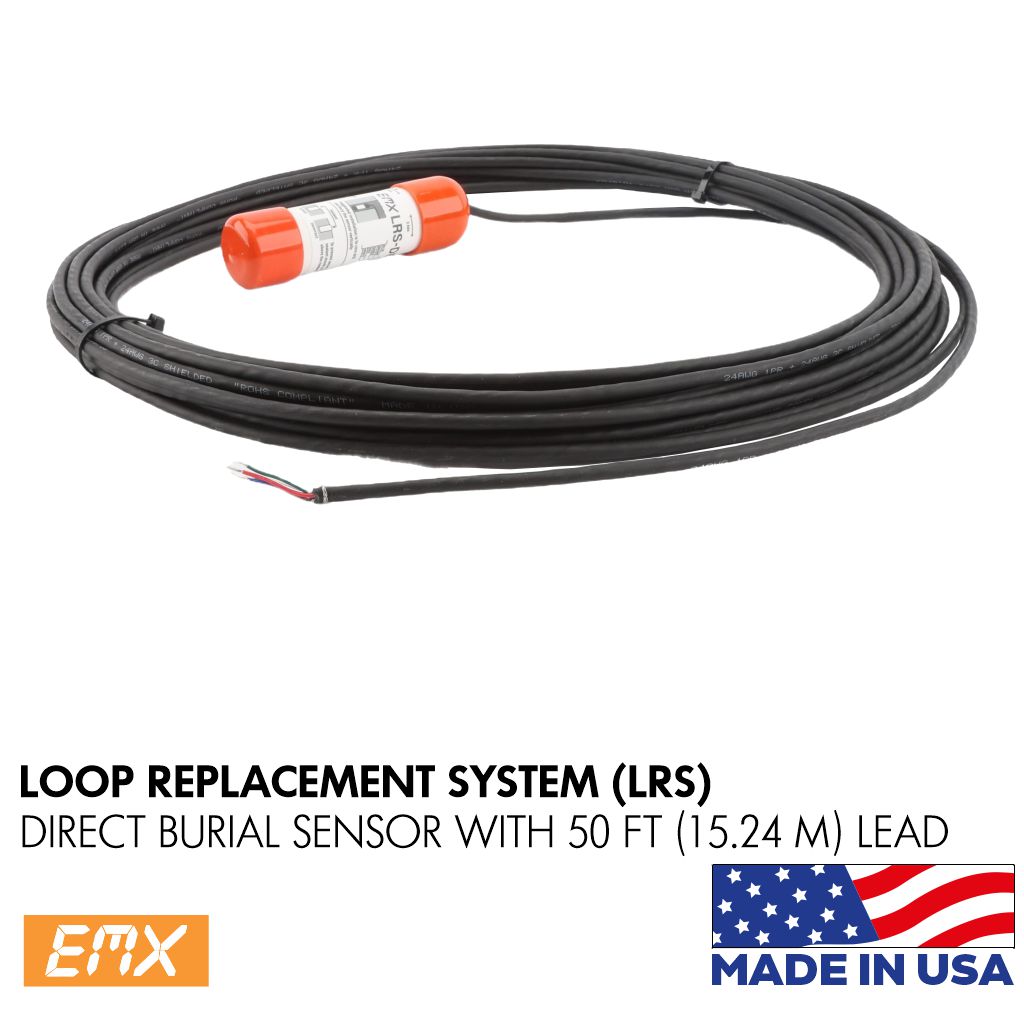

EMX LRS-DB-50 Direct Burial Sensor Probe with 15M Cable

The EMX LRS-DB-50 Magnetoresistive Vehicle Detector is designed for direct burial and features a 15 Meter (50-FT) Cable. This advanced sensor utilises 3-axis magnetoresistive sensing technology to detect changes in the Earth's magnetic field caused by ferrous objects.

Details EMX LRS-DB Direct Burial Sensor Probe:

The EMX LRS-DB Magnetoresistive Vehicle Detector has a detection range of 1.5 m and employs a sophisticated 3-axis sensing system. It provides measurements in the X, Y, and Z axes, enhancing detection sensitivity for both above-ground and below-ground installations.

Features EMX LRS-DB Direct Burial Sensor Probe:

• Cost-effective solution
• Suitable for boom gate control
• Operates as a stand-alone sensor
• Allows independent selection of X, Y, and Z axes
• Easy installation for both above-ground and below-ground applications
• Ideal for drive-thru and car wash vehicle detection
• Provides three-dimensional presence detection of vehicles
• Quick setup with ULTRAMETER™ sensitivity display
• Stores ambient background and settings in non-volatile memory
• Utilises the DETECT-ON-STOP™ feature to ignore cross traffic in tight spaces
• Compact, loop-less design, reducing installation costs compared to traditional inductive loop technology

Specifications EMX LRS-DB Direct Burial Sensor Probe:

• Detection Range: 1.5 m
• Response Time: 125 ms
• Sensor Power Supply: 12-30V DC
• Axis Sensitivity: 512 Counts/Gauss (Typical)
• Sensing Technology: 3-Axis Magnetoresistive
• Remote Power Supply: 12-30V DC and 24V AC
• Requires the vehicle to stop for a minimum of 1 second
• Operating Temperature Range: -40°C to 82°C (-40°F to 180°F) at 95% Relative Humidity

Sensor Technical Data
