Product SKU: WMD-EMX-LRS-FP-100
The LRS-C1 Single Saw-Cut Magnetoresistive Vehicle Detector, created by EMX, is a versatile and cost-effective 3D vehicle presence detector. It features quick setup with ULTRAMETER technology and high sensitivity, supporting both above-ground and below-ground installations.
The EMX LRS-C1 Vehicle Detector incorporates advanced three-axis magneto-resistive sensing technology, which responds to changes in the Earth's magnetic field caused by ferrous objects. With three sensing elements measuring in the X, Y, and Z axes, this detector improves sensitivity in both above-ground and below-ground installations. One of its standout features is the DETECT-ON-STOP™ (DOS®) functionality, which allows detection solely when a vehicle has come to a complete stop. This exclusive feature from EMX is particularly beneficial for preventing cross traffic in tight spaces. Additionally, the detector's compact, loopless design helps reduce installation costs compared to traditional inductive loop technology.
It is no longer necessary to make nine cuts to monitor vehicle presence…
The Loop Replacement System (LRS) features advanced 3-axis, magnetoresistive sensing technology that responds to changes in the Earth’s magnetic field caused by ferrous objects. Three sensing elements provide measurements in the X, Y and Z axes to improve detection sensitivity when used in either above-ground or below-ground installations.
The LRS is equipped with our new DETECT-ON-STOP™ or (DOS®) feature, which allows detection only when a vehicle has come to a complete stop. This EMX exclusive feature is a significant advantage if you want to ignore cross traffic in tight spaces.
The detector’s compact, loop-less design reduces installation costs when compared to traditional inductive loop technology.
The LRS system offers the following features:
| Power/fault indicator | Green LED |
| Detect indicator | Red LED |
| Outputs | SPDT relay/NPN (open collector) |
| Output ratings | Relay: 1A @ 24VDC…120VAC NPN: 50 mA (max) |
| Connection | 10-position screw terminal |
| Housing | ABS |
| Environmental rating | IP30 |
| Power supply | 12-30 VDC and 24 VAC |
| Current draw | 40 mA max |
| Dimensions | 76mm (3.0”) x 22mm(0.9”) x 70mm(2.75”) |
| Weight | 68g (0.15 lbs.) |
| Outputs | NPN (open collector) |
| Output ratings | 50 mA |
| Connection | 5-conductor direct burial |
| Housing | DB: PVC; FP: Polyamide |
| Environmental rating | IP69K |
| Power supply | 12-30 VDC |
| Current draw | 10 mA max |
| Dimensions | DB:102mm (4.0”) x 27mm (1.0”); FP: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”) |
| Weight | DB: 43g (0.09 lbs.); FP: 23g (0.05 lbs.) |
| Sensing technology | 3-axis magnetoresistive |
| Sensitivity | 10 levels: 0-9 |
| Axis sensitivity | 512 counts/gauss (typical) |
| Environmental tracking | Automatic compensation |
| Local magnetic field nulling | Averages the local field signature in any sensor orientation |
| Detection range | 1.5m (5ft.) |
| Pulse/presence | Allows the relay/NPN output to send either a pulse output or have a constant presence |
| Detect-On-Stop | Requires vehicle to stop for a minimum of 1 second (1-2s typical) |
| Operating environment | -40°C…82°C (-40°F…180°F) |
| Supply protection circuitry | Reverse polarity and fuse protected |
| Power indicator | Green LED |
| Detect indicator | 2x Red LEDs |
| Configuration selector | 10-position rotary switch |
| Outputs | Relay 1: SPDT (form C) Relay 2: SPST (form A) |
| Output ratings | 1A @ 24 VDC/120 VAC |
| Operating environment | -40° C…82° C (-40° F…180° F) 0…95% relative humidity |
| Housing material | ABS |
| Enclosure | IP30 |
| Power | 12-30 VDC and 24 VAC |
| Operating current (standby/detect) | One sensor connected: 22/35mA Two sensors connected: 33/60mA |
| Supply protection circuitry | Reverse polarity and fuse protected |
| Dimensions | 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”) |
| Weight | 0.25 lbs. (113 g) |
| Connector | 11-pin male connector (JEDEC B11-88) |

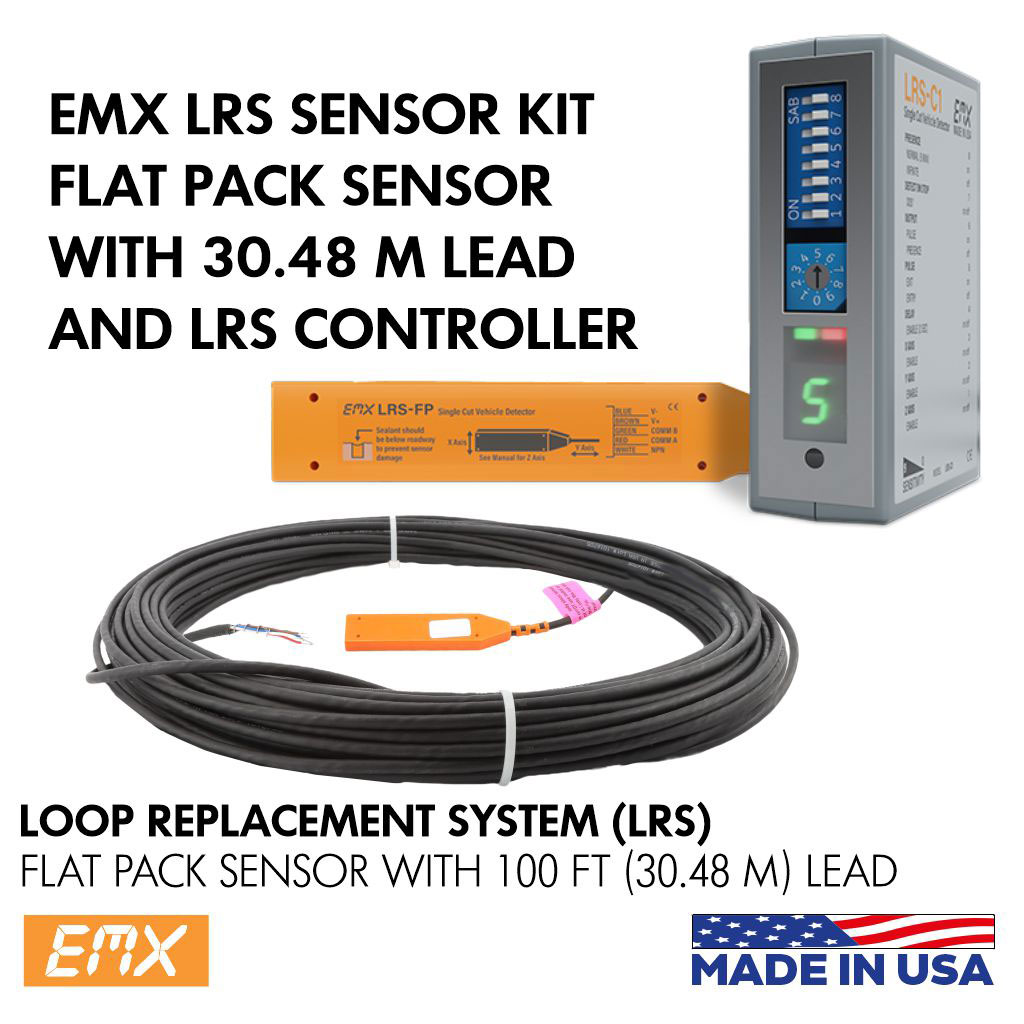

The EMX Flat Pack Vehicle Detector Sensor is a magnetoresistive, direct burial sensor equipped with a 30-meter lead wire. This sensor efficiently stores ambient background information and settings in non-volatile memory. It features fast, high-speed detection and utilises detect-on-stop technology to ignore cross traffic in tight spaces, allowing for accurate detection when a vehicle comes to a complete stop.
This model is explicitly designed for direct use with the EMX LRS Single Cut Installation Vehicle Detector Control Unit (Model: LRS-C1). The Single Cut Loop Replacement System features advanced 3-axis magnetoresistive sensing technology, enabling the sensor to measure the magnetic field across the x, y, and z axes. This feature enhances detection sensitivity and improves response to any disturbances caused by ferrous objects.
| Outputs | NPN (open collector) |
| Output ratings | 50 mA |
| Connection | 5-conductor direct burial |
| Housing | FP: Polyamide |
| Environmental rating | IP69K |
| Power supply | 12-30 VDC |
| Current draw | 10 mA max |
| Dimensions | FP: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”) |
| Weight | FP: 23g (0.05 lbs.) |
