Product SKU: PATRIOT-E
Free Shipping
Kit Price:
$4,795.00

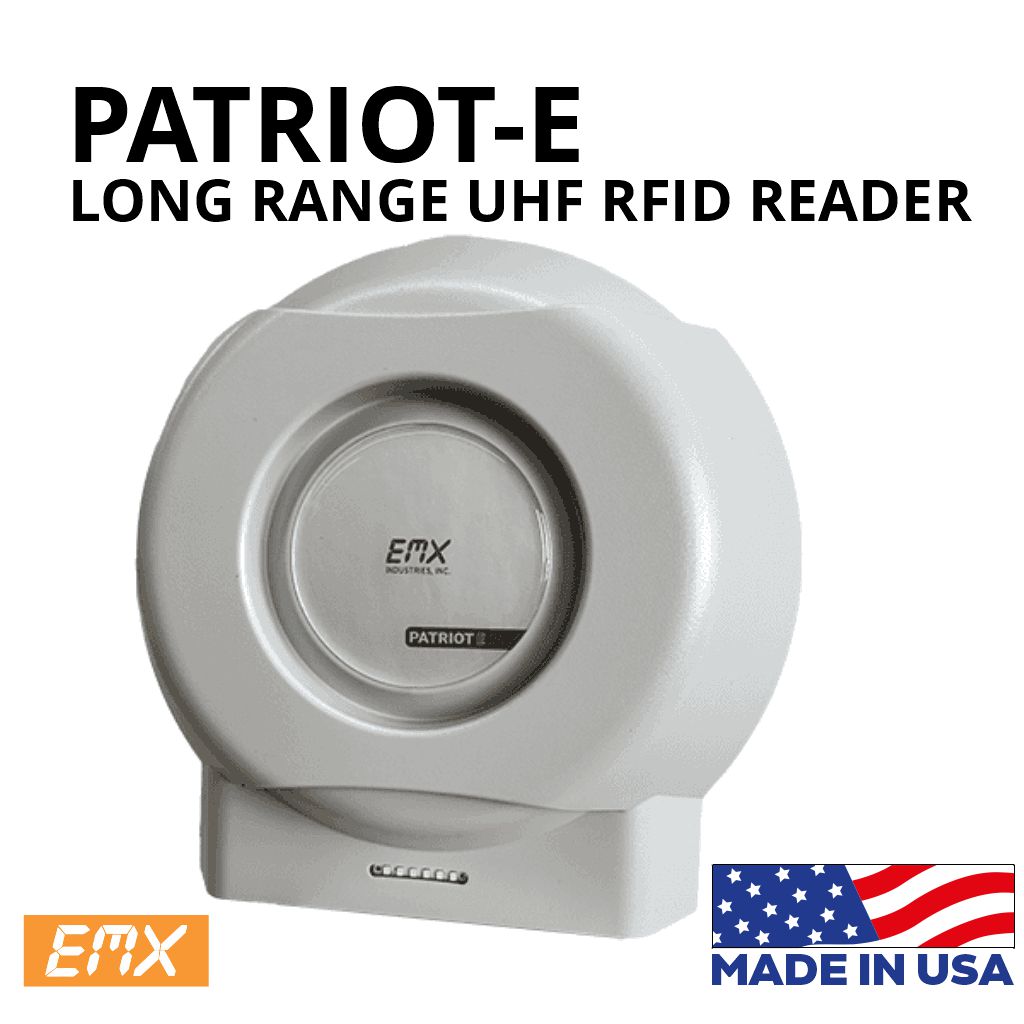

Patriot-E.BLE: Circular polarized RFID reader with Bluetooth
| Model Name | Patriot – E |
| Frequency | 902-928 MHz |
| Max RF Power | 30dBm (1 Watt) |
| Average Read Range (site and tag dependent) | 5.4-7.6 m |
| Antenna | Circular Polarized 7.5 dBi (Gain) |
| LED Indicator | Yes |
| Sounder Indicator | Yes |
| Supply Voltage | 9-48VDC |
| Included Power Supply | 110/240AC to 12VDC |
| Included Mounting Bracket | Yes |
| Max Current | 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) |
| Adjustable read range | Yes |
| Outputs to Controller | Wiegand, RS-232, Relay Contact, RS-485 / OSDP |
| Communication Options for Reader Configuration | RJ45 Ethernet Connector, WiFi |
| Reader Capab | Standard Credential Tags: Window Tag, Hang Tag |
| Bluetooth Credential Capable | Optional |
| Extra Feature | Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in the reader for access control without a door controller |
| Arming Input Capable | Yes |
| FCC Approval | Part 15 |
| Operational Temperature | -20°C to +70°C |
| Size | 22 x 20 x 6 cm |
| IP Rated | IP65 |
