Keypad and QR Code Scanner Access Control Device with a 12-key Alphanumeric Keypad Featuring Backlit Pressure-Sensitive Keys. Made in Italy. Smart-sized dimensions 72 x 72 x 25 mm. Its durability and user-friendly Keypad with QR Code Scanner design make it easy to install in both modern settings and existing structures.

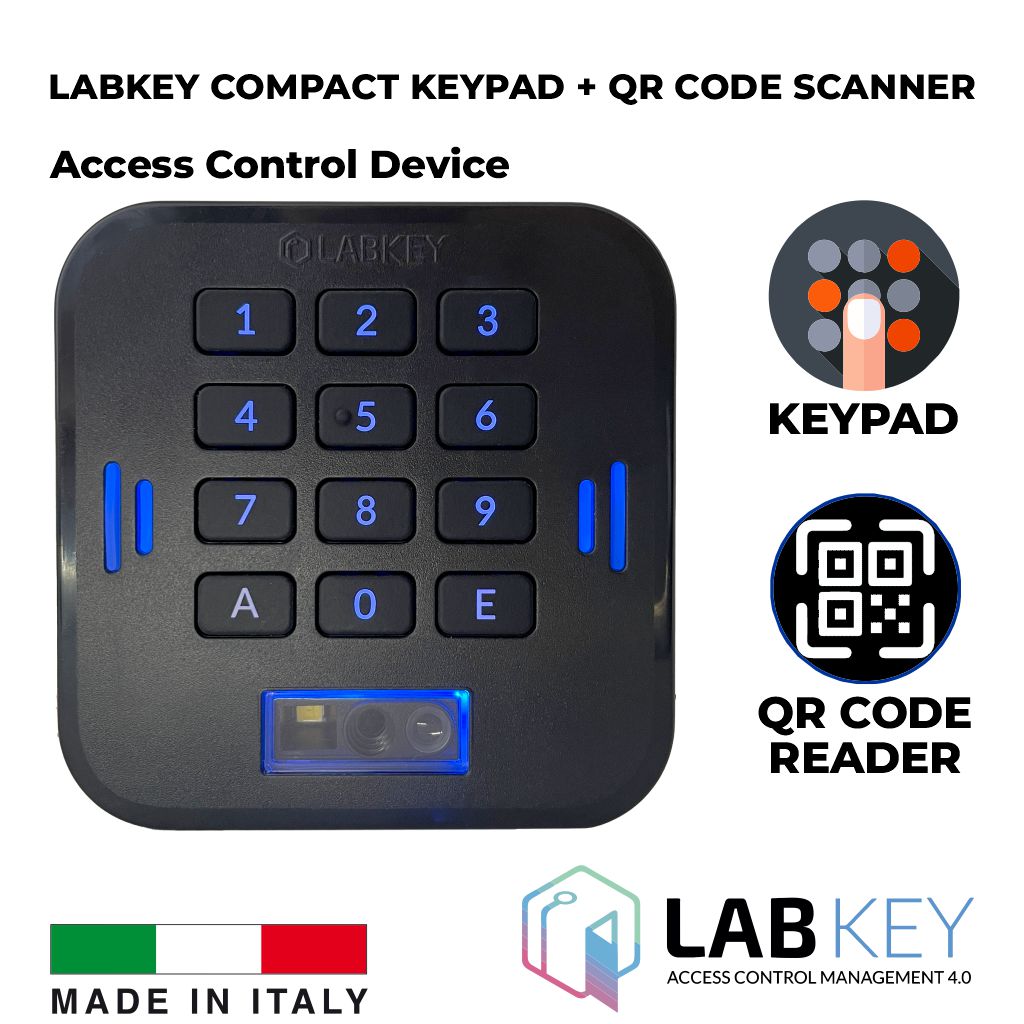

Labkey Compact Keypad with QR Code Scanner | Ideal for meeting the simplest needs.

LabKey Compact is one of the ultra-compact keypad readers, measuring just 72 x 72 x 25 mm. Its durability and user-friendly design make it easy to install in both modern settings and existing structures.
The classic, reliable option for secure, controlled access, ideal for basic needs.
This keypad is one of the most space-saving control devices in the market. Our compact, portable device offers durability, ease of use, and fast installation, featuring a backlit 12-key alphanumeric touchscreen Keypad with QR Code Scanner.

Features

With compact dimensions of 72x72x25 mm, LabKey Compact elegantly integrates into any environment. All devices feature an intelligent energy-saving mode that automatically adjusts LED brightness to maximise energy efficiency.

Specifications:

• Dimensions: 72 x 72 x 25 mm
• Communication: RS-485 Cable
• Power Saving: Standby energy-saving mode
• IP Rating: IP65 Certification
• Visual Feedback: Colored light indicator
• Keypad Push Buttons: 12-key with backlighting, accentuated during typing.
• Customizable Codes: Numeric codes of at least six digits for greater security
• Includes Braille Dot: Includes braille support for visually impaired users.
• Personalised Gadgets: Possibility to customise entry badges, key rings, bracelets, and stickers.
• Reading In The Dark: QR-Code reading guaranteed even in total darkness.
• Reading Mode: Detects code up to 10x10mm, reading time 0.1 seconds.

Suitable LabKey Control Units

LabKey Basic Control Units | Wi-Fi Connection

This unit offers 2 or 4 relays and can be paired with up to 4 or 8 command devices, respectively, from the complete range of LabKey control devices. It connects to the network via Wi-Fi and features cloud-based management.

LabKey Pro Control Unit | Wi-Fi / LAN Connection

Available with 2 or 4 relays, this control unit can be paired with up to 4 or 8 command devices. It provides connectivity through either Wi-Fi or a LAN connection (using an Ethernet cable) and includes cloud-based management.

LabKey LTE Control Unit | Wi-Fi / LTE Connection

This unit comes with 2 or 4 relays and can accommodate up to 4 or 8 command devices. It features LTE connectivity via a USB dongle with an integrated SIM card, backed by a 5-year guarantee in Australia. This unit also supports Wi-Fi connection and offers cloud-based management.

LabKey Stand-Alone Control Unit | Local Network Connection

This stand-alone control unit offers 2 or 4 relays and can be paired with up to 4 or 8 command devices. Unlike the other units, the cloud management panel is not available; instead, management is integrated directly through the mobile app via the local network.
