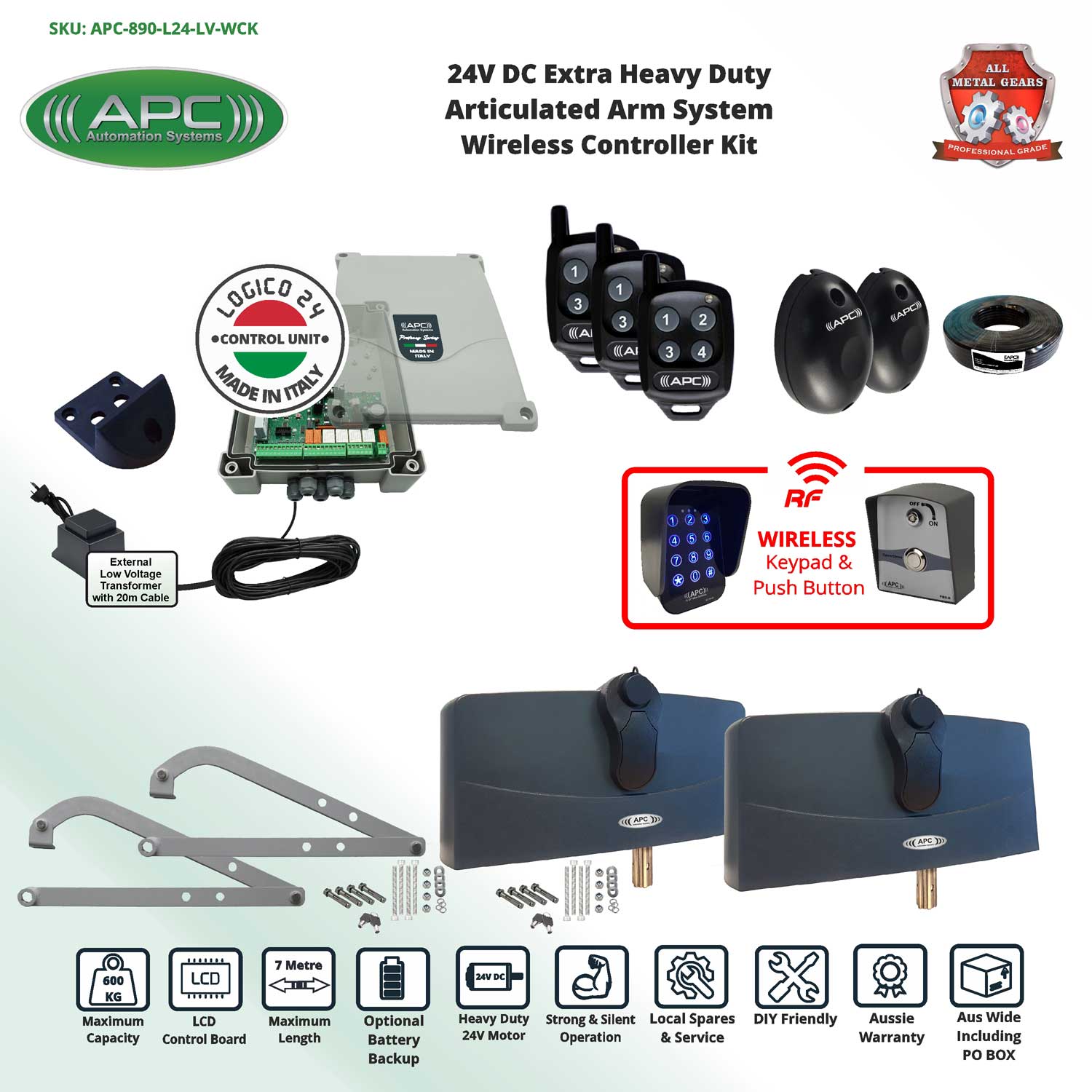

High Speed Articulated Arm System with Italian Made Logico 24 Control Unit, Limit Switches , All Metal Gears with Forward/Side Mount Kit

Extra Heavy Duty High-Speed Articulated Arm System-Reliability, Durability & Weatherproof

Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 3.5m each gate or 300kg of weight each gate. Furthermore it is completely weatherproof and concealed to suit all weather conditions.

All Metal Gear Box (NO PLASTIC OR NYLON)

Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.



Limit Switches and Manual Override

Built in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.

360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.

24V Extra Heavy Duty DC Motor

Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.

Adjustable Long Span Powder coated Steel Arms

Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.

Motor Dimensions

Option 1: Forward Mount Bracket (Pull to Open)

Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).

Option 2: Upgrade to Side Mount Bracket Upgrade (Pull or Push to Open)

Powder Coated Side Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 350mm in width making it ideal to be used on pillars for optimal holding strength across brick work or to be offset off the post in push to open installs.

Pull to Open

Push to Open: Method 1

<

Push to Open: Method 2

APC-790 Extra Heavy Duty Articulated Swing Gate Opener (Forward Mount Bracket and Optional Side Mount Bracket)

APC-790 Heavy Duty Articulated Gate Opener | 4.5m / 300kg Capacity | Automotion Plus

Upgrade your gate with the APC-790 Articulated Swing Gate Opener. Australian-designed for wide pillars and heavy farm gates. Features all-metal gears, a 24V DC motor, and easy forward-mount installation. Shop now for fast AU delivery.

Key Features, Technical Specifications, Why Choose the APC-790?, Frequently Asked Questions.

The Ultimate Solution for Wide Pillars and Heavy Gates

The APC-790 Articulated Motor Swing Gate Automation System is engineered specifically for Australian conditions, offering a robust automation solution where standard linear actuators fail. Designed with a versatile "Forward Mount (FM)" and "Side Mount(SM)" geometry, this motor is perfect for brick pillars and large posts, allowing the long arm to reach around corners efficiently. Built with a whisper-quiet 24V DC motor and an all-metal gearbox, the APC-790 guarantees reliability without the weakness of plastic components. Whether you are automating a residential driveway or a rural farm gate, this system delivers high-speed operation with precision control.

Key Features

• Australian Designed Toughness: sealed and weatherproofed to withstand blistering heat and heavy storms.

• 100% All-Metal Gearbox: Zero plastic or nylon parts. Features six robust steel gears and a copper transfer gear with sealed bearings for a long operational life.

• Heavy-Duty Capacity: Capable of operating gates up to 4.5 meters in length or weights up to 300kg.

• Flexible Installation: The Forward Mount (FM) or Side Mount (SM) Brackets with Long Arm allow easy installation on brick pillars and wide posts where geometry is tricky.

• Precision Limit Switches: Built-in 360°-adjustable cams let you set exact Open and Close positions, protecting your gate and motor from physical strain.

• Solar Ready: The 24V DC low-voltage architecture makes it perfectly compatible with APC Sun Power solar kits for off-grid reliability.

Data Sheet: Technical Specifications

Product Capability & Benefits Table

Optimised FAQ

Q: Why should I choose an articulated arm (APC-790) over a linear actuator?

A: Articulated arms like the APC-790 Swing Gate Openers are designed for "geometry flexibility." If you have large brick pillars or posts where the hinge is set deep in the centre, a linear arm often hits the corner of the post. The APC-790's "elbow" action allows it to reach around the post, making it the best choice for existing brick pillars.

Q: Is the APC-790 Swing Gate Motor compatible with solar power?

A: Yes, absolutely. The motor operates on 24V DC, making it highly efficient and safe for DIY installation. It pairs seamlessly with the APC Sun Power Solar Kits, allowing you to automate farm gates far from mains power.

Q: Does it come with a warranty?

A: Yes, the APC-790 Swing Gate Motor comes with a 12-month warranty.

Q: Can I install this on a gate that opens outwards (Push-to-Open)?

A: Yes, but you will typically need the Side Mount (SM) bracket upgrade or specific geometry setup. The standard kit is often configured for "Pull-to-Open" (opening inwards towards the property). Check your specific bundle to ensure it includes the correct bracketry for Push-to-Open requirements.

Q: How do I open the gate if the power goes out?

A: The unit features a secure Manual Override System. You simply insert the provided key into the motor body, turn the lever, and the gears disengage, allowing you to push the gate open by hand.

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

Remote Features

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.

Specifications

Optional Battery Back Up Box

APC-PE2000 Photoelectric Safety Sensor Set

The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.


• Up to 15 Metres Infared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment led to assist in the installation process


• Weather sealed with the supplied cover seals


• Easy screw down wiring termination




APC-KP2W Wireless Keypad Features

• Low Power Consumption only 18uA in standby.


• Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.


• High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.


• Blue Backlight illumination upon touch with an automatic timeout to return to standby.


• Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)


• IP53 Weatherproof rated and suited for outdoor and indoor environments.


• Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.


• Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.


• Two-Channel operation allowing the user to control two different items or functions using separate pin codes.




Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)



Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)

Wireless Double Push Button with Isolation Key

The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.

65mm Rubber Gate Stop

The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.





65mm Rubber Gate Stop Dimensions
