Gatemaster Single-Sided Mechanical Keypad Suited for Left Hand Gate Opening and Frame Thickness of 40-60mm | Superlock 2.0 Code Gate Lock | RapidReset Mechanical Keypad | Single-Sided Keypad

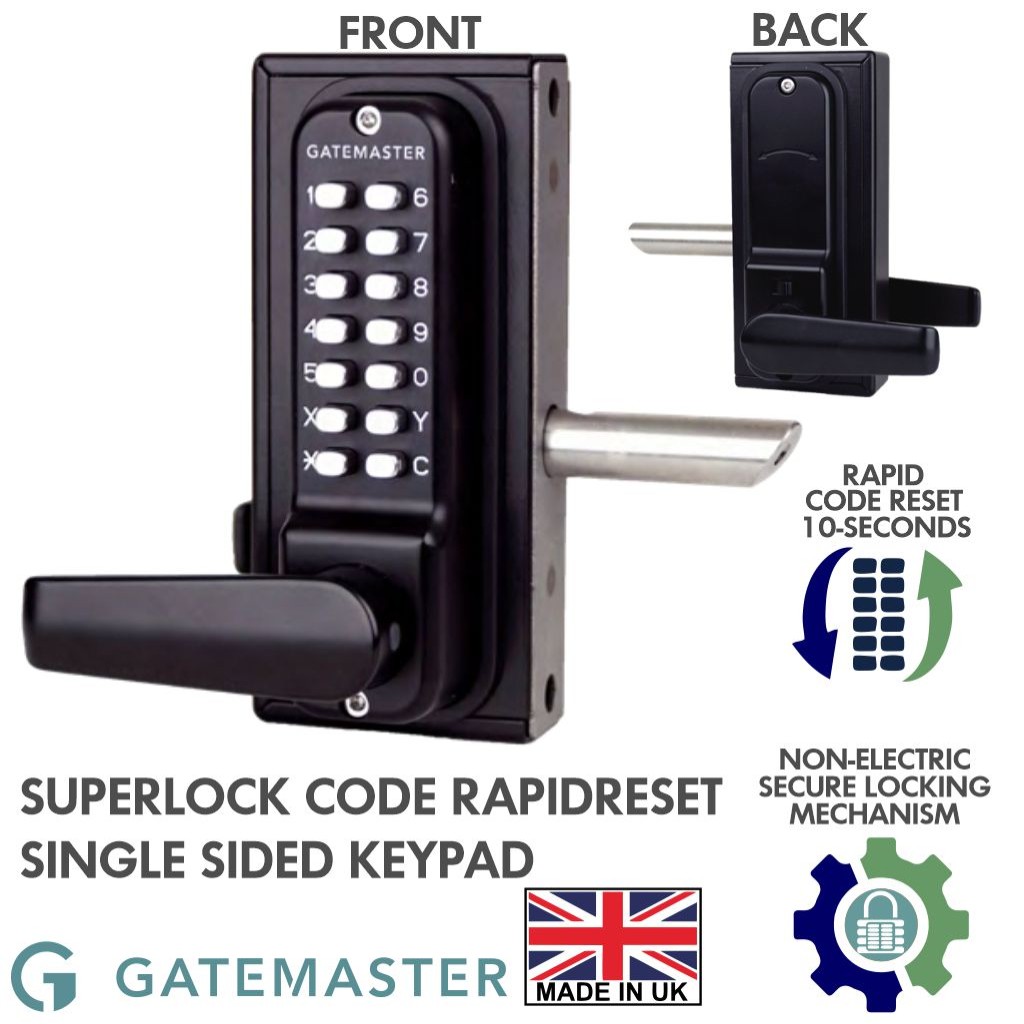

Gatemaster Superlock 2.0 Code Gate Lock | Single-Sided RapidReset Keypad

Your code, your control

Secure in seconds with RapidReset

Our newest Superlock gate lock now features RapidReset, enabling you to change codes effortlessly in just seconds.

No need to remove the lock from the gate

Traditional keypad gate locks require you to remove the lock from the gate to change entry codes. RapidReset enables users to change the code without needing to unlock the gate, making it easy to adapt to changing security needs.

Change the code in 10 seconds.

RapidReset makes updating the code effortless with a unique 4-step process that utilises only the keypad. Traditional locks require manually adjusting the pins inside before fitting the lock back onto the gate.

No battery or power needed

The quick-change functionality and secure locking mechanism require no electricity to operate, meaning low maintenance and long-lasting durability.

TO CHANGE THE CODE

To change the code, you will need to know what the keypad is currently set to.

1. Enter existing code.
2. Fully press and hold the code change button (*) (until step 5)
3. Press the ‘C’ button to clear the existing code. There is now no code set, and the lock will operate as if the hold function is set until a new code is input.
4. Press the digits that are to be included in the new code, ensuring the code change button is still held down. Once the new code has been entered, press all the digits in the code once again to ensure that all the digits in the code are set.
5. Release the code change button (*).
6. Press the ‘C’ button or rotate the lever handle to set the new code.
7. The new code is now set and ready for use.
8. Verify that the code functions correctly and releases the latch/deadbolt before closing the gate.

Specifications:

10-second code changes – Update the code fast with the code change button without removing the lock from the gate.

No battery or power needed – Low maintenance, non-electric secure locking mechanism.

Easy to fit – The slim 70mm wide lock case and the adjustable and removable latch bolt ensure easy installation.

Easy to operate handle – Designed particularly for those with mobility issues who find gripping and turning difficult.

Highly secure – The latch bolt moves 15mm, ensuring the bolt enters deep into the gatepost.

Anti-climb handle – This lock is also fitted with an anti-climb handle to prevent intruders from using the handle as a foothold to climb the gate.

Hold-back function – When the button on the back is activated, it holds the lock in the open position.

Long-lasting & durable – Purpose-engineered for outdoor use with anti-corrosion and stainless steel construction.

Also available with a double-sided keypad

Options based on the gate opening mechanism and the size of the installation frame.

• 40-60mm gate frames, left-hand
• 40-60mm gate frames, right-hand

Core Features

• RapidReset Mechanical Keypad

Enables tool-free code changes in under 10 seconds, without removing the lock from the gate, thanks to Gatemaster’s four-step mechanical reset system

• Single-Sided Entry / Free Exit Inside

The keypad is mounted on the outside only, while the inside features a lever handle for quick and intuitive exit—no code required

• Auto-Latching Mechanism

As the gate closes, the latch bolt automatically engages with a strike plate on the gatepost, ensuring it locks without manual intervention

• Adjustable Latch Bolt

The latch bolt adjusts approximately. 15 mm into the gatepost for reliable security and installation tolerance. It’s also removable for precise fitting

• Slim, Easy-to-Fit Design

A compact 70 mm wide bolt-on case, paired with a removable latch bolt, simplifies installation across various gate types and materials.

• Durable, Weather-Resistant Construction

Designed for outdoor use with a marine-grade keypad and die-cast casing, engineered for long-lasting corrosion resistance

• Gate Post Strike Plate Included

Comes with a matching strike plate to ensure smooth latching and reduce wear over time

• No Power Required

Fully mechanical operation—no batteries or wiring needed—for worry-free, low-maintenance functionality

• Handing & Compatibility Options

Available in:

• Left- or right-hand configuration

• Models for different frame thickness ranges: 10–30 mm or 40–60 mm gate frames.

Installation requires drilling fixings and latch bolt holes at the specified centres; detailed instructions are provided in the specification sheet.

Summary Table

Why Choose GateMaster Single-Sided RapidReset Keypad?

• Fast code management — ideal for frequently changing access.

• Simplified exit — internal lever for seamless egress.

• Robust outdoor use — designed for weather exposure and long-term reliability.

• Flexible installation — slim profile and adjustable bolt fit a range of gate types.

• Safe & secure — auto-latch mechanism and deep bolt engagement improve protection.
