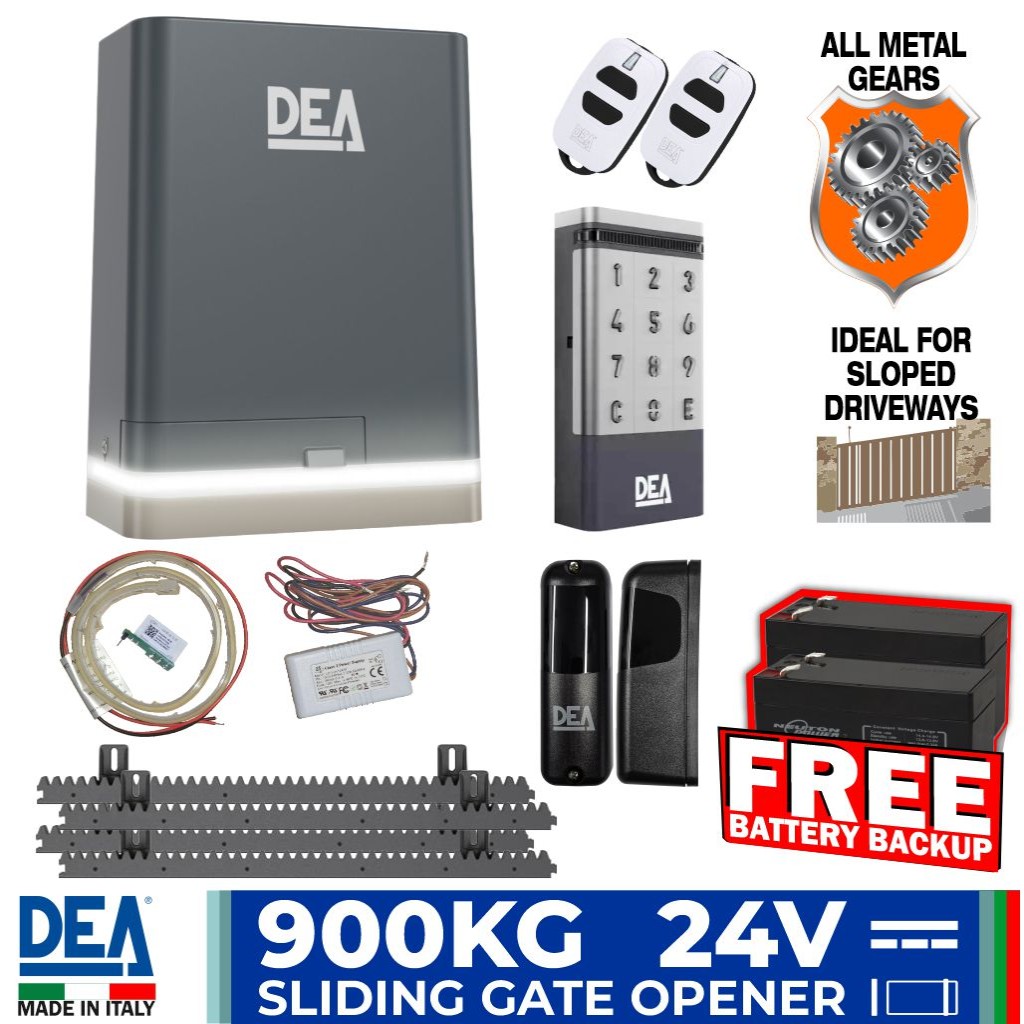

Extra Heavy Duty 900kg Sliding Gate Opener with LED/X lighting, Wireless Keypad and Wireless Safety Sensor Kit | Italian Made by DEA. Automatic Gate Opener System with All-Metal Gear Strong Sliding Gate Automation Motor, Magnetic Limits, Wireless Keypad Access Control, LED/X lighting and Wireless PE Safety Sensor. Suitable sliding gate on sloped driveways.

900 KG Sliding Gate Opener DEA-900-DC24, Extra Heavy Duty 24V Italian Made Sliding Gate Motor Overview

At a glance | The Sliding Gate Opener/Closer

The sliding gate opener DEA-900 is an extra heavy-duty all-metal gear that has full programmability using the onboard control board with an LCD interface. It has a capacity of 10m and 900 kg, and is suitable for residential usage with simple setups and commercial sites and a suitable sliding gate on sloped driveways. See the full details below.

Electric Gate Automation System Features

• 900KG Capacity
• Suitable sliding gate on sloped driveways
• Extra heavy-duty all-metal gear is strong and durable for long-lasting use.
• 10m Ultra-long sliding gate capacity
• The release system is now protected for increased reliability.
• A new transparent control unit box with an easy-open system is also available.
• LCD Display (No DIP Switches or Dials)
• New design with the possibility of installing an LED strip (optional LED kit)
• New slotted fixing holes offer more significant adjustment during installation, ensuring backward compatibility.
• New ABS crankcase for better weather resistance.
• Increased degree of protection (IP44)
• The DEA-900 has a new magnetic limit switch system, consisting of a new technology sensor and a set of magnets attached to the multi-adjustable rack.
• DEA-900 Automatic Sliding Gate Motors are made with high-quality materials, such as steel and bronze, guaranteeing long-term reliability.
• Self-locking with magnetic limit switch
• Speed adjustment and slow down in opening and closing
• Anti-crashing safety device

Control Board Overview

• Universal control board for managing 1 or 2 motors in 24v.
• 6 inputs | 5 Outputs
• Up to 100 Remote Controls
• 433.92 MHz Receiver

• Display programming with three keys for menu navigation
• A wizard for learning the motor stroke
• List of parameters with direct access
• Encoder input for 1 or 2 operators
• Programmable inputs with input diagnostics visible on the display
• Built-in 433.92 MHz receiver
• Standard speed run and slowdown management
• Reset the control board to be able to reuse it with another automation
• Removable terminal blocks
• Programmable outputs for:
  • safety self-test
  • operation of the electric lock
  • monostable, bistable or timed
• Possibility to set the type of automation to have a specific list of parameters (sliding, swinging, tilting, sectional, barriers, bollards)

Accessories Compatibility and Controlling Options | DEA-900 Sliding Gate Automation

• Constant DC Accessories Output
• Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and
• Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (APP-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

Dimensions | Italian Made DEA-900 Electric Sliding Gate Motor

Specifications

Wiring Example

DEA-KP4W 4-Channel Wireless Keypad Features

No wires are required. The DEA wireless keypad is designed to suit all current DEA motors and allows access via a PIN code when a remote is not handy.

Digital Wireless Keypad with Vandal Resistant and Weather Resistant.





DEA Wireless Keypad Access Control DIGIRAD/N is a four-channel radio keypad selector that controls compatible DEA Gate Opener Systems command units and/or receivers. The keypad can be used indoors and outdoors, and because batteries power it, it does not require wiring.



• With Batteries*, Berfect For Installations Where a Cable Power Supply Is Not Possible
  *average battery life 2 years, depending on the lighting settings and activation times

• 4(Four) 433MHz Radio Channels
  It can manage up to 4 different automations (e.g. main gate, entrance door, garage door and overhead door) and 300 codes.

• High UV Resistance
  Painted composite material for high UV resistance

• Protection Against Vandalism
  IK09 degree of resistance offering excellent protection against impact or possible external damage

• Backlit Buttons
  Adjusting intensity and activation time



Technical Specifications

DEA LINEAR/B | Wireless PE Safety Sensor for Automatic Gate Opener Systems

Wireless PE Gate Safety Beams, DEA LINEAR/B Photocell | Wireless PE Safety Sensor Pair of adjustable photocells (210° Adjustable Optics) with TX supplied by a Lion battery. Wireless PE Sensor Range up to 15m.

Safety has never been so easy to install – with wireless technology and 210° Adjustable Rotating Optics design! Introducing DEA LINEAR/B Photocell infrared gate safety, PE beams with a wireless transmitter.

DEA LINEAR/B Photocell is easy to install with DIY work, ensuring a safe driveway gate automation system for all installations. With a wireless transmitter and adjustable rotating optics design, tunnelling under the driveway is unnecessary. Install and adjust the beam optics, and you’re away!

DEA LINEAR/B Photocell Wireless PE Safety Sensors are wall-mounted (LINEAR) external safety accessories that help to make gate automation even more reliable. The Wireless PE Safety Sensor comes in pairs in the box.

LINEAR/B Photocell Box Includes:
“TX” and “RX” Optics,
Lithium Battery(3,6V 7Ah, C Size) for TX Wireless Optik,
Assembly Parts,
and an Instructions Document.

The LINEAR/B Wireless PE Safety Sensor is equipped with adjustable optics, which are practical when photocells are not perfectly aligned. The photocells allow rotation to 210° horizontally and 30° vertically. This sensor can be fixed to surfaces that typically prevent the correct alignment between “TX” and “RX.”

Wireless PE Safety Sensor DEA LINEAR/B is an infrared communication device used to avoid using connection cables for sensitive profiles applied on the gate mobile part. The battery-powered wireless transmitter device is installed on the mobile part and connected to the sensitive edge, whose condition is constantly monitored and communicated to the receiver (mounted on the fixed part). If you enable the edge, that communication is interrupted, and the receiver provides for opening the contact connected to the gate control board.

LINEAR/B has a motion sensor on the transmitter, allowing both to take action only at the beginning of each manoeuvre, allowing a considerable battery saving. When the gate is stationary, the transmitter will still work, noting any obstacles, however, with a greater delay time. For More Details, See “Installation instructions and wiring document of the DEA LINEAR/B Photocell.”

LINEAR/B may also be used (without a sensitive edge) as a simple presence detector, “D” type, as per Standard EN 12453. The photocells allow rotation to 210° horizontally and 30° vertically. This can be fixed to surfaces that generally prevent the correct alignment between “TX” and “RX.”

“TX” Optic: Works with Wireless Connection, Lithium Battery(3,6V 7Ah, C Size) (Included)

“RX” Optic: Works With Wire Connection, 24V Power

BATTERY POWER SUPPLY
Wireless PE Safety Sensor DEA LINEAR/B photocells are powered by a battery(3,6V 7Ah, C Size: included) and cover a maximum range of up to 15m.

WEATHERPROOF
DEA LINEAR/B Photocell Wireless Safety Sensor is designed to work in weather conditions such as morning dew, rain, fog, and direct sunlight. Protection Degree: IP54

Technical Specifications

Power supply:
TX - 3,6V 7Ah, C size battery (wireless connection)
RX - 24V (wire connection)

Battery life :
ASSEMBLY ON A MOBILE PART (JP1 closed)
Residential use(20 manoeuvres/day) | Gate up to 7m (JP2 opened) | 7 years
Intensive use (100 manoeuvres/day) | Gate up to 15m (JP2 closed) | 3 years
ASSEMBLY ON A FIX PART (JP1 open)
Gate up to 7m (JP2 opened) | 2 years
Gate up to 15m (JP2 closed) | 1 year

“RX” Absorption: 40 mA

Contacts Capacity: 500 mA max 24V

Assured Distance:
7 m (with JP2 opened on “TX”)
15 m (with JP2 closed on “TX”)

Maximum Length of Connection Cables: 50 m cable 2 x 0,5mm

Protection Degree: IP54

Operating Temperature: -20÷55 °C

Dimensions / Weight: 125 x 40 x 44 mm /150 g

Certificates

LINEAR/B is a CE-marked product. The DEA System assures the conformity of the product to the European Directives 2014/30/CE “electromagnetic compatibility” (EN 61000-6-2 :2005; EN 61000-6-3 :2007 + A1:2011).
DEA System also grants quality and conformity to rule 2002/95/CE (RoHS) of materials used for the product assembly.

Photoelectric Beam Gate Sensors are also well-known as;

• Gate sensor - Safety sensor,
• Infrared Photocell gate sensor,
• Infrared gate sensors,
• Photoelectric gate sensors,
• Sliding gate safety beams,
• Sliding gate safety sensor,
• Photo Beams for Gates,
• Safety Beam
• Infrared Photocell Gate Sensor
• Reflector Detector

DEA Sliding Gate Motor LED/X Lighting - Aesthetic Illumination Of The Gate

LED/X lighting - very aesthetic illumination of the gate and the area around the drive, turning on when opening and closing the gate

LED Kit for DEA Sliding Gate Motor Consisting of 60 cm COB LED strip (white light) + power supply + relay

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)

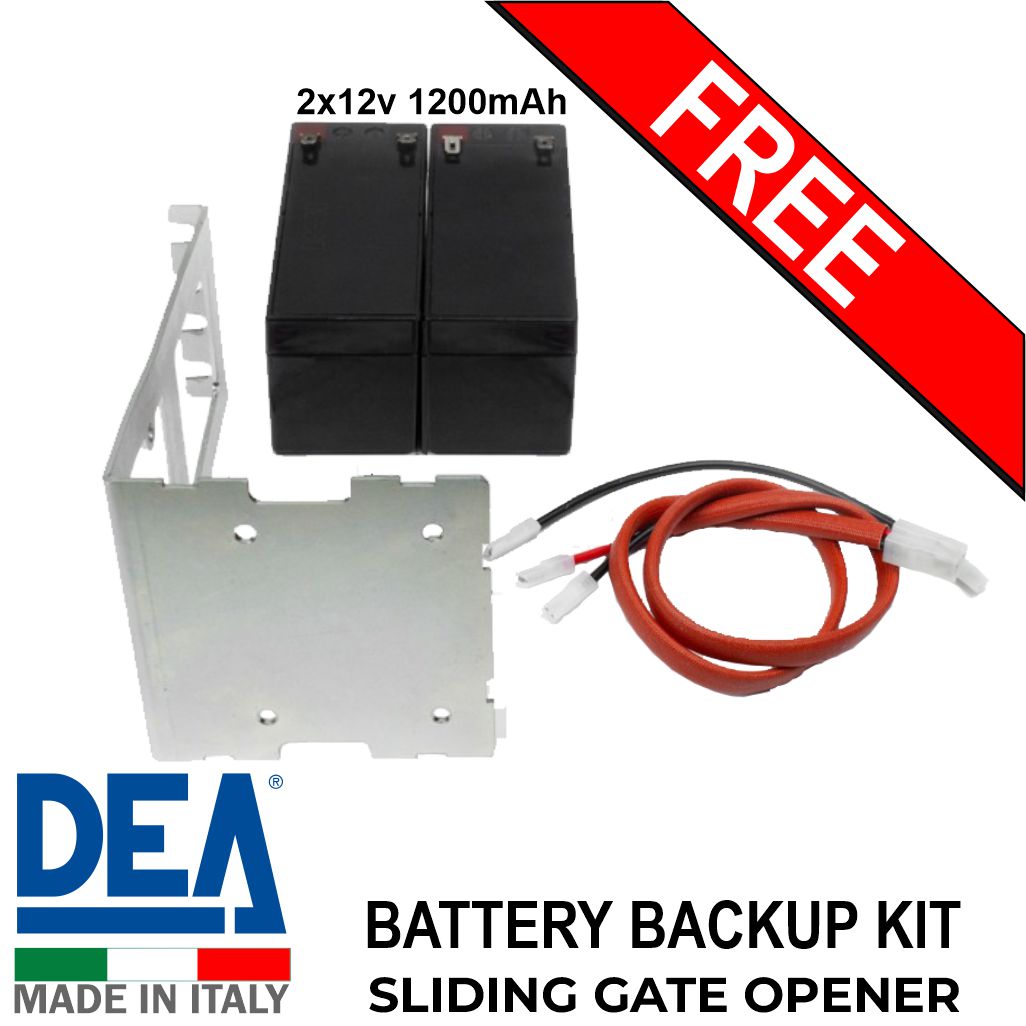

Battery Backup Kit For
DEA 600kg / 900kg / 1400kg Sliding Gate Kit

24v - 2x12v 1.2Ah rechargeable battery kit, complete with cables.

(Pre-installed when purchased with the Gate Opener Kits)

Technical Features | Battery charger for DEA Sliding Gate Automation.
