EMX-LRS-LC Logic Controller For Loop Replacement System (LRS) Vehicle Loop Detector Sensors. A-B Directionality or Increased Zone. Made in USA

EMX LRS-LC Logic Controller for Vehicle Detector Sensors: A-B Directionality or Increased Zone

The LRS-LC Logic Interface is compatible with LRS-DB Direct Burial and LRS-FP Flat Pack magnetoresistive sensors. This Logic Controller enhances the capabilities of the sensors by offering additional features and application-specific logic operations tailored for more demanding installations.

Product Details (EMX LRS-LC Logic Controller):

The EMX LRS-LC Logic Controller allows for the connection of one or two sensors and supports six logic functions, along with two separate relay outputs. After programming the sensor(s) with the LRS-C1 Control Unit, the settings are retained by the sensor, enabling it to function independently of the Control Unit once connected to the Logic Controller.

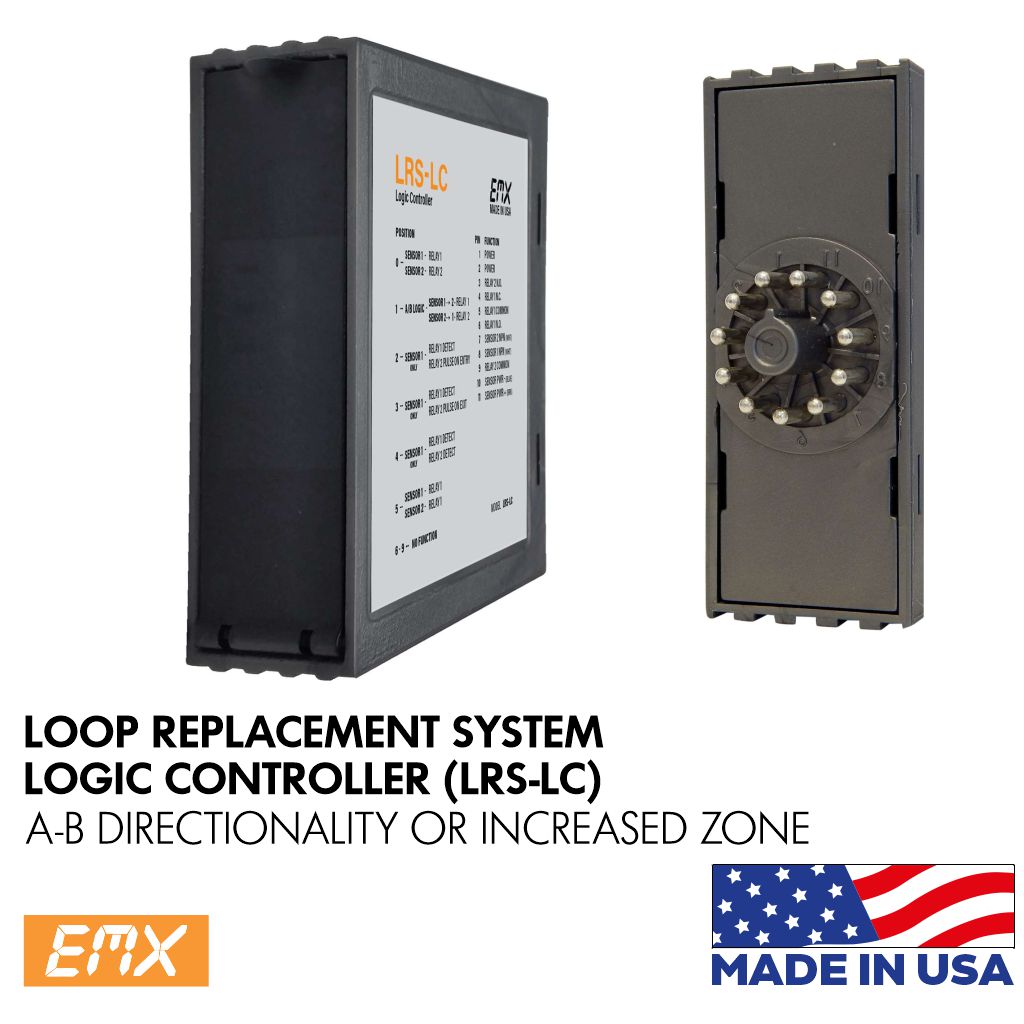

The LRS sensor detects vehicles at a range of up to 5 feet in all directions. With the LRS-LC Logic Controller, two sensors can be connected to extend the detection area up to 20 feet. Additionally, A/B directional logic can be selected, providing an output for each direction of vehicle travel as it passes over the two sensors. The device features status LEDs and a durable housing with a standard 11-pin plug-in socket, ensuring quick and easy installation.

EMX LRS-LC Logic Controller Features:

• Two relay operation
• A/B directional logic
• Pulse on entry
• Pulse on exit
• Double relay functionality
• Relay 1 is the only option

EMX LRS-LC Logic Controller Technical Specifications:

• Power Indicator: Green LED
• Detection Indicator: 2x Red LEDs
• Configuration Selector: 10-position rotary switch
• Outputs: Relay 1: SPDT (Form C). Relay 2: SPST (Form A)
• Output Ratings: 1A at 24 VDC/120 VAC
• Operating Environment: -40° C to 82° C (-40° F to 180° F), 0 to 95% relative humidity
• Housing Material: ABS
• Enclosure Rating: IP30
• Power Supply: 12-30 VDC and 24 VAC
• Operating Current (Standby/Detect): One sensor connected: 22/35mA; Two sensors connected: 33/60mA
• Supply Protection Circuitry: Reverse polarity and fuse protected
• Dimensions: 73 mm x 38 mm x 78 mm
• Connector Type: 11-pin male connector (JEDEC B11-88)

Logic Interface Technical Data
