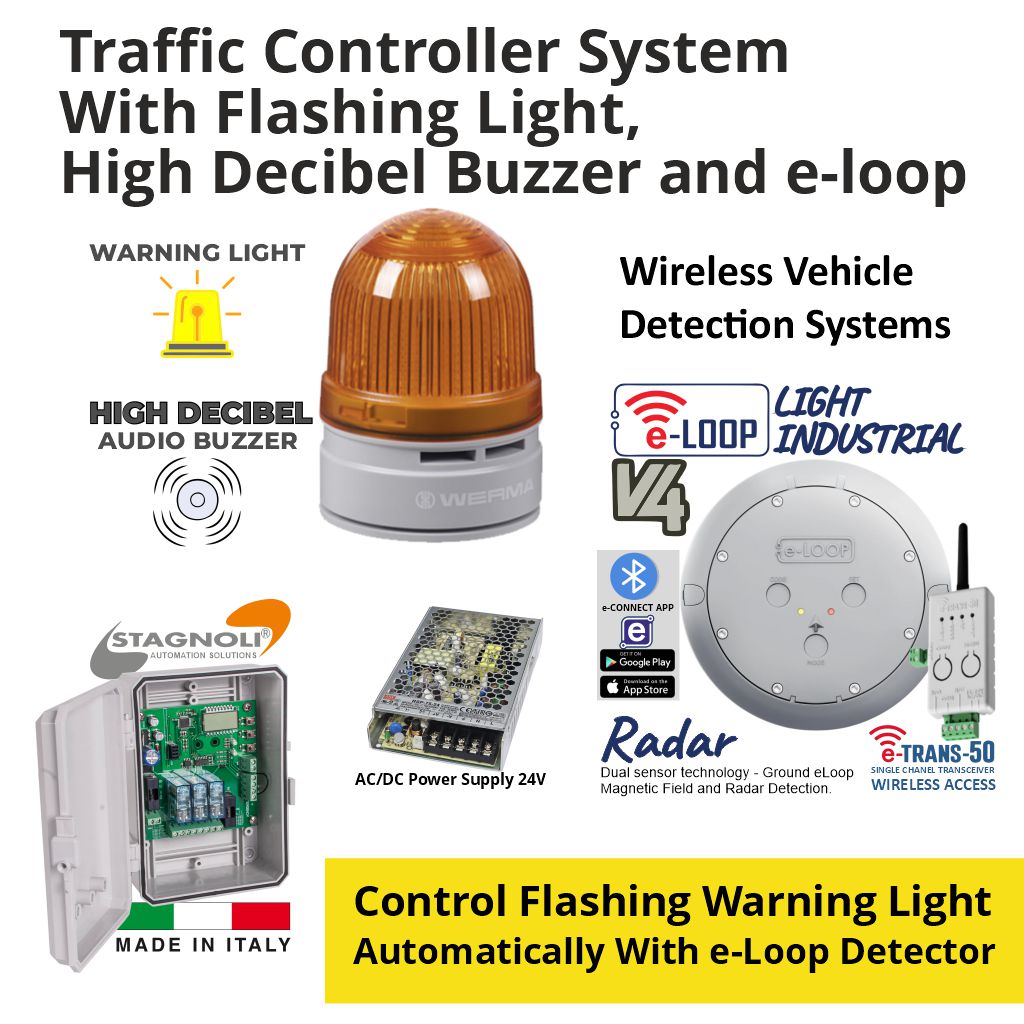

Traffic Controller System With Flashing Light, High Decibel Buzzer and e-Loop Complete Package for automatically controlling a flashing warning light with options for permanent mode, flashing mode, and sound/buzzer features. This controller includes a warning light that combines a high-luminosity LED flashing light with an integrated high-volume audio buzzer. It works in conjunction with the eLoop radar detector, providing a universal solution for warning notifications.

Traffic Controller, e-Loop, Flashing Light With High Decibel Buzzer
Wiring Diagram

Traffic Light Controller for Two-Lights and 2 or 3 Light Lens | 24v ACNSEM3L Made in Italy by Stagnoli

Control board for 2 traffic lights with 2 or 3 lights. Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts. The ACNSEM3L universal electronic control unit has been a solution for managing two or three traffic lights with two or three lenses in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).

It can be programmed to operate cyclically or logically (e.g. when used with external sensors).

Highlights

• One Board for Two Trafic Lights
• Time-based work method
• Priority-based work method

Specifications and Wiring Diagram

Power: 24Vac/dc
Max Power Current: 0,5 A
Operating Temperature: -20°C to 60°C
Max Lights Power Current: 2A


Control Board Overview

1. Terminal board for power supply 24Vac/dc
2. Power supply and accessories fuse (T0,5A, 5x20)
3. Traffic light 2 terminal board
4. Traffic light 1 terminal board
5. Traffic lights management fuse (F2A 5x20)
6. Priorities input terminal board, with control devices (photocells, detection devices, etc.):
     IN1: programmable input for traffic light 1, N.O. by default
     IN2: programmable input for traffic light 2, N.O.by default
     IN3: emergency programmable input, N.C. by default
7. Auxiliary power supply 24Vac/dc 0,5 A
8. Menu navigation buttons
9. 5-language LCD display (IT, EN, FR, DE, ES)
     DL2- Traffic light operation 1
     DL1- Traffic light operation 2

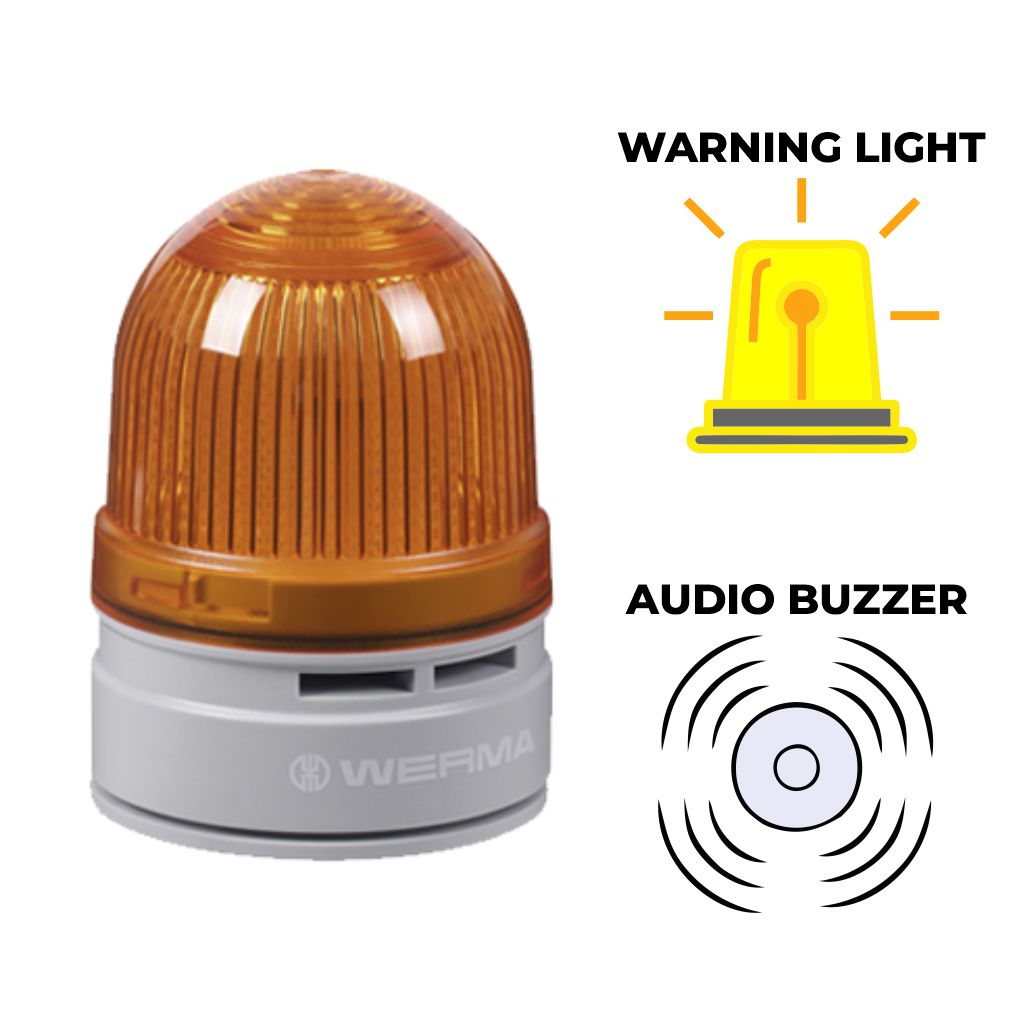

WERMA D62 Permanent/Flash/Sounder 24VDC

The WERMA D62 Permanent/Flash/Sounder 24VDC is a visual and audible signalling device that combines a beacon with a sounder, operating on a 24VDC power supply. It is designed to provide both visual and audible alerts, making it suitable for various industrial and commercial applications where precise and distinct warnings are needed.

Visual And Audible Signalling Device, Combining A Beacon With A Sounder

Technical Data | D62 Permanent/Flash/Sounder 24VDC

Type of fixing: Base mounting, Tube mounting

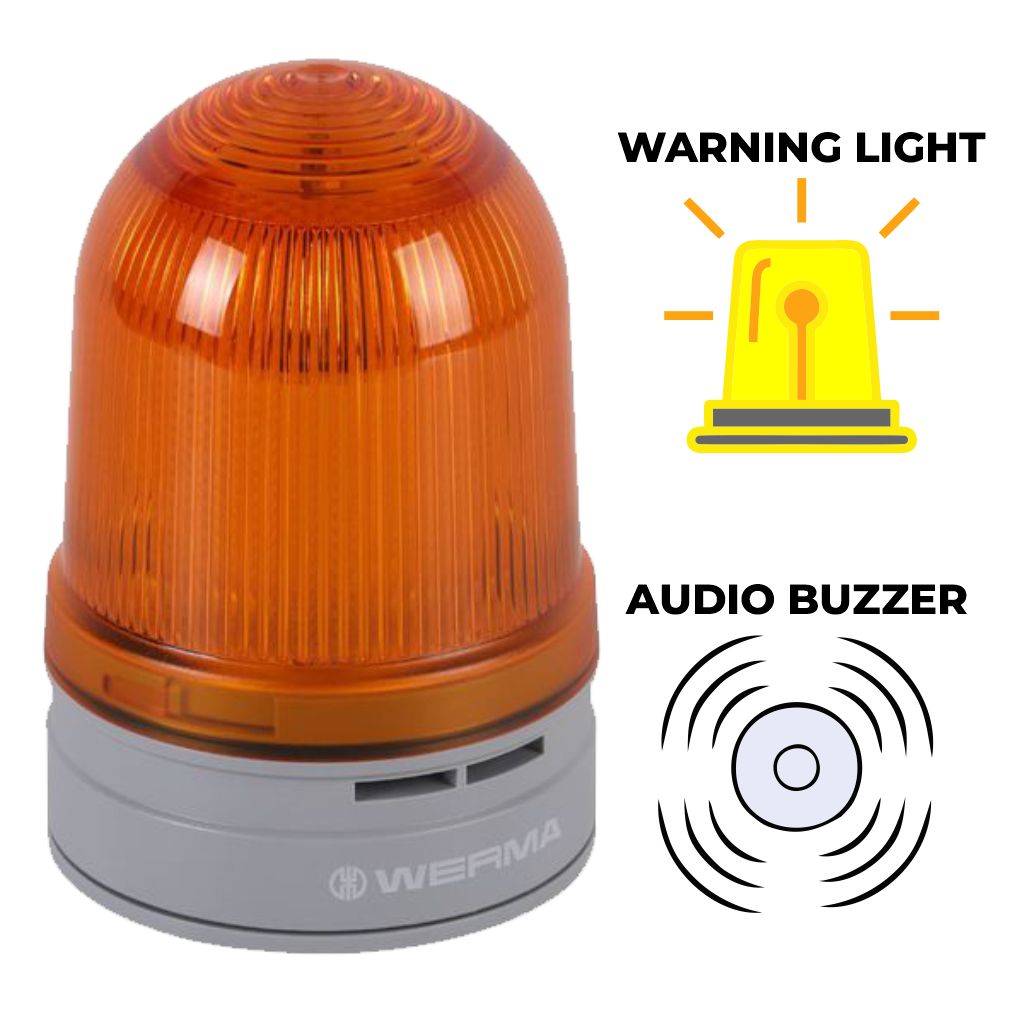

Werma D62 Blink, Flash, Permanent Signal Beacon with Sounder

24VDC, IP66, 100db Sounder

Wireless Vehicle Detection Systems | Commercial e-LOOP - PRESENCE MODE

Introducing a new generation wireless vehicle detection with added radar protection. The Commercial e-Loop replaces traditional wired inductive loops, saving you time and money while increasing reliability and safety.

Commercial Wireless Loop Detection Sensor - PRESENCE MODE WITH ADDED RADAR PROTECTION

Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby Microtech transceiver for gate activation.  After the vehicle is detected, the e-loop will switch to radar mode. The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.

Added Radar Functionality

Microtech Radar® sensors can detect vehicles that are stopped above the e-loop. The added radar utilises a two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. If the confirmation is missed, multiple attempts will be made to ensure safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, and confirmation mode.

Functions | Commercial Wireless Vehicle Sensor | Loop Detector

Lower power consumption

3-axis magnetometer for vehicle detection

• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode
• Range up to 50 meters

Fast and simple installation

• Quick non-permanent installation

Up to 4-year battery life

• Compact design
• Compatible with various gates

Reliable radio communications with transceiver

• Reliable radio communication
• High-security 128-bit AES Encryption

Battery Life vs Daily Activation

Note: Battery life is dependent on many factors, including daily activations, time used per activation, radar range and external conditions.

e-Loop Wireless Vehicle Detection Systems

The e-Loop commercial is the epitome of perfection when it comes to wireless vehicle detection systems designed specifically for commercial settings.

With its wireless nature, installation becomes a breeze, eliminating the need for complex wiring systems and minimizing disruption to the existing infrastructure. Moreover, the system's efficient energy consumption and low maintenance needs make it a cost-effective solution that ensures long-term reliability.

Additionally, the e-Loop commercial is available with a convenient presence mode, which intelligently keeps gates and barriers open for an extended duration when longer vehicles are in motion over the detection area. This advanced functionality enhances safety and efficiency by minimizing interruptions and reducing the risk of collisions, further solidifying its suitability for commercial environments.

Features | New Generation Wireless Vehicle Loop Detector

• Quick and easy installation.
• Presence Mode | Dual sensor technology - Magnetic field and Radar detection.
• Magnetic sensor for vehicle detection
• Radar sensor for added safety
• 10600 mA lithium battery gives up to 3-4 years of battery life (depending on usage & mode).
• Made of high-impact plastic (10-tonne static load capacity).
• Small compact design – 28mm high x 220mm diameter (IP68).
• High-security 128-bit encryption.
• Range up to 50 meters

Power, Physical and Environment

Power: 4 * 3.6 V 2700ma

Dimensions: 220*220*26mm

Weight: 1000g

Environment: designed for above-ground mounting

Protection: IP68 ingress protection

Operating Temp : -20° to 80° C

Standby Power: 14µA

Activation Power: 50mA

Magnetometer Detection Area

Varying magnetic eld detection zones. The grey area depicts a 0.6m high sensitivity detection area surrounding the e-loop, suitable for the majority of vehicles. The dark colour area depicts a 1m medium sensitivity detection area surrounding the e-loop, suitable for most vehicles. The light colour area depicts a 1.5m low sensitivity detection area surrounding the e-loop, which is only suitable for some vehicles.

Radar Read Distance

Radar detection range. Spanning from a 60° FOV from the e-loop, these are the range zones. The gray area depicts the dead zone, in which objects cannot be detected. The Minimum read distance is 0.6m. The default read distance is 1.3m, and the Maximum read distance spans up to 2m.

E-Trans-50 Single Channel Transceiver

Wireless access control system for gate and door applications.

Featuring a compact design with exceptional range, the e-Trans-50 is designed to manage access control for home and commercial systems.

A long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the exceptional range.

Specifications

Voltage: 10-36V DC

Current draw standby: 4.5 m/a

Current draw active: 30 m/a

Frequency: 433.39 MHz

Remote storage: 50 remotes, 4 x e-Loops, 4 x keypads, 4 x entry buttons

Relay: 1-amp contact rating, COM and N/O connections x 1 relay

Modes: Pulse, Latch and Hold

FEATURES

• Compact design with an exceptional range

• SMA connector standard for external long-range antenna connection

• Wide Voltage Range: 10-36V DC

• Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a

• Frequency: 433.39 MHz

• Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons

• Relay: 1-amp contact rating, COM and N/O connections x 1 relay

• Multiple Modes: Pulse, Latch and Hold

24V Power Supply

AC/DC Power Supply 24V  | 1 Outputs, 76.8 W, 24 VDC, 3.2 A

RSP-75-24 Single-Output Switching Power Supply 24V/3.2A Output

A 75W single-output enclosed-type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 24VDC / 3.2A. Suitable for all 24V devices.

Brand: MEAN WELL
Weight: 470 g
