Product SKU: EB-TL-B-150-DIN

Electric Drop Bolt Lock with Din Rail Power Supply | Heavy-Duty Stainless Steel Black Powder-Coated Motorised Tomalok 24V Drop Bolt for Swing Gates | 150mm Stroke, 20mm Diameter Stainless Steel Pin, Inbuilt Battery Backup | The Electric Gate Bolt - Tomalok and Din Rail Power Supply (100-240VAC Input 0.88A and 24V Output 0.5A)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Extra 10% Off

    coupon EASTER24

Electric Drop Bolt Lock with Din Rail Power Supply | Heavy-Duty Stainless Steel Black Powder-Coated Motorised Tomalok 24V Drop Bolt for Swing Gates | 150mm Stroke, 20mm Diameter Stainless Steel Pin, Inbuilt Battery Backup | The Electric Gate Bolt - Tomalok and Din Rail Power Supply (100-240VAC Input 0.88A and 24V Output 0.5A)

Product SKU: EB-TL-B-150-DIN

  •  In Stock

Get More Info..

Kit Price:

$1,074.00 $1,170.00 APC Automotion Plus Sale

  • Or in 4 payment of $268.50 with afterpay info

Product Information

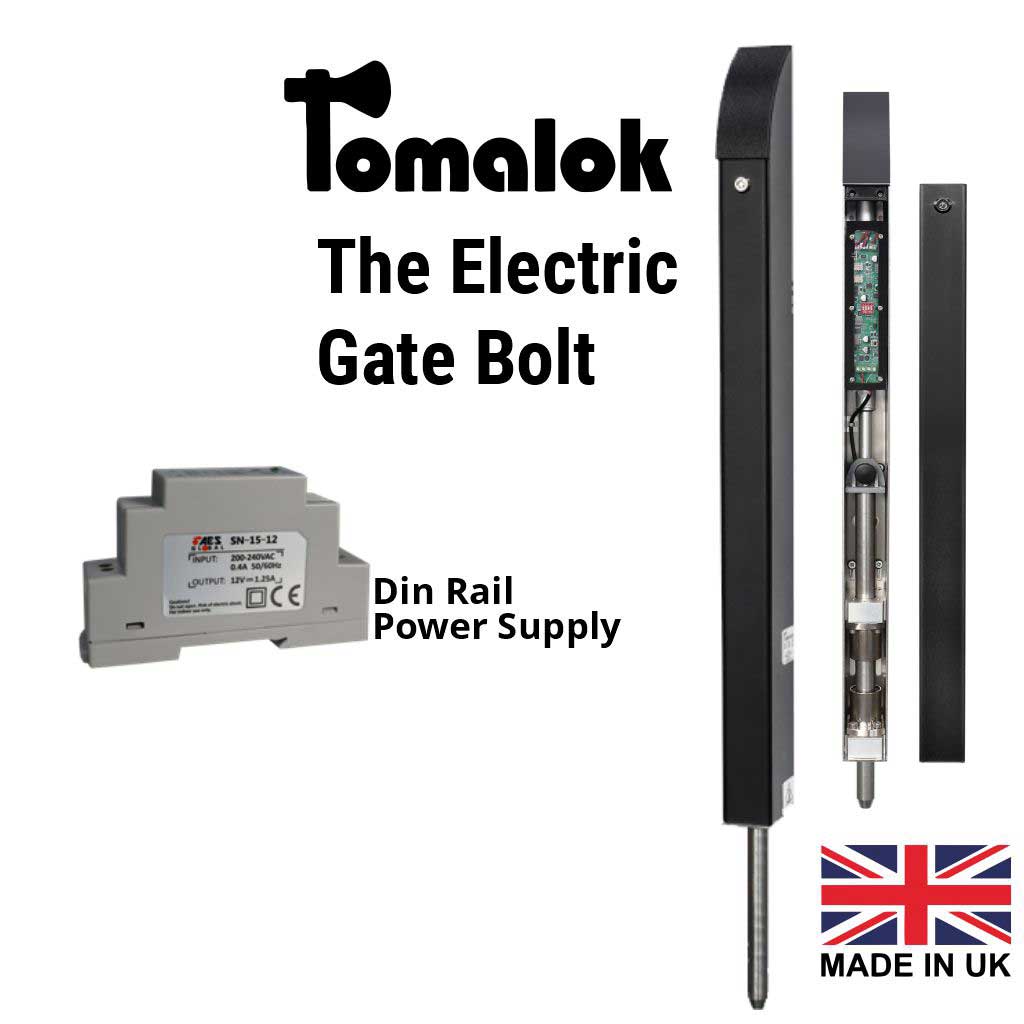

Tomalok TL-B-150-DIN Electric Drop Bolt Black with DIN Rail Power Supply.

The Tomalok is an advanced, durable electric gate lock that increases the security of any property entrance. This is the 24VDC Tomalok in a black finish, featuring a 150 mm length bolt, and supplied with a DIN rail mount 24V power supply. The sleek design offers a discreet yet powerful safeguard.

The Electric drop bolt is designed to endure and remain steadfast, showcasing its durability in the face of the elements and the passage of time. It is supplied with an M4 Jack nut fixing tool and nuts for easy installation when mounted to any gate.

Each Tomalok is constructed entirely from full BS316-grade stainless steel and bearings. This choice of high-quality powder-coated stainless steel imparts a sleek and polished appearance. It ensures outstanding durability and resilience and can withstand corrosion, rust, and challenging environmental conditions.

The high-capacity rechargeable battery backup can last up to 24 hours and support 20 operations. Like any electric gate equipment, it features a built-in mechanical release override, allowing it to continue operating in the event of power loss.

  • Direct connection to a 24VDC flashing beacon or volt-free courtesy light output.
  • Din rail power supply is 100-240VAC Input 0.88A and 24V Output 0.5A






The Electric Gate Bolt

The Battle Ready Bolt for Your Gate's Defense!

The Tomalok combines robust engineering and state-of-the-art innovation. With a sleek design, the electric drop bolt seamlessly integrates into your gate system, offering a discreet yet powerful safeguard.





Features

Stand strong against the test of time and mother nature with the Tomalok.

  • Direct connection to 24v DC flashing beacon OR volt-free courtesy light output.
  • High capacity, rechargeable 5-day battery backup.
  • Mechanical release override.
  • Stainless steel roller bearings.
  • Industry-leading 150mm throw/travel distance.



Tomalok Tough

This heavy-duty electric gate lock is offered in black powder-coated stainless steel with a cap. It seamlessly integrates into your security system while complementing your style.



Technical Features: AES Tomalok Electric Gate Bolt

  • Lifting force 30N.
  • Power: 24v DC
  • Overcurrent trip: Yes.
  • Current: Standby 240mA. | Peak 380mA. | Activated 320mA.
  • Power cable: 4 core 7 metres included.
  • Power supply type: Din rail 24v DC included.
  • Battery backup time: Over 24hrs + 20 operations.
  • Ground keeper: Optional two types (with/without gate stop).
  • Trigger method: Volt-free and 24v DC compatible, constant and pulsing compatible
  • Manual override: Yes.
  • Mounting method: M4 jack nuts
  • Min recommended gate profile: 50mm box.
  • Pin: 150mm Stroke - 20mm diameter stainless steel pin.
  • Stainless steel: Marine grade powder coated stainless steel BS316.





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $1,074.00
