Electric Drop Bolt Lock with Din Rail Power Supply And Ground Stop | Heavy-Duty Stainless Steel Black Powder-Coated Motorized Tomalok 24V Drop Bolt for Swing Gates | 150mm Stroke, 20mm Diameter Stainless Steel Pin, Inbuilt Battery Backup | The Electric Gate Bolt Kit - Tomalok

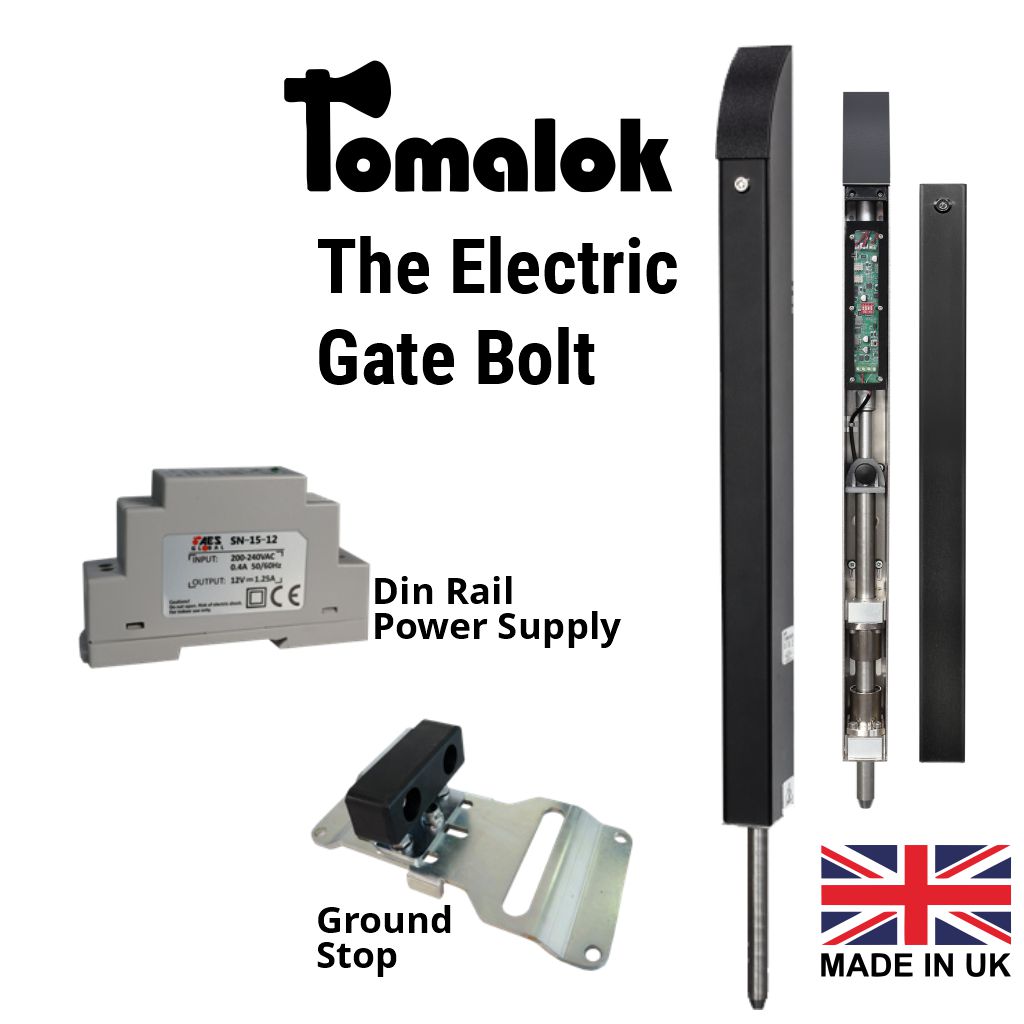

Tomalok TL-B-150-KIT Electric drop bolt Black with Din rail power supply and a ground stop.

The Tomalok is an advanced, durable electric gate lock that increases the security of any property entrance. This is the 24v DC Tomalok in a black finish with a 150 mm length bolt, supplied with a Din rail mount 24v power supply and group stop. The sleek design offers a discreet yet powerful safeguard.

The Electric drop bolt is designed to endure and remain steadfast, showcasing its durability in the face of the elements and the passage of time. It is supplied with an M4 Jack nut fixing tool and nuts for easy installation when mounted to any gate.

Each Tomalok is constructed entirely from full BS316-grade stainless steel and bearings. This choice of high-quality powder-coated stainless steel imparts a sleek and polished appearance. It ensures outstanding durability and resilience and can withstand corrosion, rust, and challenging environmental conditions.

The high-capacity rechargeable battery backup can last 24 hours and 20 operations. Like any electric gate equipment, it has a built-in mechanical release override, so it can still operate in case of power loss.

• Direct connection to 24vdc flashing beacon OR volt-free courtesy light output.
• Din rail power supply is 100-240VAC Input 0.88A and 24V Output 0.5A
• A ground stop will be bolted to the foundation - 365mm length x 170mm width x 20mm height.

The Electric Gate Bolt

The Battle Ready Bolt for Your Gate's Defense!

The Tomalok combines robust engineering and state-of-the-art innovation. With a sleek design, the electric drop bolt seamlessly integrates into your gate system, offering a discreet yet powerful safeguard.

Features

Stand strong against the test of time and mother nature with the Tomalok.

• Direct connection to 24v DC flashing beacon OR volt-free courtesy light output.
• High capacity, rechargeable 5-day battery backup.
• Mechanical release override.
• Stainless steel roller bearings.
• Industry-leading 150mm throw/travel distance.

Tomalok Tough

This heavy-duty electric gate lock is offered in black powder-coated stainless steel with a cap. It seamlessly integrates into your security system while complementing your style.

Technical Features: AES Tomalok Electric Gate Bolt

• Lifting force 30N.
• Power: 24v DC
• Overcurrent trip: Yes.
• Current: Standby 240mA. | Peak 380mA. | Activated 320mA.
• Power cable: 4 core 7 metres included.
• Power supply type: Din rail 24v DC included.
• Battery backup time: Over 24hrs + 20 operations.
• Ground keeper: Optional two types (with/without gate stop).
• Trigger method: Volt-free and 24v DC compatible, constant and pulsing compatible
• Manual override: Yes.
• Mounting method: M4 jack nuts
• Min recommended gate profile: 50mm box.
• Pin: 150mm Stroke - 20mm diameter stainless steel pin.
• Stainless steel: Marine grade powder coated stainless steel BS316.
