Product SKU: EMX-MMS-RAV-RC

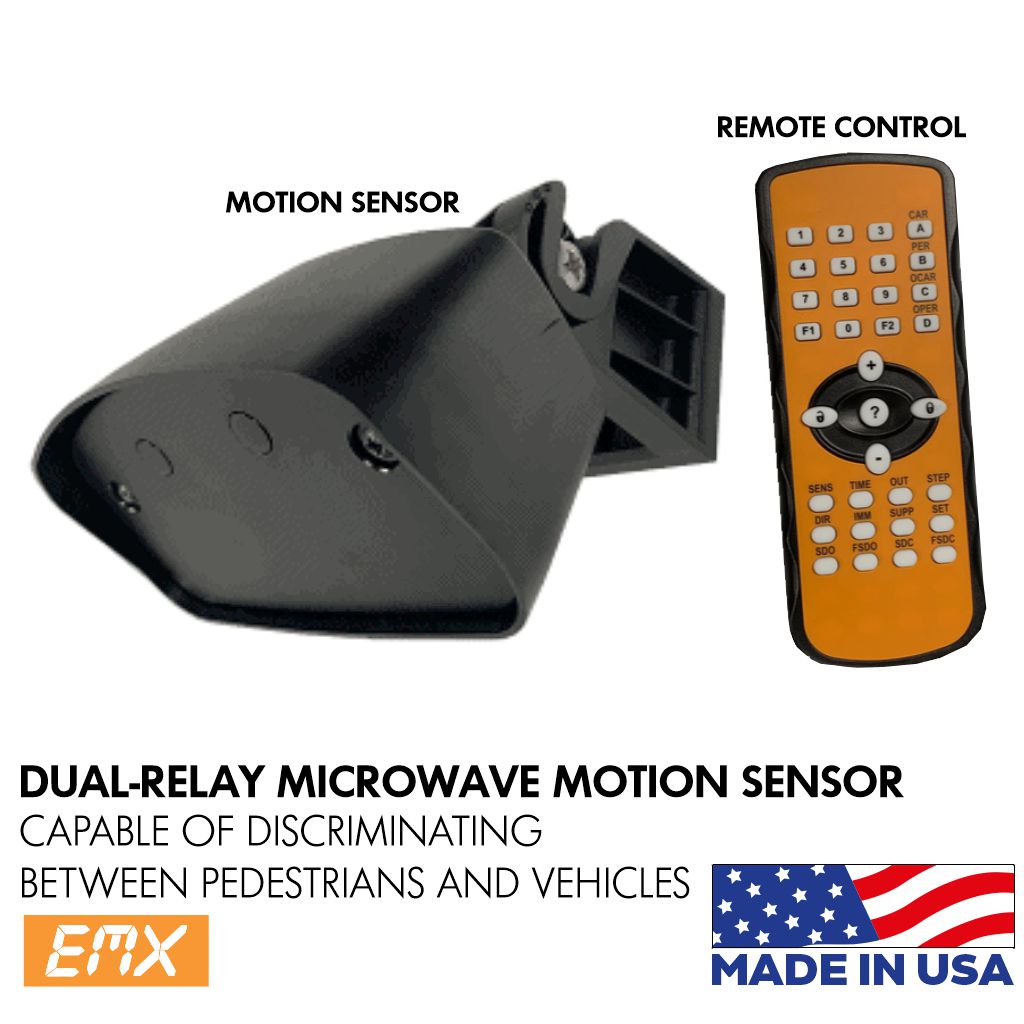

EMX-RAVEN – MICROWAVE SENSOR
EMX-RAVEN REMOTE CONTROL
The EMX RAVEN is a vehicle motion sensor that uses microwave technology to activate automatic doors and industrial gates. The sensor distinguishes between vehicles and pedestrians through dual relay outputs.
Featuring multiple detection modes, the sensor can be programmed to approach-only, depart-only or bidirectional movement. The EMX RAVEN will eliminate unnecessary door openings by utilising cross traffic filtering settings. Other parameters can be configured to adjust the sensitivity, responsiveness, and relay hold time. Programming can be done using the push buttons directly on the housing or by the optional remote control.
| Operating Frequency | 24.150 GHz |
| Detection Range | Dependent on sensor height and housing angle Max. detection range of 7 m x 7 m at an installation height |
| Vertical Directionality | +/- 90° in 15° increments (up/down) |
| Horizontal Directionality | +/- 18° (left/right) |
| Mounting Height | 2.5-7 m |
| Power | 12-36 VDC or 12-28 VAC |
| Current Draw | 50 mA @ 24 VDC |
| Relay Output | 2 relay outputs (vehicle & pedestrian) NO/NC |
| Relay Hold Time | 0.5 to 300 seconds (adjustable) |
| Relay Contact Rating | 1 A @ 24 VDC/AC |
| Operating Temperature | -20° to 50°C below 90% relative humidity |
| Dimensions (W x H x D) | With mounting bracket – 131 mm x 73 mm x 136 mm |
| Connection | 8 m cable |
| Housing Material | Polycarbonate |
| Weight | 650 g with cable |
| Environmental Rating | IP67 |
