Product SKU: APC-ABLE-LNS2000x2-DC-SK

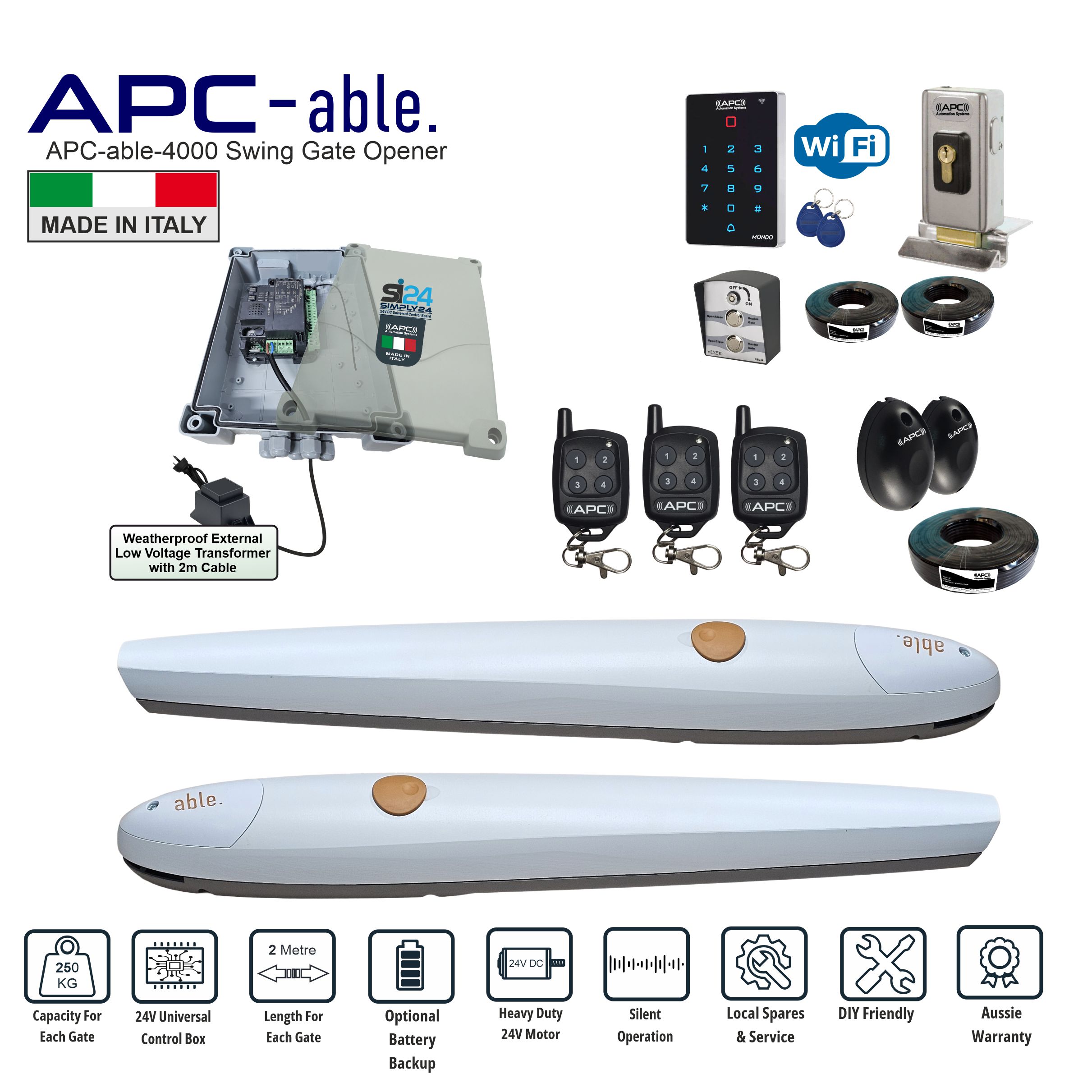

Packing a punch, the "APC Able 4000" system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length for each gate. With a built-in adjustable mechanical stop for opening (an optional add-on mechanical closing stop), the system offers versatile stopping positions.
Italian-made 24V Automatic Double Swing Gate Motor. "APC Able 4000" Electromechanical actuator for swing gates with each leaf up to 2m in length (for each gate).
Characteristics
| Thrust | 1500N |
|
Motor Voltage |
24v DC |
|
Manual override |
Via override key supplied |
|
Working temperature |
-20° - +55° |
|
Duty Cycle |
50% |
|
Gates size |
2m max for each gate |
|
Gate weight |
250kg max for each gate |
Maximum Gates Leaf Length: 2 M*
Maximum Gates Leaf Weight: 250 Kg*
(*for each gate)
.jpg)
The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).
APC Four Button Keyring Remote Control for Gate Automation System
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 2-meter cable.
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
APC Mondo Wired Keypad with APP via Wi-Fi
The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotley by APP whether on-site or off-site (anywhere in the world).
Supplied with a 10 meter cable roll it is wired back to the main control board of the system. Its also supplied with two swipe tags for PIN FREE access.
Key Feature Set:
Wired Double Push Button with Isolation Key
The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.
It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.
Automatic Electric Lock
The 24V electric gate lock is a completly automatic solution to lock the gates once reaching the closed position and automatically unlock as soon as the command is given for the gates to operate whether by remote or any other accessory.
The electric gate lock will connect to the first gate to operate in the open sequence and it will engage into its armature plate when closed. The armature plate is a blank canvas and can be welded or screwed to a custom stand off bracket which will be bolted to the ground or to a gate stop. The electric lock itself is wired back to the control board by the supplied 5 metre cable
For installations where the gate is cladded and see a higher wind load or are to difficult to create a stand off bracket a magnetic lock upgrade would be a more appropriate solution.
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
