Discreet Underground System with Stainless Steel Top Plate, Wider Opening Angle, All Metal Gears and Suits Most Gate to Ground Clearance Heights, Single Swing Solar Gate Opener

Underground Single Swing Gate Motor Australia – APC UG1400C

Benefits of This Single Swing Gate Opener System

Discreet & Premium Finish

No visible arm operators – perfect for high-end homes and architectural gates.

Safe Low-Voltage Automation

24V DC system reduces electrical risks and supports battery backup.

Built for Australian Conditions

Designed to operate reliably in hot summers, coastal humidity and colder climates.

Enhanced Security

Rolling-code technology prevents remote signal cloning and interference.

Flexible Access Control

Compatible with remotes, wireless keypads, safety sensors and smart control modules.

Installation Considerations in Australia

• Suitable for new installations and premium retrofits
• Drainage planning is required for underground housing
• 230V AC wiring must comply with Australian electrical regulations
• Professional installation recommended for optimal performance

Frequently Asked Questions

Buy an Underground Single Swing Gate Motor in Australia

Order the APC UG1400C underground swing gate motor from Automotion Plus and enjoy fast Australia-wide shipping to Sydney, Melbourne, Brisbane, Adelaide, Perth and regional areas.

Upgrade your driveway with discreet, secure swing gate automation today.

Extra Heavy Duty Discreet Underground System

Discreet Underground System with Stainless Steel Top Plate, Wider Opening Angle, All Metal Gears, and Suits Most Gate to Ground Clearance Heights, Electric Gate Opener for Driveway Swing Gates

Reliability & Durability

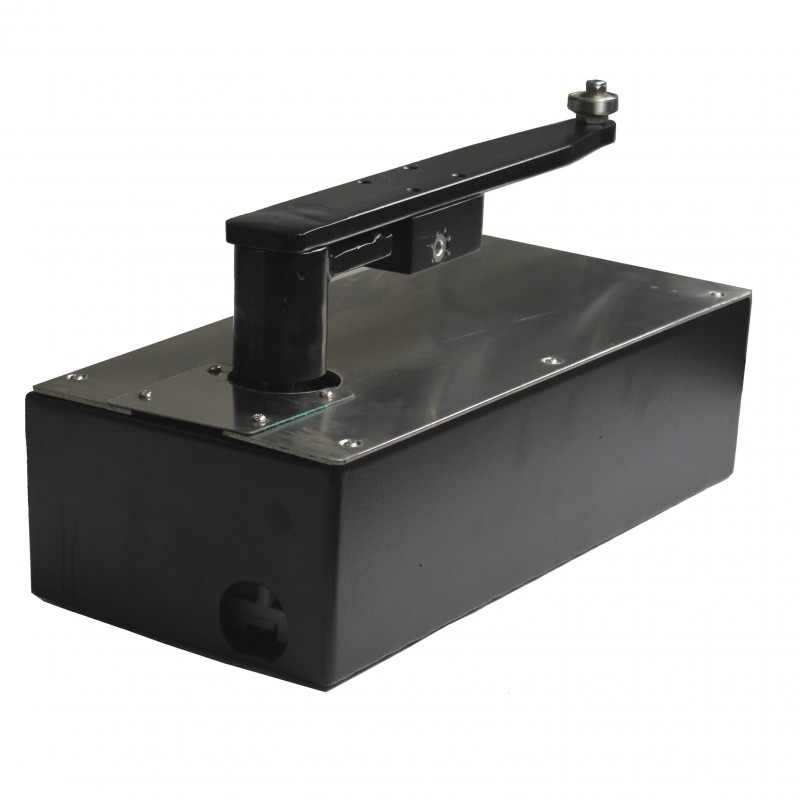

The discreet, extra-heavy-duty 24V DC motor is a powerful unit built from all-metal components, including a foundation box and a stainless steel top plate. The motor is constructed of all-metal gears and features a thick, strong motor output drive.

Designed in Australia, the extra-heavy-duty motor is for underground installations where there is no space above ground for mounting a motor, or where the user does not want the motor above ground. Furthermore, it is highly flexible in its installation, allowing multiple orientations and positions.

Thanks to its all-metal gears, this Tough and Robust system can handle gates up to 4.5m wide or 300kg in weight.

Drainage and Conduit Holes

With drainage holes on either side of the foundation box, it can be easily plumbed to a pit or stormwater system to ensure the box is never filled with water. There is also a higher position hole for the cabling from the control box to the motor.

Swing Gate Opener Arms and the Manual Override System

The steel linking arm, which connects the motor output shaft to the drive channel, allows the gate to be operated by pivot motion.

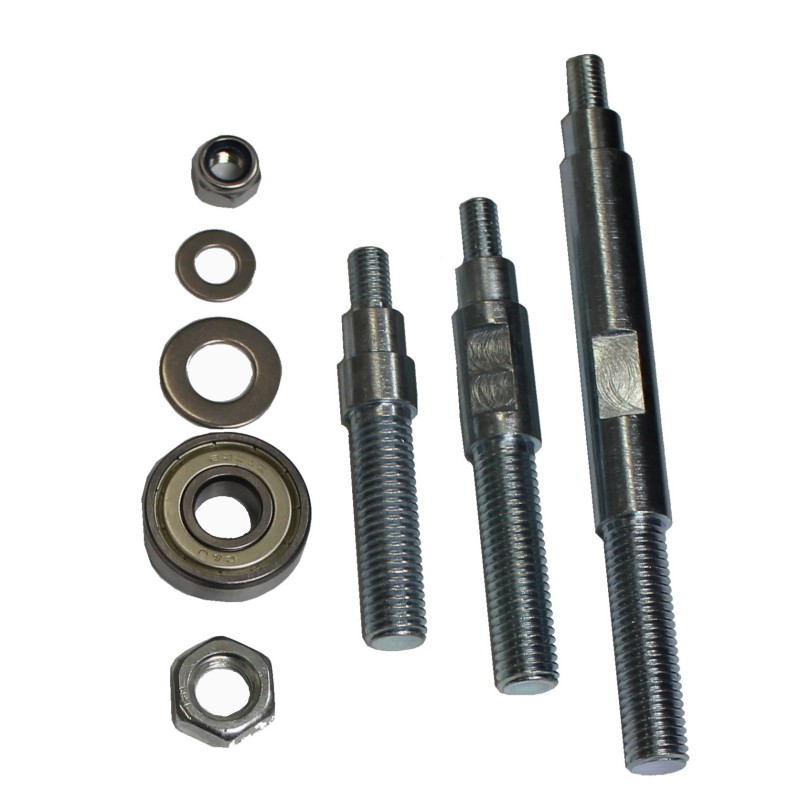

This is achieved by the supplied bearing gliding through the powder-coated drive channel, ensuring compatibility regardless of the gate-to-ground clearance height. To accommodate different bearing heights, three bearing height adjusters are supplied.

The easy-to-use manual override can be used from either side, since the gate motor is a universal left/right-side fitting. Simply unlock with the manual release allen key, and the gate will be free and can be opened and closed manually in the case of an emergency

Powder Coated Channel

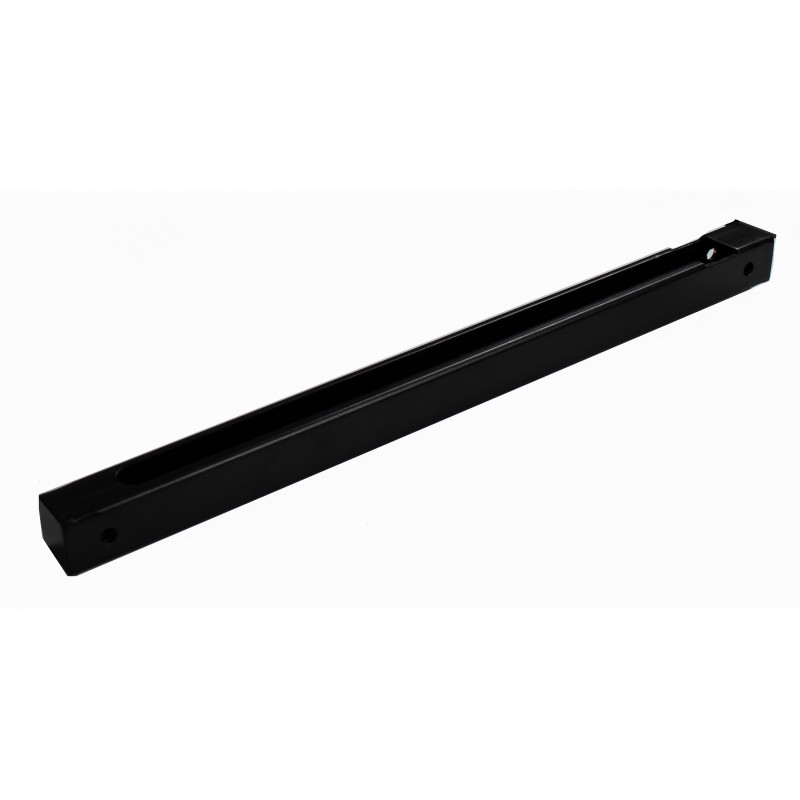

The powder-coated steel drive channel bolts to the gate (can also be welded) and allows the bearing from the linking arm to slide through, creating the gate's pivot motion during operation.

The supplied internal slide stops fit within the channel at either end and are tightened from below to provide a clamping effect that prevents over-travel of the gate system.

Motor Dimensions and Installation

Pulling to open (opening inwards) can be set to open each gate up to 120° (maximum recommended); however, 130° to 160° is achievable, as with underground systems, there is no concern regarding the motor clashing with the gate.

Adjustable in-drive channel stops are supplied with the kit if a completely discreet stop is preferred, but they can only be used for an open angle of up to 100 °. An external gate stop is also provided in this kit and is required for an open angle greater than 100°

Installation Method 1

Recommended option and the easiest for the operator will allow for 120°+ operation

Centre pivot of gate motor (output shaft) is inline with the centre of the gate pivot point (hinge), arm is at a 45° angle to the drive channel/gate



Installation Method 2

Maximum 100°, if option 1 cannot be used. Preferred over option 3

Centre pivot of gate motor (output shaft) offset from the centre of the gate pivot point (hinge) by up to 200mm, arm is at a 45° angle to the drive channel/gate



Installation Method 3

Maximum 90°, Hardest on the operator and should only be used in special circumstances as required.

Centre pivot of the gate motor (output shaft) offset from the centre of the gate pivot point (hinge) by up to 200mm; arm at a 20° angle to the drive channel/gate.

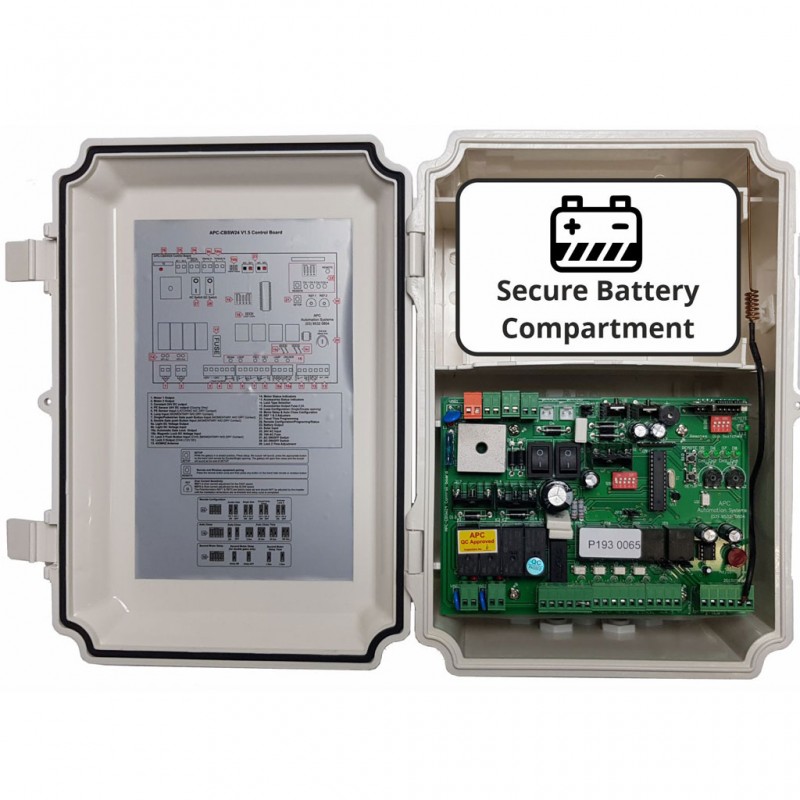

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security



System Features

Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates

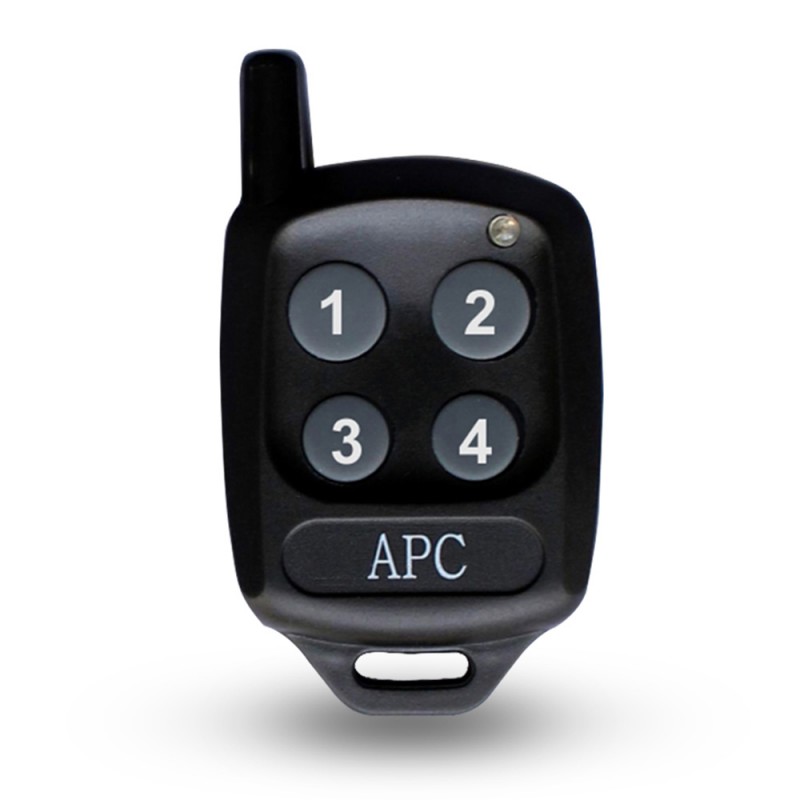

Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

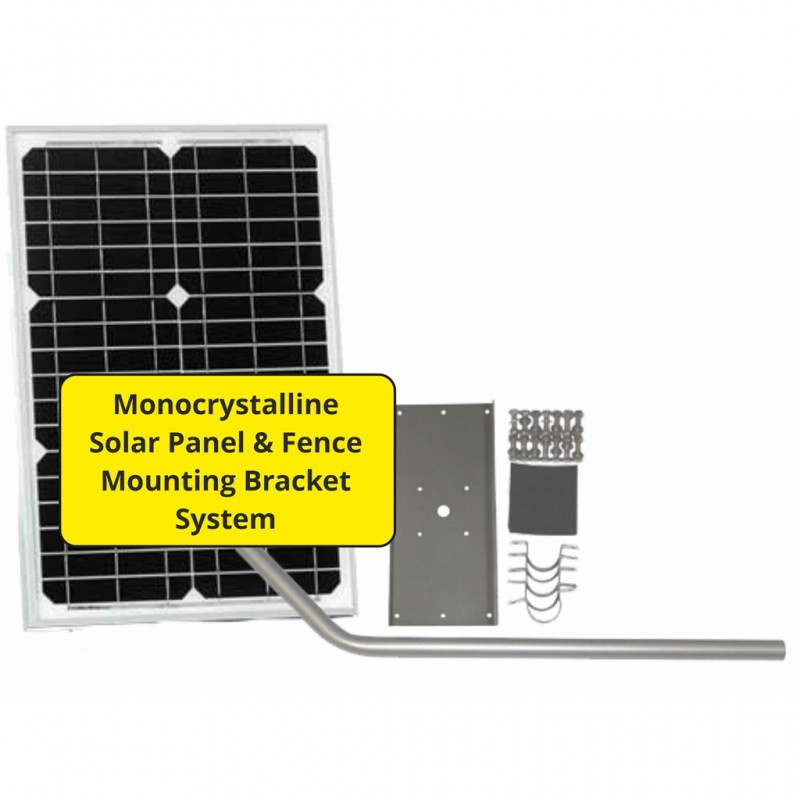

24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

24V 9aH Battery System

Supplied with the automation kit, the 24V Battery System* (2 x 12V  9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.

 *Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life

Remote Features

Specifications

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing

Galvanized Gate Stop



• Galvanized steel construction for long life outdoor use


• 115mm Height


• 40mm Rubber bumper


• Solid 100x80mm base


• Pre-punched 10mm fixing holes
