Central Access Control and Management System for 4 Doors / Gates, scalable up to 256 doors / gates (Access points) with up to 100000 users. Effortlessly Control / Manage Users from Central Computer system on site / remotely.

The Central Access Control Management System CACMS4
Effortlessly Control/Manage User Access With A User-Friendly UI (Browser-Based User Interface)

Central Access Control and Management System (CACMS) for 4 Doors / Gates, scalable up to 256 Doors/Gates (Access points) with up to 100,000 users. Effortlessly Control / Manage Users from the central computer system on-site or remotely.

The Central Access Control Management System CACMS4 power supply and housing kit provides an easy off-the-shelf solution. Saving the time and effort of sourcing separate components and assembling them.

It is also available without the battery for export customers.

The power supply module outputs 3A @ 13.8VDC, 0.25A for the battery charging circuit and 2.75A for equipment.

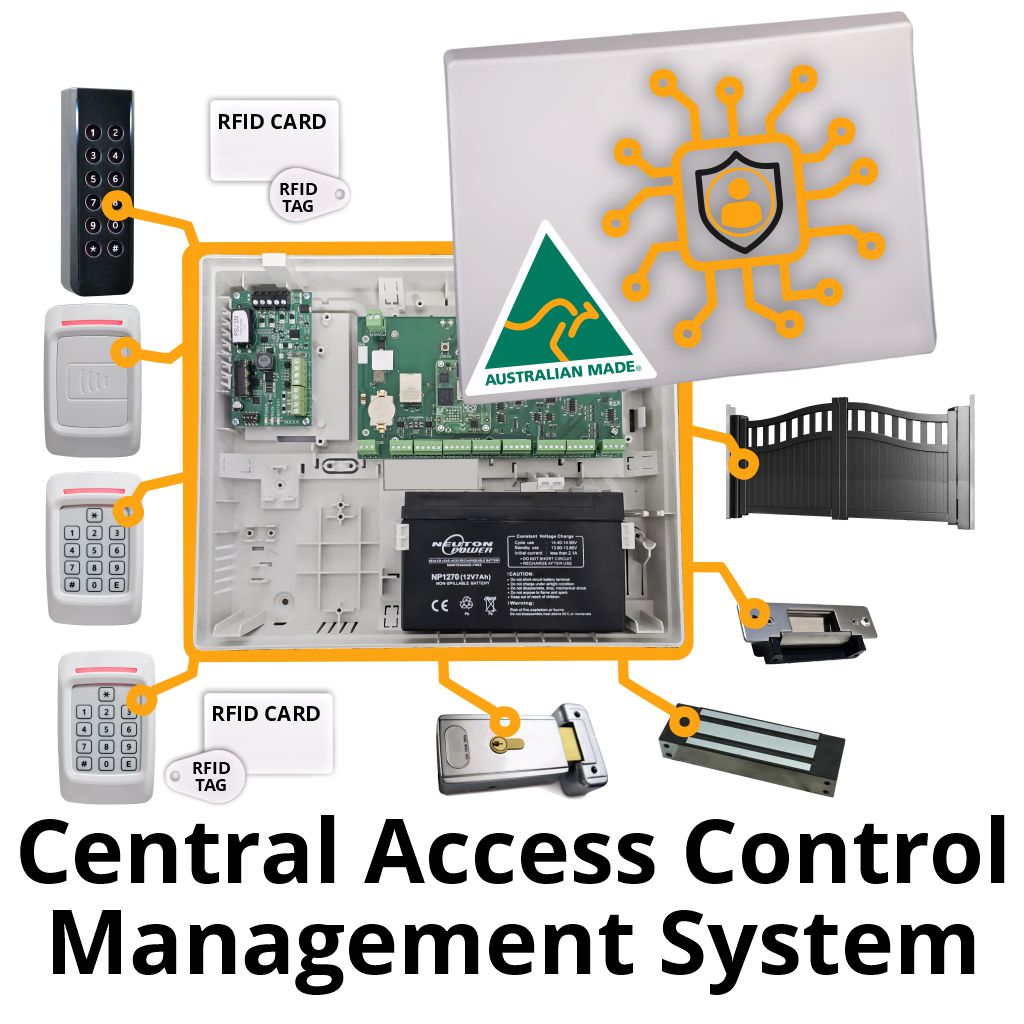

The CACMS4 KIT Contents:

• CACMS4 Controller
• 24VDC 3.75Amp power supply
• Polycarbonate enclosure
• Power supply module
• 12VDC 7Amp battery backup

Central Access Control Management System CACMS4 Features

• Optimised for 100,000 users
• Packaged with a user-friendly, browser-based user interface (UI)
• Compatible with CACMS4 Keypads, Readers and Door Access Controllers, peripherals
• Each unit factory tested with warranty included (Products of Australia and Warranty)
• Australian design, support and manufacture

Key Features & Benefits:

• Modular Design for Maximum Flexibility: Each CACMS4 unit controls up to four doors and scales effortlessly, providing cost-effective expansion for complex access control needs.
• Effortless Management with Prescient UI: Whether managing a single site or a network of locations, the CACMS4’s browser-based interface allows seamless remote control and oversight.
• Industry-Grade Security & Reliability: The CACMS4 meets high-security demands with advanced alarm monitoring, anti-passback functionality, and secure user authentication. Robust backup options and battery-supported operation ensure reliability during power disruptions.
• Installer-Friendly & Cost-Effective: The CACMS4 significantly reduces installation time using standardised connectors and jumper-free configurations. Each controller is designed for rapid deployment, making it a perfect choice for integrators and security managers.

Technical Specifications

• Processor: Quad-core ARM Cortex-A72
• Network: 1Gbps LAN, mesh architecture for high reliability
• User Capacity: Optimized for up to 100,000 users
• Compatibility: Supports Wiegand, Prove peripherals, and Presco formats
• Power: 11.5-14.5V D.C., separate inputs for secure door-locking devices
• Dimensions: 195mm x 107mm x 31mm

Network Requirements

The CACMS4 requires a connection to a network with the following features

• 100/1000Mbps wired ethernet connection for each CACMS4
• Internet access to public NTP servers
• Multiple CACMS4s for a site are required to be on the same IPv4 subnet
• IPv4 DHCP server is highly recommended to reduce network traffic.
