Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.
We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.

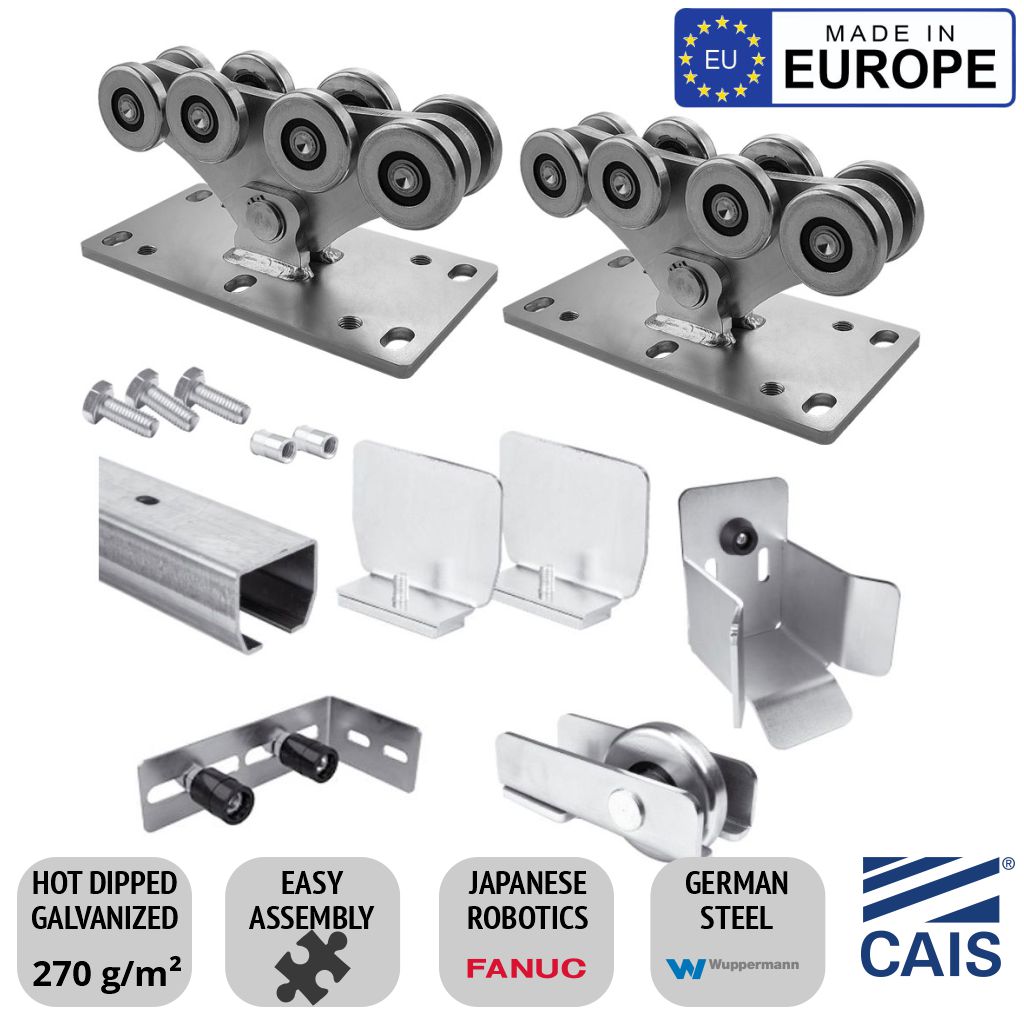

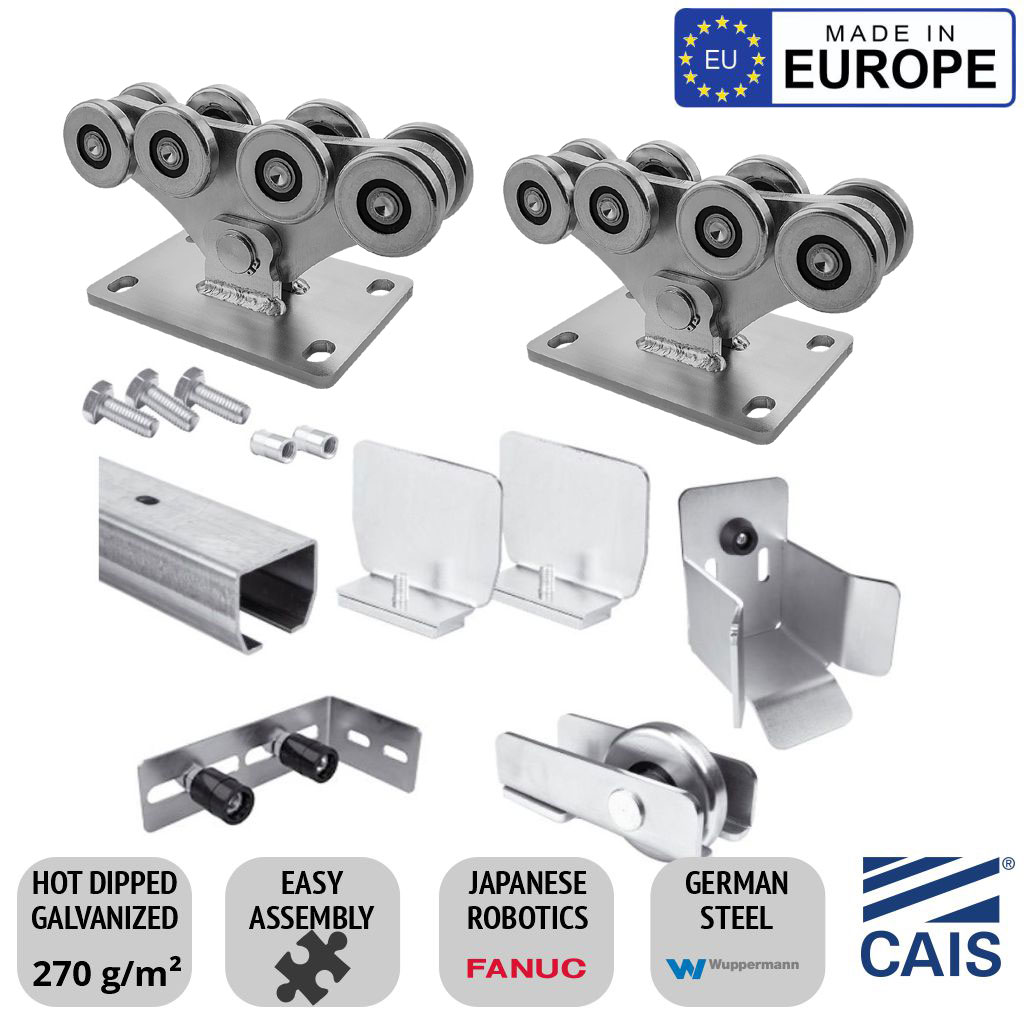

See what the "ALL IN ONE" box includes:
Carriage for cantilever gates with up to 8 meters clear opening & 700 kg max gate weight.
Enhanced design and superior products from Europe using high-quality German steel.
It is formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.
"C" Profile Guide For Cantilever Sliding Gate, 5mm Hot Deepped Thickness, Galvanized German Steel
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory
Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide
The end wheel guides the gate onto the end cup and helps support the gate while it rests.
Cantilever Gate Hardware Medium Guide Support Wheel
The end cap is an addition to the gate to cap off the cantilevered track.
Cantilever Gate Hardware Medium End Cap
The end stop supports the gate when fully open and closed.
Cantilever Gate Hardware Medium End Stop
The end stop bracket supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware End Stop Bracket
Two Roller overhead guide brackets and roller assemblies for Gates of up to 160mm wide.
40mm x 30mm Rollers & Bracket. Suitable as a guiding system for manual or automatic sliding gates. The bracket supplied can be mounted on walls, pillars, posts, and other supports to withstand the load.
Rollers: 67mm x 40mm Rollers
Bracket: L shape mounting bracket 260mm x 130mm.
Reliable, Track-Free Gate Systems for Australian Homes and Businesses
A cantilever sliding gate operates without a track on the ground. Instead, it uses cantilever sliding gate hardware, including rollers, brackets, and Cantilever Carriage Wheels that support the gate above the surface. This makes it ideal for Australian properties with gravel or non-concrete driveways. Cantilever sliding gates can handle uneven terrain. Whether its a gravel driveway, grassy area, or even waterlogged ground, cantilever gates remain functional
| Feature | Traditional Sliding Gate | Cantilever Sliding Gate |
|---|---|---|
| Operation | Moves along a ground track | Suspended; glides above ground |
| Surface Compatibility | Flat, level, concrete surface | Gravel, pavers, gradients, grass |
| Hardware | Track + bottom wheels, rollers and post brackets | Top-mounted rollers and post brackets, carriage wheels, channels |
| Weather Resistance | The track can clog with debris | Performs well in all weather |
| Installation | Requires ground excavation | Manageable installation |
Cantilever gates are widely used across Australia from suburban homes in Melbourne and Sydney to commercial sites in Brisbane, Perth, and Adelaide. Whether you're in a coastal region or rural setting, this hardware is designed to perform reliably under Australian conditions.
Selecting the right gate system is crucial for achieving long-term performance and maintaining property value. Cantilever sliding gate hardware is the preferred solution for Australians seeking a durable, stylish, and easy-to-install gate system that can handle Australias diverse terrains and weather.
Looking for premium cantilever gate hardware kits in Australia? Contact us today to learn more or request a quote.
