Product SKU: CANT-SM-BYO
In Stock
Freight Delivery
Please note this is a build your own kit, please choose from the list of parts above to create your kit.
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
Cantilever sliding gate system carriage wheel for up to 325 kg max gate weight.
Enhanced design and superior products from Europe using high-quality German steel.
 |
 |
 |
 |
 |
|
C2 High-Quality Bearings |
Carriages Center Holes Milled Not Laser Cut |
Multi Riveted Sections |
Mono-Block Eight Wheeled Carriage |
No Welded Parts |

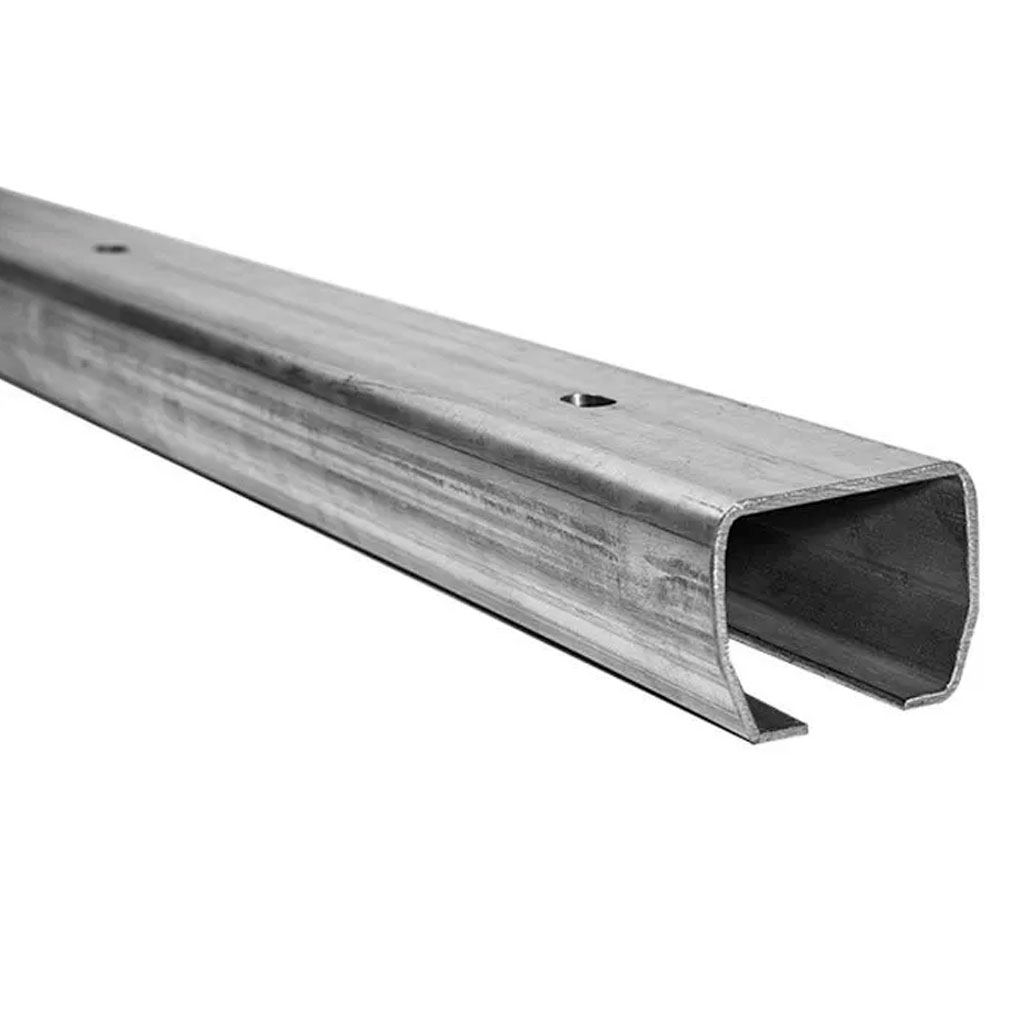

"C" Profile Guide For Cantilever Sliding Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel, 15 Bolts 15 Rivet Nuts Included
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

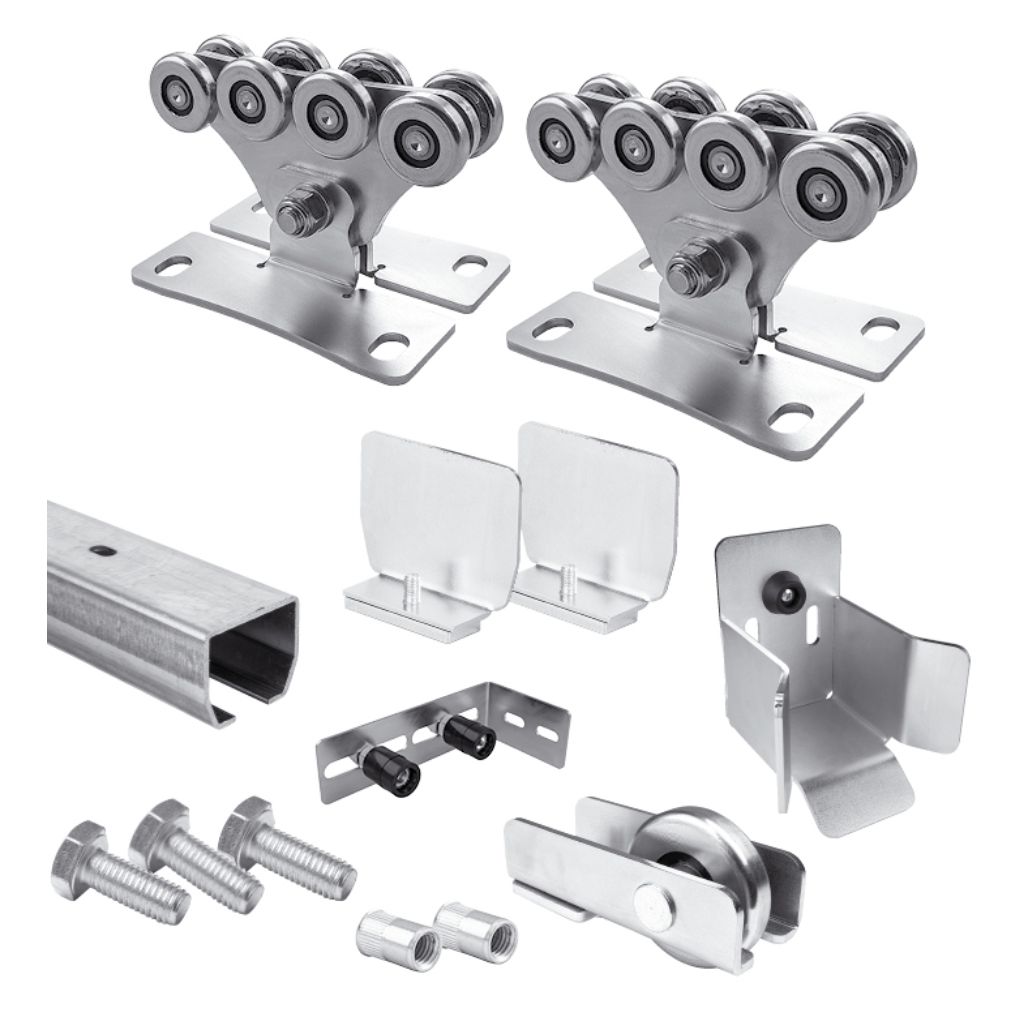

The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide

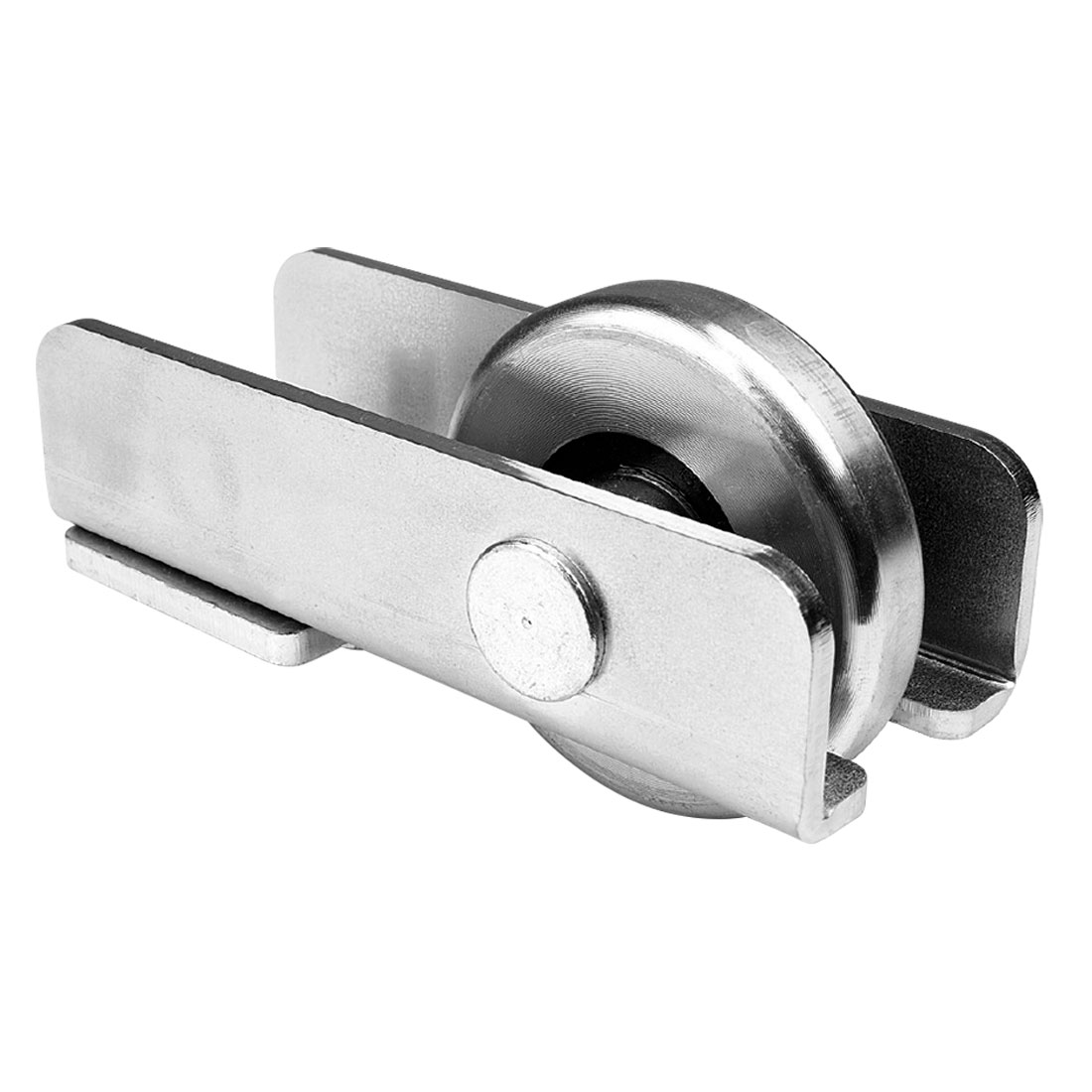

The end wheel guides the gate up onto the end cup and helps to support the gate while it is resting.
Cantilever Gate Hardware Small Guide Support Wheel

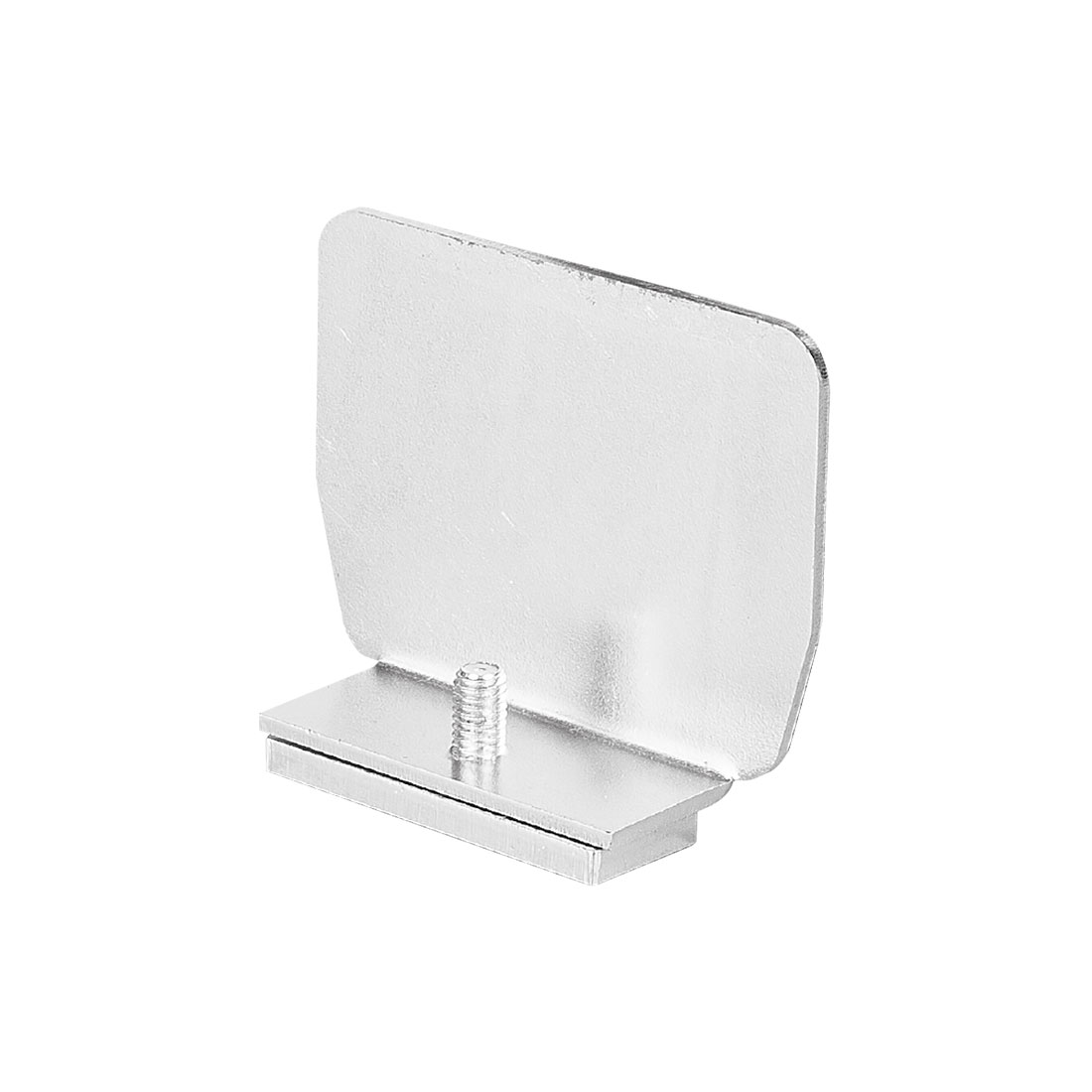

The end cap is an addition to the gate to cap off the cantilevered track.
Cantilever Gate Hardware Small End Cap

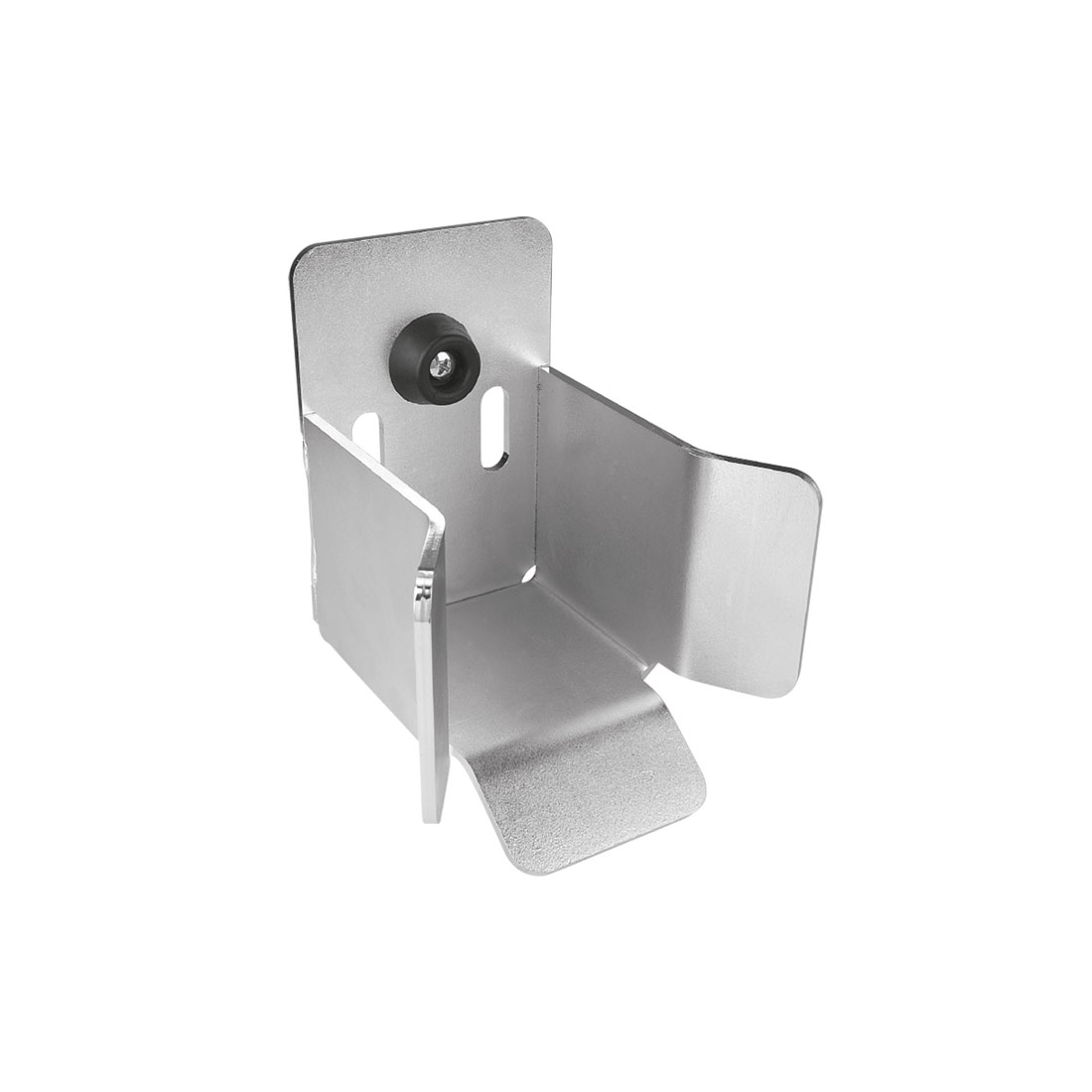

The end stop supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware Small End Stop
The end stop bracket supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware End Stop Bracket
High Qualy Two Roller Guide Plate
Cantilever Gate Hardware Upper Rollers and Bracket Set
Reliable, Track-Free Gate Systems for Australian Homes and Businesses
A cantilever sliding gate operates without a track on the ground. Instead, it uses cantilever sliding gate hardware, including rollers, brackets, and Cantilever Carriage Wheels that support the gate above the surface. This makes it ideal for Australian properties with gravel or non-concrete driveways. Cantilever sliding gates can handle uneven terrain. Whether its a gravel driveway, grassy area, or even waterlogged ground, cantilever gates remain functional
| Feature | Traditional Sliding Gate | Cantilever Sliding Gate |
|---|---|---|
| Operation | Moves along a ground track | Suspended; glides above ground |
| Surface Compatibility | Flat, level, concrete surface | Gravel, pavers, gradients, grass |
| Hardware | Track + bottom wheels, rollers and post brackets | Top-mounted rollers and post brackets, carriage wheels, channels |
| Weather Resistance | The track can clog with debris | Performs well in all weather |
| Installation | Requires ground excavation | Manageable installation |
Cantilever gates are widely used across Australia from suburban homes in Melbourne and Sydney to commercial sites in Brisbane, Perth, and Adelaide. Whether you're in a coastal region or rural setting, this hardware is designed to perform reliably under Australian conditions.
Selecting the right gate system is crucial for achieving long-term performance and maintaining property value. Cantilever sliding gate hardware is the preferred solution for Australians seeking a durable, stylish, and easy-to-install gate system that can handle Australias diverse terrains and weather.
Looking for premium cantilever gate hardware kits in Australia? Contact us today to learn more or request a quote.
