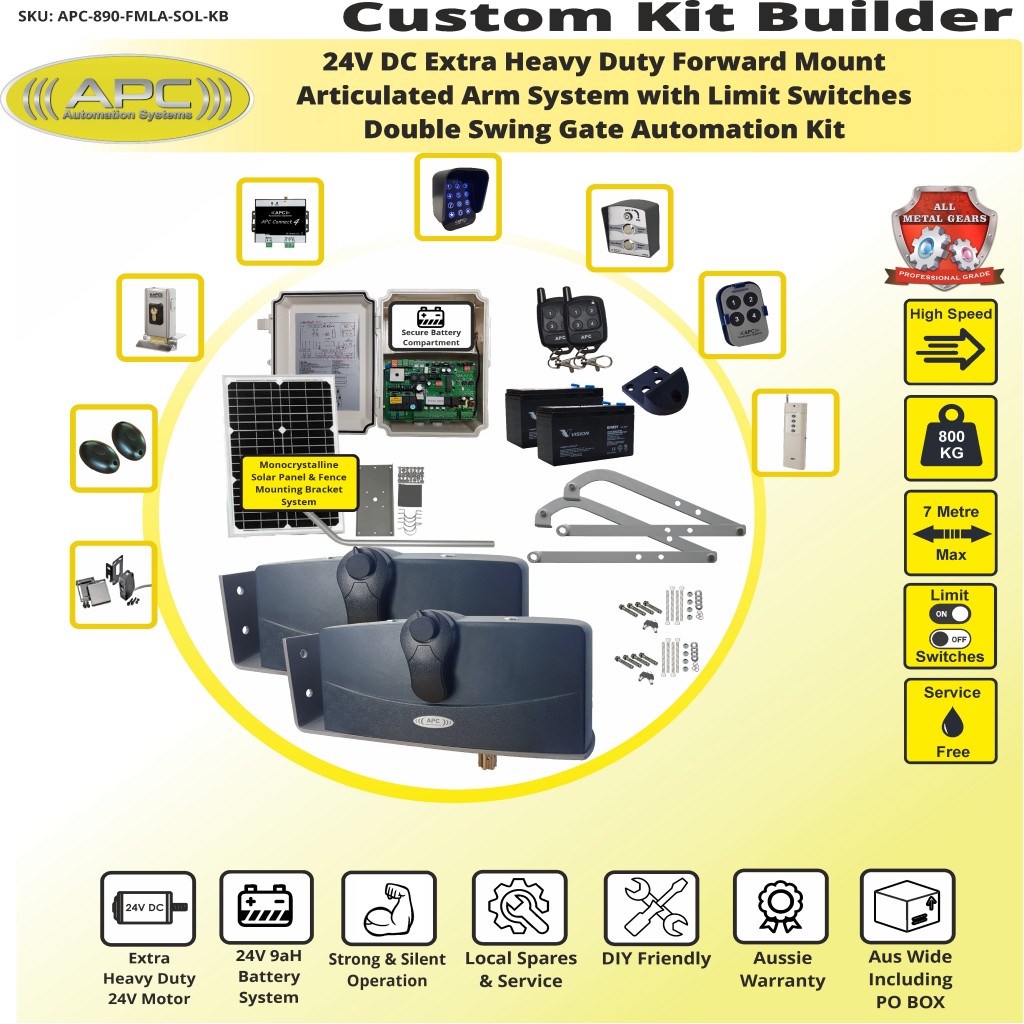

Build Your Own Kit with APC-890 Forward/Side Mount Extra Heavy Duty Articulated System With Adjustable Limit Switches

Extra Heavy Duty High-Speed Articulated Arm System-Reliability, Durability & Weatherproof

Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 3.5m each gate or 300kg of weight each gate. Furthermore it is completely weatherproof and concealed to suit all weather conditions.

All Metal Gear Box (NO PLASTIC OR NYLON)

Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.



Limit Switches and Manual Override

Built in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.

360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.

24V Extra Heavy Duty DC Motor

Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.

Adjustable Long Span Powder coated Steel Arms

Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.

Motor Dimensions

Option 1: Forward Mount Bracket (Pull to Open)

Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).

Option 2: Upgrade to Side Mount Bracket Upgrade (Pull or Push to Open)

Powder Coated Side Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 350mm in width making it ideal to be used on pillars for optimal holding strength across brick work or to be offset off the post in push to open installs.

Pull to Open

Push to Open: Method 1

<

Push to Open: Method 2

APC-790 Extra Heavy Duty Articulated Swing Gate Opener (Forward Mount Bracket and Optional Side Mount Bracket)

APC-790 Heavy Duty Articulated Gate Opener | 4.5m / 300kg Capacity | Automotion Plus

Upgrade your gate with the APC-790 Articulated Swing Gate Opener. Australian-designed for wide pillars and heavy farm gates. Features all-metal gears, a 24V DC motor, and easy forward-mount installation. Shop now for fast AU delivery.

Key Features, Technical Specifications, Why Choose the APC-790?, Frequently Asked Questions.

The Ultimate Solution for Wide Pillars and Heavy Gates

The APC-790 Articulated Motor Swing Gate Automation System is engineered specifically for Australian conditions, offering a robust automation solution where standard linear actuators fail. Designed with a versatile "Forward Mount (FM)" and "Side Mount(SM)" geometry, this motor is perfect for brick pillars and large posts, allowing the long arm to reach around corners efficiently. Built with a whisper-quiet 24V DC motor and an all-metal gearbox, the APC-790 guarantees reliability without the weakness of plastic components. Whether you are automating a residential driveway or a rural farm gate, this system delivers high-speed operation with precision control.

Key Features

• Australian Designed Toughness: sealed and weatherproofed to withstand blistering heat and heavy storms.

• 100% All-Metal Gearbox: Zero plastic or nylon parts. Features six robust steel gears and a copper transfer gear with sealed bearings for a long operational life.

• Heavy-Duty Capacity: Capable of operating gates up to 4.5 meters in length or weights up to 300kg.

• Flexible Installation: The Forward Mount (FM) or Side Mount (SM) Brackets with Long Arm allow easy installation on brick pillars and wide posts where geometry is tricky.

• Precision Limit Switches: Built-in 360°-adjustable cams let you set exact Open and Close positions, protecting your gate and motor from physical strain.

• Solar Ready: The 24V DC low-voltage architecture makes it perfectly compatible with APC Sun Power solar kits for off-grid reliability.

Data Sheet: Technical Specifications

Product Capability & Benefits Table

Optimised FAQ

Q: Why should I choose an articulated arm (APC-790) over a linear actuator?

A: Articulated arms like the APC-790 Swing Gate Openers are designed for "geometry flexibility." If you have large brick pillars or posts where the hinge is set deep in the centre, a linear arm often hits the corner of the post. The APC-790's "elbow" action allows it to reach around the post, making it the best choice for existing brick pillars.

Q: Is the APC-790 Swing Gate Motor compatible with solar power?

A: Yes, absolutely. The motor operates on 24V DC, making it highly efficient and safe for DIY installation. It pairs seamlessly with the APC Sun Power Solar Kits, allowing you to automate farm gates far from mains power.

Q: Does it come with a warranty?

A: Yes, the APC-790 Swing Gate Motor comes with a 12-month warranty.

Q: Can I install this on a gate that opens outwards (Push-to-Open)?

A: Yes, but you will typically need the Side Mount (SM) bracket upgrade or specific geometry setup. The standard kit is often configured for "Pull-to-Open" (opening inwards towards the property). Check your specific bundle to ensure it includes the correct bracketry for Push-to-Open requirements.

Q: How do I open the gate if the power goes out?

A: The unit features a secure Manual Override System. You simply insert the provided key into the motor body, turn the lever, and the gears disengage, allowing you to push the gate open by hand.

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security



System Features

Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

24V 9aH Battery System

Supplied with the automation kit, the 24V Battery System* (2 x 12V  9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.

 *Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life

Remote Features

Specifications

65mm Rubber Gate Stop

The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.





65mm Rubber Gate Stop Dimensions
