Product SKU: APC-790-L24-DC-KB
Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).
Powder Coated Side Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 350mm in width making it ideal to be used on pillars for optimal holding strength across brick work or to be offset off the post in push to open installs.

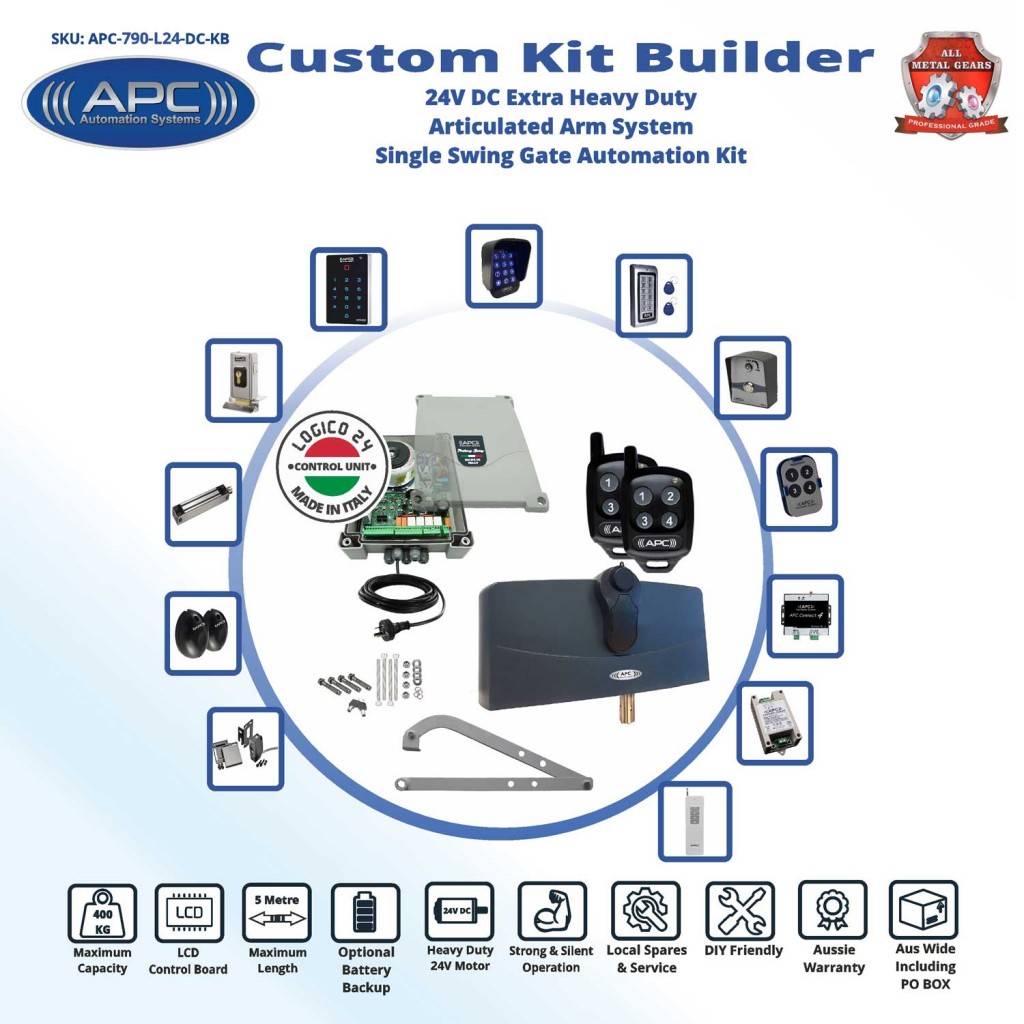

APC-790 Heavy Duty Articulated Gate Opener | 4.5m / 300kg Capacity | Automotion Plus
Upgrade your gate with the APC-790 Articulated Swing Gate Opener. Australian-designed for wide pillars and heavy farm gates. Features all-metal gears, a 24V DC motor, and easy forward-mount installation. Shop now for fast AU delivery.
The Ultimate Solution for Wide Pillars and Heavy Gates
The APC-790 Articulated Motor Swing Gate Automation System is engineered specifically for Australian conditions, offering a robust automation solution where standard linear actuators fail. Designed with a versatile "Forward Mount (FM)" and "Side Mount(SM)" geometry, this motor is perfect for brick pillars and large posts, allowing the long arm to reach around corners efficiently. Built with a whisper-quiet 24V DC motor and an all-metal gearbox, the APC-790 guarantees reliability without the weakness of plastic components. Whether you are automating a residential driveway or a rural farm gate, this system delivers high-speed operation with precision control.
Australian Designed Toughness: sealed and weatherproofed to withstand blistering heat and heavy storms.
100% All-Metal Gearbox: Zero plastic or nylon parts. Features six robust steel gears and a copper transfer gear with sealed bearings for a long operational life.
Heavy-Duty Capacity: Capable of operating gates up to 4.5 meters in length or weights up to 300kg.
Flexible Installation: The Forward Mount (FM) or Side Mount (SM) Brackets with Long Arm allow easy installation on brick pillars and wide posts where geometry is tricky.
Precision Limit Switches: Built-in 360°-adjustable cams let you set exact Open and Close positions, protecting your gate and motor from physical strain.
Solar Ready: The 24V DC low-voltage architecture makes it perfectly compatible with APC Sun Power solar kits for off-grid reliability.
| Specification | Details |
| Brand | APC Gate Automations |
| Model | APC-790 Forward Mount(FM) Side Mount(SM) Long Arm |
| Motor Voltage | 24V DC |
| Max Gate Length | 4.5 Meters (per leaf) |
| Max Gate Weight | 300kg (per leaf) |
| Max Opening Angle | Up to 110° (Geometry dependent) |
| Gearbox Material | All-Metal (No Plastic) |
| Arm Type | Adjustable Long Span Powder Coated Steel |
| Duty Cycle | 80% (Suitable for high-traffic use) |
| Operating Temp | -20°C to +50°C |
| Manual Override | Keyed Lever System (2 keys included) |
| Safety Features | Over-current sensing, Obstacle detection |
| Warranty | 12 Months Warranty |
| Product Type | Capacity | Primary Benefits | Ideal For |
| Articulated Swing Gate Motor |
Length: 4.5m max Weight: 300kg max |
Versatility: Reaches around wide pillars. Durability: All-metal gearing. Silence: Smooth DC operation. |
• Brick Pillar Entrances • Wide Concrete Posts • Farm Gates with tricky hinges • Solar/Off-Grid setups |
Q: Why should I choose an articulated arm (APC-790) over a linear actuator?
A: Articulated arms like the APC-790 Swing Gate Openers are designed for "geometry flexibility." If you have large brick pillars or posts where the hinge is set deep in the centre, a linear arm often hits the corner of the post. The APC-790's "elbow" action allows it to reach around the post, making it the best choice for existing brick pillars.
Q: Is the APC-790 Swing Gate Motor compatible with solar power?
A: Yes, absolutely. The motor operates on 24V DC, making it highly efficient and safe for DIY installation. It pairs seamlessly with the APC Sun Power Solar Kits, allowing you to automate farm gates far from mains power.
Q: Does it come with a warranty?
A: Yes, the APC-790 Swing Gate Motor comes with a 12-month warranty.
Q: Can I install this on a gate that opens outwards (Push-to-Open)?
A: Yes, but you will typically need the Side Mount (SM) bracket upgrade or specific geometry setup. The standard kit is often configured for "Pull-to-Open" (opening inwards towards the property). Check your specific bundle to ensure it includes the correct bracketry for Push-to-Open requirements.
Q: How do I open the gate if the power goes out?
A: The unit features a secure Manual Override System. You simply insert the provided key into the motor body, turn the lever, and the gears disengage, allowing you to push the gate open by hand.
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Transformer | 24V AC |
| Rectification | In Box Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 250 Watts (Accesories + Running Motors) |
| Max. Accesories Load | 7W |
| Control Board Duty Cycle | 80% |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
