Product SKU: BE20-400
This is a special product designed for customized use.
To get a quote for this product please call us or fill this form

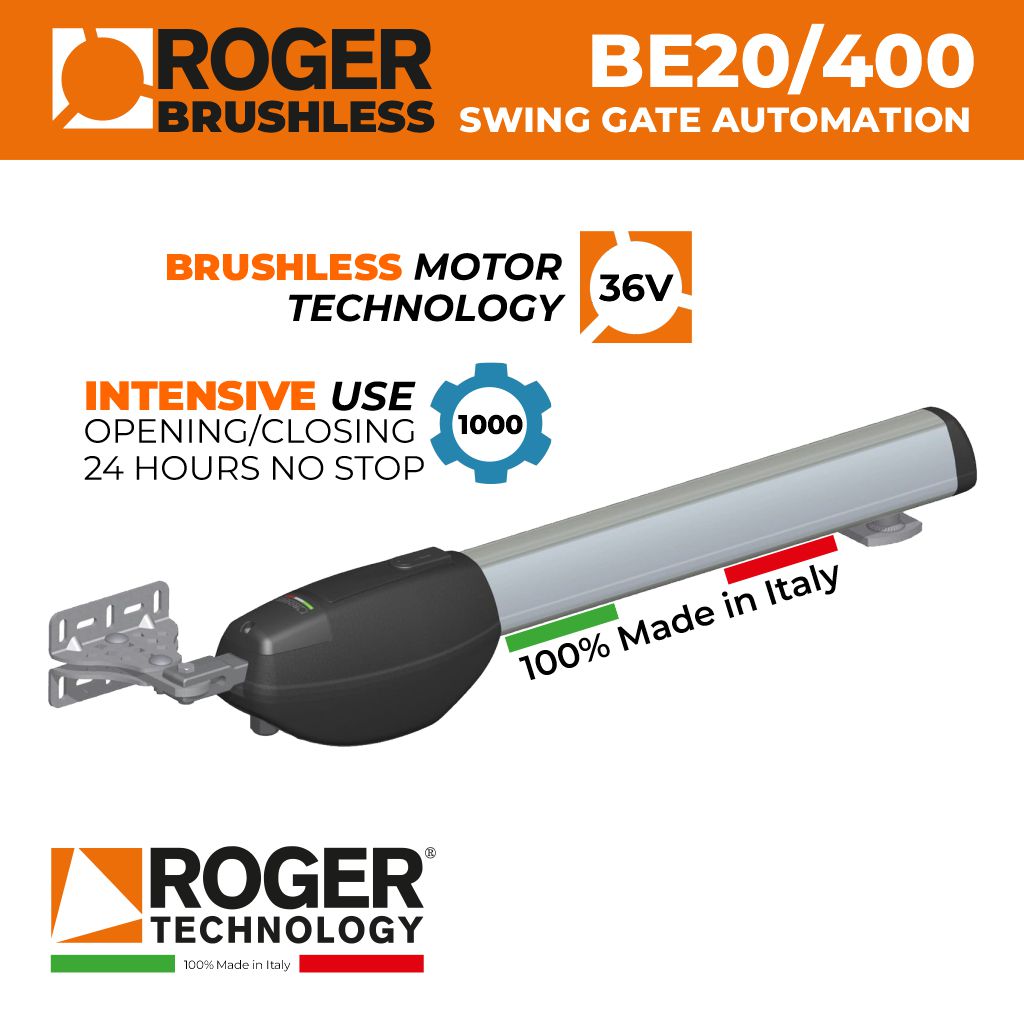

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 400KG Each Leaf | Super Intensive Use |
High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits
Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 4m length, with mechanical stopper in opening and closing.
Simple to adjust, just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required. This is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Thrust: | 100 - 2800N |
| Operating temperature: | -20 C° +55 C° |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Stroke: | 550 mm |
| Limit switch: | Mechanical stopper in opening and closing |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day (opening/closing - 24 hours no stop): | 1000 |
| Maximum dimension product in mm (L x W x H): | 1019 x 105 x 155 |
| Product weight packed (Kg): | 8,8 |
