Product SKU: APC-T550-M
Price :
$275.00
info

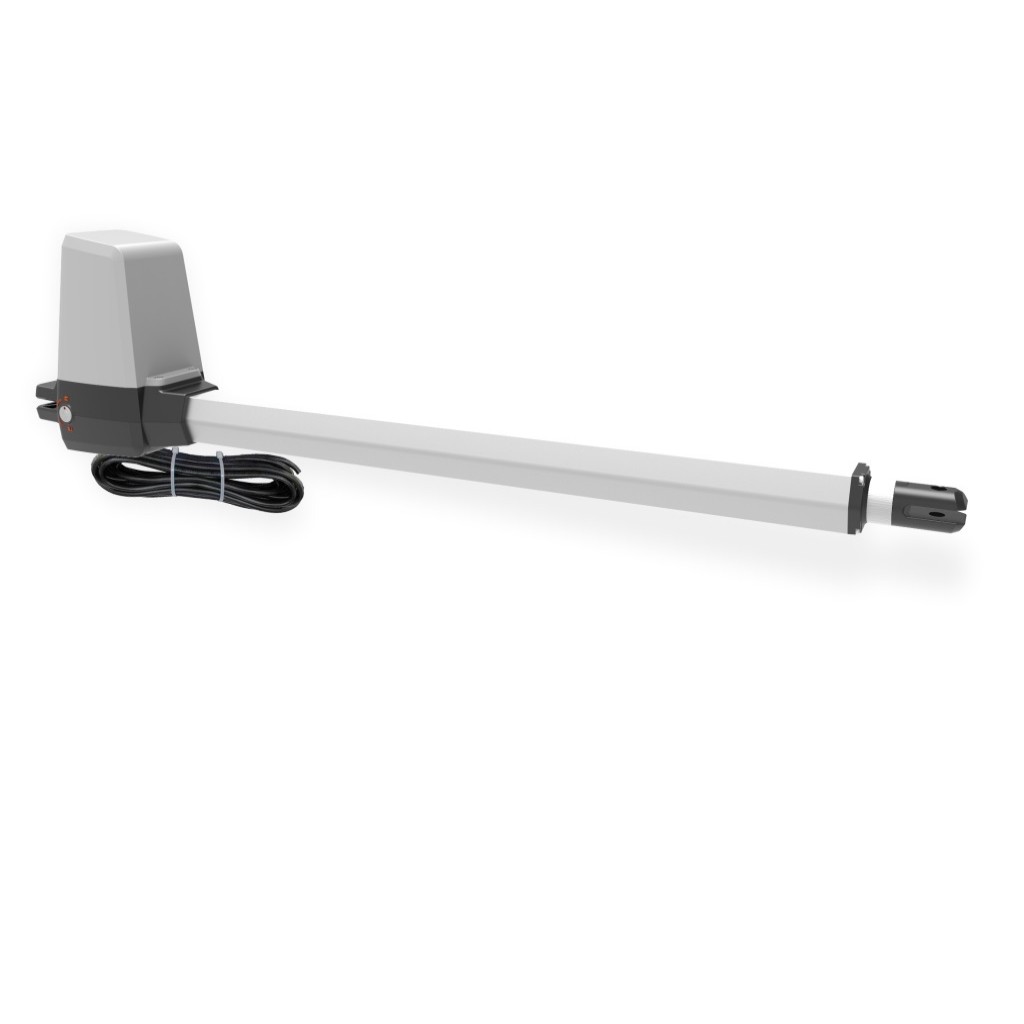

Automatic Swing Gate Opener. APC-T550 Actuator Kit with No Limit. Suit For 3m and 175kg max per gate leaf.
Engineered to be Fast, Powerful, and Quiet. The Heavy Duty 24V actuator is comprised of an aluminum piston housing and a stainless steel piston with an elegant light grey powder coat for a neutral non-obtrusive feel.
Universal left and Right Side installation.
Simple 2 wire low voltage system making this motor a breeze to install for all skill levels.
The system can handle light and heavy gates up to 175kg maximum weight or up to 3m maximum length.
Perfect gear cuts allow for almost silent operation with no movement in the gear system.
Sealed bearings at each end of the gear set for a 100% smoothness and consistency every single cycle.
Ribbed casing for extreme rigidity and the ultimate holding strength with no flex whatsoever.
The simplest of override systems simply slot in the key and turn towards the unlock icon to operate the gates manually. Once finished just turn back to the locked icon.
| Gear Type | Metal Lead Screw, Mixed Composite |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Using Allen Key
|
|
Limits
|
No Limits (Need a physical gate stop for close position)
|
|
Working temperature
|
-10° - 50°
|
|
Duty Cycle
|
20%
|
|
Maximum stroke
|
400mm
|
|
Gates size
|
3m max
|
|
Gate weight
|
175kg max
|
* Not suitable for fully cladded gates.
** Need a gate stop as there are no limits in this motor.
