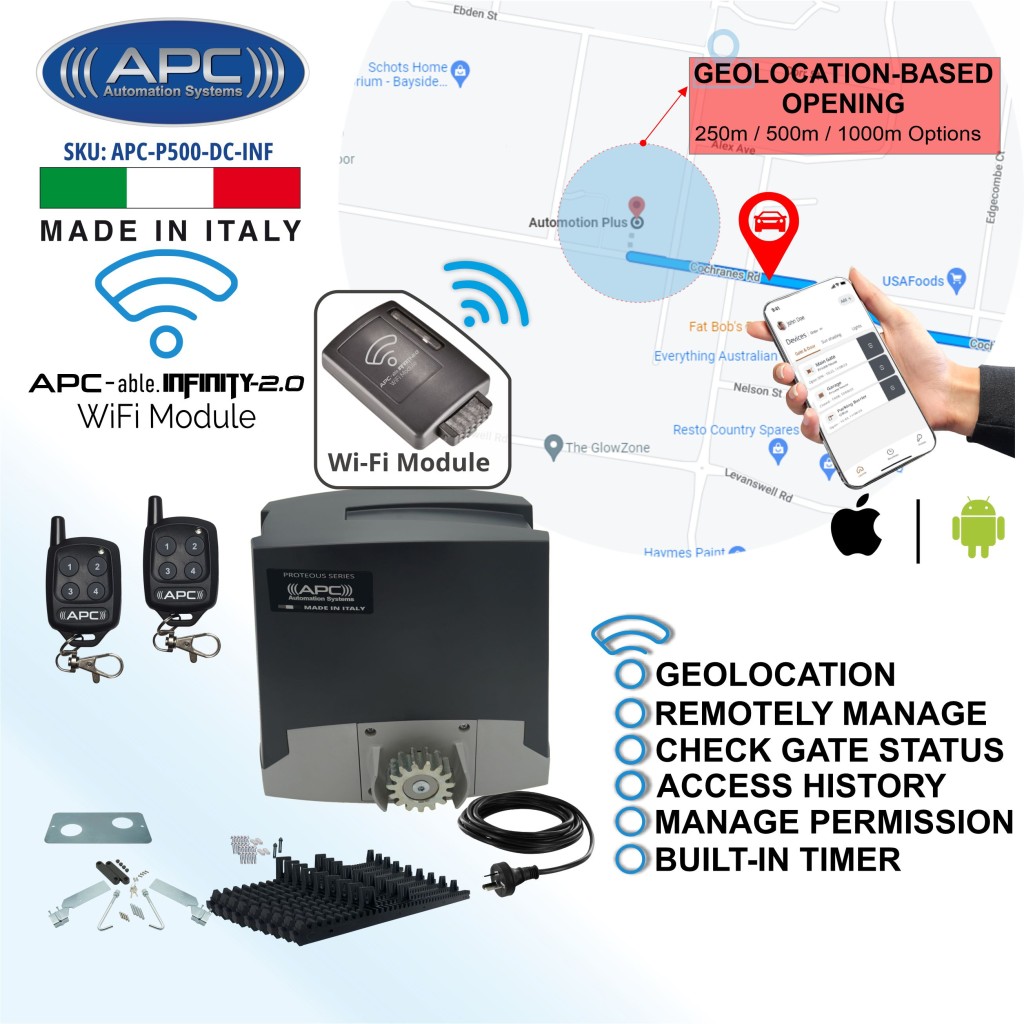

APC WiFi Sliding Gate Opener, Smart Gate Automation Management WiFi Kit. APC Proteous 500 FEATURE RICH Extra Heavy Duty Italian Made Automatic Sliding Gate Motor with Includes APC Infinity Wi-Fi Smart Control with Geo-Location Based Opening, Remote Access, Monitoring, Scheduled Closing, and Secure Sharing via Smartphone. Sliding Gate Opener Smart Kit

Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance

The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

Capacity

90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Extra Features With Infinity WiFi Module

Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance  (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
 APC Infinity WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

Remote Features

Dimensions

Installation Options

Concrete in Base Plate

Surface Mounted Raised Base Plate (Add-On Item)

Four-point Tilt Leveling

Specifications

APC able Infinity 2.0 The Most Advanced WiFi Control Smart Gate Automation Management Module (for APC Proteous and APC Able Range only)

The most advanced gate automation Wi-Fi module (for APC Proteous and APC Able Range only)

Geolocation-Based Opening - Activate the GPS, and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance  (250m / 500m/1000m options)

Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)

Access and Permission Management - Permissions: grant other users access to one or more of your automations, but only during the time slot you choose.

Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day.

Unlimited User - First 4 User Free (Admin +3 users)| $29 per extra user.


Compatible With

• APC Proteous Sliding Gate Opener Systems
• APC Logico24 Swing Gate Opener Systems
• APC able Sliding Gate Openers
• APC able Swing Gate Openers

(Please check your gate opener compatibility, ask: support@automotionplus.com.au )



Features

• Remotely manage all your automation, even when you are away from home. Not only check their status, but also control them! (Open, close, stop, activate the pedestrian opening, etc.)
• Geo Location Enabled - Enter your home without lifting a finger. By using the geolocation from your smartphone, APC able Infinity 2.0 knows where you are and will open the chosen automation for you when you approach it (250m, 500m, 1000m options)
• Check at any time who comes and goes. The App lets you manage all your access by giving specific time slots to whom you want, when you want.
• Set up programmed scenarios to manage your gate access the way you want: Daily, weekly, and monthly programmable timer options.

TECHNICAL FEATURES

Input
Voltage	15V
Current	45mA
Max absorbed power	700mW

WiFi interface
Type	802.11b/g/n – 2.4GHz
Power e.i.r.p.	≤ 100mW
Safety	OPEN/WEP/WPA-PSK/WPA2-PSK

Environment
Operating temperature	-20°C ... +50°C
Storage temperature	-25°C ... +70°C
Humidity	15% - 85%

How does the APC able Infinity 2.0 Smart Gate Automation Management Wi-Fi Module work?

Download the free Application from the official stores (Google Play, Apple App Store)

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
