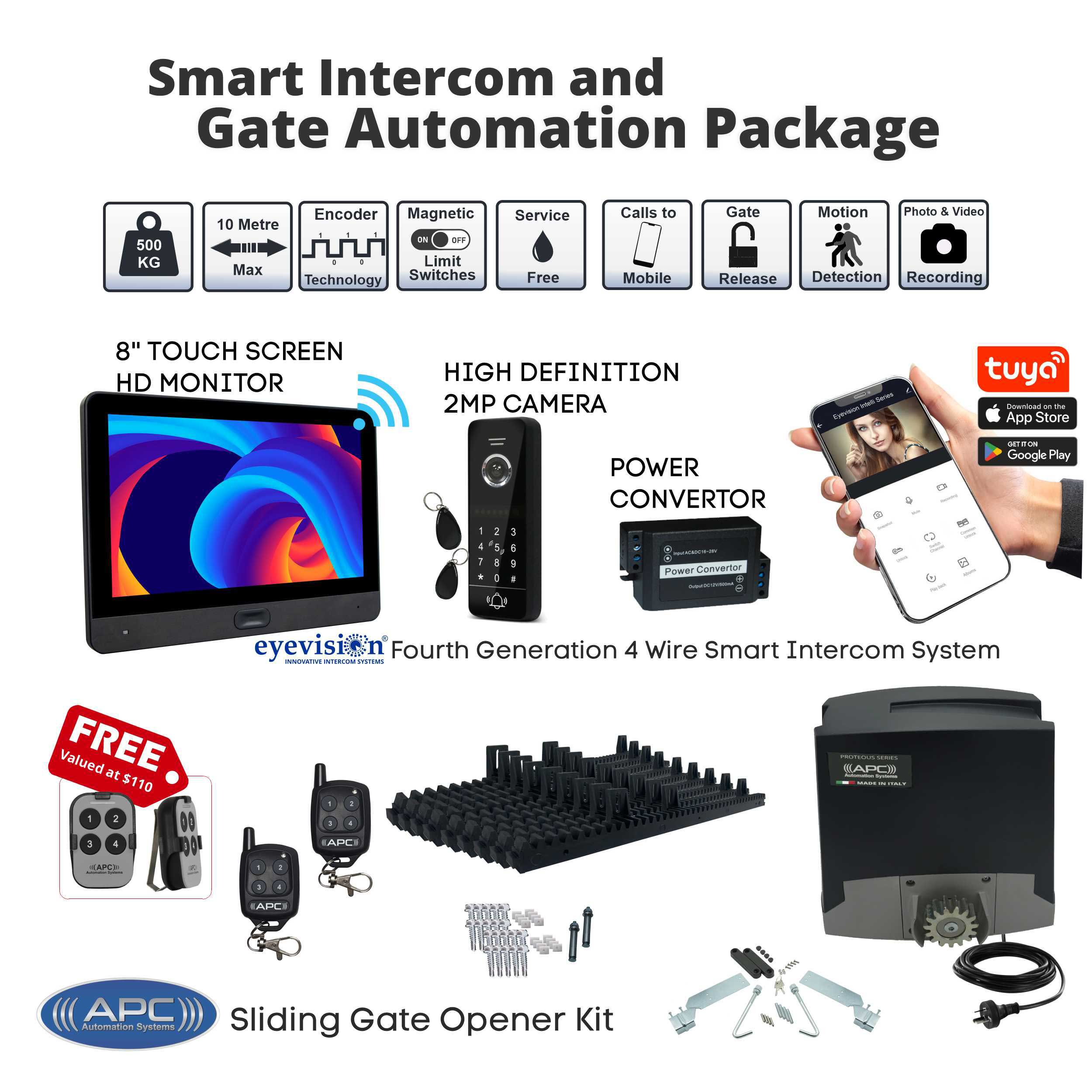

Product SKU: APC-P500-DC-EV-WF8-KP23
Are you seeking the ideal gate automation system to meet your driveway, combining the latest in security and convenience?
The APC Proteous 500 automatic sliding gate opener is the perfect solution for effortless entry and secure automatic driveway gates.
The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth
Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Are you looking to upgrade the access to your property's driveway gate with the latest in security and convenience of gate automation systems?
The APC Proteous 500 automatic sliding gate opener is the perfect solution for effortless entry and secure automatic driveway gates.
The Proteous 500kg Sliding Gate Motor features a modern programmable LCD display and optimised adjustable speed functions. This heavy-duty gate motor supports gates up to 10 meters in width and a 500kg weight capacity. It also features an optional plug-in battery backup to ensure uninterrupted operation during power outages. Ideal for commercial and residential use, the APC Proteous automatic sliding gate motor is a reliable choice for your driveway automatic gate opener system. With rich accessory options, such as remote controls, wireless keypads, and push-button switches, Wi-Fi switches with smartphone App control allow you to tailor your gate access and security.
Whether you're looking for a remote control gate opener, a solar-powered sliding gate opener for eco-friendly use, or a smart gate opener with app integration, there's a gate automation system tailored to your needs. Automotion Plus offers Australia-wide the best solutions for the widest range of sliding gate openers, prioritising durability, ease of installation, and local support. This includes options such as DIY gate opener kits and secure-smart gate opener access control solutions. From APC electric gate openers to heavy-duty sliding gate motors, there's a wide selection designed to secure your home or business with style and reliability.
Constant DC Accessories Output
Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
| Transformer | 24V AC |
| Rectification | In Housing Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 300 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 500 KG |
| Speed | 28 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 90% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 34V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
Heavy-duty Italian 24V sliding gate opener for gates up to 500kg. Feature-rich with an encoder system, programmable LCD, advanced safety, and energy-efficient.
The APC Proteous 500 is a heavy-duty Italian-made sliding gate opener designed for gates up to 500 kg and 10 m in length. Built with a high-duty 24 V DC motor, it combines reliable performance, energy efficiency, and advanced safety features, including an encoder system for precise obstacle detection.
Featuring a programmable LCD interface, the Proteous 500 allows installers to easily configure speed, acceleration, deceleration, and safety parameters, making it perfect for residential and light commercial use. It comes complete with two rolling-code remote controls and is compatible with keypads, induction loops, timers, and smart modules.
Its low standby consumption (~5 mA) ensures minimal energy usage, while robust construction and IP44 protection guarantee long-term durability in Australian conditions. This gate opener is ideal for homeowners, strata complexes, and installers seeking a fast, smooth, and safe sliding gate solution.
Heavy-Duty Performance: Handles gates up to 500 kg and 10 m long — ideal for residential and light commercial sites.
Smooth, Programmable Operation: Modern LCD interface and adjustable soft-start/soft-stop for smooth motion.
High Duty Cycle: Operates for up to 54 minutes per hour, suitable for frequent use.
Advanced Safety: Encoder system and adjustable sensitivity enhance detection and reduce faults.
Energy Efficient: Ultra-low standby consumption (~5 mA).
Flexible Control Options: Works with remotes, keypads, induction loops, timers, Wi-Fi/APP or GSM modules.
Easy Install & Compact Design: Pre-wired with flexible mounting and compact depth for neat installations.
| Attribute | Details |
|---|---|
| Product Name | APC Proteous 500 Italian-Made Sliding Gate Motor (Feature-Rich with Encoder System) |
| Product Type | Heavy-Duty Automatic Sliding Gate Opener |
| Brand | APC (Italian Made) |
| Model | Proteous 500 / ML-P500-DC-S |
| Capacity | Up to 500 kg gate weight (½ tonne) |
| Max Gate Length | Up to 10 m wide sliding gates |
| Motor Voltage | 24 V DC (with 24 V AC transformer) |
| Max Operating Power | 300 W |
| Operating Speed | Approximately 28 cm/s |
| Duty Cycle | 90% (high duty system) |
| Control Interface | LCD programmable display for full configuration |
| Safety & Detection | Built-in encoder system, obstacle detection, safety sensor inputs |
| Remote Controls | Included 2 high-security rolling code remotes |
| Installation Voltage | Pre-wired for a 10 A power point or hardwired |
| Standby Power (Low) | Energy-saving mode ~5 mA standby |
| Accessory Compatibility | Keypads, induction loops, timers, APP/GSM modules |
| Environmental / Build | Solid alloy housing, 4-point tilt levelling |
| Operating Temp | -20 °C to +50 °C |
Handles Gates up to 500 kg: Heavy-duty capacity for residential and commercial gates
Feature-Rich Encoder System: Accurate obstacle detection and smooth operation
Programmable LCD Interface: Easy configuration for speed, acceleration, and safety
Energy-Efficient: Ultra-low standby power (~5 mA)
High Duty Cycle: Suitable for frequent operation
Flexible Control Options: Remotes, keypads, timers, induction loops, Wi-Fi/GSM modules
Easy & Compact Installation: Pre-wired with flexible mounting
Durable Construction: IP44-rated, robust alloy housing for Australian conditions
Q1: What is the maximum gate weight for the Proteous 500?
A1: Up to 500 kg with a maximum length of 10 m.
Q2: Does it include remote controls?
A2: Yes, two high-security rolling code remote controls are included.
Q3: Can it be used for commercial gates?
A3: Yes, it’s heavy-duty with a high duty cycle suitable for residential and light commercial applications.
Q4: What safety features does it have?
A4: Encoder system, obstacle detection, and safety sensor inputs.
Q5: Is it energy-efficient?
A5: Yes, standby consumption is extremely low (~5 mA), reducing ongoing energy costs.
An advanced gate automation system is the ideal solution for improving security, convenience, and access control for residential, commercial, and industrial properties. Automotion Plus offers premium gate opener kits Australian customers trust, designed to suit swing and sliding applications, including single and double swing gates and electric slide gate installations. Our range of automatic gate openers delivers smooth, reliable performance for driveways, factories, warehouses, and strata properties, allowing users to control their auto gate with remote controls, keypads, or smart access systems.
Whether you’re upgrading an existing automatic gate opener or installing new gate openers from scratch, Automotion Plus provides robust, weather-resistant solutions built for Australian conditions. Our gate opener kits Australia range includes high-quality motors, control boards, safety accessories, and mounting hardware for professional and DIY installations. From compact residential auto gate setups to heavy-duty electric slide gate systems for commercial sites, our automatic gate openers are engineered for long-term durability, safety compliance, and seamless everyday operation.
An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.
120° 2MP HD Intercom Camera Keypad (Swipe Tag Reader) Outdoor Station with 8" HD Monitor With Built-In WiFi For Smartphone APP
The Eyevision® Intelli HD Series four-wire intercom is a feature-rich state-of-the-art intercom system boasting every feature requested from an intercom system (and much more...).
Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor simultaneously with a large feature set from the APP and the indoor monitor. No extra modules are required to connect to the internet as the indoor monitor has built-in Wi-Fi and is able to connect directly to your home's 2.4GHZ Wi-Fi connection.
Two outdoor stations can be connected for the front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home, allowing for the visitor's call to be answered from any station and transferred to a different station if required.
The Intelli series can have a common release connected directly to the monitor, allowing for simultaneous front gate - front door release, making it easier to let a guest in without switching between menus or running to the door.
System Capacity & Capabilities
Indoor Monitor Base Features
Special Features (Micro SD Required)
Resolution: 8'' (1024*600)
Power Consumption: Maximum 1200 mA
Power supply: External power supply DC 12-15V
Operating Temp: 0~+50°C
SD Card Requirement: 2GB~128GB Class 10 micro SD Read/Write 10MB/S Min.
System Capacity: 6 indoor monitors and 2 outdoor stations
For more details and multi-device advanced system cabling topology, Please check the installation manual.
(IC Tags & Power Adapter Supplied)
A fourth-generation HD intercom system is an advanced communication system that utilizes high-definition video and audio communication technology. These systems can be used in residential, commercial, and industrial settings to enhance security, manage access control, and enable seamless communication with visitors on-premises. With This intercom system, you will get the latest advancements in intercom technology, including improved video quality, enhanced connectivity, and additional features such as mobile app integration and remote secure access management capabilities.
* Suitable with Eyevision® Intelli HD Series Indoor HD Monitor Options
(EV-HD-WF8, V-HD-WF8-WH, V-HD-WF10)
* Click here to see Eyevision® Intelli HD Series Indoor HD Monitor Options and Packages
| 120° Vide Angle View | 2MP HD Camera | Speaker and Microphone | Keypad | Call Button | Night Vision | Motion Detection | IC Tag Reader | Weatherproof |
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing, and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left-facing and right-facing setups.
Camera Sensor: 1/3" CMOS Camera
Viewing Angle: 120°
Resolution: 2 MP / HD
Night Viewing: IR LED
Operating Temperature: -0°C to +50°C
Operating Voltage: 12-15V DC
Operating Current: 30mA Standby 70mA Operational
Card Type: IC Card/Tag (KP 23-HD Only)
IP Rating: IP65
