Product SKU: GTAL35x15-P500-SOL-HW
In Stock
Freight Delivery
Kit Price:
$3,895.00
$4,095.00

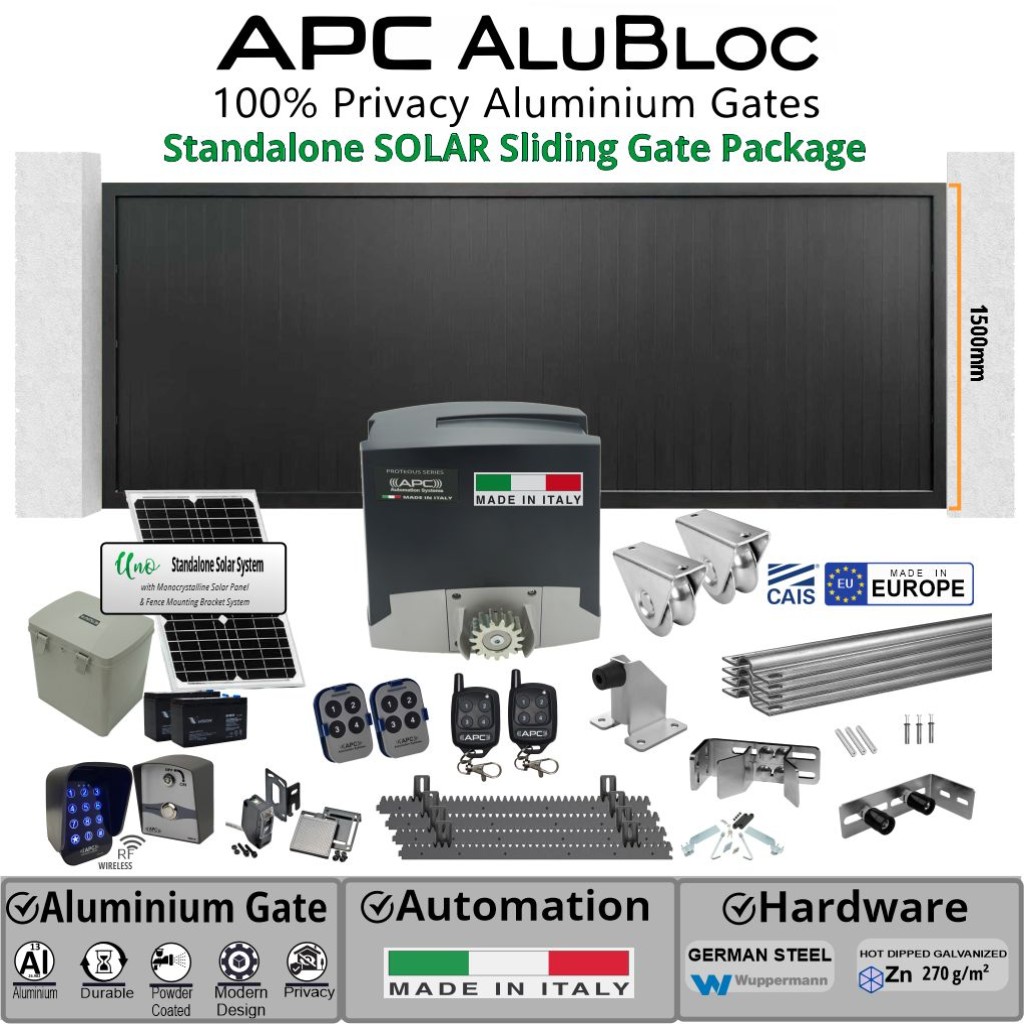

Where Style Meets Security , Tired of Prying Eyes and Flimsy Fences?
Are you tired of prying eyes and flimsy fences? Step into a new era of privacy with AluBloc Aluminium Gates. Our gates are engineered for complete blockout, built to last, and designed to make a lasting impression.
100% Visual Blockout: Say goodbye to gaps and hello to peace of mind.
Sleek Finish: Powder-coated, rust-free, low-maintenance, and modern design.
Durability: Built to withstand both professional and DIY use.
Fully Welded Aluminium Gate: No flat pack
Our vertical slat gate privacy screen systems incorporate the latest in low-maintenance architectural style. The black powder-coated slat design ensures that the aluminium gates will not rust, warp, or require repainting, offering a long-lasting, low-maintenance alternative.
AluBloc Privacy Gates | Where Style Meets Security
The AluBloc Aluminium Vertical Slat Gate range is strong, durable, and requires no maintenance. Featuring slats made from powder-coated aluminium, these gates enhance both the security and style of your property.
Crafted from durable aluminium with a sleek powder-coated finish, the AluBloc gates are built to withstand the elements while maintaining a modern, minimalist look. They are perfect for homes or businesses, combining functionality with a clean vertical slat design that complements any outdoor space. With easy installation and low maintenance requirements, they provide a hassle-free solution that is designed to last.
Upgrade your privacy and style with AluBloc Privacy Gates today!
The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Specifications | |
| Maximuim Power | 20W/40W/60W |
| Optimum Operational Voltage | 36V |
| Open Circuit Voltage | 43.2V |
| 20W Panel Dimensions | 640 x 300 x 25mm |
| 40W Upgrade Panel Dimensions | 535 x 515 x 30mm |
| 60W Upgrade Panel Dimensions | 805 x 535 x 30mm |
The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below.
Key Features:
| Height | 205mm (Including cable glands) 180mm Without |
| Width | 180mm |
| Depth | 249mm Including Mounting bracket, 210mm without |
| Height | 281mm (Including cable glands) 255mm Without |
| Width | 263mm |
| Depth | 230mm Including Mounting bracket, 189mm without |
| Battery Dimensions (each) | Battery Size | 12V Configuration | 24V Configuration | Uno Box Requirments |
| 151x65x99mm | BAT-9 (9aH) | 1x Battery Required | 2x Batteries Required | Up to Two Batteries in one Master Uno Box |
| 181x77x167mm | BAT-17 (17aH) | 1x Battery Required | 2x Batteries Required | Up to Two Batteries in one Master Uno Box Large |
| 195x130x167mm | BAT-33 (33aH) | 1x Battery Required | 2x Batteries Required | One Battery in Master Uno Box Large (and One Battery in Slave Uno Box Large for 24V) |
The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.
The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.
The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.
The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.
In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.
The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.
Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.
| System Voltage | 12V/24V DC auto |
| PV Max Input Voltage | 55V |
| Self-consumption | 10mA |
| Max Charging current | 10A |
| Max Discharging current | 10A |
| Battery type | Sealed(Default)/Gel/Flood/Lithium |
| LVD | 11.0V ADJ 9V...12V ; x2/24V |
| LVR | 12.6V ADJ 11V...13.5V ;x2/24V |
| Float Voltage | 13.8V ADJ 13V... 15V ; x2/24V |
| Boost Voltage | 14.4V ADJ 13V...17V ;x2/24 |
| battery voltage less than 12.6v auto boost 2hours | |
| Battery Over Voltage | 16.5V ; x2/24V |
| Reverse Connection Protection | Yes |
| Load Over Current Protection | Yes, each 30s auto restart again |
| Controller Over Temperature | Yes |
| USB Output | 5VDC/1A 2PCS |
| Charging Type | PWM |
| Charge circuit voltage drop | <=0.25V |
| Discharge circuit voltage drop | <=0.1V |
| Temperature Consumption# | For 12V system:-24mV /°C ; x2/24V |
| Relative humidity | ≤95%, N.C. |
| Working Temperature | -20°C~+55deg;C(Product can work continuously at full load) |
| LCD temperature range | -20°C~+70°C |
| Waterproof grade | IP32 |
| Mounting hole size | Φ5mm |
| Terminals | 10mm²/8AWG |
| Weight | 245g |
| Overall dimension(mm) | 190×108×41.5 |
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
| Transformer | 24V (Uno Solar System) |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 300 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 500 KG |
| Speed | 28 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 90% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
An advanced gate automation system is the ideal solution for improving security, convenience, and access control for residential, commercial, and industrial properties. Automotion Plus offers premium gate opener kits Australian customers trust, designed to suit swing and sliding applications, including single and double swing gates and electric slide gate installations. Our range of automatic gate openers delivers smooth, reliable performance for driveways, factories, warehouses, and strata properties, allowing users to control their auto gate with remote controls, keypads, or smart access systems.
Whether you’re upgrading an existing automatic gate opener or installing new gate openers from scratch, Automotion Plus provides robust, weather-resistant solutions built for Australian conditions. Our gate opener kits Australia range includes high-quality motors, control boards, safety accessories, and mounting hardware for professional and DIY installations. From compact residential auto gate setups to heavy-duty electric slide gate systems for commercial sites, our automatic gate openers are engineered for long-term durability, safety compliance, and seamless everyday operation.
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
This 1m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.
Material: (S350GD Steel) || High-strength, hot-dip galvanized steel (Sliding Gate Rail).
Bolt down "U" Profile Ground Track Rail 1000mm long. Galvanised Finish
The CAIS ROAD Sliding Gate Track is made from hot-dip galvanised S350GD, high-strength structural steel. This sliding gate hardware is specifically developed for long-lasting use and is suitable for use in heavy-duty sliding driveway gate applications.
Hot-dip galvanizing ensures a homogeneous zinc coating on the surface, which protects the steel sliding gate tracks against corrosion in the long term on your sliding gate system.
This Sliding Gate Rail, S350GD Steel Track, has a (3569 kg/cm²) 350 N/mm² Newton per Square Millimetre Pressure strength in the upper strength classes of hot-dip galvanised steels. It is ideal for domestic and commercial large and heavy sliding gate systems.
S350GD steel is a high-strength structural steel grade featuring a hot-dip galvanised coating that enhances corrosion resistance and durability. It is specifically engineered for demanding outdoor environments, making it an ideal material for sliding gate tracks.
Due to the combination of structural strength and long-lasting protection against rust, S350GD ensures smooth, secure, and low-maintenance gate operation — delivering reliable performance over time in all weather conditions.
"U" GROOVED WHEEL SINGLE BEARING, EXTERNAL SUPPORT CAIS WTO Single Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels CAIS gate wheels are made from high-quality steel and bearings. Flat mount gate wheels for gates and driveways... The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance. Package: Usage: Weight Capacity and Suitability:CAIS Flat Mount Sliding Gate Wheels
CAIS WTO Single Bearing for Sliding Gates Wheels
- Sliding Gates & Driveway Gates
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)
High Qualy Two Roller Guide Plate
Cantilever Gate Hardware Upper Rollers and Bracket Set
Heavy-duty Galvanized Steel Gate Stop with Rubber Bumper
110mm High Bolt Down Gate Stop, CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates
The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance.
Usage:
- Swing Gates
- Sliding Gates
| Material | Steel |
| Surface Finish | Hot Dipped Galvanized |
| Use | Gate Catcher / U Guide |
| Manufacturer | CAIS |
The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.
Upgrade your home with our aluminium slat privacy gates, the perfect blend of style, security, and durability for Australian homes. Our vertical slat aluminium privacy gates deliver 100% visual blockout, keeping your driveway, garden, or residential property completely private. Made from powder-coated aluminium, fully welded gates ( No Flat Pack), they’re built to last in all Australian conditions – from urban streets to coastal Australia – while remaining low maintenance and rust-free. Choose from a swing aluminium privacy gate for driveways or a sliding aluminium privacy gate kit to perfectly suit your property’s layout and style.
Designed for homeowners who want both convenience and quality, our aluminium slat privacy gates Australia can be fit to your exact needs. Easy to install with aluminium slat privacy gate DIY installation options in Australia, they’re perfect for those who want high-quality gates without the hassle.
From residential aluminium privacy gates, powder-coated and durable in Australia, to modern designer aluminium privacy gates in Melbourne suburbs, our APC AluBloc range combines sleek design, complete privacy, and long-lasting performance. Protect your property and enhance its curb appeal with the ultimate aluminium vertical slat privacy gate in residential Australia.
