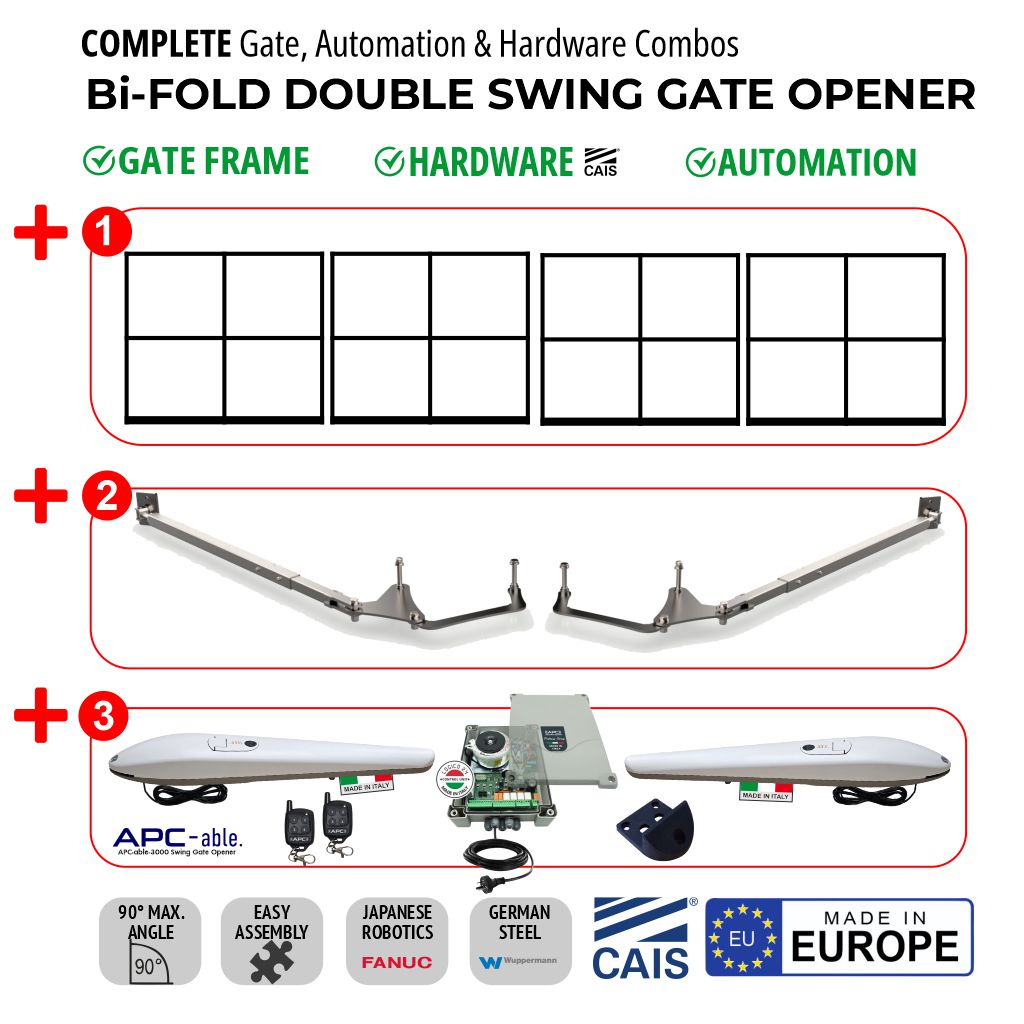

6m Trackless Bi-Fold Double Swing Gate and Gate Automation Kit Combo | Bi-folding Space-Saving Feature Double Swing Gate Hardware (CAIS) With Four Gate Frame and Automatic Electric Gate Automation Kit Featuring Italian-Made APC Able 3000x2 Heavy-Duty Linear Actuator With Adjustable Built-In Stop.

Automation, Gate Frame, Bi-Folding Double Swing Gate Hardware (Central Hinges Included)

Bi-Folding Double Swing Gate Hardware, Central Hinges Included, for Single Leaf Max Length 3m, Max Weight 110kg, Max Height 2m

Trackless Bi-Folding Driveways Swing Gate Hardware, Space-Saving Feature, All-In-One Box

FREE UP EXTRA SPACE

A traditional type swing-gate use up to 100% more backspace in its opening and closing if compared with bi-folding swing gates. Meaning that the standard space taken up by a conventional swing gate will be free to utilise in some other way. The CAIS TWIN DRIVE bi-folding hardware is particularly useful in places where space is at a premium, such as urban areas with high population density. The traditional swinging gate will take up valuable space and can be quite inconvenient to use at times. The CAIS TWIN DRIVE bi-folding system will free up more space for vehicles or foot traffic.

The Installation Steps | Bi-folding Driveways Swing Gate Complete Hardware

The installation does not require complicated steps and materials. No welding is required; therefore, the working time is not too long. We invite you to follow the below installation steps.

Other Benefits of Bi-Folding Gate Hardware (Swing Gate Leaf Twin Drive)

Swing Gate Bi-Folding TWIN DRIVE is an ideal solution for driveway entrance access. It is designed to allow a vehicle user full manoeuvrability around a property. A Bi-Folding Gate will be less expensive to automate than a double swing gate since it requires only one gate operator instead of two. It is a perfect solution for the entrance with a gravel surface, considering that you do not need to lay down the rails. There‘s no doubt that Bi-Folding Gates is a money and space-saving alternative that is convenient and can be very stylish.

Extremely Quiet

In the past, Swing Bi-Folding gates were originally very noisy. Older versions use steel rails and wheels, which can be very noisy compared to New CAIS TWIN DRIVE Trackless Bi-Folding System.

Reliable

The CAIS TWIN DRIVE Trackless Bi-Folding System is reliable in any weather condition, even if the wind blows heavily.

Bi-Folding Swing Gate System's Special Needs

They need a special frame, so a few factors need to be considered, such as cross-bracing. The reason why cross-bracing is fundamental is primarily to keep the leaf from sagging.  A compression cross-brace transfers weight from the top bar by pushing down against the bottom hinge or a vertical component or post, which transfers the load to both hinges. Improper or missing cross-bracing will cause the Vertical deflection of the leaf.  Cross-bracing should always “lean into opening”. Furthermore, the bi-folding swing gate only works properly when the internal hinges are properly welded concerning the vertical axle. You‘ll also need to consider the wiring of safety edges, as this feature should be accommodated in the frame.

Italian Made Double Swing Gate Opener | Linear Actuator for Automatic Driveway Gates

Italian Made Double Swing Gate Actuator Overview

Italian Made Swing Gate Automation Installation Geometry

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

Remote Features

Specifications

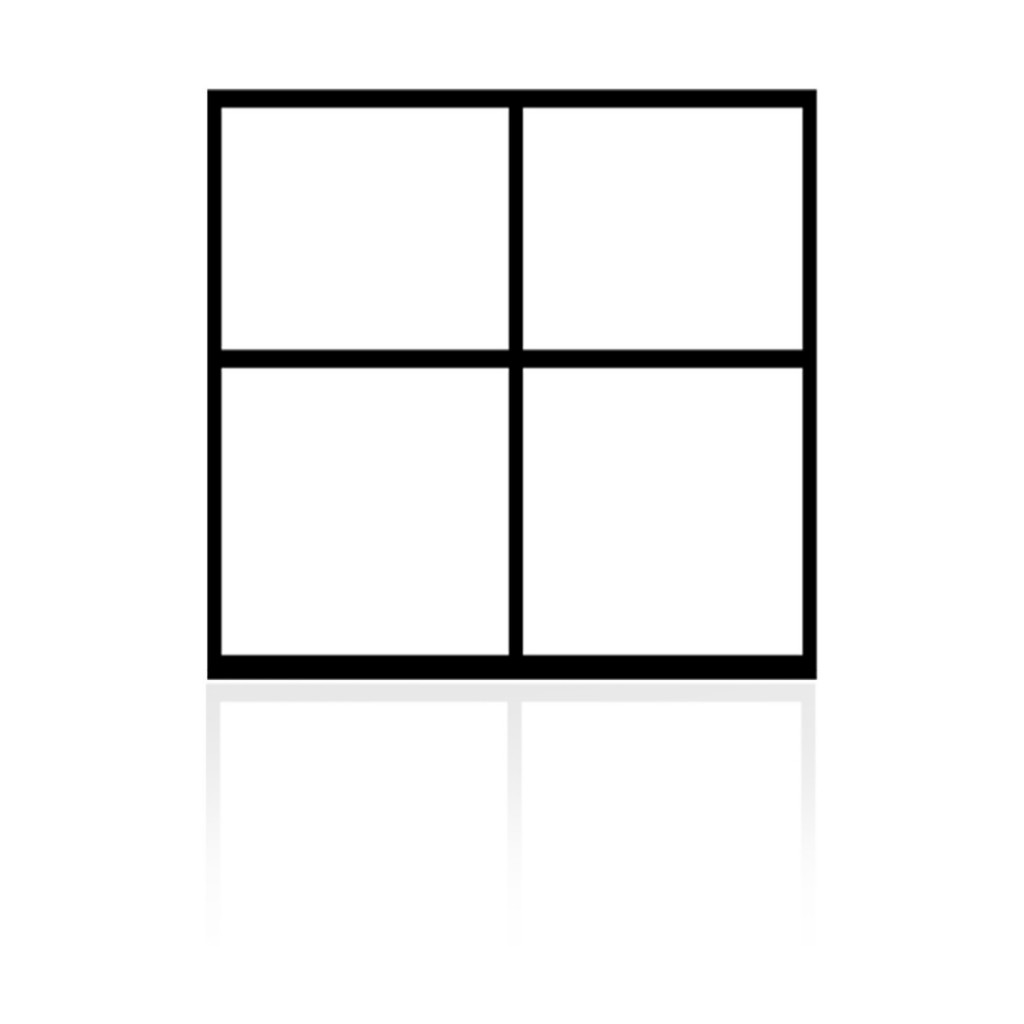

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials

Key Features

• 1500mm Height
• Robust Satin Black Powdercoating
• 40x40mm Steel for Top & Sides
• 40x40mm Vertical & Horizontal Support Rails
• 80x40mm Bottom Rail
• Completely Welded Throughout

Suitability

• Sliding Gate Applications
• Swing Gate Applications
• Residential Use
• Commercial Use
