Product SKU: ML-APC-able-600SPRINT-S

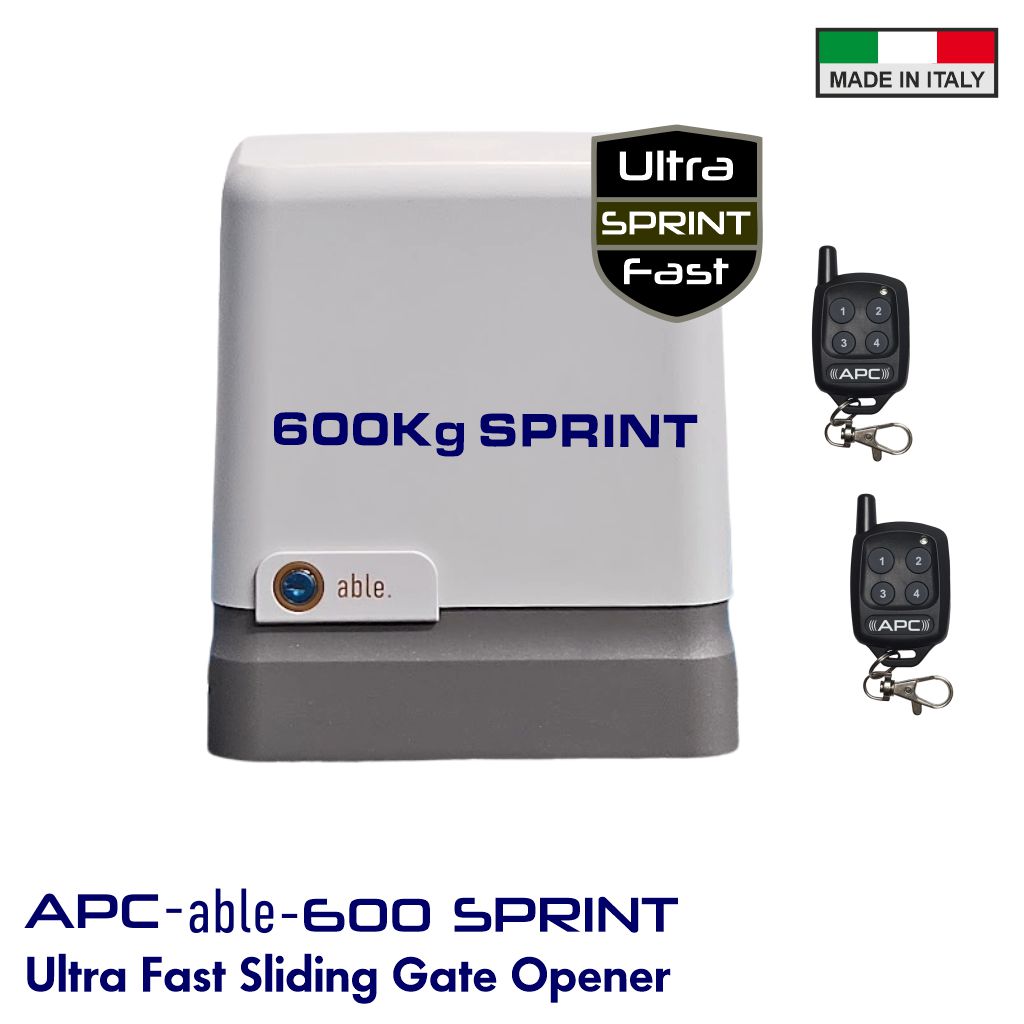

Reliable automation for sliding gates up to 600 kg — engineered for energy savings, safety, easy installation and ultra-fast operation.
This compact, powerful 24V gate operator combines advanced safety and programmable motion with industry-leading energy efficiency and fast speed. Certified with an Environmental Product Declaration (EPD) to ISO 14025 and compliant with EU 2023/826 standby ecodesign regulation, it delivers precise, quiet operation and up to 90% reduced electricity consumption — ideal for residential, light commercial and gated community installations.
Ultra-low consumption: Designed for low power consumption with ECO-LOGIC; standby consumption < 0.5 W.
Safe, reliable operation: Obstacle detection, safety edges and photocell inputs with self-test.
Powerful performance: Handles gates up to 600 kg with a maximum thrust of 600 N.
Fast: Up to 34cm Per Second
Easy installation: Magnetic limit switch, adapter plates for like-for-like replacement, and modular radio receiver connector.
Up to 90% reduced electricity consumption versus standard operators
Programmable accelerations/decelerations and slow start (programmable start ramp)
Obstacle detection and safety edges
Integrated digital control unit with display and 3-button programming
ADI connector for optional modules; SYNCRO module for synchronised motor operation
Self-learning opening/closing times
24 V auxiliary output always on for activators; modular radio receiver plug-in connector
2 inputs for photocells (with self-test) and two inputs for mechanical/resistive devices
Stainless lock with secured mechanism; painted aluminium casting case
Compliant with EU 2023/826 standby ecodesign regulation
Certified with EPD (ISO 14025)
| Maximum gate weight (kg) | 600 |
| Gate speed (m/s) | 0.34 |
| Maximum thrust (N) | 600 |
| Working cycle (cycles/hour) | 35 |
| Electrical supply (Vac - Hz) | 230 - 50 |
| Full load absorption (A) | 2 |
| Maximum load of powered accessories at 24 Vdc (W) | 6 |
| Consumption (Standby) | < 0.5 W |
| Degree of protection (IP) | IP44 |
| Operating temperature (°C) | -20 → +55 |
| Pinion | M4-Z15 |
Fast setup using the integrated digital control unit, three-button programming and display.
Magnetic limit switch simplifies mechanical setup and reduces maintenance.
Adapter plates allow easy replacement of similar legacy products.
Modular expansion via ADI connector and plug-in radio receiver for flexible control options.
Built to modern safety and energy standards: safety edges, obstacle detection, and photocell inputs with self-test ensure reliable guarding of pedestrian and vehicle paths. Environmentally certified (EPD, ISO 14025) and standby-ecodesign compliant (EU 2023/826) to reduce both carbon footprint and running costs.
Homeowners and strata complexes want quieter, greener gate automation.
Installers who value fast commissioning, modular upgrades and low maintenance.
Facilities aiming to reduce energy use and ecodesign requirements.
The magnetic limit switch offers a compact and efficient solution for positioning your sliding gate. Unlike traditional mechanical systems, it provides:
This innovation ensures your gate operator runs smoothly, safely, and consistently, while saving installation time and costs.
Unlike traditional sliding gate operators that use a single central sensor, this system is equipped with two compact magnetic limit switch sensors, mounted on both sides of the gate motor edges.
This design ensures:
By placing sensors at the edges rather than the centre, this gate operator guarantees smoother travel, quicker installation, and fewer service interventions.
| Attribute | Details |
|---|---|
| Product Name | 600 kg Italian-Made Sliding Gate Motor – APC Able 600SPRINT |
| Product Type | 24 V High-Efficiency Sliding Gate Opener Motor |
| Model | APC-Able 600SPRINT |
| Brand | APC (Italian-made Sliding Gate Motor) |
| Capacity | Up to 600 kg gate weight |
| Maximum Speed | ~0.34 m/s (34 cm/sec) |
| Maximum Thrust | 600 N |
| Working Cycle | ~35 cycles/hour |
| Power Supply | 230 VAC, 50 Hz |
| Motor Voltage | 24 V DC |
| Standby Consumption | < 0.5 W (eco-logic low-power mode) |
| Protection Rating | IP44 weather protection |
| Operating Temperature | −20 °C to +55 °C |
| Environmental Certifications | EPD certified (ISO 14025), compliant with EU 2023/826 ecodesign |
| Control Features | Integrated digital control, programmable speed/accel/decel, self-learning |
| Safety Inputs | Photocell/self-test, obstacle detection, safety edge inputs |
| Installation & Ease | Magnetic limit switches, modular receiver connector, and adapter plates |
| Typical Use | Residential & light commercial sliding gates |
| Ideal For | Homeowners, strata complexes, and installers of low-maintenance units |
Fast, reliable gate automation — capable of handling gates up to 600 kg with smooth motion.
Ultra-fast operation with an opening speed of up to ~0.34 m/s for quick access.
Eco-friendly & energy efficient — standby consumption under 0.5 W and EPD certified, reducing ongoing power costs.
Quiet and smooth operation due to advanced 24 V motor technology.
Easy installation & retrofit-friendly with modular connections and adapter plates.
Enhanced safety with obstacle detection, photocell self-test features and safety edge inputs.
Programmable control logic with self-learning and adjustable acceleration/deceleration.
Italian-Made 600kg Sliding Gate Opener | Fast 24V Motor
Italian-made 24V sliding gate opener for gates up to 600kg. Ultra-fast, energy-efficient motor with safety detection, ideal for residential automation.
The APC Able 600SPRINT Italian-Made Sliding Gate Opener is a high-performance 24 V gate automation solution designed for sliding gates up to 600 kg. Built in Italy to premium standards, this fast-acting motor delivers smooth, quiet, and reliable operation for residential and light commercial applications.
With an ultra-fast opening speed of up to 0.34 m/s, the Able 600SPRINT reduces wait times while maintaining precise control and safety. Its low standby power consumption (<0.5 W) and eco-certified design make it an energy-efficient choice for modern automated gate systems.
Featuring advanced obstacle detection, programmable speed and force settings, and compatibility with safety photocells and accessories, this sliding gate motor offers dependable security, easy installation, and long-term durability in Australian conditions.
The APC Able 600SPRINT is engineered for sliding gates up to 600 kg, making it perfect for residential homes, small commercial properties, and light industrial applications. Its powerful 24V motor ensures smooth, reliable operation even under heavy loads.
This sliding gate motor operates on a 24V DC motor, powered by a standard 230V AC supply. The low-voltage motor provides quiet and efficient operation, while also being safe for residential use.
It features an ultra-fast opening speed of 0.34 meters per second, allowing quick access without compromising safety or control. This makes it one of the fastest 600kg sliding gate motors available in Australia.
Yes! The motor has an IP44 weather protection rating, which means it is resistant to dust, water splashes, and harsh outdoor conditions, making it ideal for Australian weather.
Absolutely. It comes with advanced safety features including obstacle detection, compatibility with photocells and safety edges, and automatic force adjustment to prevent accidents. This ensures maximum safety for both people and vehicles.
Yes, it is eco-certified and energy-efficient. It consumes less than 0.5 W in standby mode, which significantly reduces electricity costs while providing powerful, reliable performance whenever the gate is in use.
Yes. The APC Able 600SPRINT offers programmable control for speed, acceleration, deceleration, and motor force. This lets you tailor the gate operation to your specific needs for smooth and safe motion.
Yes! The motor comes with modular connectors, magnetic limit switches, and adapter plates, making installation straightforward for professional installers or DIY enthusiasts. Most residential gates can be fitted without complex adjustments.
This motor is perfect for residential sliding gates, commercial property gates, and light industrial gates weighing up to 600kg. Its fast, quiet, and reliable performance makes it ideal for both new installations and retrofits.
The APC Able 600SPRINT combines Italian engineering quality, high-speed performance, energy efficiency, and advanced safety features. Its programmable controls and easy installation make it one of the most user-friendly and reliable sliding gate motors available in Australia.
