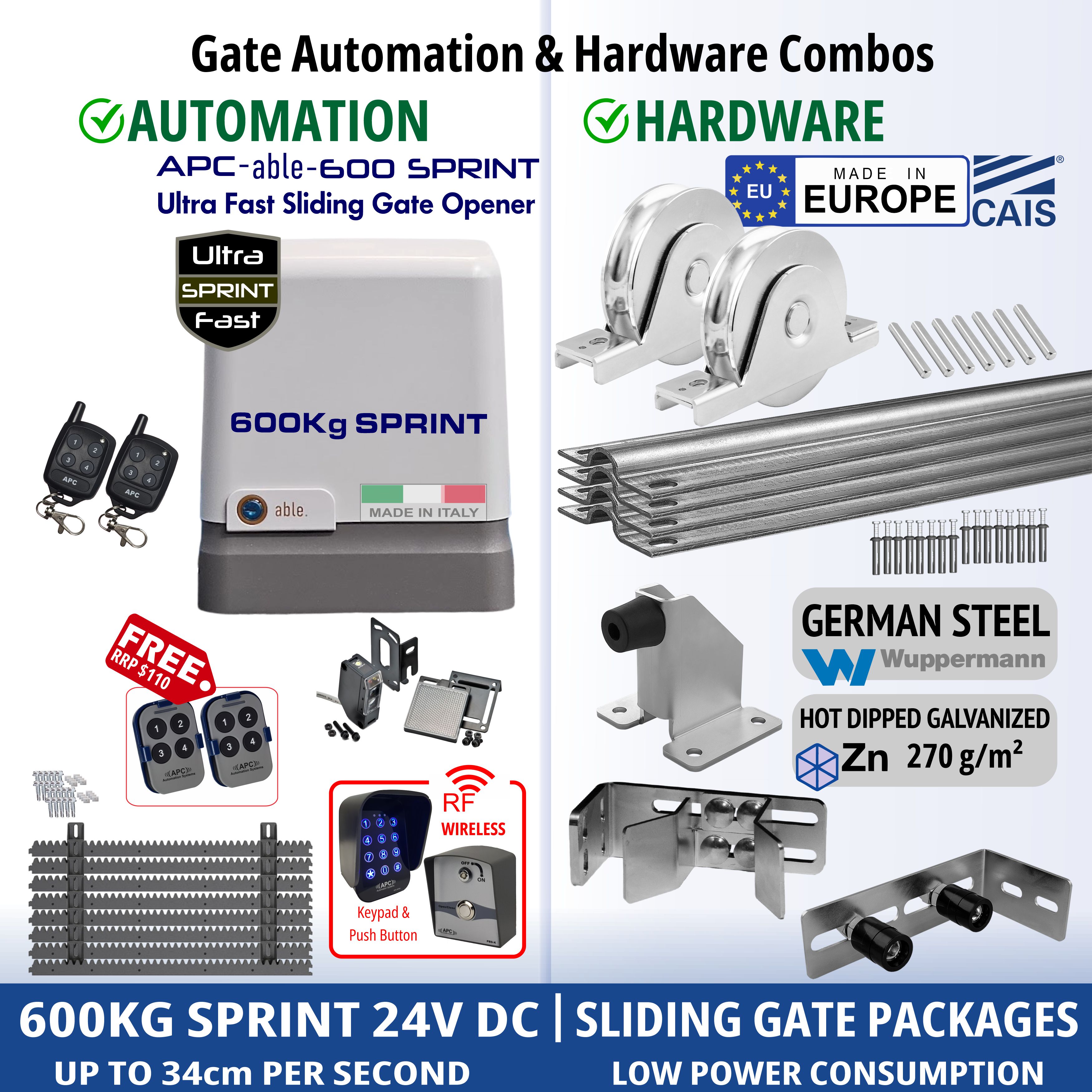

600KG Italian-Made High Speed Sliding Gate Opener and European Made Premium Hardware, Complete Sliding Gate Automation Kit. Includes APC-able-600SPRINT Sliding Gate Automation, High-Efficiency 24V Sliding Gate Motor, Remotes, Retro Reflective Safety Sensor, Wireless Access Controller, Gate Track and European Sliding Gate Hardware Base Kit. Engineered for energy savings, safety, easy installation and fast operation.

S350GD Steel Hot Dipped Galvanised Sliding Gate Track

This 1m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.

Material: (S350GD Steel) || High-strength, hot-dip galvanized steel (Sliding Gate Rail).

CAIS ROAD 1 | SLIDING GATE TRACK

Bolt down "U" Profile Ground Track Rail 1000mm long. Galvanised Finish

The CAIS ROAD Sliding Gate Track is made from hot-dip galvanised S350GD, high-strength structural steel. This sliding gate hardware is specifically developed for long-lasting use and is suitable for use in heavy-duty sliding driveway gate applications.

Hot-dip galvanizing ensures a homogeneous zinc coating on the surface, which protects the steel sliding gate tracks against corrosion in the long term on your sliding gate system.

This Sliding Gate Rail, S350GD Steel Track, has a (3569 kg/cm²) 350 N/mm² Newton per Square Millimetre Pressure strength in the upper strength classes of hot-dip galvanised steels. It is ideal for domestic and commercial large and heavy sliding gate systems.

What is S350GD Steel and Why is it Used in Sliding Gate Tracks?

S350GD steel is a high-strength structural steel grade featuring a hot-dip galvanised coating that enhances corrosion resistance and durability. It is specifically engineered for demanding outdoor environments, making it an ideal material for sliding gate tracks.

Due to the combination of structural strength and long-lasting protection against rust, S350GD ensures smooth, secure, and low-maintenance gate operation — delivering reliable performance over time in all weather conditions.

CAIS Recess Mount Sliding Gate Wheels

"U" GROOVED WHEEL SINGLE BEARING

CAIS WSO Single Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels

CAIS rebate gate wheels are made from high-quality steel and bearings. Low-profile rebate wheels mean your gate is shallow to the ground. Best single-bearing gate wheels for gates and driveways...

Package:
CAIS WSO Single Bearing for Sliding Gates Wheels

Usage:
- Sliding Gates & Driveway Gates

Weight Capacity and Suitability:
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)

Small Upper Rollers and Bracket Set for Cantilever Sliding Gates

High Qualy Two Roller Guide Plate

Cantilever Sliding Gate Upper Rollers Guide with Bracket

Cantilever Gate Hardware Upper Rollers and Bracket Set

CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

Heavy-duty Galvanized Steel Gate Stop with Rubber Bumper

110mm High Bolt Down Gate Stop, CAIS ES 50 PN End Stop, Fixed, For Sliding and Swing Gates

The CAIS range of gate accessories is made from high-quality German steel and is heavily galvanised for longer life and rust resistance.

Usage:
- Swing Gates
- Sliding Gates

CAIS DOCKER O - Adjustable End Stop Bracket Set U Guide Gate Catcher for Sliding Gate (CAIS DOCKER 0)

CAIS DOCKER O

The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.

• CAIS DOCKER O - top riser with console

Technical details:

• For profile width: 0 - 120 mm
• Material: Steel
• Surface Treatment: Heavily Galvanize
• Dimensions:

APC-able-600SPRINT | High-Efficiency 24V Sliding Gate Operator — Ultra-Fast. Quiet. Smart. Eco-Certified.

Reliable automation for sliding gates up to 600 kg — engineered for energy savings, safety, easy installation and ultra-fast operation.

This compact, powerful 24V gate operator combines advanced safety and programmable motion with industry-leading energy efficiency and fast speed. Certified with an Environmental Product Declaration (EPD) to ISO 14025 and compliant with EU 2023/826 standby ecodesign regulation, it delivers precise, quiet operation and up to 90% reduced electricity consumption — ideal for residential, light commercial and gated community installations.

Key Benefits

• Ultra-low consumption: Designed for low power consumption with ECO-LOGIC; standby consumption < 0.5 W.

• Safe, reliable operation: Obstacle detection, safety edges and photocell inputs with self-test.

• Powerful performance: Handles gates up to 600 kg with a maximum thrust of 600 N.

• Fast: Up to 34cm Per Second

• Easy installation: Magnetic limit switch, adapter plates for like-for-like replacement, and modular radio receiver connector.

Technical Features

• Up to 90% reduced electricity consumption versus standard operators

• Programmable accelerations/decelerations and slow start (programmable start ramp)

• Obstacle detection and safety edges

• Integrated digital control unit with display and 3-button programming

• ADI connector for optional modules; SYNCRO module for synchronised motor operation

• Self-learning opening/closing times

• 24 V auxiliary output always on for activators; modular radio receiver plug-in connector

• 2 inputs for photocells (with self-test) and two inputs for mechanical/resistive devices

• Stainless lock with secured mechanism; painted aluminium casting case

• Compliant with EU 2023/826 standby ecodesign regulation

• Certified with EPD (ISO 14025)

Technical specifications

Installation & Configuration Highlights

• Fast setup using the integrated digital control unit, three-button programming and display.

• Magnetic limit switch simplifies mechanical setup and reduces maintenance.

• Adapter plates allow easy replacement of similar legacy products.

• Modular expansion via ADI connector and plug-in radio receiver for flexible control options.

Safety & Compliance

Built to modern safety and energy standards: safety edges, obstacle detection, and photocell inputs with self-test ensure reliable guarding of pedestrian and vehicle paths. Environmentally certified (EPD, ISO 14025) and standby-ecodesign compliant (EU 2023/826) to reduce both carbon footprint and running costs.

Who it’s for

• Homeowners and strata complexes want quieter, greener gate automation.

• Installers who value fast commissioning, modular upgrades and low maintenance.

• Facilities aiming to reduce energy use and ecodesign requirements.

Dimensions and Installation Parts

Product Data Sheet — Sliding Gate Opener

Italian-Made 600kg Sliding Gate Opener | Fast 24V Motor

Italian-made 24V sliding gate opener for gates up to 600kg. Ultra-fast, energy-efficient motor with safety detection, ideal for residential automation.

The APC Able 600SPRINT Italian-Made Sliding Gate Opener is a high-performance 24 V gate automation solution designed for sliding gates up to 600 kg. Built in Italy to premium standards, this fast-acting motor delivers smooth, quiet, and reliable operation for residential and light commercial applications.

With an ultra-fast opening speed of up to 0.34 m/s, the Able 600SPRINT reduces wait times while maintaining precise control and safety. Its low standby power consumption (<0.5 W) and eco-certified design make it an energy-efficient choice for modern automated gate systems.

Featuring advanced obstacle detection, programmable speed and force settings, and compatibility with safety photocells and accessories, this sliding gate motor offers dependable security, easy installation, and long-term durability in Australian conditions.

FAQ - APC Able 600SPRINT Sliding Gate Opener

1. What is the maximum gate weight the APC Able 600SPRINT can handle?

The APC Able 600SPRINT is engineered for sliding gates up to 600 kg, making it perfect for residential homes, small commercial properties, and light industrial applications. Its powerful 24V motor ensures smooth, reliable operation even under heavy loads.

2. What voltage does the APC Able 600SPRINT use?

This sliding gate motor operates on a 24V DC motor, powered by a standard 230V AC supply. The low-voltage motor provides quiet and efficient operation, while also being safe for residential use.

3. How fast does the APC Able 600SPRINT open a sliding gate?

It features an ultra-fast opening speed of 0.34 meters per second, allowing quick access without compromising safety or control. This makes it one of the fastest 600kg sliding gate motors available in Australia.

4. Is the APC Able 600SPRINT suitable for outdoor conditions?

Yes! The motor has an IP44 weather protection rating, which means it is resistant to dust, water splashes, and harsh outdoor conditions, making it ideal for Australian weather.

5. Does the APC Able 600SPRINT have safety features?

Absolutely. It comes with advanced safety features including obstacle detection, compatibility with photocells and safety edges, and automatic force adjustment to prevent accidents. This ensures maximum safety for both people and vehicles.

6. Is the APC Able 600SPRINT energy-efficient?

Yes, it is eco-certified and energy-efficient. It consumes less than 0.5 W in standby mode, which significantly reduces electricity costs while providing powerful, reliable performance whenever the gate is in use.

7. Can I program the gate speed and force?

Yes. The APC Able 600SPRINT offers programmable control for speed, acceleration, deceleration, and motor force. This lets you tailor the gate operation to your specific needs for smooth and safe motion.

8. Is it easy to install the APC Able 600SPRINT?

Yes! The motor comes with modular connectors, magnetic limit switches, and adapter plates, making installation straightforward for professional installers or DIY enthusiasts. Most residential gates can be fitted without complex adjustments.

9. What types of gates is this motor suitable for?

This motor is perfect for residential sliding gates, commercial property gates, and light industrial gates weighing up to 600kg. Its fast, quiet, and reliable performance makes it ideal for both new installations and retrofits.

10. Why should I choose the APC Able 600SPRINT over other gate motors?

The APC Able 600SPRINT combines Italian engineering quality, high-speed performance, energy efficiency, and advanced safety features. Its programmable controls and easy installation make it one of the most user-friendly and reliable sliding gate motors available in Australia.

APC Automation Systems FOUR Button Keyring Remote Control



• Featuring High-Security rolling codes transmitting a unique code chosen at random
• Slim design
• Keyring Clip-on System
• Compatible with APC RX2 Two Channel Receiver
• Completely Backwards Compatible with all legacy APC control boards



APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing

APC-KP2W Wireless Keypad Features

• Low Power Consumption only 18uA in standby.


• Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.


• High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.


• Blue Backlight illumination upon touch with an automatic timeout to return to standby.


• Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)


• IP53 Weatherproof rated and suited for outdoor and indoor environments.


• Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.


• Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.


• Two-Channel operation allowing the user to control two different items or functions using separate pin codes.




Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)



Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)

Wireless Double Push Button with Isolation Key

The wireless double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number and can have diffrent pin codes for both the full gate operation and pedestrian function.

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
