600kg Heavy Duty Sliding Gate Automation Motor with All-Metal Gear and Magnetic Limits With 2 Remote Controls and Free Battery Backup | Italian Made by DEA, Automatic Gate System.

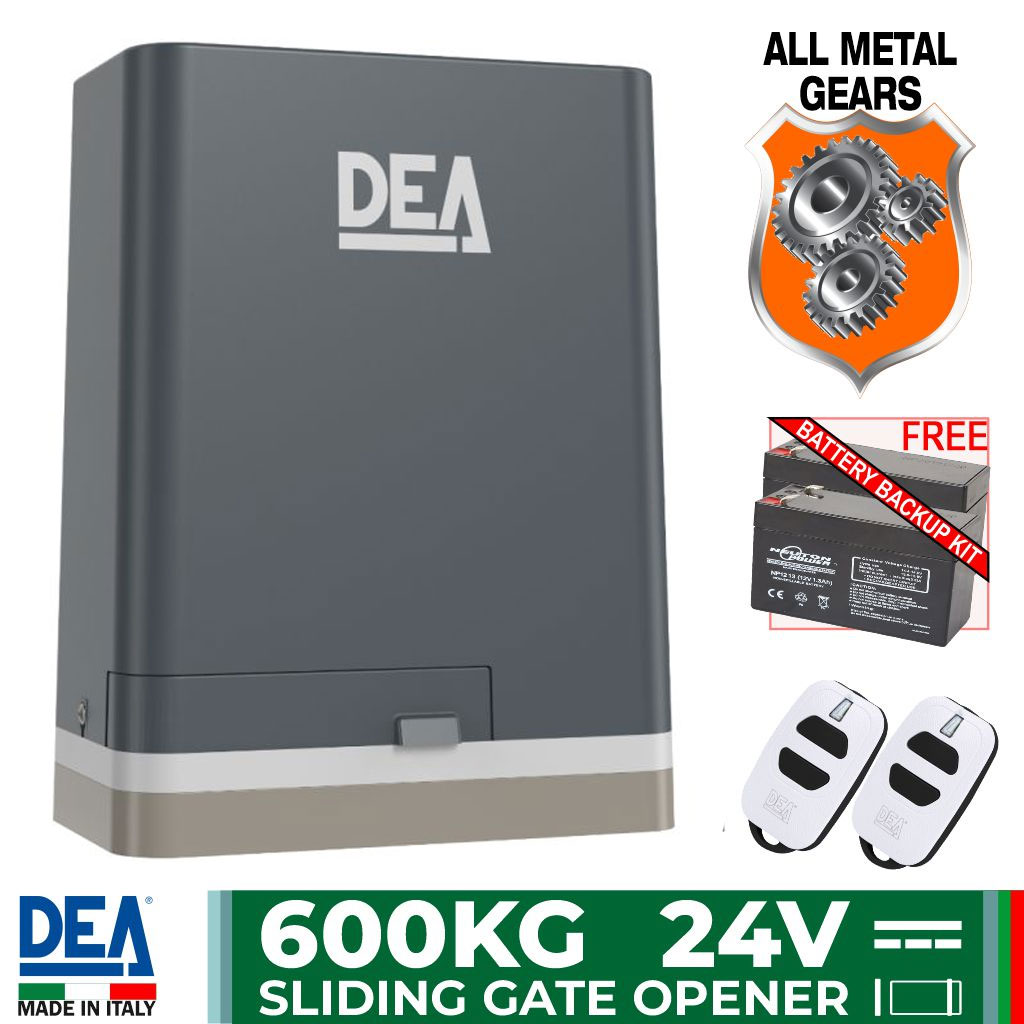

600 KG Sliding Gate Opener DEA-600-DC24, Heavy Duty 24V Italian Made Sliding Gate Motor Overview

At a glance | The Sliding Gate Opener/Closer

The sliding gate opener DEA-600 is a heavy-duty all-metal gear that has full programmability using the onboard control board with an LCD interface. It is suitable for residential usage with simple setups and commercial sites. See the full details below.

Electric Gate Automation System Features

• 600KG Capacity
• Ultra-long sliding gate capacity
• The release system is now protected for increased reliability.
• A new transparent control unit box with an easy-open system is also available.
• LCD Display (No DIP Switches or Dials)
• New design with the possibility of installing an LED strip (optional LED kit)
• New slotted fixing holes offer more significant adjustment during installation, ensuring backward compatibility.
• New ABS crankcase for better weather resistance.
• Increased degree of protection (IP44)
• The DEA-600 has a new magnetic limit switch system, consisting of a new technology sensor and a set of magnets attached to the multi-adjustable rack.
• DEA-600 Automatic Sliding Gate Motors are made with high-quality materials, such as steel and bronze, guaranteeing long-term reliability.
• Self-locking with magnetic limit switch
• Speed adjustment and slow down in opening and closing
• Anti-crashing safety device

Control Board Overview

• Universal control board for managing 1 or 2 motors in 24v.
• 6 inputs | 5 Outputs
• Up to 100 Remote Controls
• 433.92 MHz Receiver

• Display programming with three keys for menu navigation
• A wizard for learning the motor stroke
• List of parameters with direct access
• Encoder input for 1 or 2 operators
• Programmable inputs with input diagnostics visible on the display
• Built-in 433.92 MHz receiver
• Standard speed run and slowdown management
• Reset the control board to be able to reuse it with another automation
• Removable terminal blocks
• Programmable outputs for:
  • safety self-test
  • operation of the electric lock
  • monostable, bistable or timed
• Possibility to set the type of automation to have a specific list of parameters (sliding, swinging, tilting, sectional, barriers, bollards)
• NETLINK is the technology applied to DEA devices for the smart management of installations locally and remotely.
• Programmable with the DEA installer app, which allows you to create and manage each installation from your smartphone

Accessories Compatibility and Controlling Options | DEA-600 Sliding Gate Automation

• Constant DC Accessories Output
• Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and
• Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (APP-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

Dimensions | Italian Made DEA-600 Electric Sliding Gate Motor

Specifications

Wiring Example

DEA Standard 2-Channel Remote Control GTI2

DEA 2-Channel Remote Control, frequency 433.92 MHz.

With DEA remote controls, you can open and close the automation remotely, practically, quickly, and safely.

• All remote controls are set to Rolling code by default.
• The top button is already set to open; the others are deactivated but can be configured to give other commands to the operator or activate outputs from the control board itself.
• Remotes are available in 2 and 4-channel (button) versions.
• The colour of the LED identifies the type of transmission encoding set.

Technical Features

DEA remote control GTI2

Power supply: LITHIUM BATTERY CR2032
Transmission frequency (MHz): 433,92
Range (m): 50-200
Operating temperature range (°C): -20 to +50

Battery Backup Kit For
DEA 600kg / 900kg / 1400kg Sliding Gate Kit

24v - 2x12v 1.2Ah rechargeable battery kit, complete with cables.

(Pre-installed when purchased with the Gate Opener Kits)

Technical Features | Battery charger for DEA Sliding Gate Automation.
