Product SKU: ML-S-500-INT
Price :
$249.00
info
12-24V DC / 500Kg Magnetic Lock Access Control System - Indoor installation only. This product is not weatherproof.

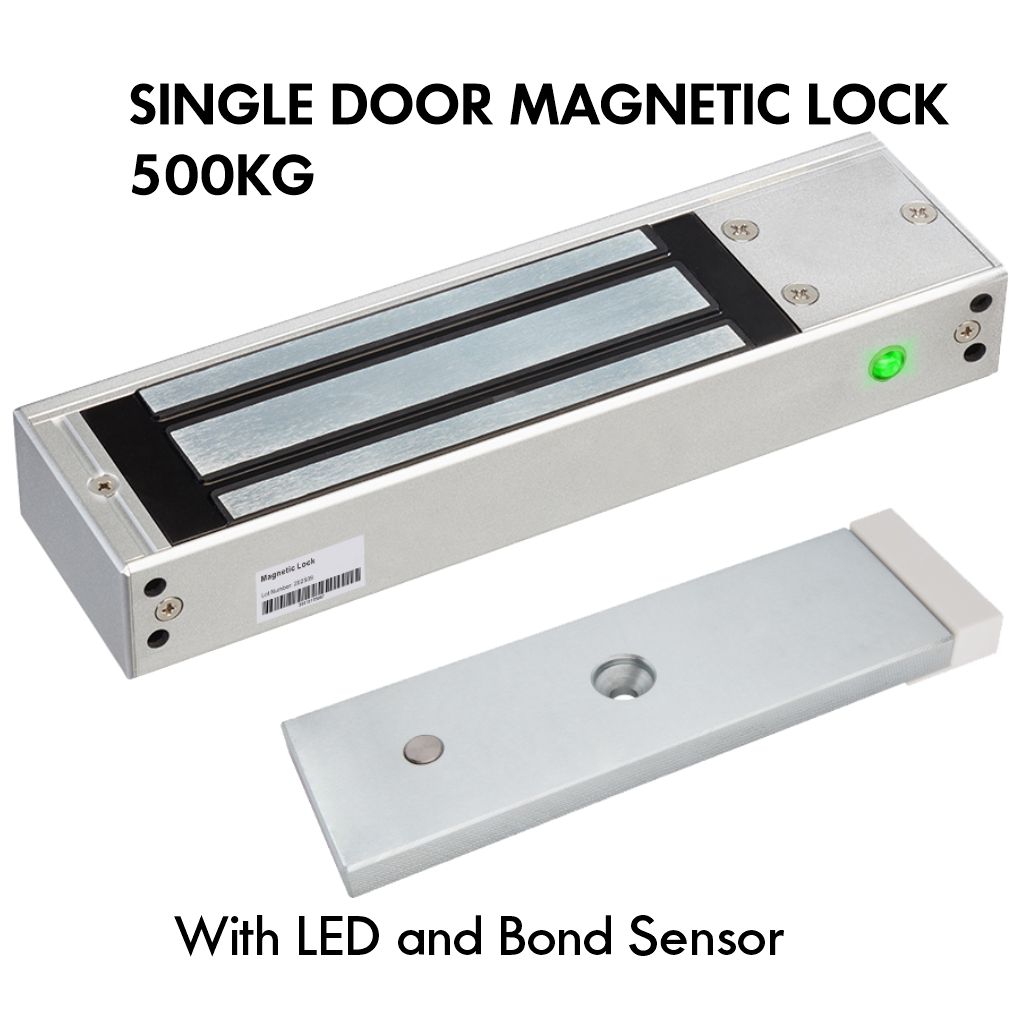

Model: 500kg, Single Door Magnetic Lock (Indoor Use)
Suitable: Wooden door, Glass door, Metal door
Indoor installation only. This product is not weatherproof.
The 500 kg single-door magnetic lock is designed for wooden, metal, and glass doors. There are both lock-status (NO/NC/COM) and door-status (NO/NC/COM) output contacts. The lock body features an ample LED light. The green light indicates unlocking, and the red light indicates locking. 500kg door magnetic lock cores are produced using robotic laser welding technology, providing 2 to 3 times greater impact and torsional resistance than conventional production processes. The surface is treated with the internationally leading electroplating process, offering excellent anti-oxidation, anti-rust, and anti-corrosion performance.
| Size | 265L x 73W x 41H (mm) |
| Armature Plate Dimension | 185L x 60W x 13.2H (mm) |
| Current | 12V/500mA(±10%); 24V/250mA(±10%) |
| Lock Signal Output | NO while locking and NC for unlocking (Voltage<30VDC; Current<0.5A) |
| Holding Force | 500kg(1200Lbs) ± 10% direct pull |
| Operating humidity | 0~95% relative humidity |
| Housing treatment | Anodised hard plating |
| Suitable | Wooden door, Glass door, Metal door |
| Certification | CE-EMC CE-LVD RoHS |
Indoor installation only. This product is not weatherproof.
