4m Gate Nylon Rack Kit (4x1020mm) 800 KG Capacity High Strength 1020mm Fixings Facing Up Steel Reinforced Nylon Gear Rack Sliding Gate Hardware for Domestic and Commercial Sliding and Cantilever Gates. Made in Italy by Stagnoli

Steel Reinforced Nylon Gear Rack - 800 KG Capacity High Strength Sliding Gate Hardware
Made in Italy by Stagnoli

Gear Rack With Steel Core | Italian Made by Stagnoli.

Nylon gate rack with a steel core for screwing to your sliding gate rail to allow the gate motor to act. Compatible with sliding gate and cantilever gate systems.

The fastening system, "Three Points", on the six rack attachments (in this model, facing upward, opposite the teeth) guarantees a higher capacity than the prior models, up to a maximum of 800 KG.

The material used is always a polyamide, 30% fibreglass but elastomeric, to guarantee great performance even in very cold environments.

Stagnoli Sliding Gate Rack – ACRS6N

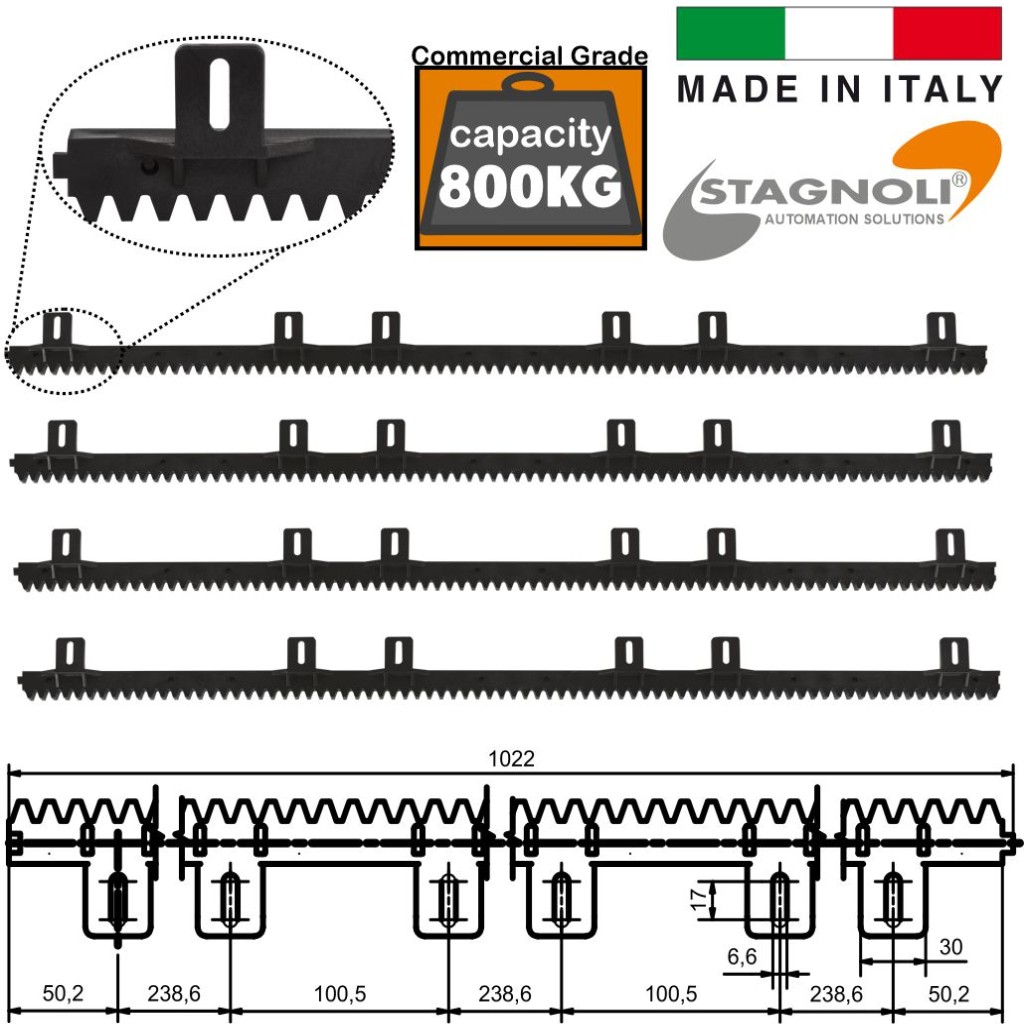

Nylon sliding gate rack used for both domestic and commercial sliding and cantilever gate systems. Up to 800kg with 10×10 steel core to the centre. There are six brackets up mounting lugs with a 25mm gap in-between, allowing for adjustability in case of ground movement over time.

The benefit of brackets up is that they allow greater reach to the motor gears when the gate's bottom beam is positioned higher than the motor.

The six bracing lugs allow for a higher load capacity on the rack at 800kg.

Specifications

Dimensions
