Product SKU: BM30-HS-400-E-BOX-4
This is a special product designed for customized use.
To get a quote for this product please call us or fill this form
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
The installations do not require complicated steps and materials, and therefore the working time is not too long as well. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.
We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.

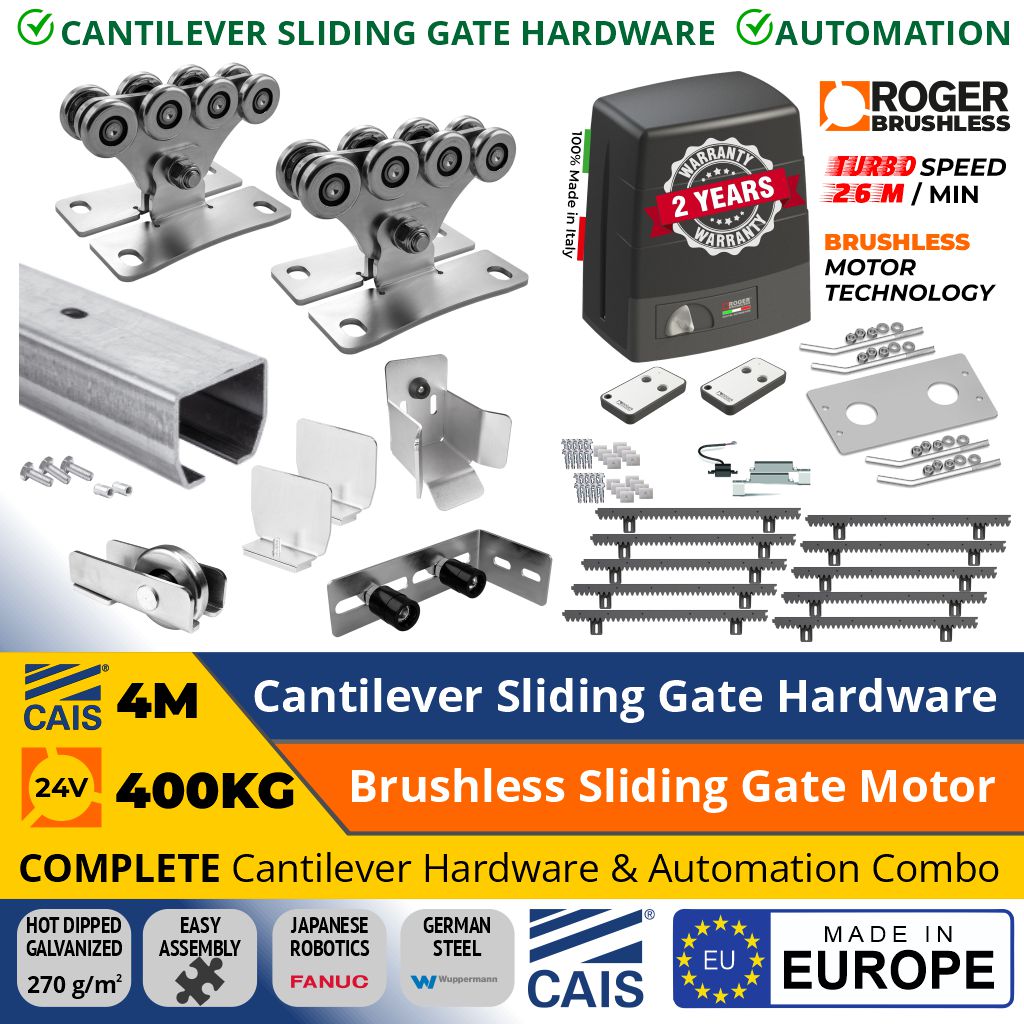

See what the "ALL IN ONE" box includes:
Cantilever sliding gate system carriage wheel for up to 325 kg max gate weight.
Enhanced design and superior products from Europe using high-quality German steel.
 |
 |
 |
 |
 |
|
C2 High-Quality Bearings |
Carriages Center Holes Milled Not Laser Cut |
Multi Riveted Sections |
Mono-Block Eight Wheeled Carriage |
No Welded Parts |
"C" Profile Guide For Cantilever Sliding Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel, 15 Bolts 15 Rivet Nuts Included
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory
The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide
The end wheel guides the gate up onto the end cup and helps to support the gate while it is resting.
Cantilever Gate Hardware Small Guide Support Wheel
The end cap is an addition to the gate to cap off the cantilevered track.
Cantilever Gate Hardware Small End Cap
The end stop supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware Small End Stop
The end stop bracket supports the gate when it is fully open and fully closed.
Cantilever Gate Hardware End Stop Bracket
High Qualy Two Roller Guide Plate
Cantilever Gate Hardware Upper Rollers and Bracket Set
Reliable, Track-Free Gate Systems for Australian Homes and Businesses
A cantilever sliding gate operates without a track on the ground. Instead, it uses cantilever sliding gate hardware, including rollers, brackets, and Cantilever Carriage Wheels that support the gate above the surface. This makes it ideal for Australian properties with gravel or non-concrete driveways. Cantilever sliding gates can handle uneven terrain. Whether its a gravel driveway, grassy area, or even waterlogged ground, cantilever gates remain functional
| Feature | Traditional Sliding Gate | Cantilever Sliding Gate |
|---|---|---|
| Operation | Moves along a ground track | Suspended; glides above ground |
| Surface Compatibility | Flat, level, concrete surface | Gravel, pavers, gradients, grass |
| Hardware | Track + bottom wheels, rollers and post brackets | Top-mounted rollers and post brackets, carriage wheels, channels |
| Weather Resistance | The track can clog with debris | Performs well in all weather |
| Installation | Requires ground excavation | Manageable installation |
Cantilever gates are widely used across Australia from suburban homes in Melbourne and Sydney to commercial sites in Brisbane, Perth, and Adelaide. Whether you're in a coastal region or rural setting, this hardware is designed to perform reliably under Australian conditions.
Selecting the right gate system is crucial for achieving long-term performance and maintaining property value. Cantilever sliding gate hardware is the preferred solution for Australians seeking a durable, stylish, and easy-to-install gate system that can handle Australias diverse terrains and weather.
Looking for premium cantilever gate hardware kits in Australia? Contact us today to learn more or request a quote.
A FASTER WAY TO WATCH YOUR GATE MOVE!
With the new high-speed line, digital ULTRA HIGH SPEED, it is possible to open and close your gate at very high speed, with maximum elegance and more than doubling the decrease in waiting times of other operators for gate automation.
The ideal solution for all installations requiring speedy manoeuvre times, intensive use, maximum movement elegance and total safety during the movement and obstacle detection phases.
Faster speeds and shorter waiting times!
The new TURBO-SPEED lines let you quickly, powerfully and reliably open a gate. They are 100% faster compared to the traditional speeds for motors with BRUSHLESS 24V DC Moror technology.
Dynamic accelerations and decelerations!
Thanks to the new 24V or 36V digital controllers, it has become fast and straightforward to set different types of accelerations and decelerations during your gate's opening and closing phases. And always guaranteeing maximum elegance and safety.
Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensored technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.
Total safety from the point you want!
To guarantee maximum safety and maintain high-speed performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its speed and the relative sensitivity you want.
BRUSHLESS 24V TURBO-SPEED Sliding Gate Automation Motor | with magnetic limit switch
The Roger Technology BM30/HS Brushless complete kit includes the sliding gate motor, control panel, and receiver.
The BM30/HS motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 400Kg with built-in digital controller B70 series, magnetic limit switch.
Includes:
- BG30/HS Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch
See the full details below.
A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.
Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.
The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.
All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.
WHY BRUSHLESS...?
Digital, smart, powerful, elegant, robust and all-Italian.
A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.
Powerful Digital Brushless Motor
A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.
Digital & Vectorial Automation Controller
The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.
The Digital Silence Of The Motor
One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.
Motor For Super-Intensive Use
The brushless gate motor remains permanently cold even after many days of super-intensive use.
Speed, Acceleration & Deceleration With Extreme Elegance
The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.
Extremely Low Energy Consumption
A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.
Impact, Obstacle Detection & Reversal In Total Safety
Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.
Onboard Native Digital Encoder
The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.
No Problem In The Event Of Power Failure
With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.
Motor At Ambient Temperature
The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.
Simple Installation With A Single 3-Wire Cable
And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.
Advanced Precision Engineering To Obtain Optimal Motor Performance
We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.
Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 12mA |
| Operating temperature: | -10+55 °C |
| Number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| Number of combinations: | 65536 |
| Radio for copy: | Yes |
| Maximum distance in open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
38 x 68 x 11 |
| Product weight packed (Kg): | 0,03 |
| Max gate weight: | 400 kg |
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 24V |
| Power rating: | 125W |
| Frequency of use: | Intensive use |
| Thrust: | 50 - 350N |
| Operating temperature: | -20+55°C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 26 m/min (0.44 m/s) |
| Limit switch: | Magnetic |
| Onboard control unit: | B70/1DC |
| Encoder: | Digital native encoder + magnetic digital sensored, 4096 PPR |
| Type exit gear: | Z15/mod 4 |
| Operating cycles per day (opening/closing - 24 hours, no stop): |
500 |
| Maximum dimension product in mm (L x W x H): |
250 x 165 x 290 |
| Product weight packed (Kg): | 10,8 |
Fixing plate with stay bolts and screws M30 series.
Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.
Raised fixing plate for M30 series (+3 cm).
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
