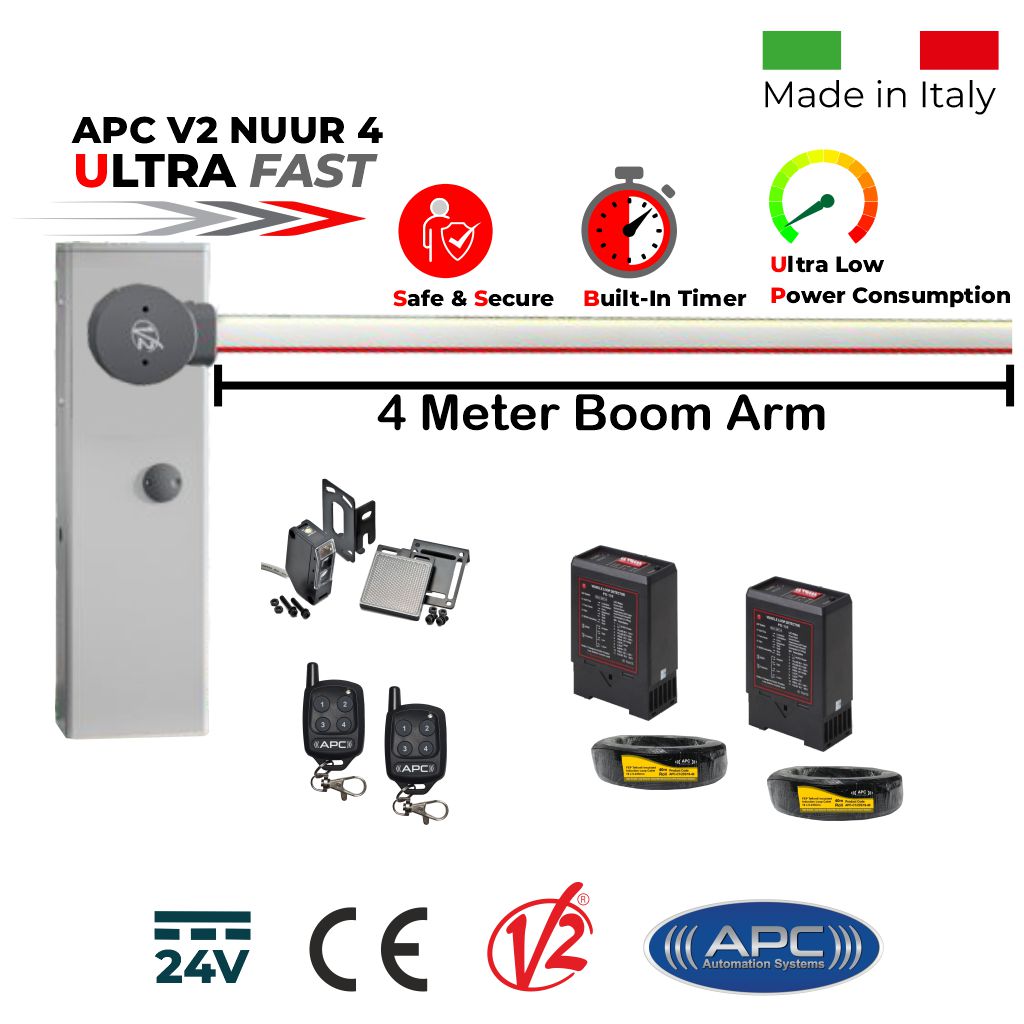

4 Meter Boom Gate Barrier with Remote Controls, Induction Loop Detectors and Retro Reflective Safety Sensor. Ultra High-Speed 24V DC APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy

APC V2 NUUR4 ULTRA FAST 24V Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 4m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy

• Accurate and safe operation with encoder
• Obstacle detection
• Self-learning of opening and closing times
• Slow-down in the limit switch area
• Balancing spring included
• White painted aluminium bar (accessory)
• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for modular receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
• Input for photocells with self-test function
• Input for mechanical safety edges
• Courtesy light output
• Holding magnet output
• Energy Saving function to minimise consumption in standby mode
• Programmable acceleration and deceleration
• Operation in case of absence of power using the backup battery
• Operation with solar power using the ECO-LOGIC system

Motor Overview / Balancing Spring System

Technical Features

• Power supply (Vac - Hz): 230 V~ 50 Hz
• Motor power supply (Vac - Hz):  24 Vdc
• Maximum electric power (W): 300W
• Opening time (s): 3 Seconds for 4 Meter Boom Arm
• Working temperature (°C): Between -20° to +55°
• Duty cycle % - (max. cycles/hour): 80% - (300)

Control Panel

• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP

Dimensions

Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy

APC V2 NUUR Universal Boom Gate Operator – High-Speed Italian Access Control

APC V2 NUUR 24V Universal Boom Gate Operator | Italian Made | AutoMotion Plus

Control vehicle access with the APC V2 NUUR. Italian-made, 24V ultra-fast boom gate (4m/6m). Features obstacle detection, solar readiness & smartphone control.

The Ultimate Solution for Secure Vehicle Access in Australia

The APC V2 NUUR Universal Boom Gate Operator represents the pinnacle of Italian engineering, designed specifically to meet the rigorous demands of Australian commercial and residential access control. Whether managing a busy corporate car park in City Centre (Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Hobart, etc.) or a remote solar-powered industrial site in Western Australia, or a farm across all of AU, the V2 NUUR delivers unmatched speed, reliability, and intelligence.

Available in 4-meter (NUUR4) and 6-meter (NUUR6) configurations, this 24V DC operator is built for high-duty cycles (80%), ensuring continuous operation during peak traffic hours. Its universal design allows for easy left or right-hand installation, making it the most versatile barrier on the market.

Equipped with advanced digital control, the V2 NUUR offers smooth acceleration, precise deceleration, and integrated obstacle detection for maximum safety. With the APC Infinity Wi-Fi module (optional), users can unlock smart features such as geolocation-based opening and scheduled access directly from their smartphones, modernising how Australia manages vehicle flow.

Key Features

• Italian Reliability: 100% manufactured in Italy, ensuring superior build quality and longevity.

• Ultra-High Speed: Opens in as fast as 3 seconds (4m model) or 5 seconds (6m model) for rapid traffic flow.

• Universal Configuration: innovative design allows the arm to be installed on either the Left or Right side effortlessly.

• 24V DC Motor: High-efficiency low-voltage motor supports 80% duty cycle (up to 300 cycles/hour).

• Solar Ready: Fully compatible with the ECO-LOGIC solar system, perfect for remote Australian locations without mains power.

• Smart Safety: Built-in encoder provides obstacle detection, self-learning opening times, and soft-stop technology.

• Smartphone Control: Compatible with APC Infinity Wi-Fi for App-based control, Geo-fencing, and user management.

• Power Failure Proof: Optional battery backup ensures the gate operates even during blackouts.

Quick Reference Product Table

Technical Data Sheet

FAQ (APC V2 NUUR Universal Boom Gate Operator)

Q: What is the best boom barrier gate for high-traffic car parks in Australia?

A: The APC V2 NUUR is a top contender due to its 80% duty cycle and fast opening speeds (3-5 seconds). It is designed to handle the frequent entry and exit requirements of Australian commercial buildings and shopping centres without overheating.

Q: Can I install a boom gate in a location without mains power?

A: Yes. The APC V2 NUUR 24V system is compatible with the ECO-LOGIC solar power system. This makes it the best boom gate solution for remote industrial sites, farm entrances, or mining camps in Australia, where running cables is too expensive.

Q: How does the "Universal" feature work on this boom gate?

A: Unlike many competitors that require you to buy a specific "Left" or "Right" hand unit, the APC V2 NUUR is universal. You can swap the arm installation side on-site, providing flexibility if site conditions change.

Q: Is this boom gate compatible with smartphone opening?

A: Absolutely. By adding the APC Able Infinity Wi-Fi Module, you can use the Able to Use App to open/close the gate via Smart App, and you can even use Geo-Location (opening automatically as you approach), creating a seamless and secure access experience. You can download the free mobile application for Android and IOS devices from the official stores (Google Play, Apple App Store)

Q: What safety features are required for boom gates in Australia?

A: Australian safety standards rely on minimising risk. The V2 NUUR features encoder-based obstacle detection (reversing if it hits a car/person) and supports external safety devices, such as Retro Reflective Safety Sensors and Loop Detectors, to prevent the arm from closing on vehicles.

APC Automation Systems FOUR Button Keyring Remote Control

Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.

Single Channel Loop Detector



The loop detector sensor module that is used wherever vehicles need to be detected to automatically trigger the system to operate. The loop detector module is installed within the system and is powered by the system itself.

From the loop detector module the supplied induction loop cable is fed and layered into a cutout in the driveway as per the illustration below. The system is supplied with a 40m roll of teflon insulated cable which can be upgraded to a larger roll if necessary based on the loop size and distance from the module.

Installation Example

Loop Dimensions



Approximate Loop Sizes
Driveway Width	Loop Size
3m - 4.5m	1.8m x 1.2m
4.8m - 5.4m	2.4m x 1.2m
5.8m - 6.7m	3m x 1.2m
7m - 7.9m	4.3 x 1.2m

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing
