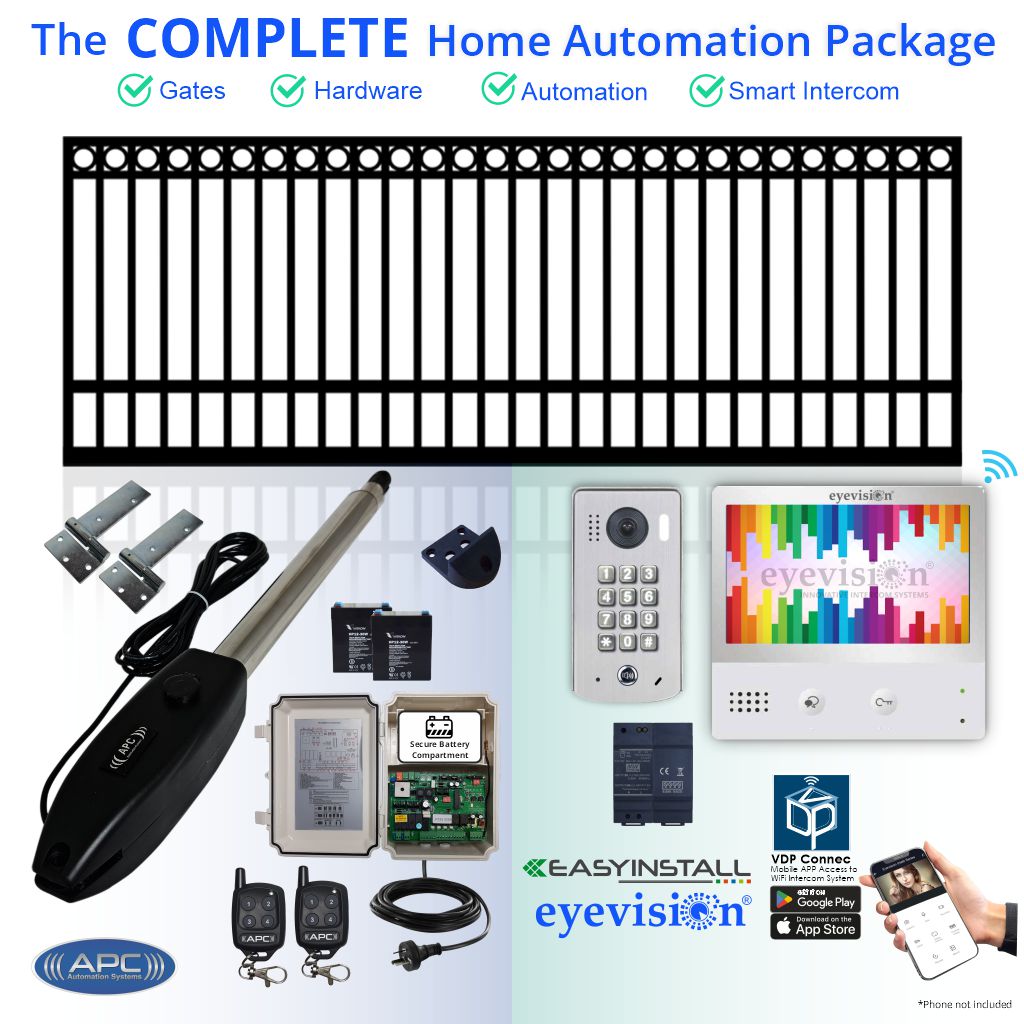

Product SKU: GTR30-T575L-DC-7WF-D298KP-SM
In Stock
Freight Delivery
Kit Price:
$2,027.00
A heavy-duty 24V motor with powerful and quiet operation is comprised of cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance. In an emergency situation, manual override using the supplied butterfly key is easy. The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.
Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.
Powerful and whisper-quiet 24V motor and all metal gears
| Gear Type | Metal Lead Screw, All Metal Gears |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override butterfly key supplied
|
| Limits | No Limits (Need a physical gate stop for close position) |
|
Working temperature
|
-10° - 50°
|
|
Duty Cycle
|
20%
|
|
Maximum stroke
|
350mm
|
|
Gates size
|
3m max
|
|
Gate weight
|
250kg max
|
* Need a gate stop as there are no limits in this motor.
Discover the robust 24V T575L Single Swing Gate Opener — ideal for Australian homes & businesses. Heavy-duty swing gate automation with remote control, Wi-Fi intercom options, solar kits & easy DIY install.
The APC-T575L Single Swing Gate Opener series is a premium solution for Australian property owners seeking reliable, long-lasting automatic driveway gate automation. Designed for both residential and light commercial applications, the T575L range combines corrosion-resistant actuators with a robust control system to deliver smooth, quiet operation and exceptional durability, even in harsh weather conditions typical across Australia. Each kit is engineered to handle gates up to 250 kg in weight and 3 m in width per leaf, making it perfect for standard homes, rural properties, or commercial entrances.
For those looking to embrace renewable energy or off-grid solutions, the APC-T575L-SOL model provides a fully integrated DIY solar gate installation option. With an included solar panel and battery backup system, this kit ensures reliable gate automation without relying on mains power — ideal for remote locations or properties where electricity access is limited.
The T575L series also offers flexibility for different installation needs. The APC-T575L-DC provides mains-powered convenience for urban or suburban homes, while the APC-T575L-LV supports low-voltage setups for long cable runs or special installations. Each actuator is designed to resist corrosion, ensuring a long operational life even in coastal or high-humidity environments.
Whether you need a farm gate opener for rural properties, a secure automated gate for a driveway, or a solar-powered system for an off-grid location, the APC Farm Gate Automation Kits deliver a reliable, safe, and easy-to-install solution. With features like manual override, remote control access, and compatibility with intercoms or loop detectors, these systems combine security, convenience, and peace of mind for Australian property owners.
Heavy-duty 24V DC swing gate opener with stainless steel telescopic linear actuator – ideal for Australian climates and properties.
Handles up to 250kg gate weight and 3m gate width per leaf for residential or commercial use.
Quiet, smooth motion with all-metal gears for long-lasting performance.
Manual override with the butterfly key for emergency access.
Weatherproof control box & rolling code remote system for enhanced security.
Automatic setup & adjustable close timer (0-3 mins) simplifies user configuration.
Compatible with wired/wireless accessories, intercom systems and loop detectors.
Battery backup & optional solar kit available for off-grid Australian locations.
The T575L Single Swing Gate Opener is a premium automatic gate automation solution engineered for Australian homes and commercial sites. Featuring a heavy-duty 24V DC telescopic actuator with stainless steel components, this system delivers powerful, whisper-quiet operation and exceptional durability even in harsh weather conditions.
Designed for gates up to 250kg and 3m width per leaf, the T575L caters to both residential and light commercial applications, combining robust mechanics and smart electronic control. The operator includes a weather-sealed control box, easy-to-program remote controls and advanced safety inputs for sensors and accessories.
With features such as automatic setup, adjustable auto-close timing, overcurrent protection, and accessory outputs, this system provides both DIY-friendly installation and expandability for security enhancements, such as intercoms, keypads, or Wi-Fi smartphone control.
| Specification | Details |
|---|---|
| Brand | APC Gate Automations |
| Model | T575L Single Swing Gate Opener |
| Motor Voltage | 24V DC |
| Max Gate Weight | 250kg |
| Max Gate Width | 3m per leaf |
| Gear Type | Metal lead screw & all-metal gears |
| Manual Override | Butterfly key |
| Duty Cycle | 20% |
| Working Temperature | -10°C to 50°C |
| Control System | Rolling code remote + wired inputs |
| Automatic Close Timer | Adjustable (up to 3 min) |
| Battery Backup | Optional (supports up to ~3 days of usage) |
| Solar Compatible | Optional solar kit available |
| Safety Inputs | Loop detector, safety sensor, over-current protection |
| Accessories Voltage | 24V DC |
| Weatherproofing | Sealed control box |
| Remote Frequency | APC 433.92MHz rolling code |
| Installation Type | Surface-mounted swing gate |
| Feature / Specification | APC-T575L-DC | APC-T575L-LV | APC-T575L-SOL |
|---|---|---|---|
| Product Type | 24V DC Swing Gate Automation Kit (Mains-Powered) | Low-Voltage DC Swing Gate Kit (External Transformer With Cable) | Solar Powered Swing Gate Automation Kit |
| SKU | APC-T575L-DC-KB | APC-T575L-LV-KB | APC-T575L-SOL-KB |
| Main Power Source | 240V AC mains → 24V via transformer | External low-voltage 24V supply (weatherproof transformer) | Solar panel + battery system (24V) |
| Battery Backup Included | Weatherproof control with battery compartment (battery optional) | Weatherproof control with battery compartment (battery optional) | 2 × 24V 9Ah batteries included |
| Remote Controls Included | 2 × 4-button remotes (plus promo remotes) | 2 × 4-button remotes (plus promo remotes) | 2 × 4-button remotes (plus promo remotes) |
| Smartphone/Wi-Fi Control | Add-On Items Available | Add-On Items Available | GSM Access Control Add-On Items Available |
| Safety Features | Control Board Safety Inputs Available for Loop Detector, Safety Sensor, Over-Current Protection | Control Board Safety Inputs Available for Loop Detector, Safety Sensor, Over-Current Protection | Control Board Safety Inputs Available for Loop Detector, Safety Sensor, Over-Current Protection |
| Solar Panel | Not included | Not included | 24V 20W solar panel included |
| Max Gate Weight | ~250kg | ~250kg | ~250kg |
| Max Gate Width | ~3m per leaf | ~3m per leaf | ~3m per leaf |
| Control Box | Weatherproof with onboard battery housing | Weatherproof with low-voltage transformer extension capability | Weatherproof with solar regulator & battery system |
| Manual Override | Yes (butterfly key) | Yes (butterfly key) | Yes (butterfly key) |
| Duty Cycle & Environment | ~20%, −10°C to 50°C | ~20%, −10°C to 50°C | ~20%, −10°C to 50°C |
| Best For | Standard Australian homes/properties with mains power | Sites requiring low-voltage supply (long cable runs, cost-effective install) | Off-grid properties & rural sites without mains power |
Uses standard 240V mains power with an internal transformer for the 24V DC motor.
Best choice where mains power is close to the gate entry point.
Weatherproof kit with included rolling-code remotes.
Designed for low-voltage installations using a weatherproof external transformer and extended low-voltage cable (up to ~80m).
Ideal if running mains to the gate is difficult or expensive.
Same actuator benefits with a transformer that’s easier to place outdoors.
Solar powered with an included solar panel and dual 9 Ah batteries — can run independently of mains power.
Great for rural or off-grid properties, or for areas with frequent power outages.
Solar regulator and long battery life provide reliable gate automation.
Automate your driveway gate for secure, controlled access — ideal for homes, units, farms and business sites across Australia.
Built to withstand extreme heat, rain and humidity common in Australian environments with a sealed, rugged control box.
Pre-wired components and automatic setup reduce install time and complexity for installers or savvy DIYers.
Perfect for rural and off-grid properties where mains power is unavailable — solar kits keep your gate operating even during outages.
Connect safety beams, sensors, intercoms, keypads, loop detectors and Wi-Fi smartphone control for smart home integration.
Automotion Plus offers lifetime technical support, a local warranty, and spare parts stocked in Australia. This means your APC-T575L gate opener is backed by reliable service, fast replacement parts, and peace of mind — making your automatic driveway gate opener a truly hassle-free investment.
Q1: Is the T575L suitable for Australian weather?
Yes — with a weather-sealed control box and components rated for -10°C to 50°C, it’s engineered for Australian climates.
Q2: Is the stainless steel rust-proof?
Yes — The unit is made of stainless steel, making it highly rust-resistant and suitable for coastal or exposed areas.
Q3: Will it work with solar power?
Yes — there is a solar-powered version with a battery backup system or a solar kit compatible with the T575L system.
Q4: How heavy a gate can it operate?
The T575L handles gates up to 250kg and 3m in width per leaf.
Q5: Does it include remote controls?
Yes — includes rolling code remotes with secure transmission.
Q6: Can I add smartphone control?
Yes — optional Wi-Fi or GSM interfaces are available for smart access.
Q7: Can I install this gate opener myself?
Yes — the kit is designed for DIY installation with bolt-on brackets and low-voltage wiring, so no electrician is required.
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
| Power Input | 240V AC (Pre wired with 1.2m Cable) |
| Transformer | 24V AC |
| Rectification | On Board Bridge Rectifier |
| Motor Output Voltage | 24v DC |
| Battery Backup | 24V |
| Working temperature | -10° - 50° |
| RF | APC Rolling code 433.92mhz |
| Lock Output (Primary) | 12-30V DC (Depending on Configuration) |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Over current | 1A to 5A |
7 " touch screen wi-fi monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems
|
|
|
|
|
2 Wire Technology |
|
|
Internal Intercom |
|
|
Ringtones |
|
|
Touch screen |
|
|
Additional Monitors Connection |
 |
Wi-Fi Feature for Smartphone APP |
- Wi-Fi Feature for Smartphone APP (No e-Mail registration needed)
- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors
Power supply: DC 20~28V
Power consumption: Standby 0.25W; Working 5W
Communication: Hands-free
Screen: 7 Inch Digital Colour TFT
Display Resolutions: 800*3(R, G, B) x 480 pixels
Video signal: 1Vp-p, 75Ω, CCIR standard
Wiring: 2 wires, non-polarity
Dimension: 161(H) × 174(W) × 22(D)mm
Eyevision® 2 Wire Surface Mount Intercom Keypad Door Station with 170° Wide Angle Fish Eye 2.0 MP Camera |
|
|
Keypad door station with built-in 170° Wide Angle Fish Eye Camera, Stunning modern appearance, Surface Mount, Slim design, Weatherproof, Aluminium face plate Door Station With Full SSS Materials Design and two-channel operation (second lock via add-on relay). When coupled with the Eyevision® 2 Wire monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed. When this door station is coupled with the Eyevision® 2 Wire monitor, the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right, as well as zoom in, in order to move to the desired position on the monitor. |
|
 |
Features:
|
Door Station Specifications |
|
|
Power Supply: DC 24V Power Consumption: Standby 15mA; Working status 105mA Camera: Colour CMOS, 2.0 Megapixel Unlocking time: 1~99s Lock Power supply: 12V dc, 280mA (Internal Power); Number of relay circuits: 2 (the second lock needs an external device to support) Mounting: Surface mounting (EV-D298KP-SM) Working temperature: -15 ºC ~ +55ºC Dimension: 182(H)×93(W)×44(D)mm (EV-D298KP-SM) |
|
